Introducing the EA520, the 5” cutting-edge rugged smartphone delivers powerful barcode reading performance, convenient connectivity, durable but the lightweight design that just fits in the palm of your hand. This enhances the service level for various vertical applications within the retail, hospitality, and field service sectors.
Features
• 5-inch display with 450nits sunlight readable
• Android 11 OS with GMS Certification
• Support most 1D / 2D barcodes on mobile screens, even DPM barcodes
• Lightweight design that just fits in the palm of your hand.
• All-In-One functionality: HF/NFC and 13MP camera
• Rugged: Corning® Gorilla® Glass 3 touch display, IP67 rated, and 1.5M drop (1.8M with boot case)
• Long-lasting removable 4250mAh battery
• Support Bluetooth® 5 / dual-band WLAN, fast roaming / 4G LTE
• Support MDM Software Solutions and utilities such as MoboLink.

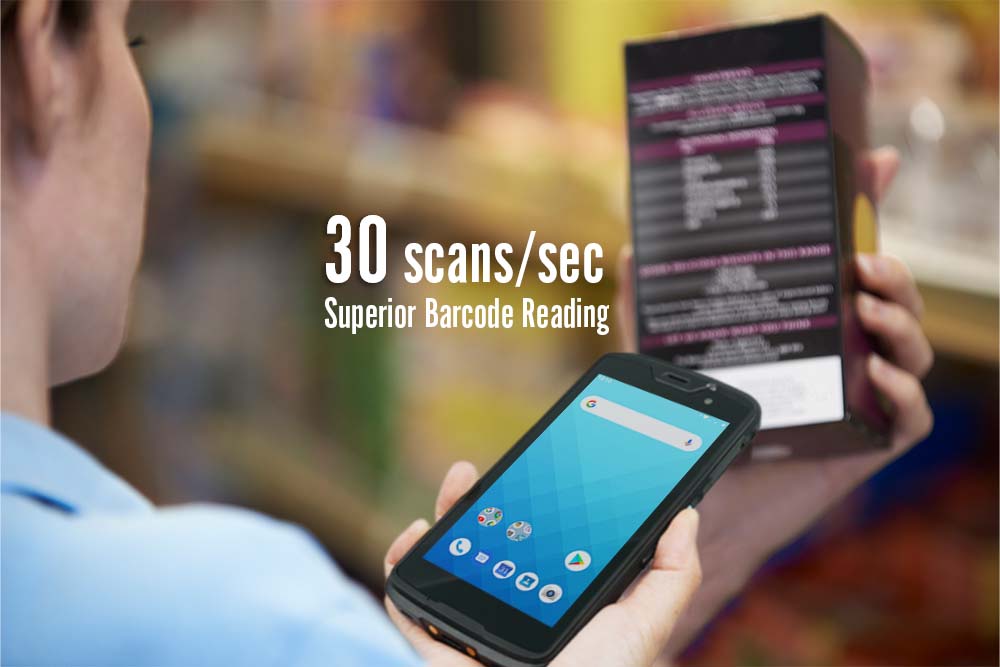

Powerful Barcode Reading Performance
Featuring powerful 1D/2D scanning capability, it also supports DPM codes and ensures read reliability for mobile phone screens and paper in any orientation. Powered by a removable 4100mAh battery, it is an integrated HF/NFC RFID reader/writer, GPS, and a high-resolution 13MP camera in a compact device. The EA520 gives your workforce the technology it needs to take your business to the next level. |
|||
|
|||
1D/2D Support |
DPM code Support |
NFC Reader / Writer |
13MP
|

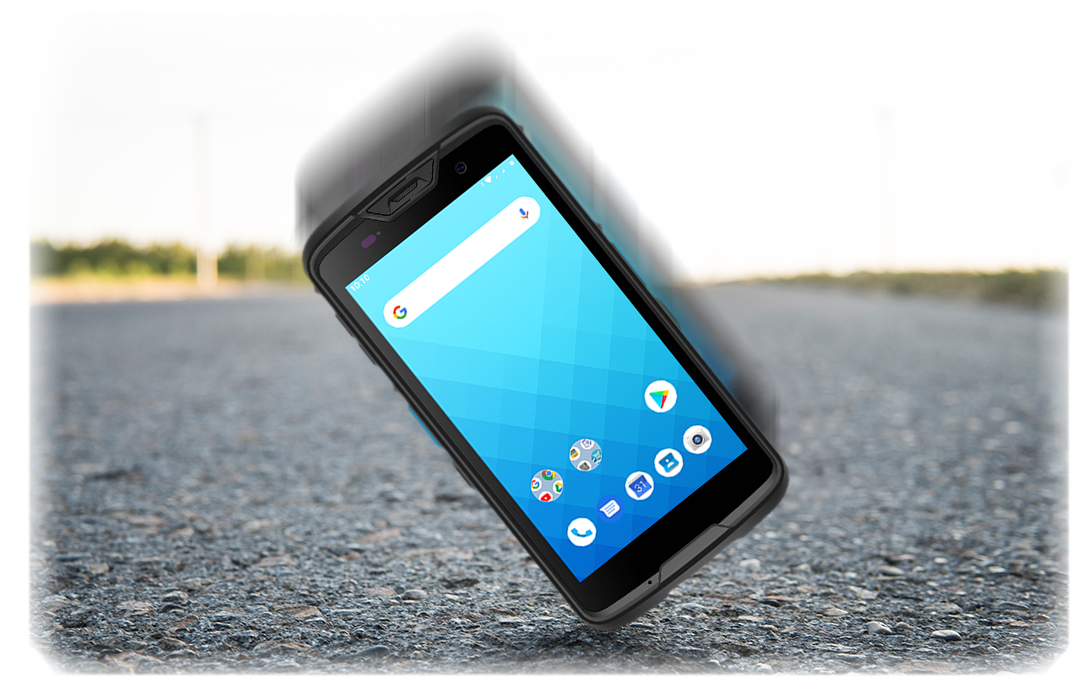

Durable at Its Best
The EA520 enhances the industrial durable protection with features including IP67 dustproof, waterproof, and 1.5 meters resistance to fall protection (1.8 meters with boot case). That means it covers fully protected from dust and can survive in 1 meter of water for up to 30 mins.
|
|||||
IP67 Certification |
1.5m Drop Protection |
1.8m Drop with Bootcase |
|||

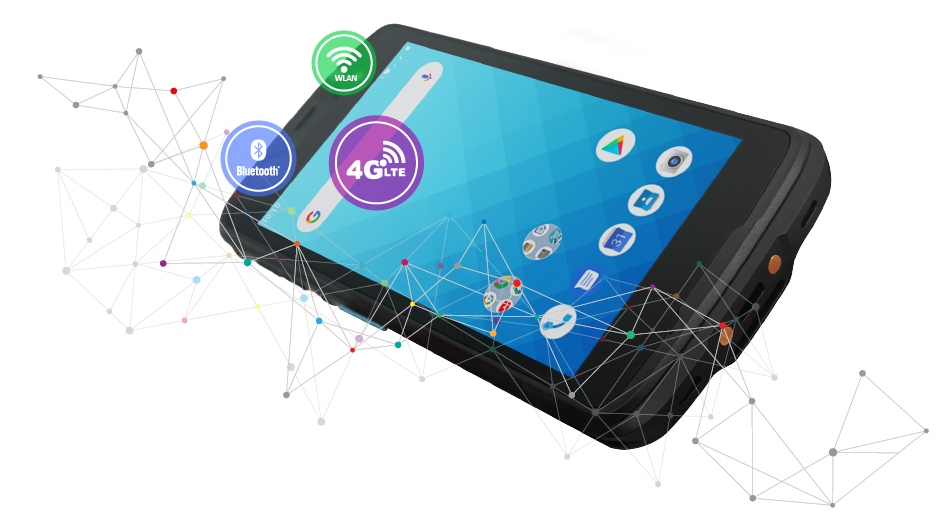

Seamless and Connectivity
Featuring Bluetooth® 5, wireless dual bands with fast roaming and 4G connectivity for real-time data collection, staff can scans the item and instantly connect to the backend system to find out the quantity in stock or make an online order for customers. The EA520 delivers a seamlessly work experience and improves productivity for various applications.
|
|||||
Bluetooth 5 | 4G Communications |
Dual bands Wireless |
|||
![]() |
|
|||||
SmartPA: Better Audio Output |
|||||
|
|||||
SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer.The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.
|
|||||
|
|||||
Power Amplifier Better Audio Output |
Built-in Algorithm Lessen Circuit / Temperature Damage |
Specification
Operation System
- OS Android 11
- GMS certified GMS certified
- CPU Octa-core 2GHz Processor
- Memory 4 GB RAM / 64 GB Flash
- Languages support Multiple languages
-
Others
Input Chinese/ English
Supports handwriting and soft keyboard
Display
- Screen Size 5.0” TFT-LCD HD (720 x 1280) color screen
-
Touchpanel
Gorilla Glass 3. Ultra sensitive capacitive touch screen,
compatible with gloves and supports wet resistance
Buttons / Keypad
-
Buttons / Keypad
Side SCAN button x 2 (Left / Right), User-defined function button
(programmable key), volume up/down buttons, on/off button
Camera
-
Camera
8MP front camera
13M rear camera with LED flash and auto-focus function
Indicator Type
- Type LED, Speaker, Vibrator
Symbologies
- 1D Barcodes Support all major 1D and 2D barcodes
- 2D Barcodes Support all major 1D and 2D barcodes
RFID
-
HF RFID
Support HF/NFC, Frequency 13.56Mhz, ISO14443 A/B,
ISO15693, Felica(ISO/IEC18092), Mifare compliance
Communication
- Bluetooth® Bluetooth® 5 supported
-
WLAN
802.11 a/b/g/n/ac/d/e/h/i/j/k/r/v, 2.4G+5GHz, support fast
roaming, VoWiFi, hotspot,
Compliant with WFA, WPA/WPA2 -
WWAN
4G LTE FDD: B1/B2/B3/B5/B7/B8/B20/B28A/B28B
TDD: B38/B39/B40/B41
3G WCDMA: B1/B5/B8
2G GSM: 850,900,1800,1900MHz
- GPS AGPS, GPS, GLONASS, Beidou, Galileo
- Sensors Light Proximity, Accelerometer, e-Compass, Gyroscope sensor
- Fingerprint Optional
I/O Interfaces
- USB USB 2.0 (Type-C)
- OTG Yes, over USB Type-C
- POGO PIN Charging via cradle
- SIM Slot Dual SIM , support LTE + LTE
- Expansion Slot MicroSD, up to 256 GB
-
Audio
One speaker (1.5W / 95±3dB @10cm), One receiver ,
Dual noise-cancelling microphones
Enclosure
- Dimensions ( W x D x H ) 151.1 x 76.8 x 13.7 mm
- Weight 242g (with battery)
Durability
- Drop Specification 1.5m, 1.8m with boot case
- Sealing IP67
- Vibration and Shock test 0.5m tumbles for 300 cycles / 600 drops
Environmental
- Operating temperature -20°C to 60°C
- Storage temperature - 40°C to 70°C (without battery)
- Charging temperature 0°C to 45°C
- Relative Humidity 95% ( non-condensing )
Power Source
-
Main battery
3.85V 4250mAh
Removable
Software
- MDM Software SOTI, AirWatch, 42Gears, and MoboLink
Regulatory Approvals
-
Regulatory Approvals
CE, FCC, NCC, CCC, SRRC, VCCI, TELEC, RoHS, BQB, N-Mark, BSMI
for battery
Accessories
-
Accessories
■ EA520 Battery 3.85V 4250mAh (PN#1400-900062G)
■ USB 2.0 type C cable (PN#1550-905919G)
■ 5V/2A Adaptor with US plug for terminal & cradle (PN#1010-900058G)
■ 5V/2A Adaptor with universal plugs for terminal & cradle (PN#1010- 900067G)
■ Single Slot Charging Cradle* (PN#5000-900092G)
■ Single Slot USB Cradle* (PN#5000-900093G)
■ Gun Grip- For EA520 Without Boot Cover On (PN#5500-900097G)
■ Glass Screen Protector(PN#401621G)
■ Glass Screen Protector w/ packing, 10pcs/ box (PN#5400-900047G)
■ Boot Case (PN#3210-900031G)
■ Hand Strap with fixed arm- individual package (PN#5400-900046G)
■ Stylus (PN#384896G)
■ coiled strap (PN#383642G)
* Use USB Cable & Power Adapter from EA520
