EA520 Plus
5G Rugged Touch Computer
5G & WLAN 6E｜10m Barcode Reading Distance｜Hot Swappable 5100mAh Battery
-
Android 12
-
AI
-
GMS certified
-
AER certified
-
5G
-
WLAN
-
6.3
-
2D
-
Pogo pins
-
IP65
-
IP68
-
1.8M
-
Retail
-
Logistics
-
Government
Unitech introduced its first 5G rugged mobile computer, EA520 Plus, which aims to boost the operation experience with speedy wireless communication,
outdoor durability for various professions in field service, transportation and logistics applications.
Features
•Android 12 OS with GMS certified
•Leading 5G dual SIM card enterprise handheld computer
•Support WLAN 6E : 2.4 and 5GHz frequency as well as the 6GHz band
•Superior barcode engine : 1D/ 2D/ DPM/ DOT code/ barcodes on screens/ OCR
•Multi-Scan function: Available to read 10 barcodes at one time

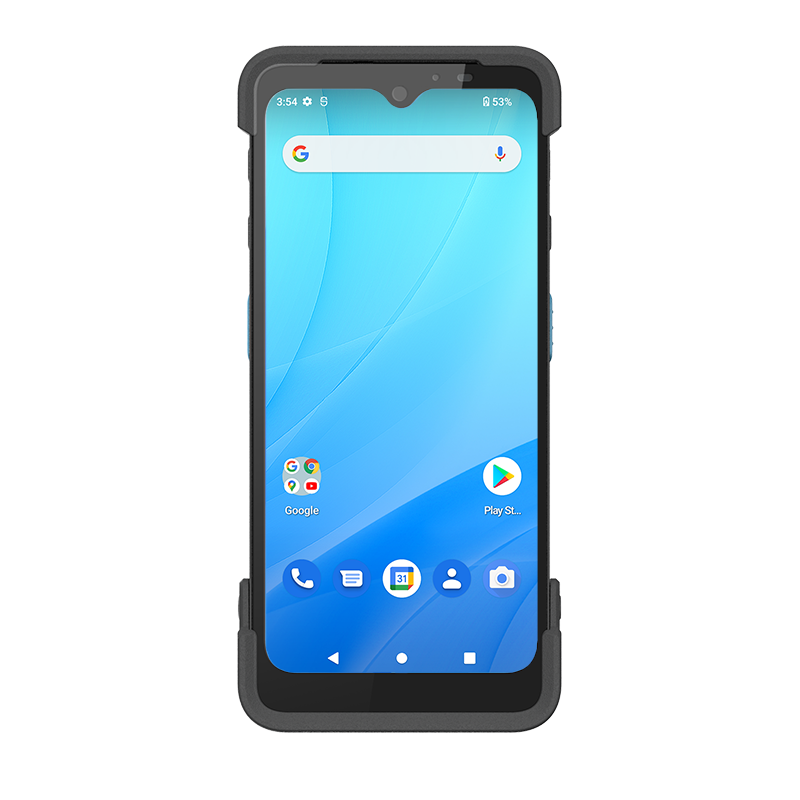

•1.5M drop-resistant housing (1.8M with bumper)
•IP65 & IP68 heavy-duty protection against water and dust
•True Hot-swap battery design without downtime
•Support MDM Software Solutions and utilities such as Airwatch,SOTI,Ivanti Wavelink, and MoboLink.
Powered by Android 12 OS with GMS & AER Certified

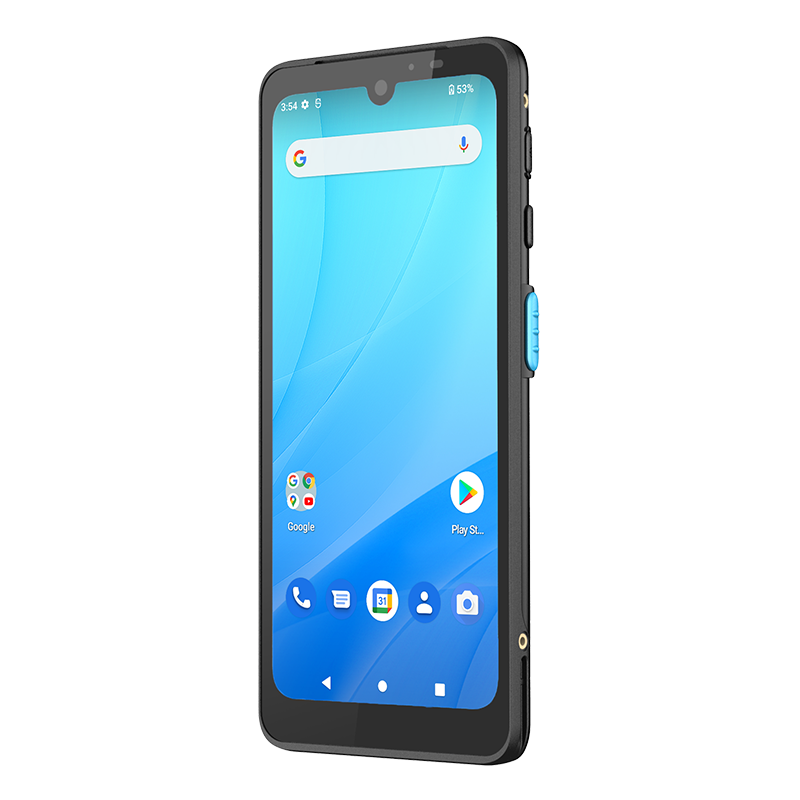

• 6.3 inch (20:9) Android 12 rugged mobile computer with Split Screen function
• Advanced 64-bit Octa Cores CPU up to 2.7 GHz
• Google Certification: Google Mobile Service（GMS）/ Android Enterprise Recommended (AER)
| Android 12 Operation System |
GMS & AER Certification |
Octa-Core CPU |
6 GB RAM
|
Note: Learn more about Android Security bulletin information |
|||
Outstanding Long Range Barcode Reading Technology
Utilizing a premier 2D barcode scanning technologies, the PA768 rugged touch computer enables barcode reading at distances up to 10m* with 5G and WLAN6E connectivity. It delivers a perfect solution for the warehousing environment that users can enjoy the high performance of barcode reading even from a short or a long distance and optimize work efficiency.
*Optional Middle range engine support read range up to 10 meters.
Support ARCore Technology
The PA768 rugged touch computer supports ARCore technology that allows developers to create augmented reality apps to sense its environments and interact with information. The PA768 enhances the CPU and built in the quality of both the camera and the motion sensors, it gives users stable performance to handle everything.
The ARCore technology transforms the way people work that helps to locate and identify the elements in warehouse management, allows training for the user while executing the production processes, and precise details of the areas at risk allow for increased vigilance limiting accidents in field service applications .
Reliable at its best
|

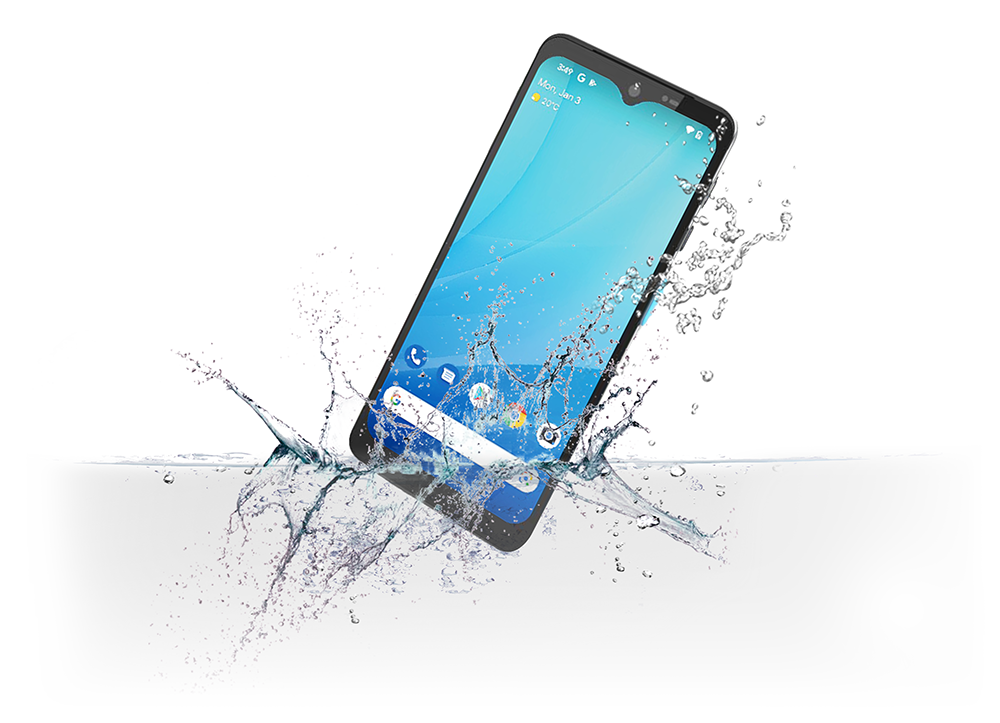

The PA768 also comes with the GMS certified that makes your toughest workdays easier. Reaching IP65 & IP67 enterprise protection and withstanding 1.8M drop makes PA768 a perfect tool to maximize data collection, management, and traceability in nearly every practice of transportation & logistics, field service, manufacturing, and more!
|
|||||
| IP65 & IP67 Certification |
1.5m Drop Protection |
1.8m Drop with Bumper |
|||
.png)
User-Friendly Functionality
• True Hot-swap battery design without downtime.
• Ergonomic handle design for long time use with a durable trigger key.
• Workers can run more smooth operations while wearing gloves (thickness ≤ 4mm) or wet-fingers.
• Various Accessories for customer needs.
• Support MDM Software Solutions and utilities such as Airwatch, SOTI, Ivanti Wavelink and MoboLink.
SmartPA: Better Audio Output
SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.
| Power Amplifier Better Audio Output |
Built-in Algorithm Lessen Circuit / Temperature Damage |
Optical Character Recognition (OCR)
• Easily convert numbers or characters to digital formats on cardboards, paperwork, electronic chips.
• Minimize the typing mistakes when entering the numbers.
• Streamline your tedious typing process.
| Airline | Manufacturing | Logistics |
✔The Airline Ground Services｜Read ID numbers from passports
✔Manufacturing｜Read vehicle registration numbers and electronic chips
✔ Logistics&Retail｜Read lot numbers printed on the package
TAA Compliant Mobile Computers
Specification
Operation System
- OS Android 12
- GMS certified with GMS & AER certified
- CPU Qualcomm Snapdragon™ 6490 Processor, 64bits, Octa Cores up to 2.7GHz
- Memory 6 GB RAM / 64GB UFS Flash (128GB option)
- Languages support Multiple languages
Display
-
Screen Size
6.3” Color LCD 1080 X 2340 (FHD+) High Resolution Display
High sunlight visibility- LCD backlight up to 500nits -
Touchpanel
Gorilla Glass with Multi-Touch Capacitive Touch Panel, support stylus, glove, wet-finger Compatibility
Buttons / Keypad

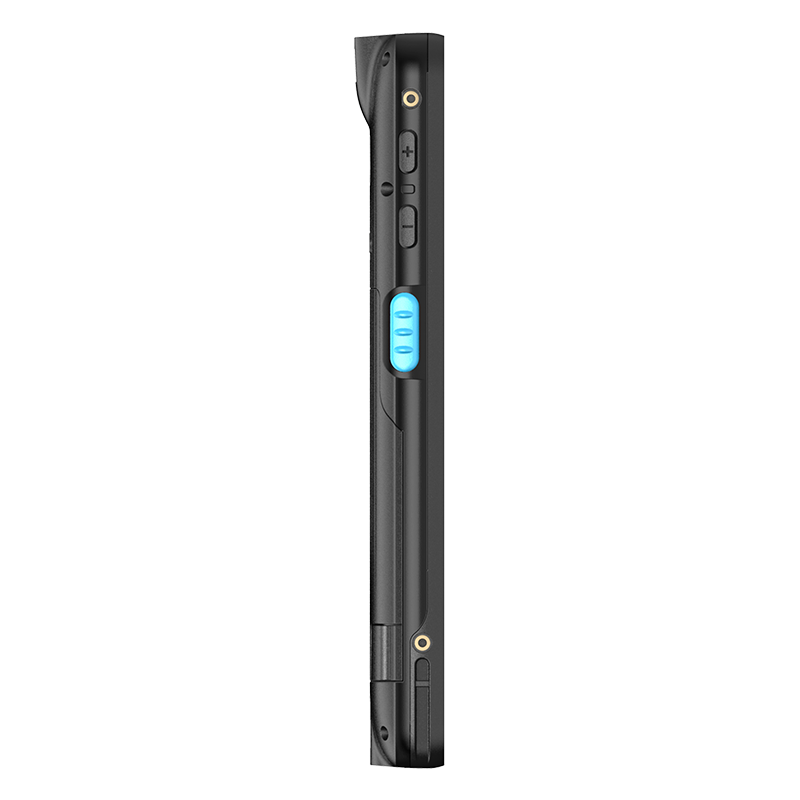

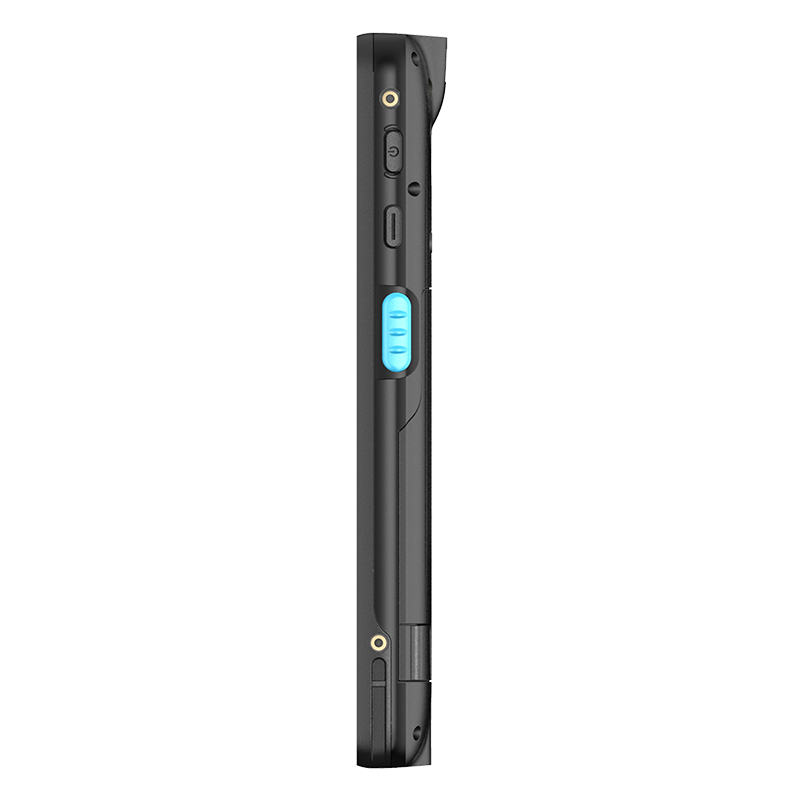

- Buttons / Keypad Programmable key, Volume up/down key, Left/right scan key, Power key
Indicator Type
- Type LEDs, Vibrator, Speaker
Communication
- Bluetooth® Bluetooth® 5.2 , BLE 5, Class 1.5
-
WLAN
WLAN 6E, 2.4GHz & 5GHz & 6GHz, support Dual-Band Simultaneous (DBS)
IEEE 802.11a/b/g/n/ac/d/h/i/k/r/v/ac/ax (2x2 MU-MIMO)
Security WPA3, WPA2, WPA & WEP -
WWAN
5G Sub 6GHz – N1/N2/N3/N5/N28/N41/N71/N77/N78/N79 (4x4 MIMO)
4G LTE(FDD) – Bands 1, 2, 3, 4, 5, 7, 8, 17, 20, 28
(TDD) – Bands 38, 39, 40, 41
3G UMTS/HSPA+ – Bands 1, 2, 5, 8
2G GSM/GPRS/EDGE (850/900/1800/1900 MHz)
*Support Dual Sim Dual 5G
*Support 4G LTE Advanced , Up to CAT12 LTE downlink/uplink - GPS GPS/GLONASS/Gallileo/Beidou, support L1+L5
- Sensors Gyroscope, G-sensor, E-compass, Light & Proximity Sensor
RFID
- UHF UHF gun grip (see RG768)
-
HF
Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693, Mifare,
Felica(ISO/IEC18092)
I/O Interfaces
-
USB
USB 3.1 Type-C, support fast charging
Support Display Port Mode by dongle or USB-C of Ethernet cradle - OTG Yes, over USB Type-C

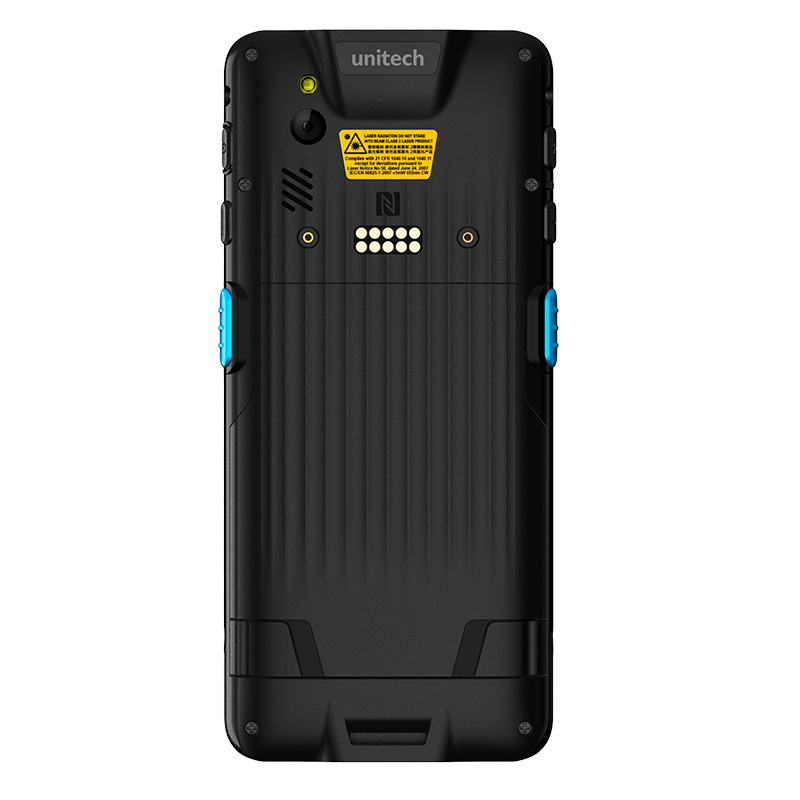

- POGO PIN Bottom pogo pin for cradles, rear pogo pin for gun grips
- SIM Slot Nano SIM Slot x 2
- Expansion Slot Micro SD x 1, up to 1 TB
-
Audio
1.5W output, One speaker with SmartPA (100 dB at 10cm)
Dual-Microphone support noise cancellation
Enclosure
- Dimensions ( H x W x D ) 167mm x 75.5mm x 17mm
- Weight 270 g (with standard battery)
Durability
-
Drop Specification

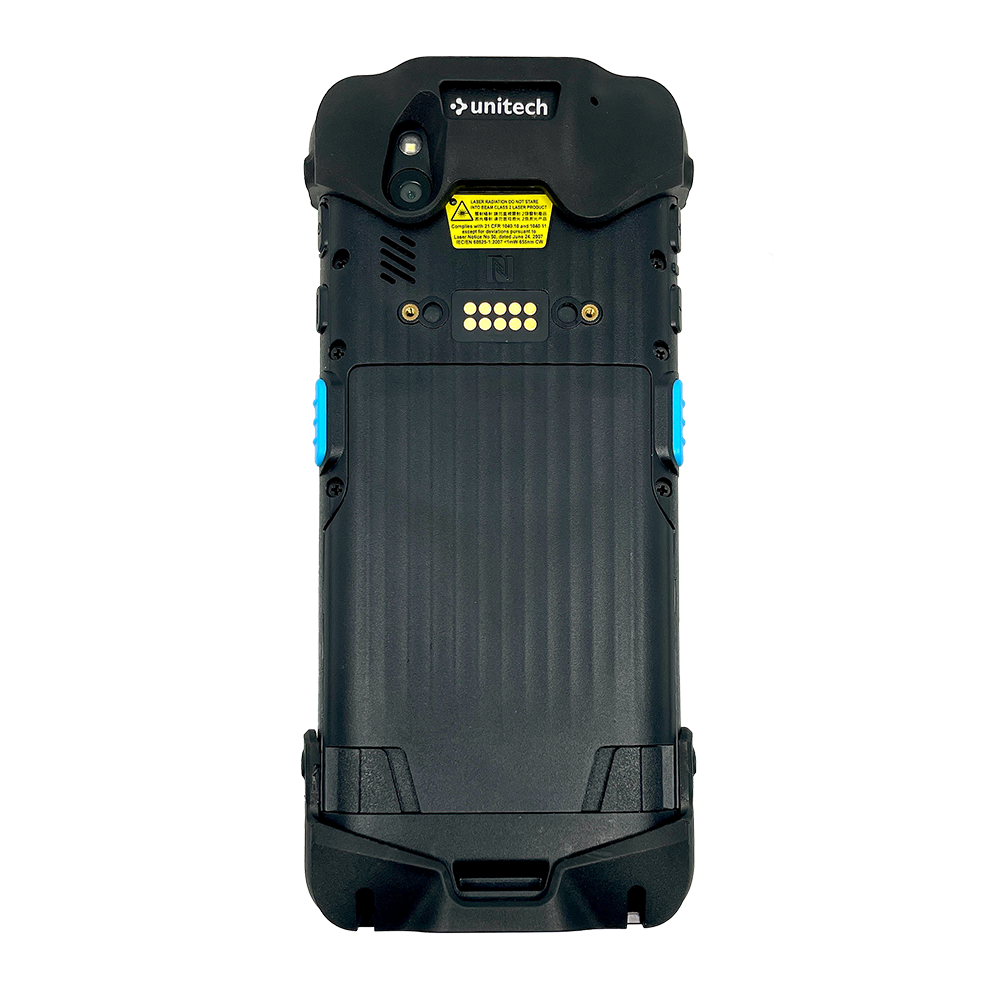

1.8 meter with bumper(default)
1.5 meter without bumper - Sealing IP65 & IP68
Power Source
- Main battery Hot Swappable 5100mAh Li-Polymer battery / battery with cover in one piece
- Extended battery 7700mAh / battery with cover in one piece (optional)
- Hot Swap Battery Keeps applications active up to 1 minute
Symbologies
- 1D Barcodes Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32 (PARAF), EAN-UCC Emulation, GS1 Data Bar
- 2D Barcodes Codablock A, Codablock F, PDF417, MicroPDF417, Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code
Environmental
- Operating temperature -20°C to 55°C (-4°F to 131°F)
- Storage temperature -40°C to 70°C (-40°F to 158°F), without battery
- Charging temperature 0°C to 45°C (32°F to 113°F)
- Relative Humidity 5% ~ 95% (Non-Condensing)
Software
- MDM Software SOTI, AirWatch, 42Gears, 12Manage, and MoboLink
Regulatory Approvals
- Regulatory Approvals CE, FCC, NCC, VCCI, TELEC, CCC, SRRC, BQB, N-Mark, RoHS 2.0
Accessories
-
Accessories
•Hand Strap
•USB 3.0 type-C cable
•Fast Charge Adaptor

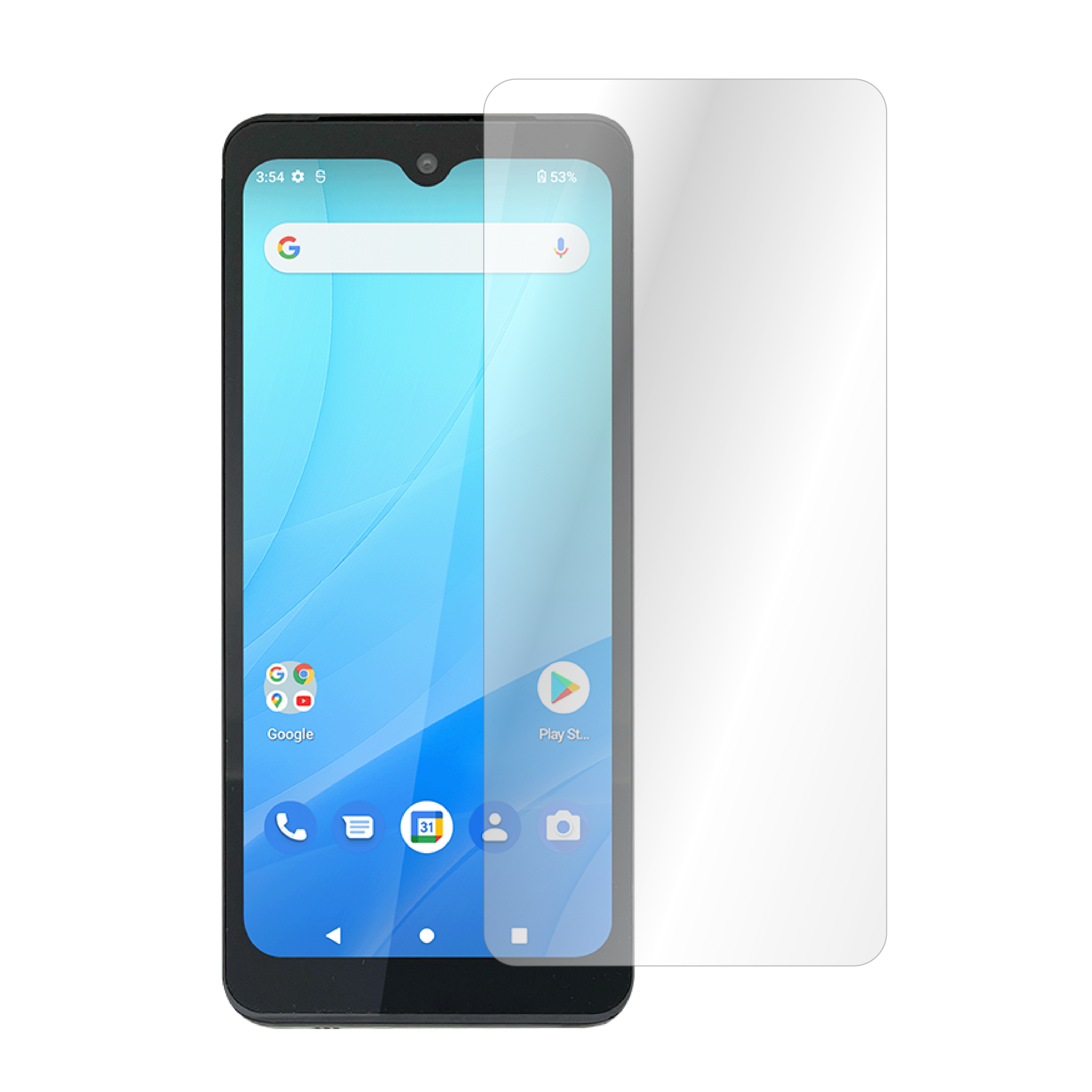

•9H Glass Screen Protector
•Multi-Slot Terminal Charging / Ethernet Cradle / Battery Charger

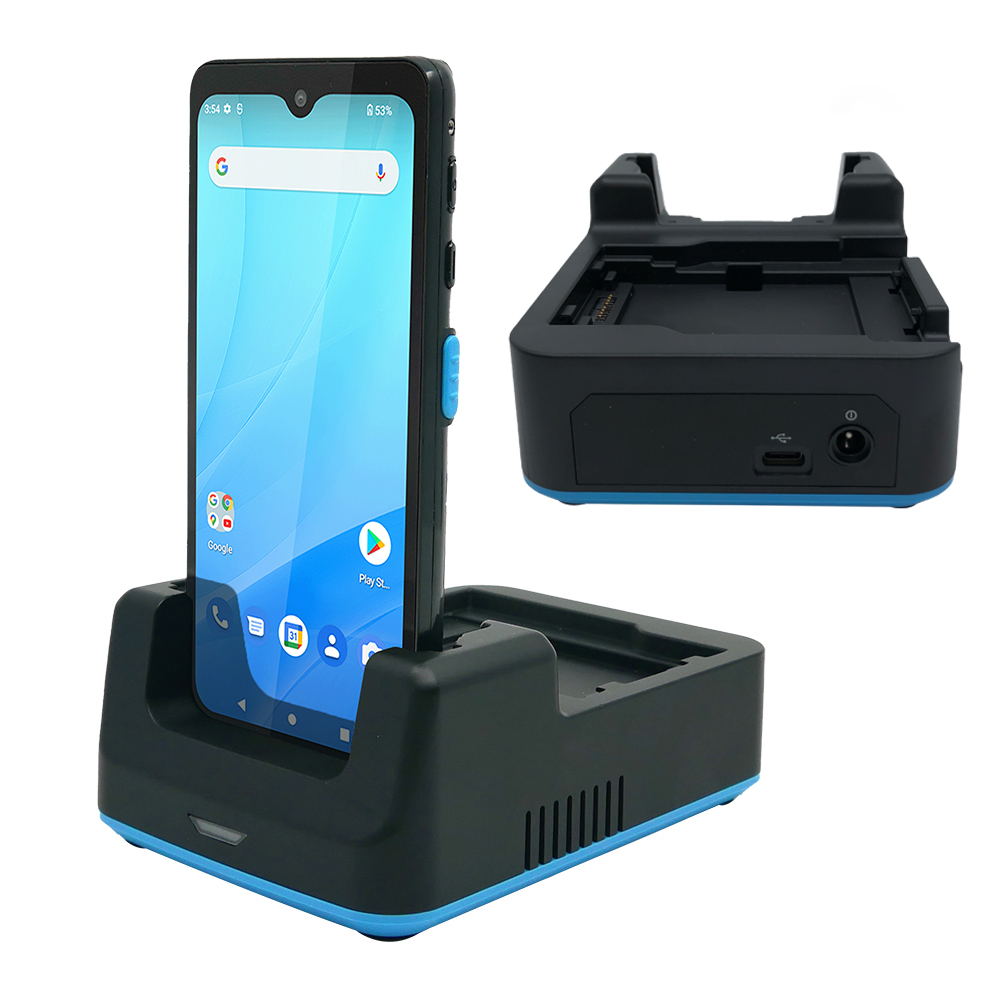

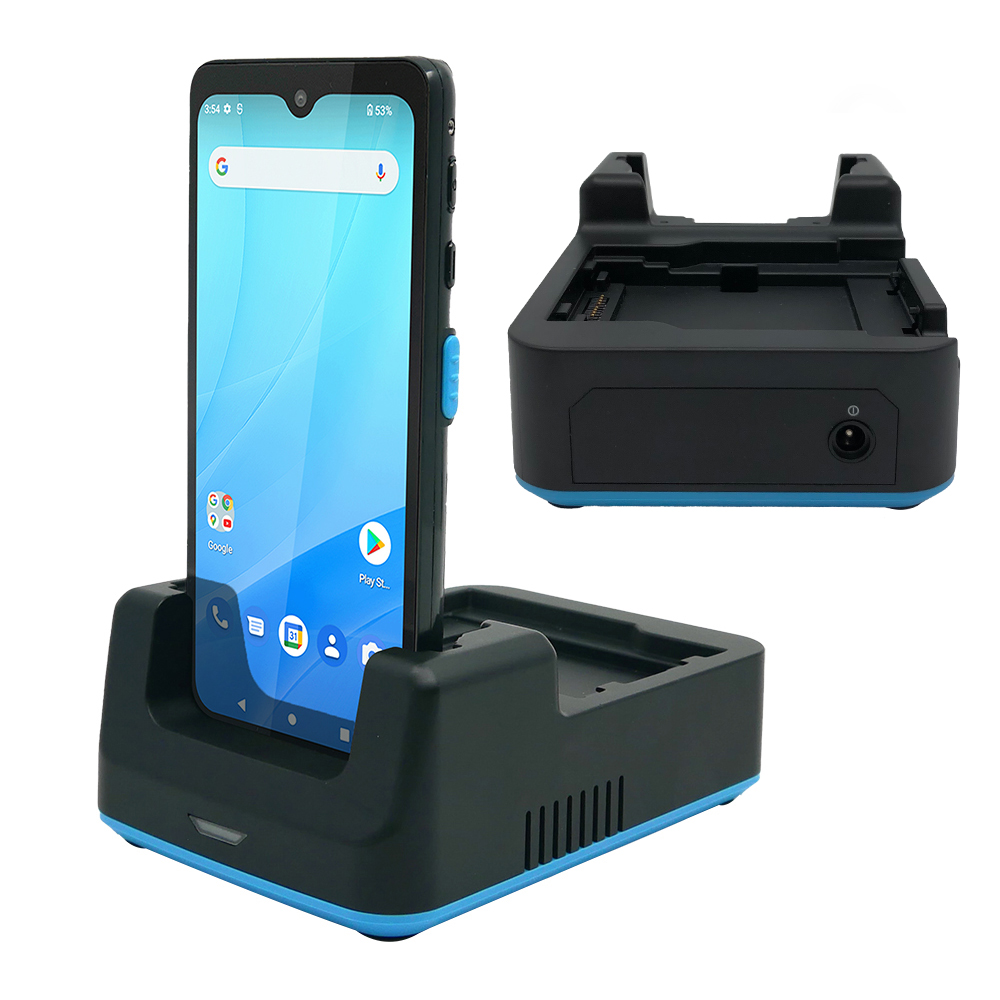

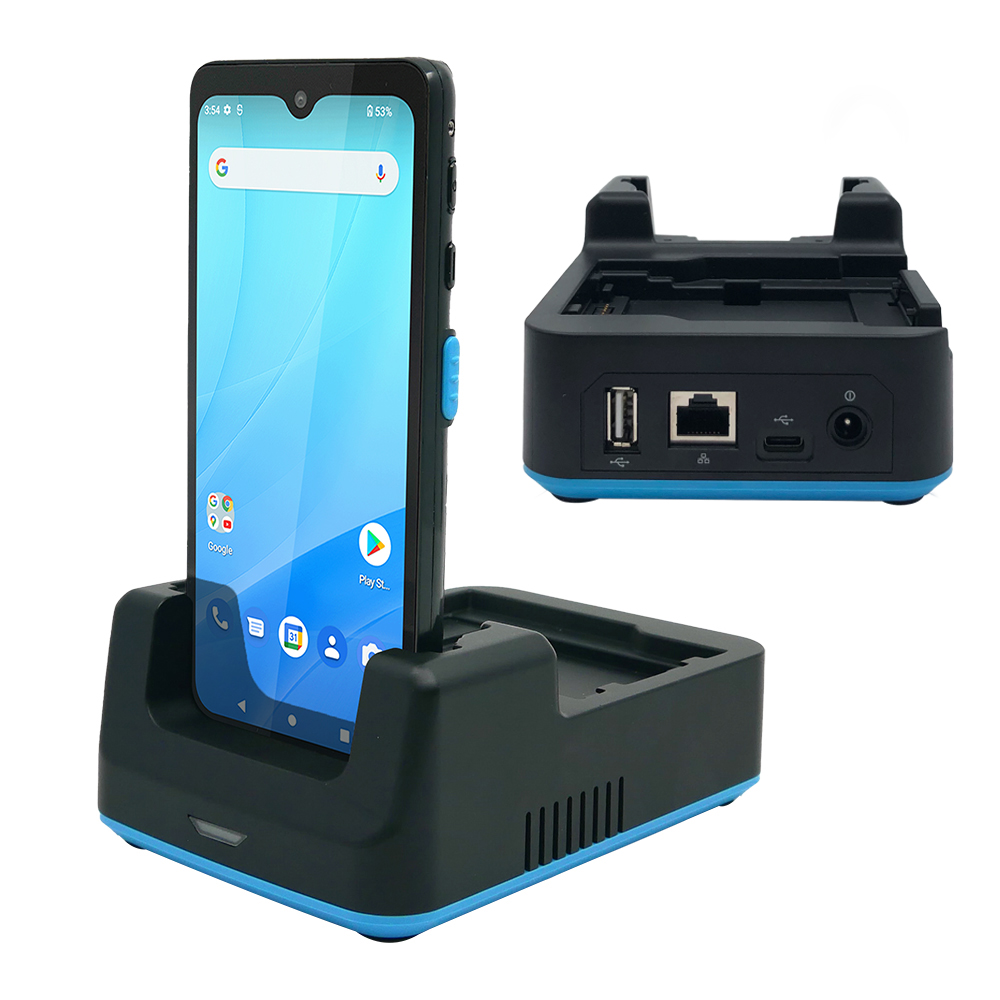

•1-Slot Charging / USB / Ethernet cradle

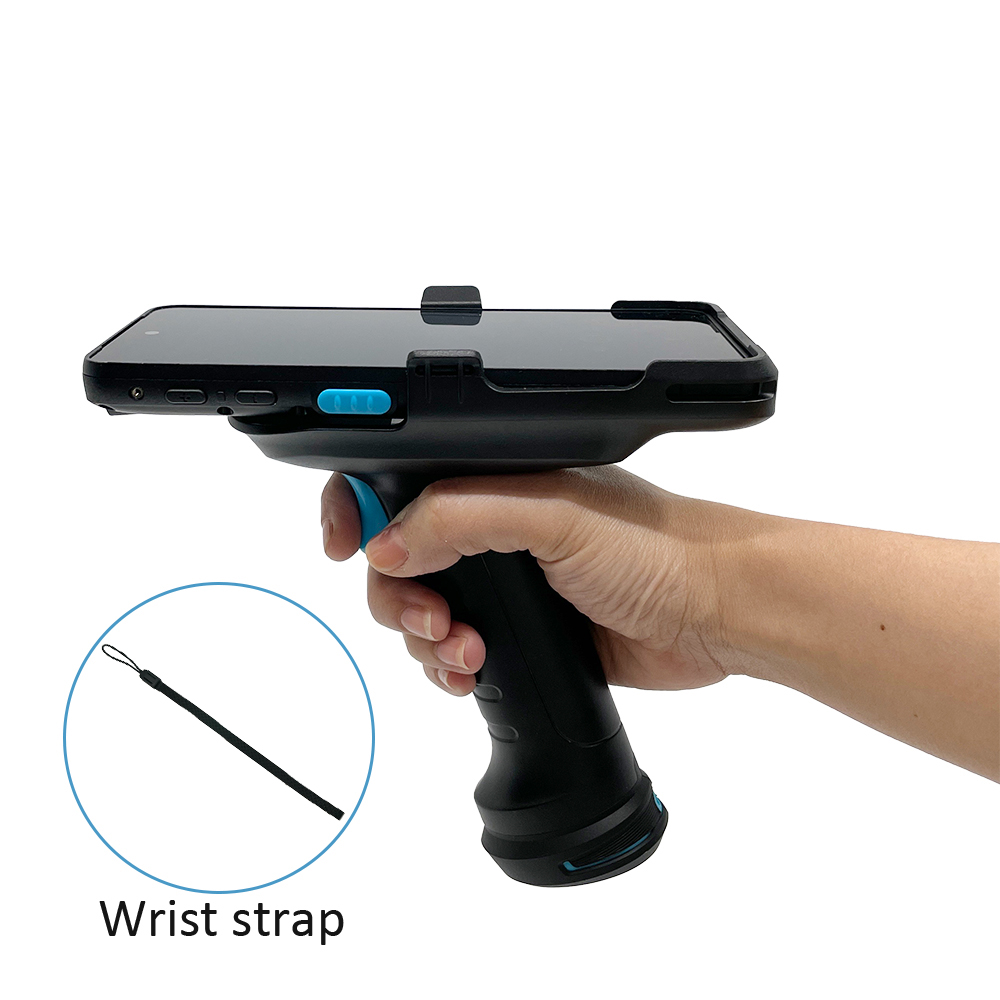

•Standard/UHF Gun Grip
•Stylus & Coiled Strap
Accessories
