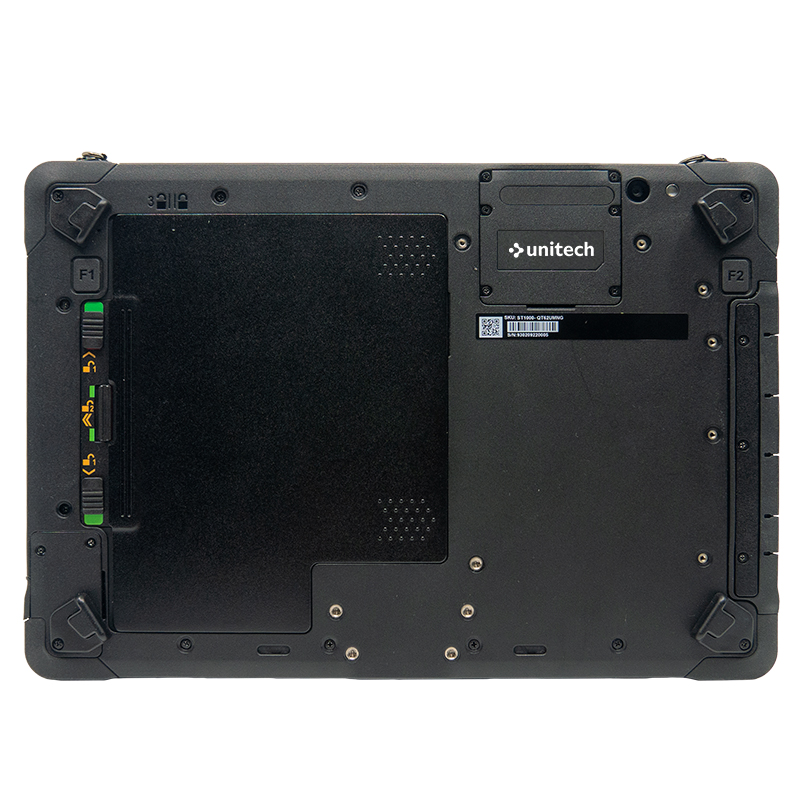

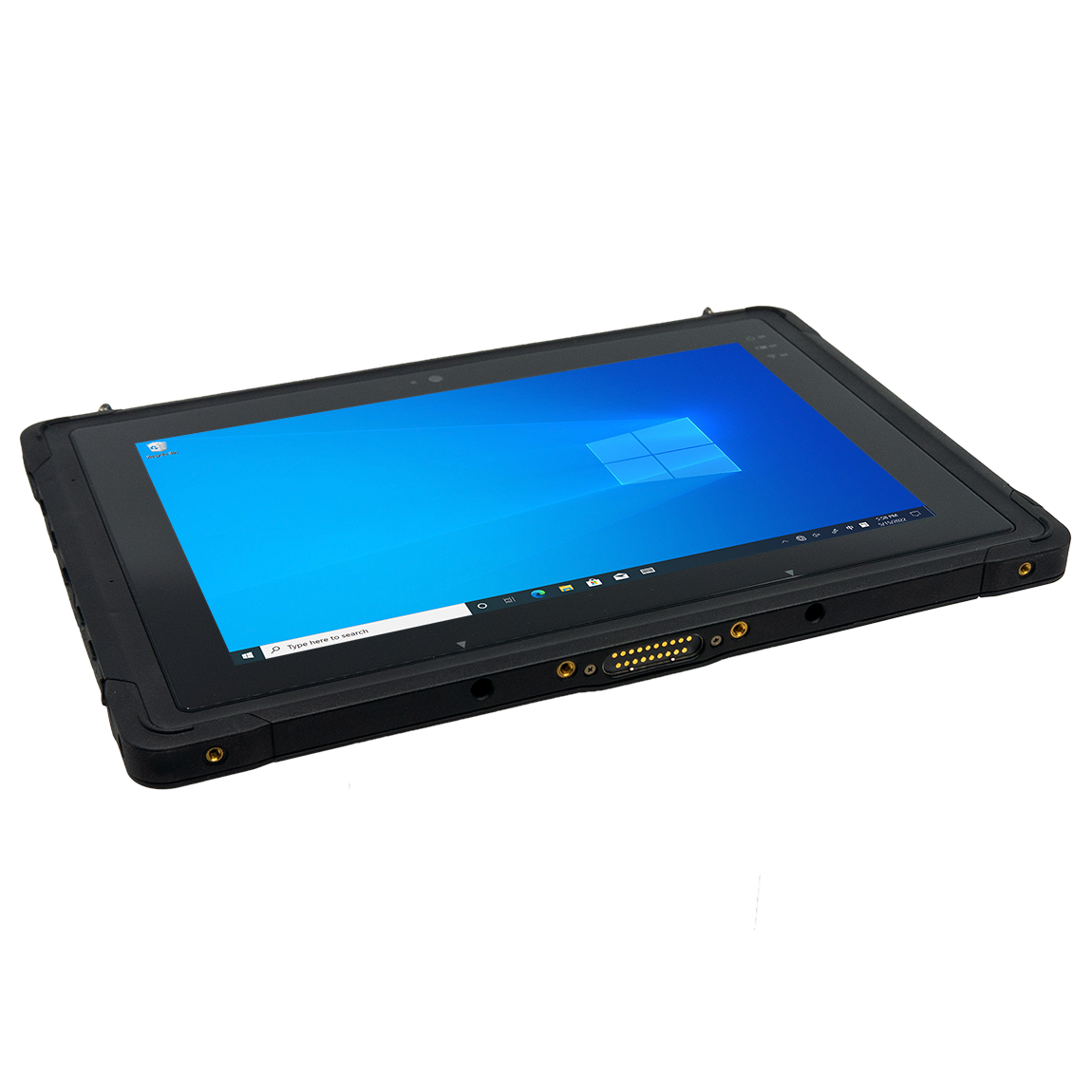

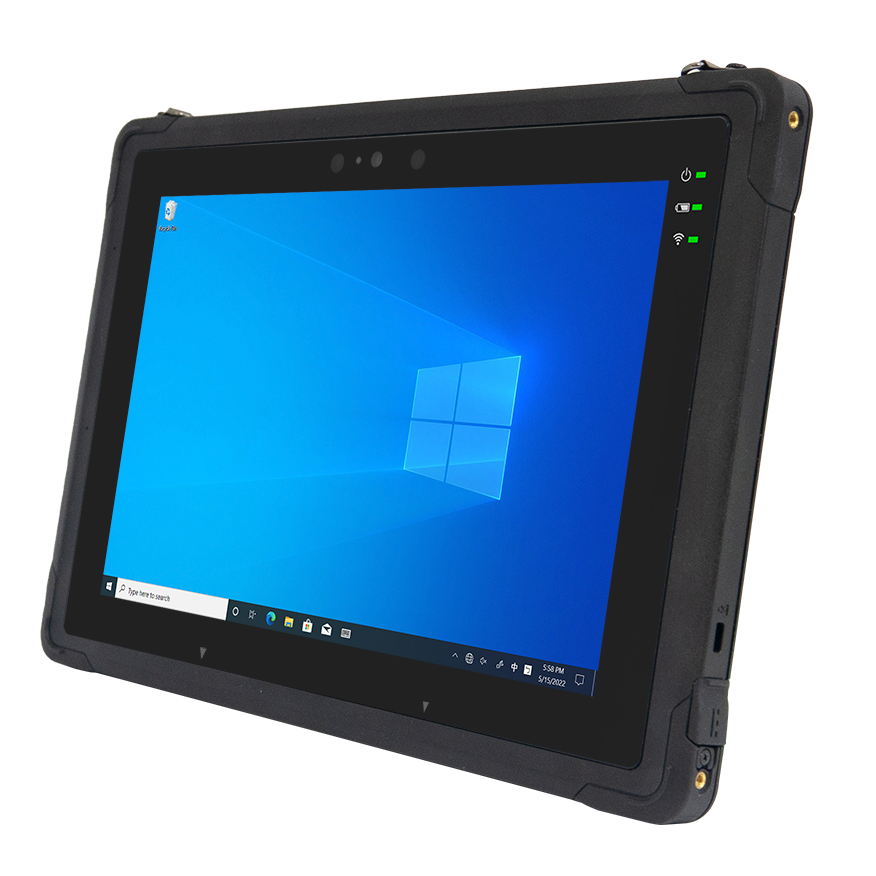

Deliver the thinnest and lightest rugged tablet, The Unitech EA520T also know as the Unitech TB170, to ramp up your work production. The 10.1-inch rugged tablet is engineered to give your optimum portability to finish tasks with a comfortable digitizer at ease. Operated in Windows 11 and a faster Wi-Fi 6 connection, EA520T safeguards the scanned data stability and accuracy under the refreshed system look for every user working in manufacturing, field service, and warehousing.
Features
• Windows 11 operating system
• 10.1" (1920 x 1200) IPS 800 nits sunlight readable
• Hot-swappable battery design with a capacity 4300mAh up to 10 hours (depends on usage function and environment)
• Lightest and thinnest casing only 990g with 15 mm
• Rugged Design: IP65, MIL-STD-810G, 1.5m drop resistance
• Latest wireless technology: Wi-Fi 6 802.11ax. & Bluetooth® 5.2
• Simply write and highlight on EETI digitizer pen
• Common and useful I/O ports you name including USB TypeA&C, Ethernet
• Accessories: Shoulder or Hand Strap/ Vehicle or Office docking / Brief Case Handle
• Support Trusted Platform Module (TPM) 2.0
Advanced Technology: Wi-Fi 6
Its dependable Bluetooth® 5.2 and low-latency Wi-Fi 6 connectivity is perfectly suited for industries requiring wider space movement, such as large warehouses and distribution centers. The faster 9.6 Gbps speed rate stabilizes the wireless connection for Internet phone calls and meetings even when a bunch of devices is connected. The leading Windows 11 operating system brings another level of a modern look, and solid functions made to provide field workers with the best viewability. |
|
|||||||
Wi-Fi 6 | Bluetooth® 5.2 |
Windows 11 Operation System |
11th Intel® Celeron |

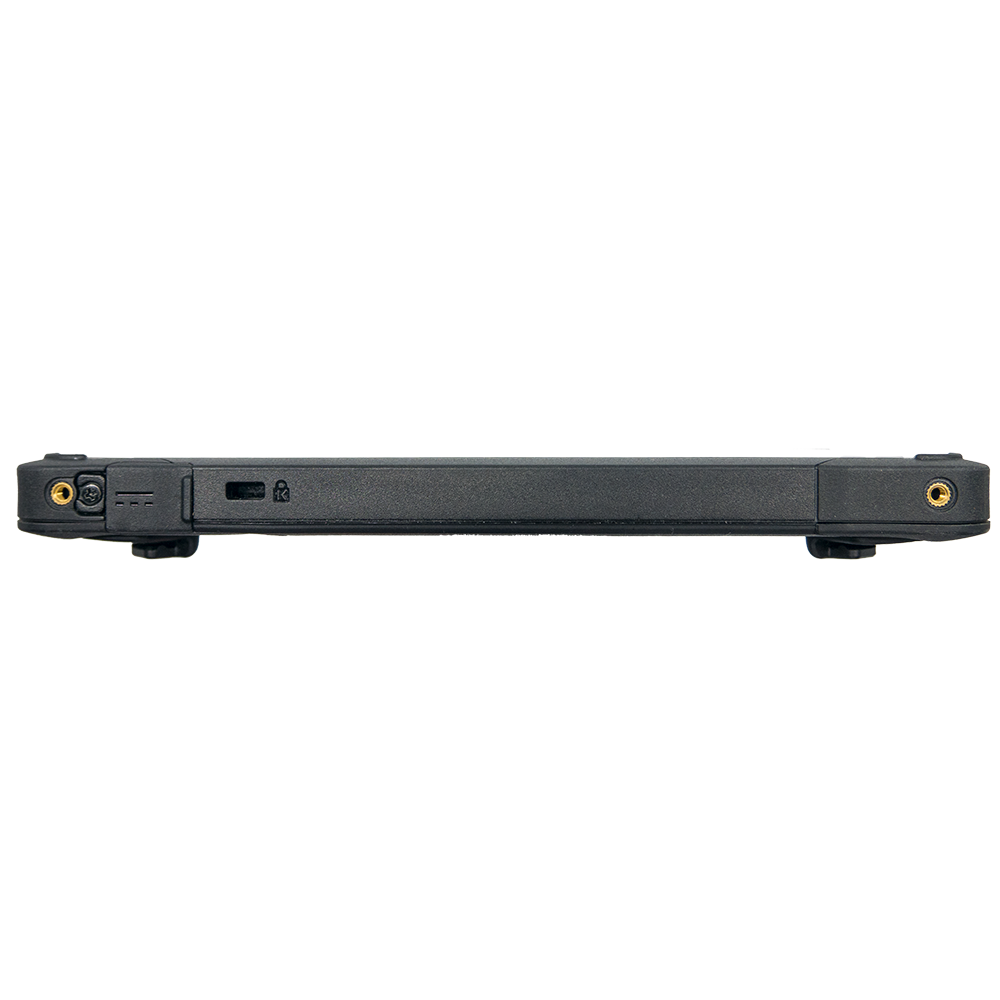

Thin and Light Tablet yet Durable

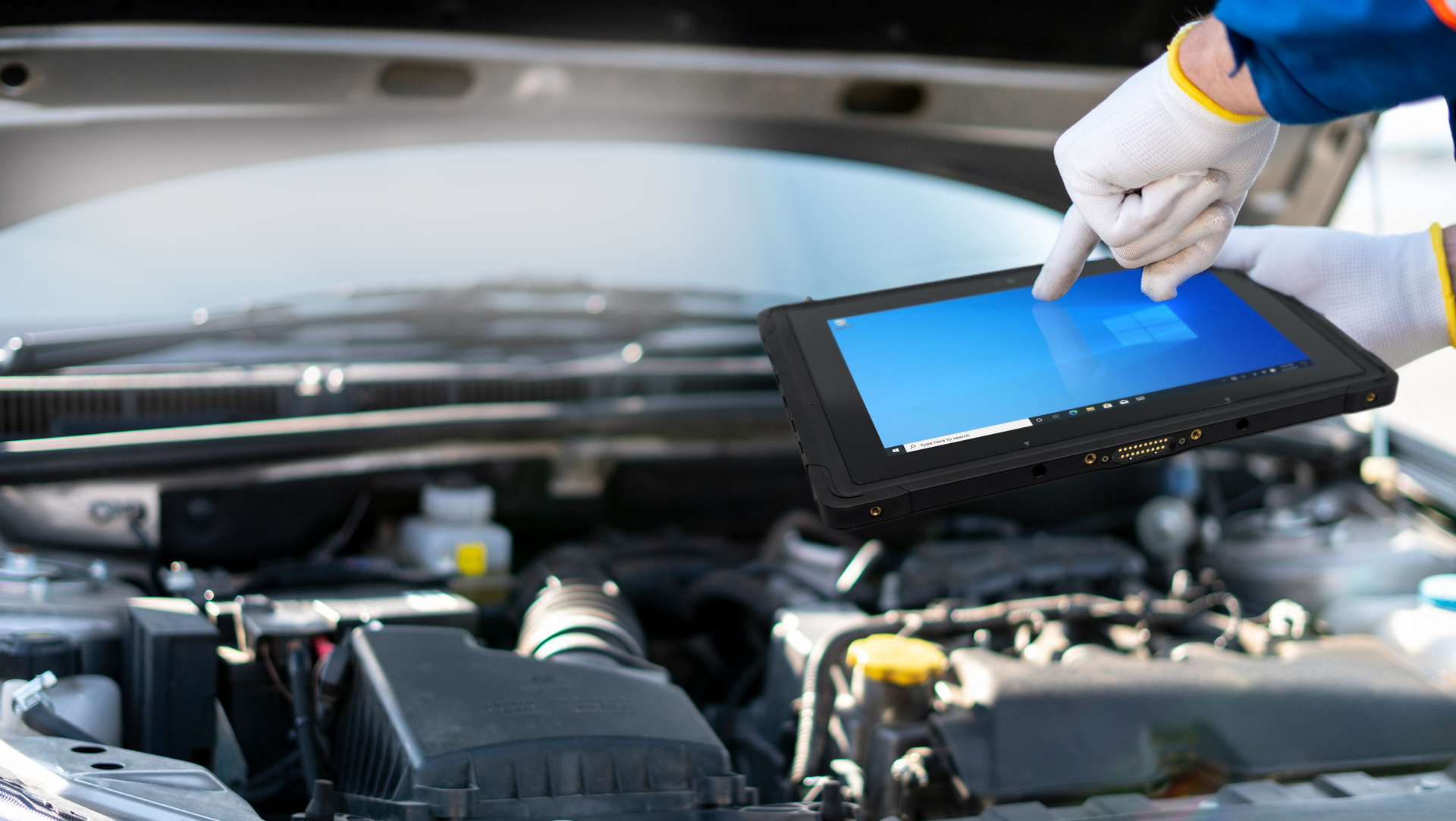

The light tablet with a slim 15mm edge is designed for workers to comfortably capture data and check inventory in high portability from day to night. For an easy touch and view, the 10.1” display supports glove and wet touch mode and is sunlight readable with 800 nits. To meet enterprise rigorous scenarios, EA520T withstands dust and water drops with IP65 protection and is tested for 5 ft / 1.5 m onto concrete. The MIL-STD-810G standard assures an overall environmental vibration and humidity. |
|
|||||||||
10.1" |
800 nits |
IP65 Certification |
1.5 m Drop Protection |
MIL-STD-810G Military Standard |
Smooth Input, Greater Output |
|||||
Coming with a sensitive digitizer, the EA520 empowers associates to write a memo or a signature on the 10-point multi-touch panel. Paired with a superior 2D engine, it collects data efficiently by pressing its programmable key. These integrated I/O ports (USB TypeA&C, SIM Card Reader, RJ45 Ethernet Port, Replaceable DC jack, Micro HDMI,SDXC Card Reader, 3.5mm Audio jack) allow external equipment to synchronize data once they are connected. |
|||||
|
|||||
10 points Touch Panel |
2D engine Support |
I/O Ports |
Full-shift Battery Life |
|||||||

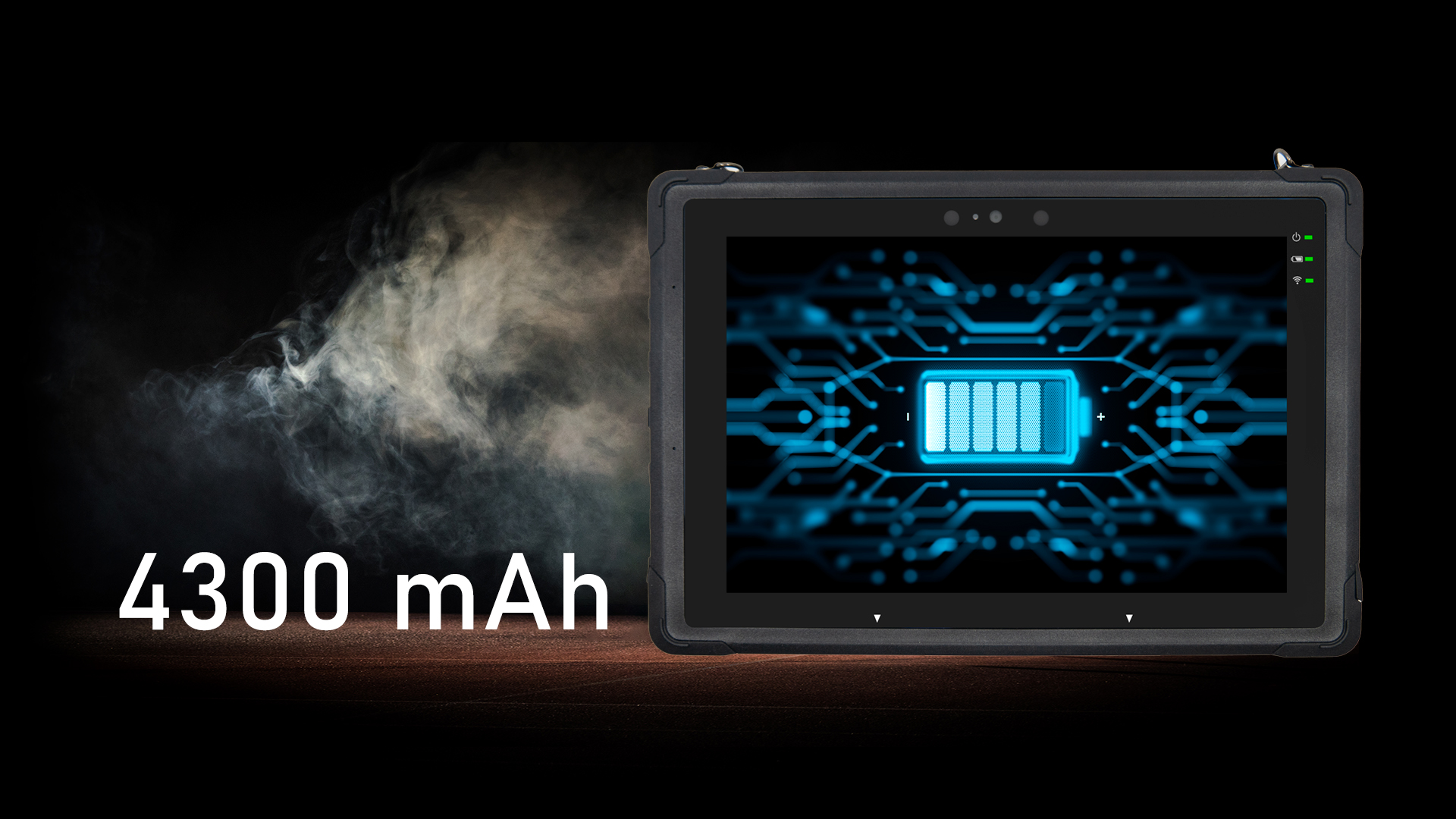

The high capacity 4300mAh battery ensures workers to cope with long work shifts of up to 10 hours (depends on usage function and environment). With the hot-swappable design, it's no need to shut down your EA520T or interrupt work activity to sustain a consecutive task.
|
|||||||
|
|||||||
4300 mAh |
Hot Swap |
Stunning Writing Experience

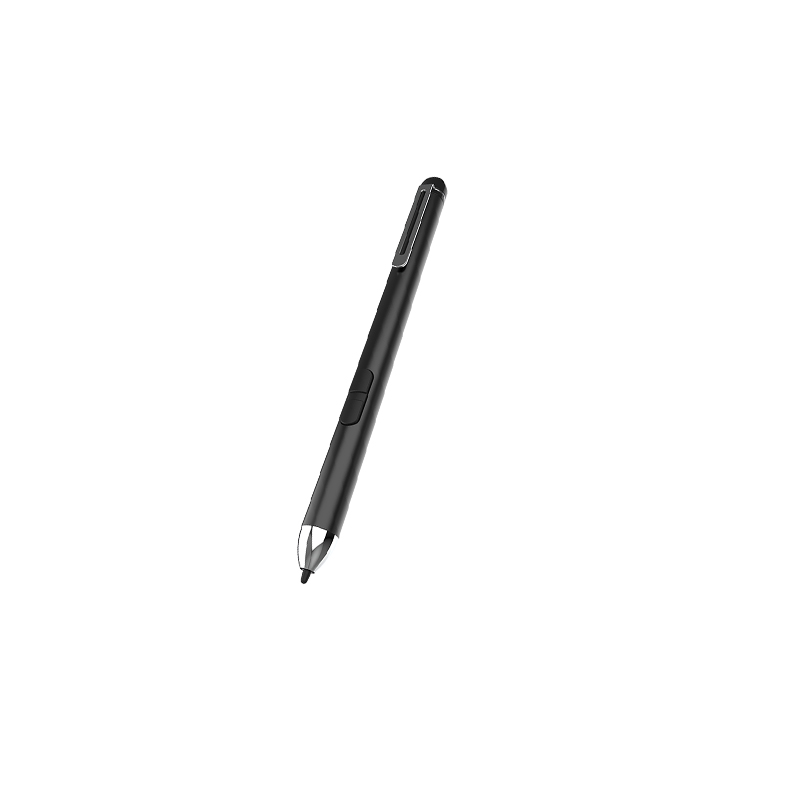

EA520T provides a digitizer pen (B-type) to give more precise and easy writing or drawing experience. Following Microsoft HID digitizer specifications, it features two side buttons for right-clicking and typically eraser function. It delivers accurate points to manipulate the controls on the screen, allowing a convenient way to handwrite into your applications in field service, warehousing, and logistics.

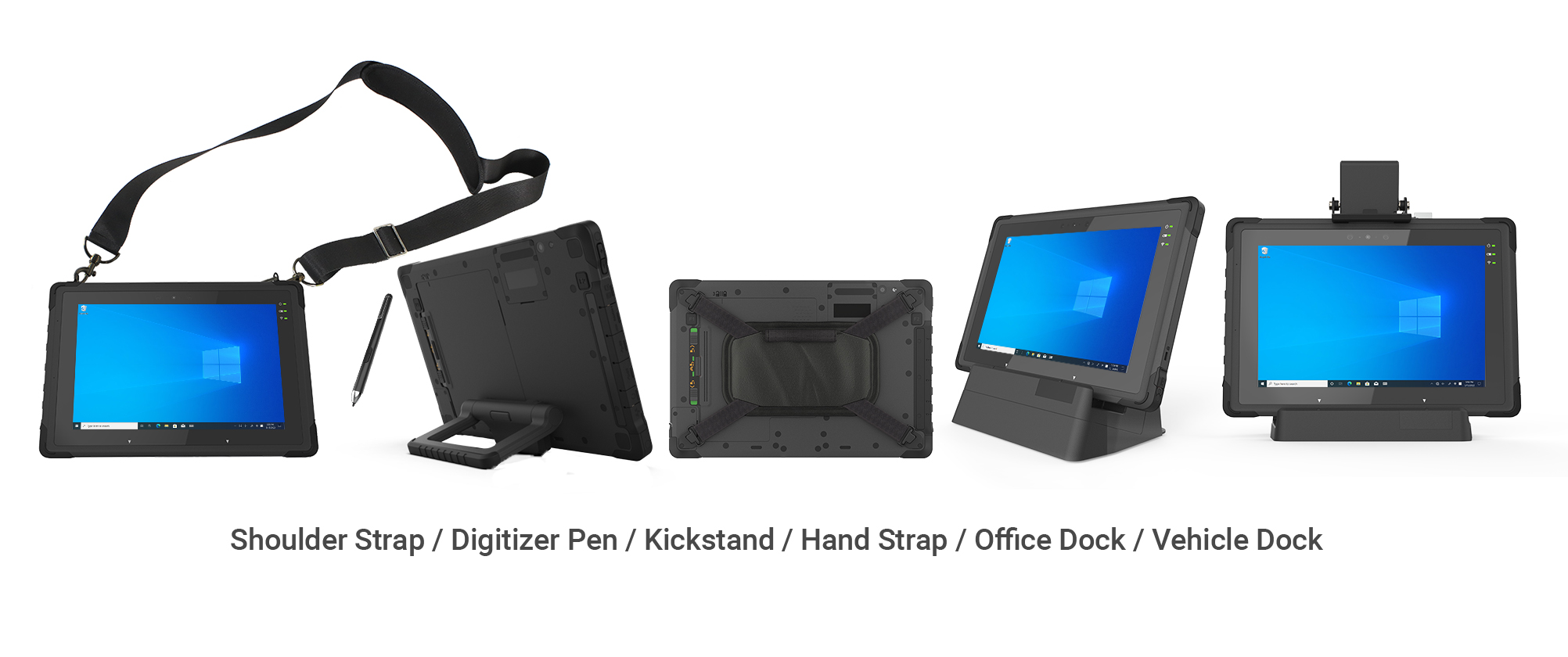

Flexible Transformation Accessories |
|||||||

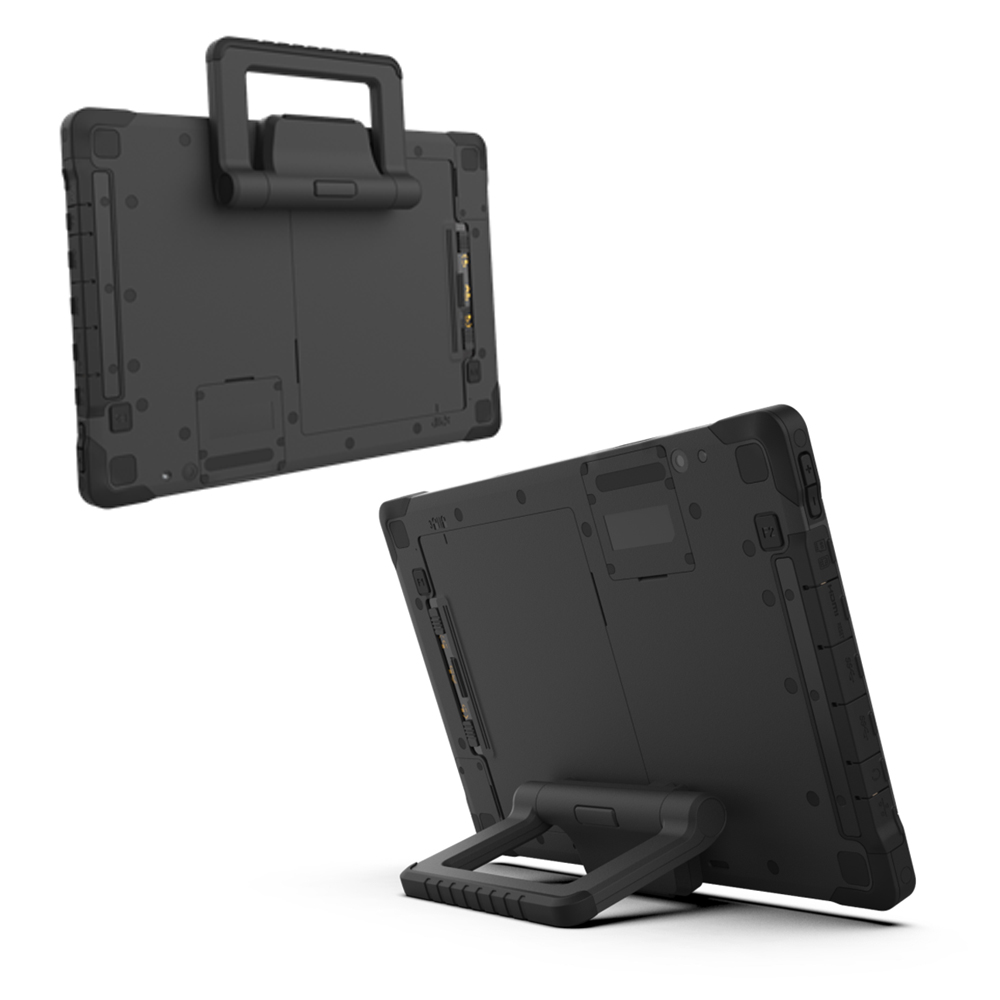

As mobility is highly valued in field service, the EA520T can be carried around on a shoulder strap or hand strap; for the static workplace, office and vehicle docking or kickstand are your best solutions to meet all scanning requirements.
|
|||||||
|
|||||||
Mobility Shoulder Strap / Hand Strap |
Static |
Specification
Operation System
- OS Windows 11
- CPU 2.6Ghz, Intel® Gemini Lake-R Celeron N4120
- Memory 8GB RAM / 128GB Flash
- Others TPM (Trusted Platform Module) 2.0 support
Display
-
Screen Size
10.1" (1920 x 1200) IPS 800nits brightness sunlight readable display
-
Touchpanel
10-point multi-touch, support glove mode and wet-touch mode
(Support MPP2.0 Digitizer Pen)
Buttons / Keypad
-
Buttons / Keypad
5 Physical Buttons
[power, vol+, vol-, 2 programmable keys]
Camera/Photos/Video
-
Camera
2MP front camera
8MP rear camera, Auto Focus, Flash
Indicator Type
- Type LEDs, Vibrator
Communication
- Bluetooth® Bluetooth® 5.2
-
WLAN
Wi-Fi 6 802.11a/b/d/e/g/h/i/k/n/r/u/v/w/ac/ax (2X2 MIMO)
Intel WLAN Module: AX200 -
WWAN
Optional: Quectel EM06-E (EMEA/APAC)
Optional: Quectel EM06-A (North America)
- GPS GPS/ GLONASSS/ GALILEO
-
Sensors
9 Axis MEMS sensor [Accelerometer, eComass, Gyroscope]
Ambient Light Sensor
Proximity Sensor
I/O Interfaces
-
USB
USB 3.1 Type A x 1
USB 3.1 Type C x 1 - POGO PIN POGO pin
- SIM Slot SIM Card Reader [Nano]
-
Expansion Slot
Docking connector
RJ45 Gigabit Ethernet Port
Replaceable DC jack
Micro HDMI
SDXC Card Reader [Micro]
Reset hole - Audio Microphone, speaker and 3.5mm audio jack
Enclosure
- Dimensions ( H x W x D ) 283 x 192 x 15 mm
- Weight 990g
Durability
- Drop Specification 1.5m
- Sealing IP65
Power Source
-
Main battery
Battery:7.68V, 4300mAh/32Wh
Backup Battery: 7.4V, 142mAh / 1.05Wh
Hot-swappable
Battery Operation: up to 10 hours (depends on usage function and environment) - Hot Swap Battery Yes
Symbologies
- 2D Barcodes Optional 1D/2D Barcode Reader
Environmental
- Operating temperature -10~50°C
- Storage temperature -20~60°C
Regulatory Approvals
- Regulatory Approvals CE, FCC, BSMI, NCC
What comes in the box
-
The standard package contents
■ TB170
■ Power Adaptor
(AC/DC adapter and AC power cord US)
■ Battery pack
Accessories
-
Accessories

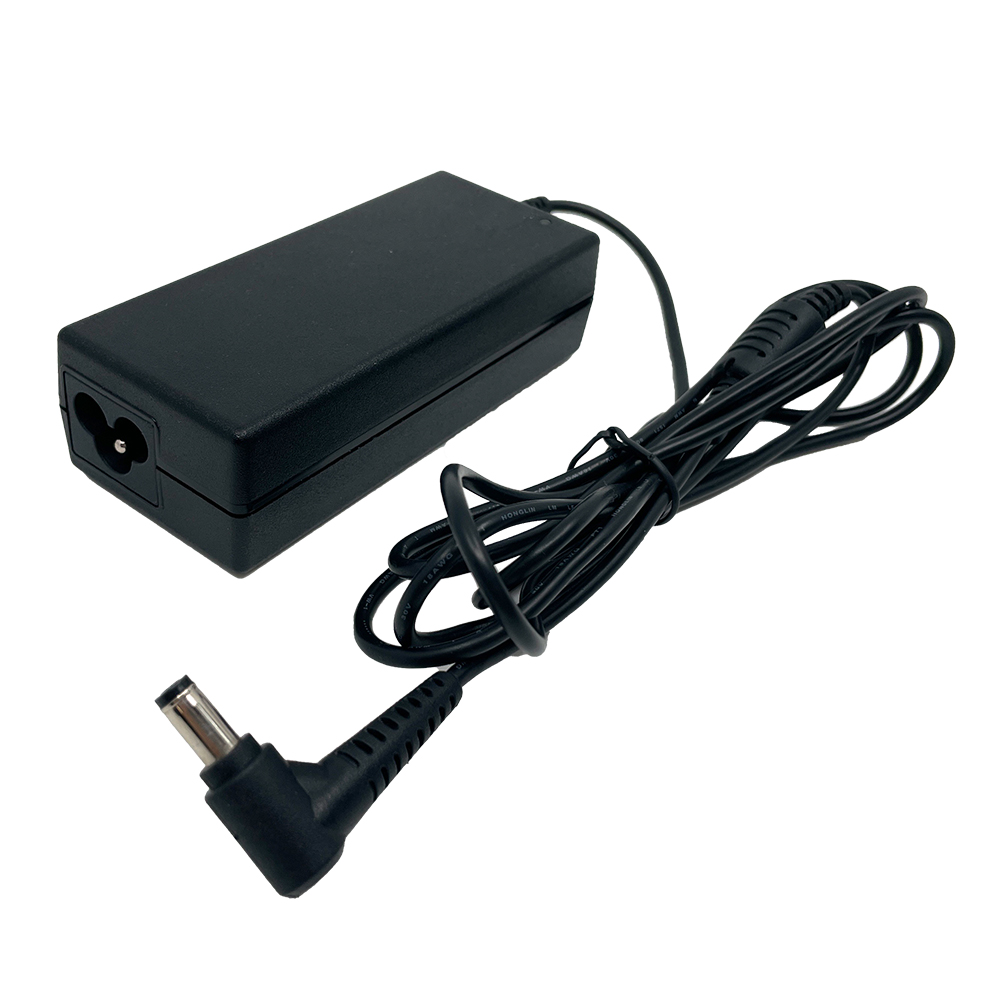

■ AC adaptor 65W (PSU only) (PN#1010-900070G)

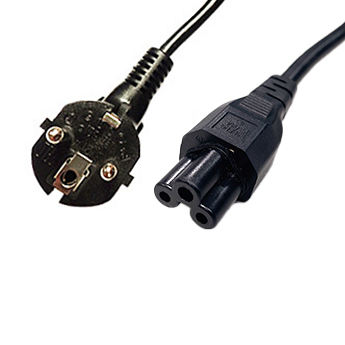

■ 3-Pin EU Power Cord (PN#1550-905899G)

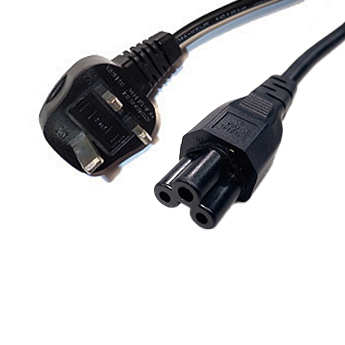

■ 3-Pin UK Power Cord (PN#1550-905900G)

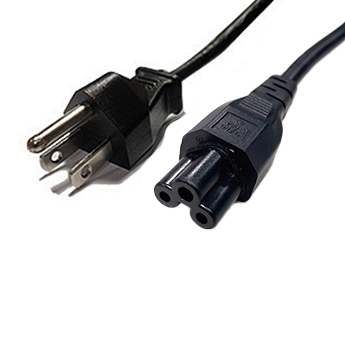

■ 3-Pin US Power Cord (PN#1010-900001G)
■ X-Strap (Hand Strap) (PN#3210-900022G)

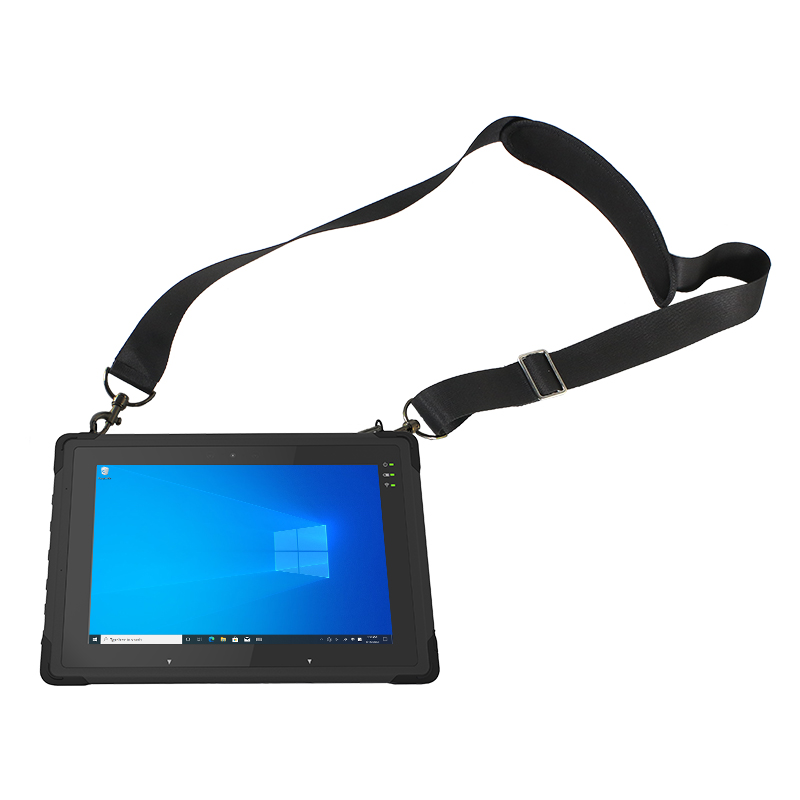

■ Shoulder Strap (PN#3210-900034G)
■ Digitizer Pen, B-type (PN#1979-900007G)

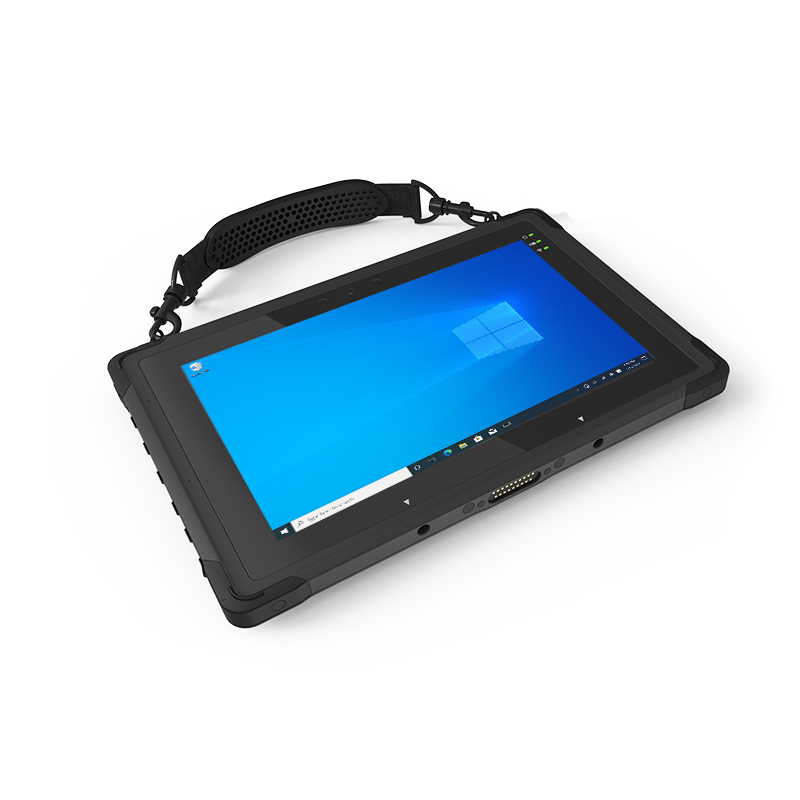

■ Brief Case Handle (PN#3210-900037G)

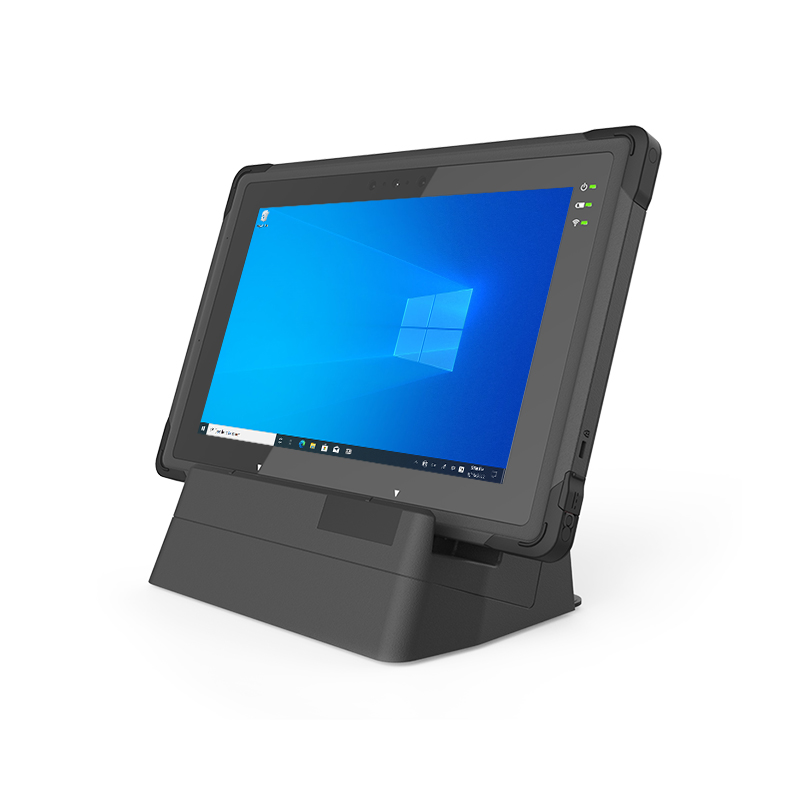

■ Office Dock (PN#5000-900101G)

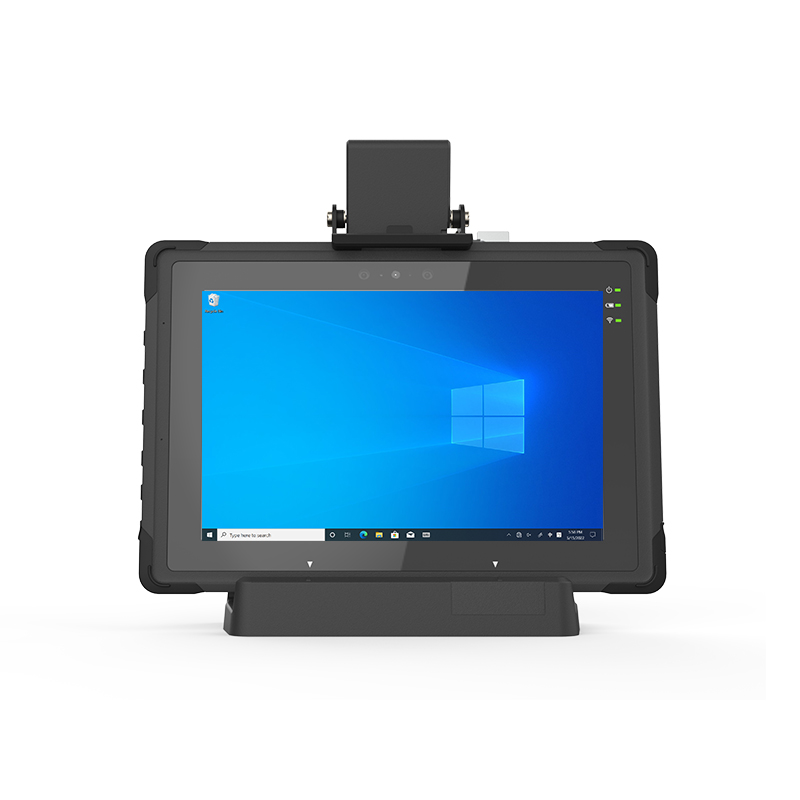

■ Vehicle Dock (PN#5000-900102G)
■ Kickstand (PN#5200-900015G)
■ Snap Mount (PN#4070-900015G)
■ Power Adapter for Vehicle Docking/ Cradle (PN# 1010-900056G)
■ 4300mAh Battery Pack(PN# 1400-900068G)
■ 4-Slot Battery Charger (PN# 5100-900032G)
