HT682 Android

4 inch Rugged Handheld Terminal

20 m reading distance | 2X2 MU-MIMO | 6700mAh hot-swap battery | IP67 + 2.4 m Drop

  • Android 10

  • GMS certified

  • 4G LTE

  • MIMO

  • Bluetooth

  • 4 inch screen

  • Keypad

  • NFC

  • 13Million Pixel

  • IP67

  • IP65

  • Logistics

  • Warehousing

  • Field Service

The unitech HT682 Android is an ergonomic one-hand operation handheld terminal with keypad and powerful data collection solutions. Offering Android 10 OS with GMS certification, the HT682 Android is equipped with Qualcomm® Artificial Intelligence (AI) CPU to deliver users excellent performance for smarter, more intuitive interactions which is suitable to improve your work efficiency in a wide range of applications in warehousing, logistics, and field service.



Features
• Android 10 OS with GMS certified

• Ergonomic one-handed operation
• Superior 2D scanning performance: Support 30-degree scanning tilt down
• Superior performance with the scanning range up to 20m away
• Support IEEE 802.11a/b/g/n, 802.11ax-ready, 802.11ac Wave 2 with 2X2 MU-MIMO WLAN Standard
• 6700mAh battery for 20-26 hours operation
• True Hot-swap battery design without downtime
• 1.8M drop-resistant housing (2.4M with bumper)
• IP65/IP67 protection against water and dust

• Durable keypad with backlight: 38/29 keys with 2.5 million lifetime clicks
• Support Bluetooth® 5.1
• Support MDM software and utilities such as MoboLink, StageGo and Ivanti Wavelink



Powered by Android 10 OS with GMS Certified


The unitech HT730 is an ergonomic one-hand operation handheld terminal with keypad and powerful data collection solutions. Offering Android 10 OS with GMS certification, the HT730 is equipped with 5th gen Qualcomm® AI Engine to deliver users excellent performance for smarter, more intuitive interactions that are suitable to improve your work efficiency in a wide range of applications in warehousing, logistics, and field service.

Android 10
Operation System		 GMS
Certification		 Octa-Core
CPU

4 GB RAM
64 GB Flash






Superior Performance with Long Reading Distance



Specially built for an extended-range work environment, the HT730 4” rugged handheld terminal features a superior performance with the scanning range up to 20m away from the spot. The device supports full barcode symbologies including 1D, 2D, Dot Code, and OCR as well as boosts your scanning performance at a speed of 60fps.





Ideal for tasks that require heavy scanning, the HT730 is built-in a powerful megapixel 2D scanning engine with a wide variety of 30-degree scanning tilt-down design. It also delivers motion tolerance of up to 5m/s, the HT730 increases the operational effectiveness even while moving.




Support
2D, Dot code, OCR		 20m
Reading Distance		 30 degree
Scanning tilt down design

5m/s
Motion tolerance


Ergonomic One-Hand Operation with Large Keypad


Featuring a 4-inch display and 400nits brightness, the HT730 provides users to check feedback of the scanned information and easy viewing in outdoor environment. It comes with a large-size keypad as well as dual scanning buttons for instinctive data entry and barcode capturing that enables the users to carry out inventory checks and maintain accuracy easily. Moreover, equipped with special silicon materials and backlight design, it provides the reliability to 2.5 million lifetime clicks for long term abrasion protection.
4-inch
Display		 2.5 million

Lifetime clicks

 38 / 29
Keys

One-Hand
Operation




No Downtime with True Hot-Swap Battery

Featuring hot-swap technology, the HT730 allows batteries to be swapped without interrupting within 1 minute. With a long-lasting 6700 removable battery, the HT730 allows continuous use for 20-26 hours operation and it is easily replaced whiles running out of power seamlessly.



6700 mAh

Removable battery

True Hot-Swap

Technology

20-26 Hours

Operation

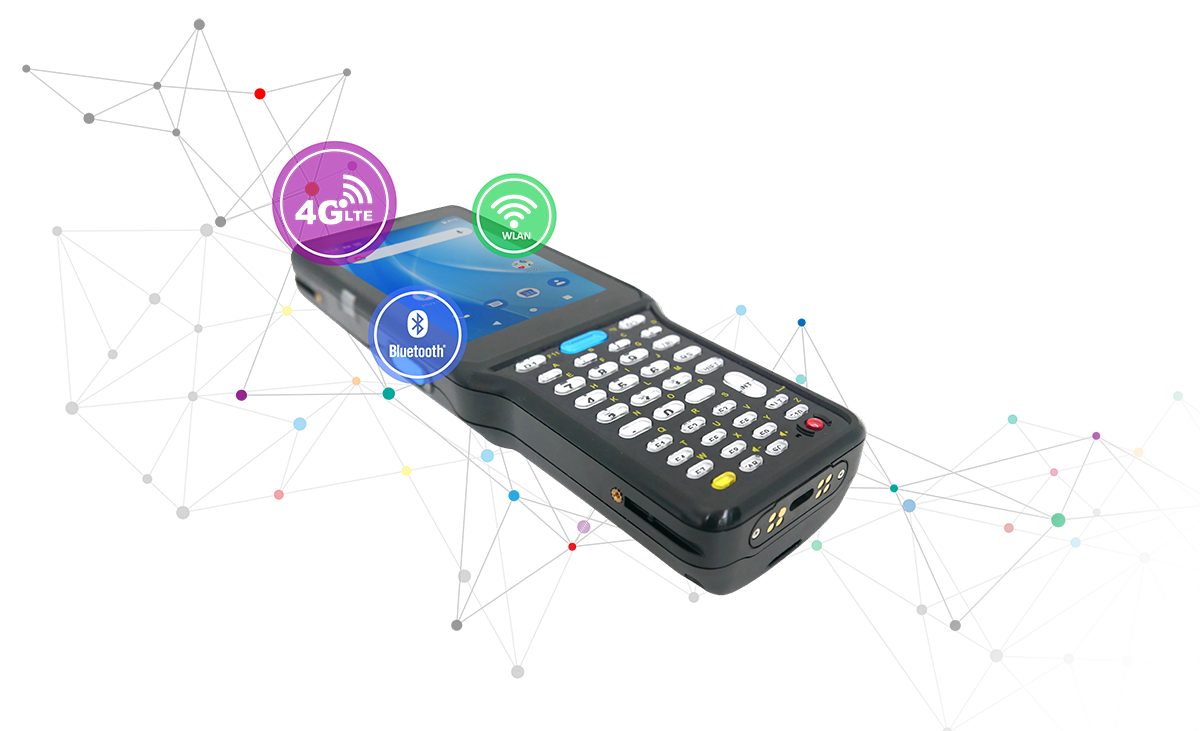

Boost Wireless Communication Performance



The HT730 supports 2X2 MU-MIMO antennas that boost the wireless performance with a faster and better data transferring experience, allowing staff to get connected immediately. Built-in 4G dual-SIM slots, it provides double signal coverage and real-time communications even in different countries. Furthermore, it has a 13MP camera that gives an easy way to prove delivery or shipment issues.

4G LTE

Dual-SIM
slots

2X2 MU-MIMO

WLAN

Bluetooth® 5.1




Ultra-Durable


Design for harsh environments, HT730 features ultra-durable design to withstand 1.8m / 2.4m (with bumper) drop to concrete and IP65 / IP67 environmental seal against water and dust. Moreover, the HT730 offers various options including standard, UHF RFID, and 2D long-range gun grips that enhance the ease of use and increases staff comfort for inventory tracking and taking solutions.

1.8 m
Drop protection		 2.4 m
Drop protection
(with bumper)		 IP65
Rating		 IP67
Rating


Specification

Operation System

  • OS Android 10
  • GMS certified YES
  • CPU Qcta-core 2.3 GHz, Qualcomm 720G (SM7125)
  • Memory 4GB RAM / 64GB Flash
  • Languages support Multi-languages

Display

  • Screen Size 4”TFT-LCD WVGA (480x800) color screen (400 nits)
  • Touchpanel Ultra-sensitive capacitive touch screen, compatible
    with gloves and support wet resistance

Buttons / Keypad

  • Buttons / Keypad Numeric (29 keys)/ Function Numeric (38 keys) with backlight

Camera/Photos/Video

  • Camera Rear 13 MP Autofocus with flash

Indicator Type

  • Type LED, Speaker, Vibrator

Communication

  • Bluetooth® Bluetooth® 5.1
  • WLAN 802.11a/b/g/n, 802.11ax-ready, 802.11ac Wave 2(Dual
    Antenna, MU-MIMO 2X2 support)
  • WWAN LTE Advanced Support Up to CAT4 LTE downlink
    300Mbps/uplink 100Mbps
    LTE (FDD) – Bands 1, 2, 3, 4, 5, 7, 8, 17, 20, 28
    LTE (TDD) – Bands 38, 39, 40, 41
    UMTS/HSPA+ (3G) – Bands 1, 2, 5, 8
    GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz)
  • GPS GPS, GLONASS, Galileo, BeiDou
  • Sensors Gyroscope, G-sensor, E-compass, Light & Proximity Sensor

RFID

  • HF Support HF/NFC
    Frequency 13.56Mhz
    Support: ISO14443A/B, ISO15693 standard

I/O Interfaces

  • USB USB 3.1 (type-C) support USB OTG
    Support Display Port Mode
    Ethernet/USB-Host via cradle
  • OTG Yes, over USB Type-C
  • POGO PIN Custom IO connector (include USB Host)
  • SIM Slot Nano SIM Slot x 2
  • Expansion Slot Micro SD/TF x 1(Support SD, SDHC and SDXC)
  • Audio 2W output ,105 dB at 10cm, Dual-Microphone, support
    noise cancellation

Enclosure

  • Dimensions ( H x W x D ) 195 mm x 72 mm x 34 mm
  • Weight 395g(with battery)

Durability

  • Drop Specification 1.8 m / 2.4 m(with Bumper)
  • Sealing IP65 / IP67

Power Source

  • Main battery Main battery 3.7V 6700mAh
  • Hot Swap Battery Keeps applications active up to 1 minute

Symbologies

  • 1D Barcodes UPC/EAN/JAN, GS1 DataBar, Code 39, Code
    128, Code 32, Code 93, Codabar/NW7, Interleaved 2
    of 5, Matrix 2 of 5, MSI, Trioptic
  • 2D Barcodes PDF417, MicroPDF417, GS1 Composite ,
    Code11, Aztec Code, Data Matrix, QR Code, Micro
    QR Code, MaxiCode, Han Xin Code, DOT Code
    Postal : Intelligent Mail Barcode, Postal-4i, Australian
    Post, Japanese Post, Netherlands (KIX) Post,
    Postnet, Planet Code
    OCR : OCR-A, OCR-B, E13B (MICR)

Environmental

  • Operating temperature -20°C to +50°C
  • Storage temperature - 30°C to 70°C (without battery)
  • Charging temperature 0°C to 45°C
  • Relative Humidity 5% ~ 95% (non-condensing)

Software

  • MDM Software SOTI, Ivanti Wavelink, AirWatch, 42Gears, and MoboLink

Regulatory Approvals

  • Regulatory Approvals CE, FCC, NCC, IC, VCCI, TELEC, CCC, SRRC, RoHS, CEC, BQB, GMS, N-Mark

Accessories

  • Accessories USB Type C cable
    Single Slot Charging cradle
    Single Slot Ethernet cradle with USB host
    4-Slot Charging cradle
    4-Slot Ethernet cradle
    4-Slot battery charger
    Hand strap
    Glass Screen Protector
