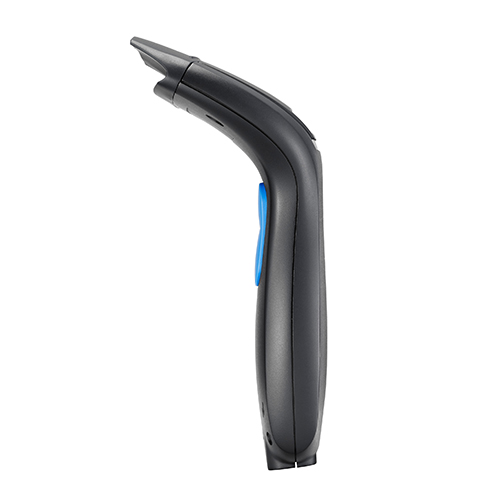

MS250

High Performance Contact Scanner (1D)

The MS250 is a cost-effective CCD scanner ideal for point-of-sale, document processing, and library applications.

• Powerful linear imager scanner for scan intensive work

• Capable of scanning 0 - 4" for a variety of applications

• Resists falls of up to 5 feet on hard surfaces like concrete

Our MS250 contact barcode scanner features a versatile design to meet even more of your data collection needs. The MS250 offers more powerful and flexible performance than your standard entry-level scanner.



Features



• Aggressive linear imager scanner
• Scan range: 0 - 4"
• Available in USB, RS232 or PS/2

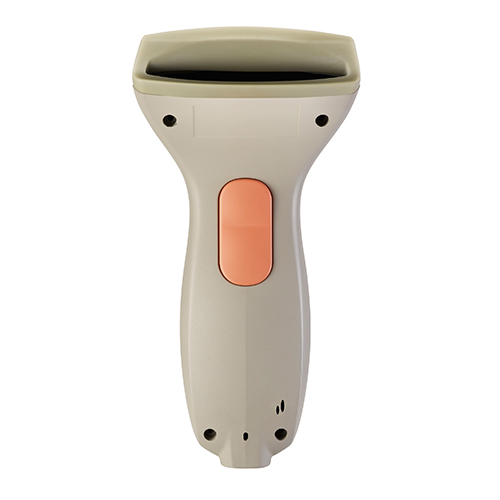

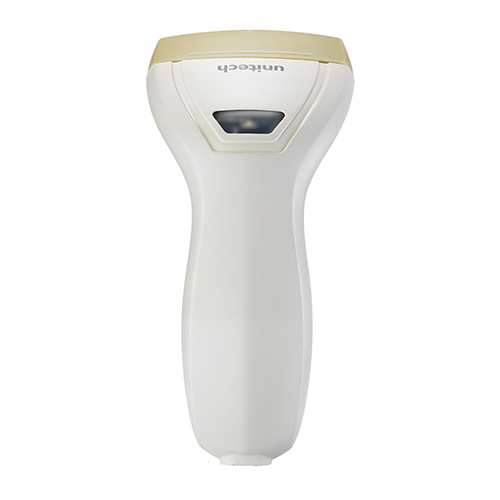

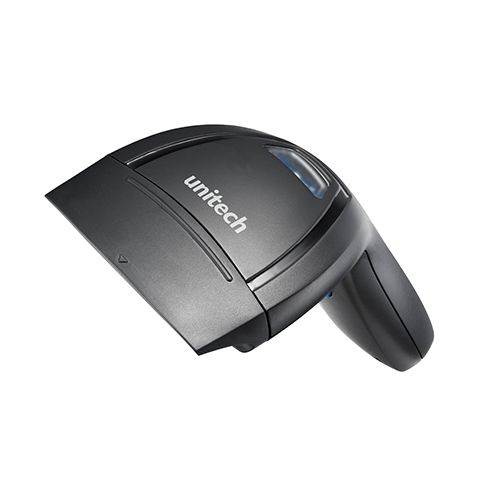

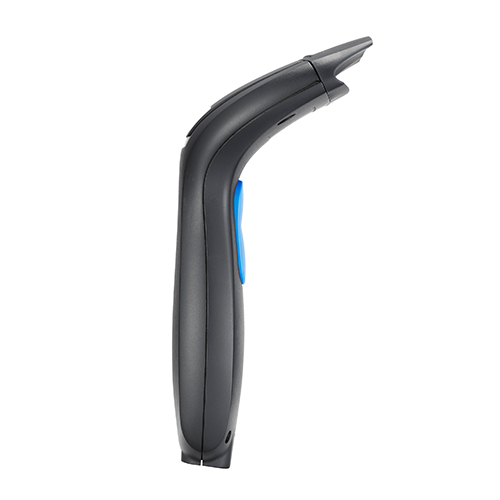

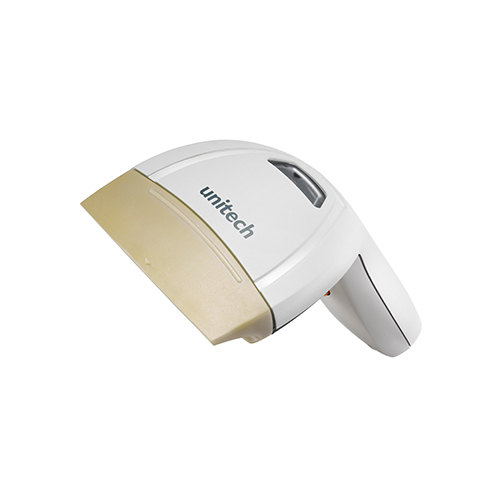

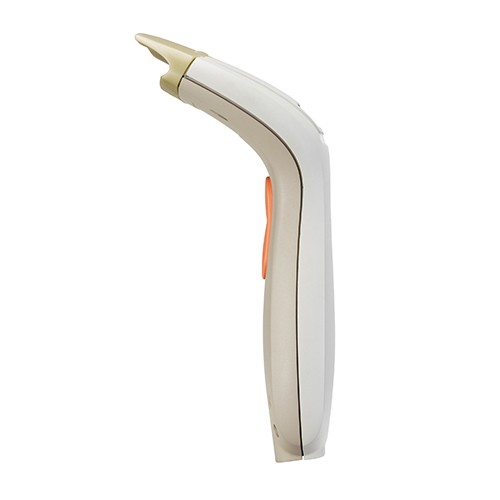

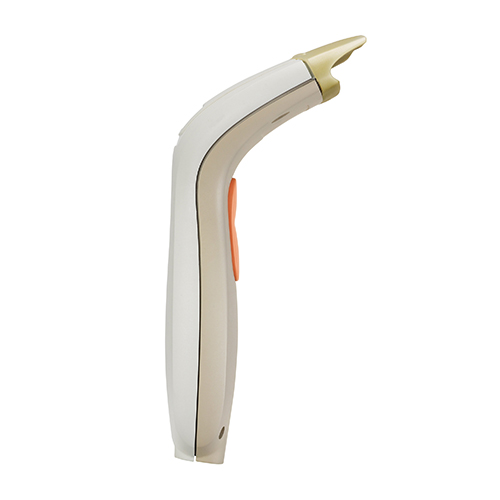

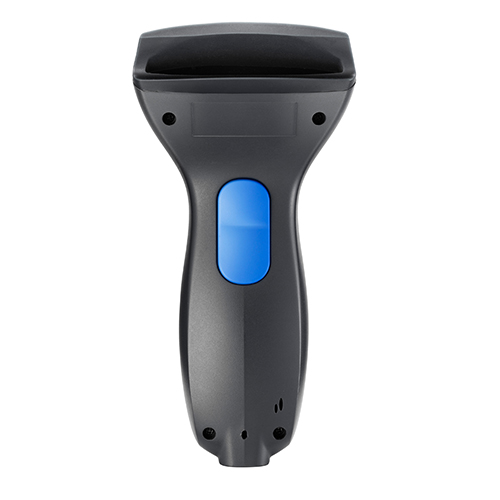

• Light or dark color options
• Withstands 5-foot drops to concrete
• LED indicator
• Warranty: 3 years



Easy to operate, User friendly design



The MS250 contact scanner is a great fit for a variety of retail and business environments. Its easy plug-and-play set up ensures an easy introduction into your unique workflow.

In retail environments, the MS250 is a great choice for point-of-sale and light inventory. Customers have had success integrating the MS250 into self-checkout systems for processing items with hard to access or hard to read barcodes.

Small to Medium Businesses (SMB) can use the MS250 for asset tracking - the practice of tracking the condition and location of valuables. It is also useful as a check in/check out solution to better manage assets with revolving ownership, such as tools and specialized equipment.

Versatile Design



The MS250 barcode scanner is not only available in two color combinations (light and dark), but with different interface options to integrate seamlessly with both older and newer systems. You can choose a USB, RS232, or keyboard wedge cable for your MS250. The MS250 contact barcode scanner is also available without a cable, scanner only.

Durable and Reliable



The MS250 barcode scanner offers a level of protection not often found in entry-level devices. The MS250 withstands repeated 5-foot drops to concrete and comes with a 3-year warranty, making it a smart investment for any business owner.

Superior Contact Scanning



The MS250 is the replacement scanner for our older MS180 and MS210 models. If you have purchased a MS180 or MS210 before, you will find that the MS250 features an upgraded and higher-performing scan engine. The MS250 also offers basic data editing.

Specification

Optical & Performance

  • Sensor Linear CCD Sensor
  • Illumination Visible Red light 635nm LED
  • Ambient Light 20,000 Lux Max
  • Scan Rate 200 scans/ second ±10%
  • Skew Angle Forward & Backward ±10°~30° (±5°)
    Left & Right ± 60° (±5°)
  • Optical Resolution 3mil (0.076mm) @ PCS90%
  • Printing Contrast Scale 45%
  • Depth of Field Width of Field: 80mm
    Reading Distance :Up to 90mm @ 20mil, PCS90%, Code39

Communication

  • Radio Corded
  • Host Interface supported USB / RS232

Mechanical

  • Dimension 87.8 L x 71.6 W x 177.7 H (mm)
  • Weight 165g without cable
  • Trigger Switch Life 10 million times

Symbologies

  • 1D Barcodes Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar,
    UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data Bar, TLC39
  • 2D Barcodes 2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417
    2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code
    Postal:Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet
  • OCR Barcodes Support OCR barcodes

Electrical

  • Operation Voltage 4 VDC to 5.5 VDC
  • Current Consumption Operating: 252mA
    Standby: 77mA
  • Indicator Buzzer, LED

Environmental

  • ESD Protection Functional after 8K Contact and 15K Air
  • Mechanical Shock 2.1M onto concrete (scanner only)
  • Operating Temperature -10°C to 50°C (14°F to 122°F)
  • Storage Temperature -40°C to +70°C (-40°F to +158°F)
  • Relative Humidity 95% non-condensing
  • IP Rating IP42

Accessories

  • Accessories(Optional) ■ Standard Hands Free Stand (Optional)
    ■ Auto Sensing Hands Free Stand (Optional)

Regulatory Approvals

  • Regulatory Approvals CE, FCC, BSMI, VCCI

What comes in the box

  • The standard package contents ■ MS852+ Scanner
    ■ Interface cable
