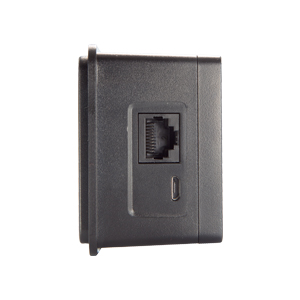

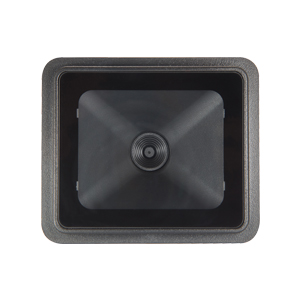

MS588-FS102

Fixed Scanner

ubon MS588-FS102 embedded 2D high performance barcode scanner with excellent reading performance, good barcode reading depth, easy to read various types of barcodes and mobile phone barcodes.

  • 2D

  • RS232

  • USB

  • IP65

  • Retail

  • Field Service

ubon MS588-FS102 embedded 2D high performance barcode scanner with excellent reading performance,
good bar code reading depth, easy to read various types of barcodes and mobile phone barcodes; easy to read barcode features It is used for retail POS checkout, mass transit ticket inspection and various action barcode payment, so that enterprises can easily match and apply to various scenarios.The ubon MS588-FS102 mechanism is designed for easy installation, setup and use. It is suitable for all kinds of machines (such as KIOSK), price checking machines, vending machines or information workstations. The
ubon MS588-FS102 is an excellent and cost-effective scanning co-worker.



Features

• Can read all kinds of 1D and 2D barcodes
• Superior barcode reading performance, especially suitable for reading mobile barcode applications
• Lightweight and space-saving design, easy to fit and install on all kinds of machines
• Support USB and RS232 interface, easy to set up and maintaing


Specification

Communication

  • Interface/ Profile USB , RS232

Optical & Performance

  • Sensor 2D imager (640x 480 pixels)
  • Illumination 6500K LED
  • Skew Angle ±60°
  • Pitch Angle Sensor ±65°
  • Roll Angle 360°
  • Optical Resolution ≧4mil
  • Printing Contrast Scale 20%

Mechanical

  • Dimension 77.5mm x 66mm x 45mm
  • Weight 75g

Symbologies

  • 1D Barcodes UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2
    of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1
    DataBar, China Postal, Korean Postal, etc.
  • 2D Barcodes PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code,
    MicroQR, Aztec, Hanxin, etc.

Electrical

  • Operation Voltage 3.3V~5 VDC / 200mA

Environmental

  • Operating temperature -20°C~50°C
  • Storage temperature -40°C~70°C
  • Relative Humidity 0% ∼ 95% non-condensing
  • IP Rating IP65
