MS838
2D Imager Scanner
High C/P value | IP54 protection + 1.5 m drop | Read 3 mil barcode
-
1D CCD
-
2D
-
RS232
-
USB
-
IP54
-
1.5M

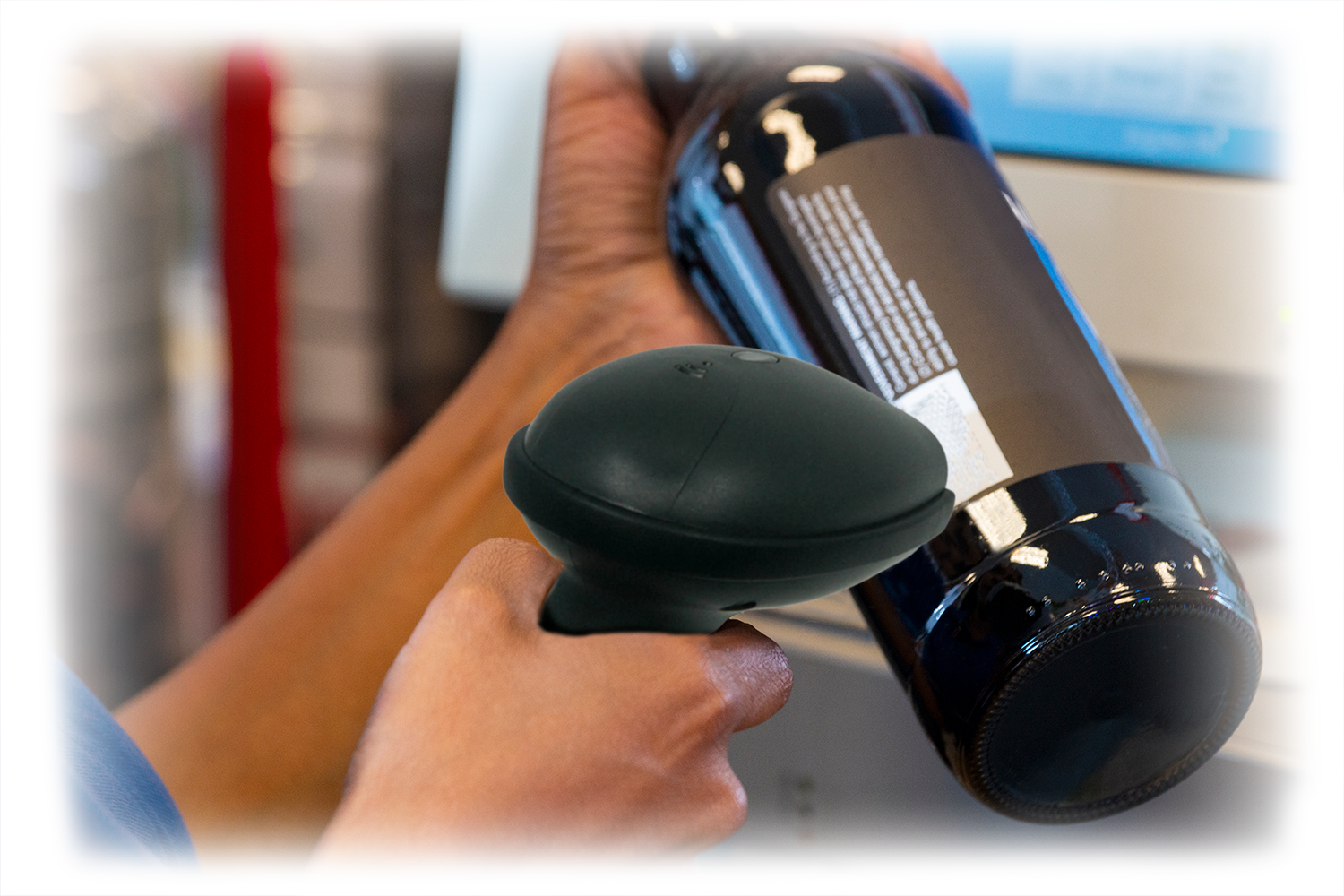

Delivering reliable performance and affordable price, MS838 2D imager scanner offers excellent performance for increasing productivity even when the barcodes are damaged or poorly printed. This cost-effective and reliable handheld scanner provides the optimum combination of performance which makes it an ideal scanning tool for a wide range of market applications, such as point-of-sale, personal data identification and inventory control.
Features
• Reliable performance, affordable price
• Fast reading all 1D and 2D barcodes on paper and screen
• Quick decoding 3mil barcode even with damaged or poorly printed
• Supports trigger mode & presentation mode.
• Durable design: 1.5 meters drop test and IP54-rated
Reliable Performance, Affordable Price
Delivering users an affordable price, MS838 2D imager scanner offers excellent performance for increasing productivity even when the barcodes are damaged or poorly printed. The MS838 has the capability to read up to 3 mil barcode (Code 39). This device is a brilliant choice for various industrial application requirements for retail stores, supermarket, pharmacy and hotel.
Easy to Operate
|

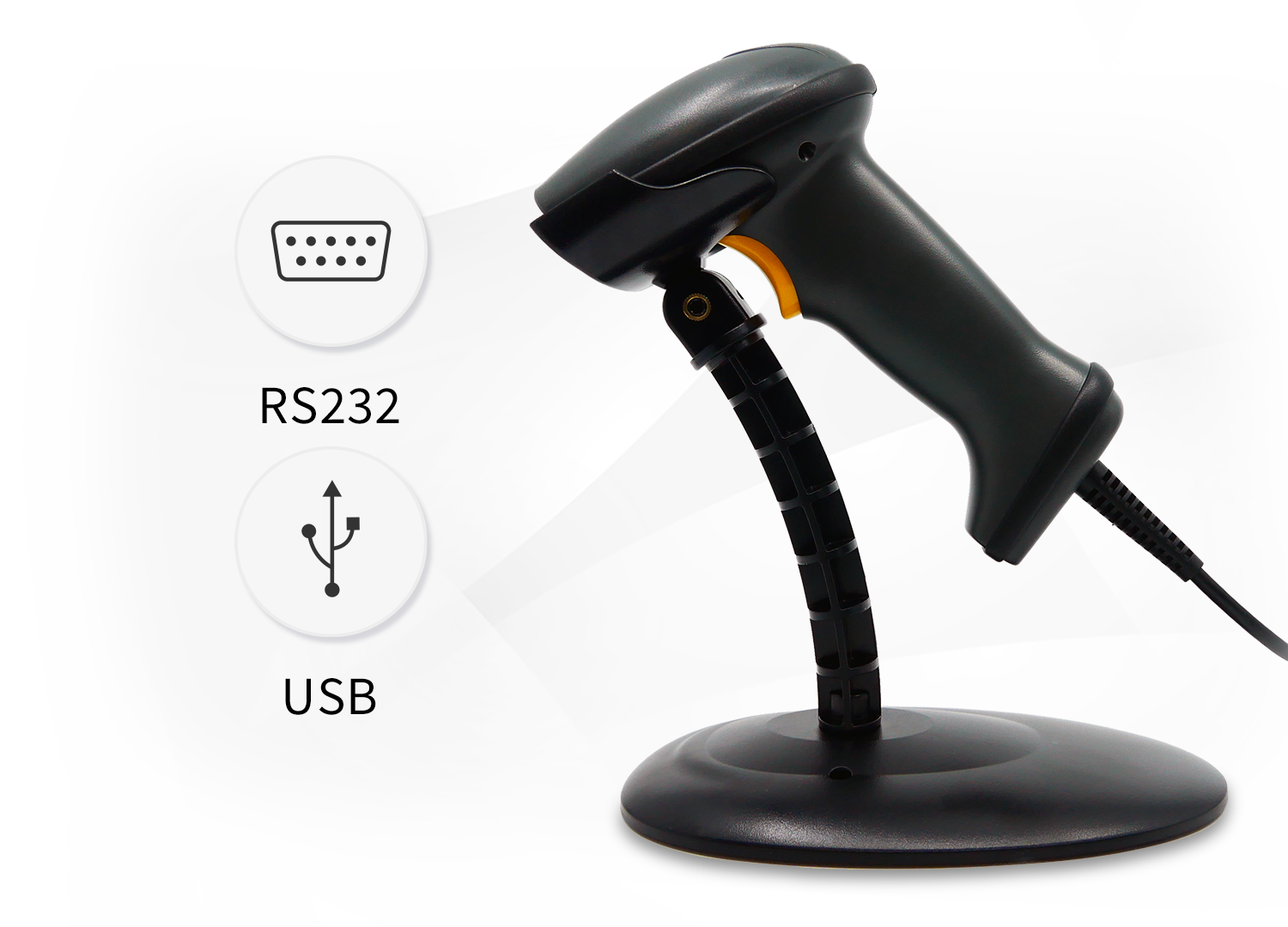

Featuring a convenient plug-and-play design, the MS838 imager scanner is easy to connect to your computer via USB/RS232 cable. There is no need to do any additional installation or training, it’s ready to work. In addition, it supports trigger mode, presentation mode(auto-sensing mode) that effectively meeting requirements for all industrial use. |
|
|
|||
 |
|||
| USB / RS232 Interface |
Hands-Free Stand (Optional) |
||

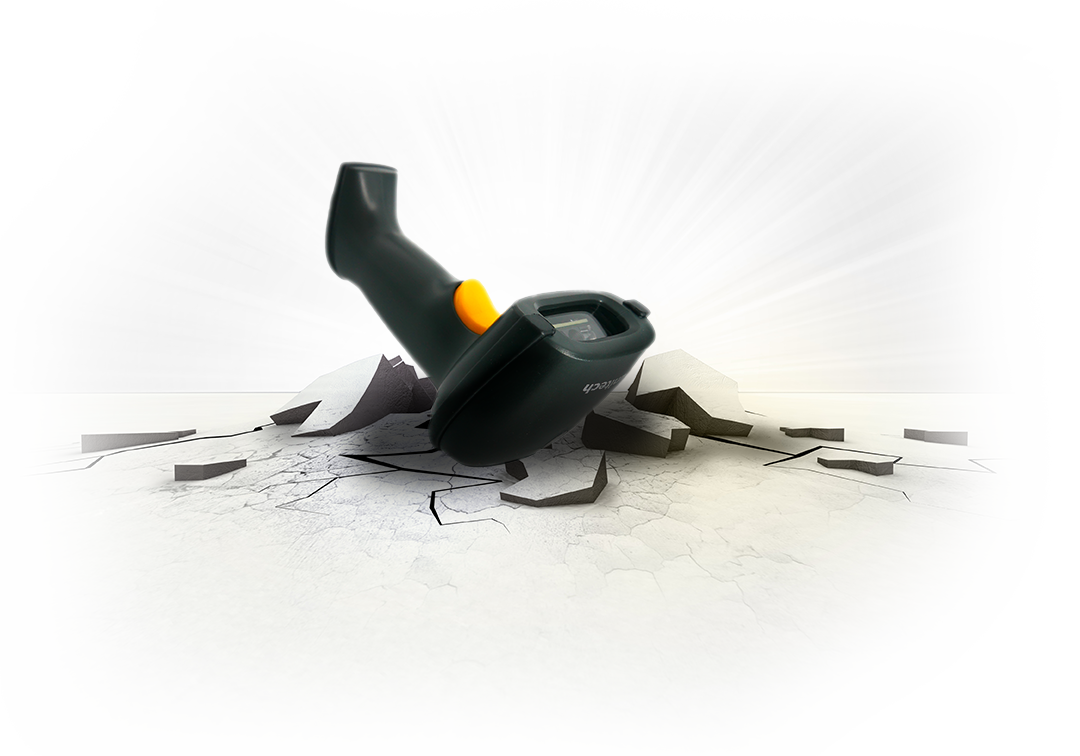

Durable Design
|
This ergonomic design makes the MS838 fit comfortably in any hand, reducing fatigue during long-time scanning tasks. Additionally, the MS838 features an IP42 rating and can withstand multiple drops to concrete from 1.5 meters, ensuring durability and reliability. |
|
|
|||
| IP42 Certification |
1.5m Drop Protection |
||
Specification
Optical & Performance
- Sensor 640 X 480 CMOS 1040 x 720 (Optional)
- Aiming Element Red LED
- Illumination White LED
- Ambient Light 0~100,000lux (natural light)
- Scan Rate 60fps
- Skew Angle ±60°
- Pitch Angle Sensor ±60°
- Roll Angle 0 - 360°
- Optical Resolution 3mil (Code 39), 7mil (QR)
- Printing Contrast Scale 20%
- Depth of Field 60-360mm (13 mil PCS=90%)
Communication
- Host Interface supported USB / RS232 (Standard)/ Keyboard wedge/ RS485 (Optional)
Mechanical
- Dimension 170 L x 73 W x 102 H (mm)
- Weight 245g
- Trigger Switch Life 1 million times
Functionality
- Operation Mode Trigger Mode, Presentation Mode
Symbologies
-
1D Barcodes
Code 128, EAN-13, EAN-8, Code 39, Code 32, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Code 93, GS1-128, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded, Matrix 2 of 5,
Code 11, Industrial 2 of 5, Matrix 2 of 5, - 2D Barcodes PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec Code
- Data Formatting Prefix, Suffix, Code ID, Reformatting Date
Electrical
- Current Consumption Operation mode: <142mA, Standby mode: <42mA
- Indicator Buzzer, LED
Environmental
- ESD Protection Functional after 8K Contact and 12K Air
- Mechanical Shock 1.5m onto concrete
- Operating Temperature -10°C to 50°C
- Storage Temperature -20°C to 60°C
- Relative Humidity 5%-95% non-condensing
- IP Rating IP54
Accessories

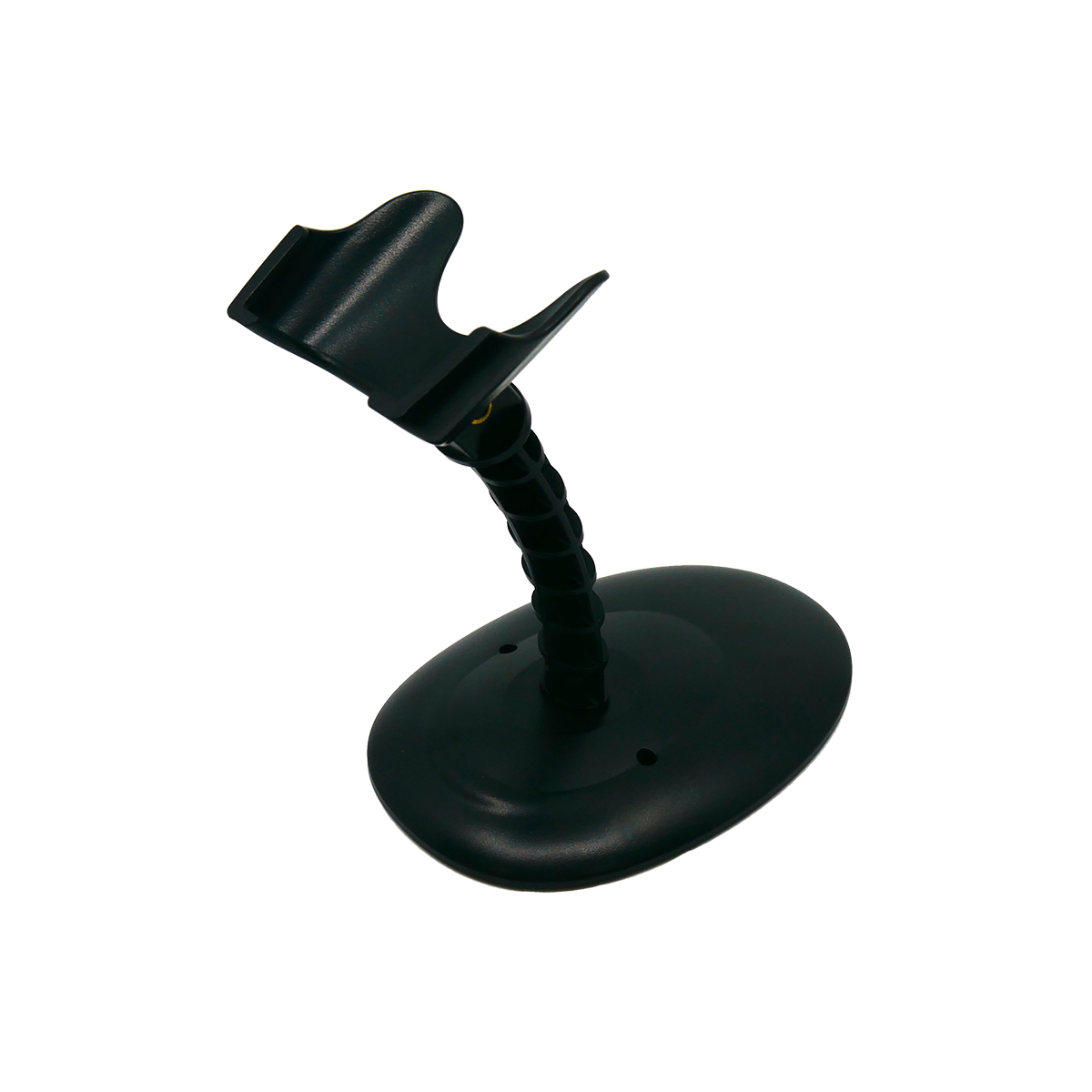

- Accessories(Optional) ■ Hands-Free Stand (P/N: 5200-900014G)
Regulatory Approvals
- Regulatory Approvals CE, FCC, BSMI, VCCI
What comes in the box
-
The standard package contents
■ MS838 Scanner
■ Interface cable
■ Hands-Free Stand (optional)
