MS838B

2.4G Wireless 2D Imager Scanner

100 m Connection | Keeps data even out of range | 16 hours operation time

  • Wireless

  • 2D

  • USB Dongle

  • IP52

  • 1.5M

  • Retail

  • Hospitality

Delivering reliable performance and affordable price, the MS838B wireless 2D imager scanner combines superior 1D and 2D barcode scanning with the freedom of wireless technology. The well-integrated mobility design allows users to move around without being restricted while supporting high comfort over long periods of operation. This cost-effective and reliable handheld scanner provides the optimum combination of performance that makes it an ideal scanning tool for a wide range of market applications, such as point-of-sale, personal data identification, and inventory control.



Features



• 2.4G wireless transmission range up to 100m in the line of open sight.
• Reads all major 1D and 2D barcodes including printed and digital
• Long battery life up to 16 hours per a fully charged battery
• Plug and play, convenient to use
• Durable, Compact, and Long life trigger design
• Rugged design by IP52 and 1.5m drops
• Buffer mode for out-of-range reading
• Instant decoding feedback: LED, Buzzer indicators

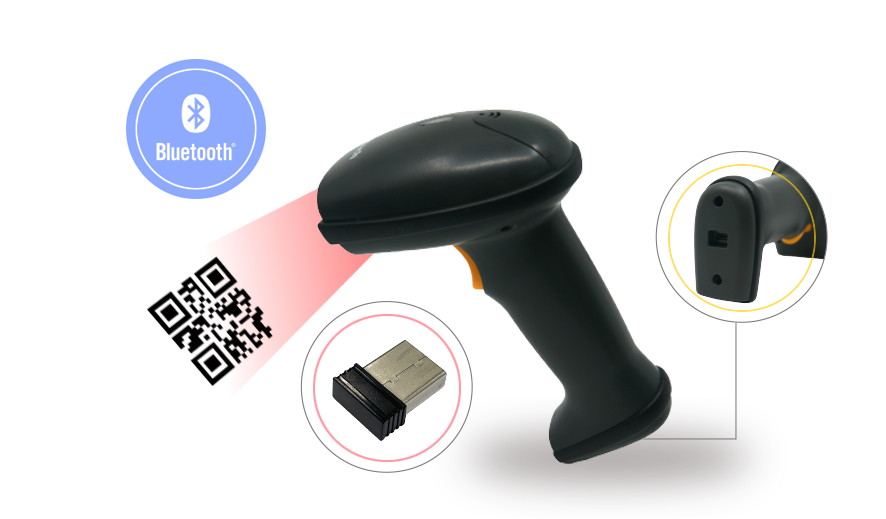

Move without Restrictions



Design for mobile workers, the MS838B comes with a USB dongle that enables users to capture barcodes with freedom wireless connection. Easy plug-and-play function, the MS838B pairs easily to laptops or PCs without a complicated setup. Besides, it allows users to transmit data to the host from up to 100 meters from the base via 2.4G wireless communication.


2.4GHz

Communications

BT Wireless
Communications

USB Wired
Communications



Storage Data Even Out of Range



When it is out of range, the MS838B barcode scanner can store 40,000 EAN codes in memory and upload them to your devices at your own convenience.  It allows associates to capture barcodes from the checkout counter or checking your store's inventory in the retail store without restrictions.






16MB

Memory

Inventory Mode



Reliable 2D Scanning Performance



Quickly and accurately capturing most 1D and 2D barcodes or coupons displayed on the phone, the MS838B helps retail cashiers checkout without any frustration. It delivers great performance up to 60 fps per second as well as capturing high density with a 4 mil resolution and a scanning width up to 180mm. It is suitable to streamline everyday processes in the supermarket, retail store, and warehouse applications.










1D / 2D
Support

Up to 60 fps

Frame Rate

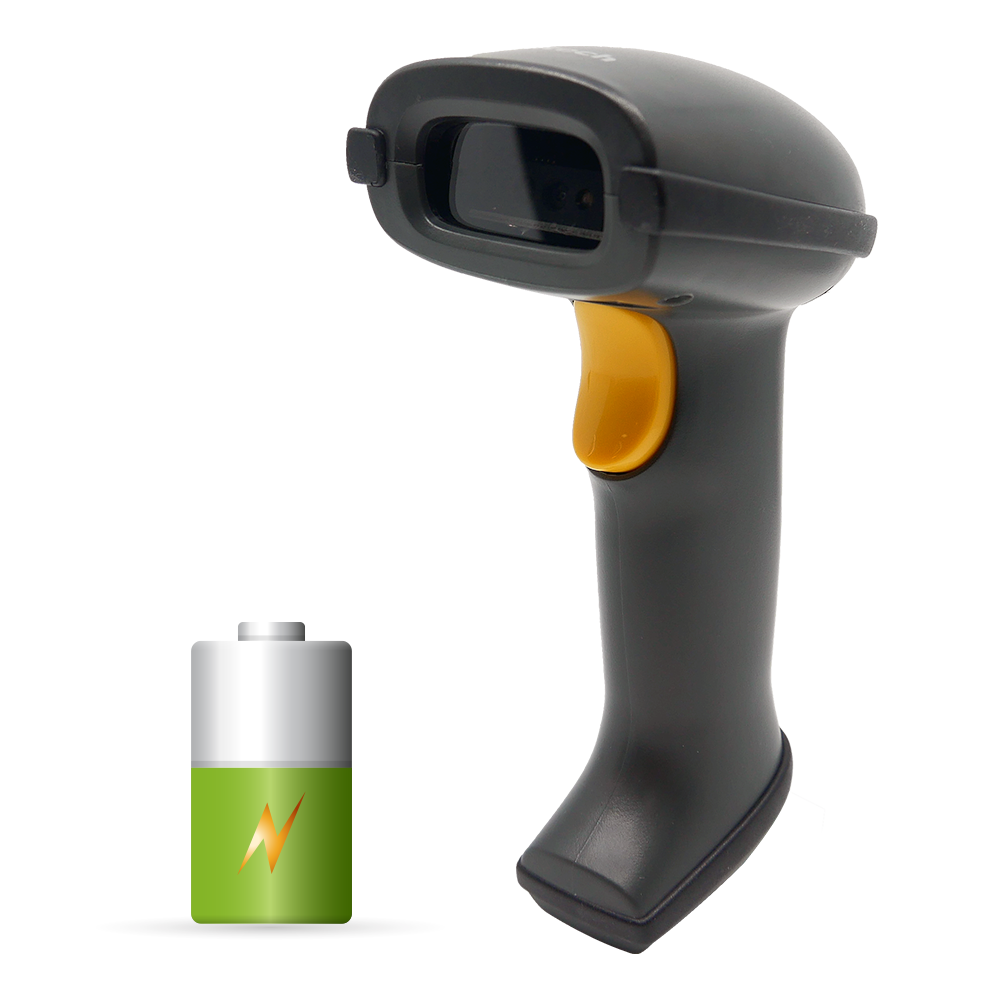

Long-Lasting Battery Life


The MS838B's powerful 2600mAh* battery is designed to have up to 16 hours of operating time with a 6-hour single charge, giving you the flexibility to work through the day.


Up to16 hours
Operating Time		 2600 mAh
Battery





Durable



Furthermore, it has an IP54 rating for dust and water resistance as well as a 1.5 meter drop spec that provides superior durability and reliability. Combining high performance and compact design, M838B gives mobile worker conveniently and safely while on the go.




IP54
Certification		 1.5m
Drop Protection


Specification

System

  • Memory 16MB
  • Key Trigger Key

Optical & Performance

  • Sensor CMOS Sensor,640 x 480 pixels
  • Aiming Element 625 nm LED
  • Illumination Color temperature 3500 k
  • Ambient Light 0-10000lux
  • Scan Rate 60fps/s
  • Skew Angle ±65°
  • Pitch Angle Sensor ±65°
  • Roll Angle 0 - 360°
  • Optical Resolution 4mil（code 39） 7mil（QR）
  • Depth of Field 4mil code39 Near 3.5cm Far 18cm
    7mil QR Near 5cm Far 9cm

Communication

  • Radio 2.4G Wireless
  • Wireless Coverage 2.4G 100M( line of sight)
  • Host Interface supported USB

Mechanical

  • Dimension 170 L x 73 W x 102 H (mm)
  • Weight 200g

Symbologies

  • 1D Barcodes Codabar, Code11, Code39, Code32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code93, Code128, GS1-128, UPC-A, UPC-E, EAN 8, EAN 13, GS1 DataBar (RSS14), GS1 DataBar Limited, GS1 DataBar Expanded, etc
  • 2D Barcodes PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec Code
  • Data Formatting Prefix, Suffix, Code ID

Electrical

  • Operation Voltage DC 5V
  • Current Consumption Operation mode:＜250mA , Standby mode:＜1mA
  • Indicator Buzzer LED light
  • Battery Type Lithium-ion
  • Battery Capacity 2600mAh 18650 battery
  • Battery Charging time Fully charged in 6 hours
  • Operating Time Over 16 hours

Environmental

  • Mechanical Shock 1.5m onto concrete (scanner only)
  • Operating Temperature -10°C to 50°C
  • Storage Temperature -20°C to 60°C
  • Relative Humidity 5- 95% non-condensing
  • IP Rating IP52

Accessories

  • Accessories(Optional) ■ 2.4G Dongle (PN:5500-900098G)
    ■ Hans-Free Stand (PN:5200-900014G)

Regulatory Approvals

  • Regulatory Approvals CE, FCC, BSMI, VCCI

What comes in the box

  • The standard package contents ■ MS838B scanner
    ■ 2.4G Dongle
    ■ USB Charging Cable
