MS851B

Bluetooth Laser Scanner

The MS851B wireless barcode scanner optimizes data capture with its powerful laser scan engine.

  • Wireless

  • Bluetooth

  • 1D Laser

  • IP42

  • 2.1M

  • Logistics

  • Warehousing

  • Manufacturing

Combining mobility wireless design and durability at an affordable price, MS851B wireless laser scanner is ideal for a broad range of market applications such as warehouse, logistics, and manufacturing solutions.



Features

• Support Bluetooth® dual-mode technology (Bluetooth LE® V4.2 & Bluetooth® 2.1+EDR, Class 1)

• Wireless transmission range up to 100m in the line of open sight.

• High-Speed data capture performance: up to 104 scans/sec

• Long battery life up to 30 hours per a fully charged battery

• Durable design: IP42 and 2.1m drop spec

• Auto Bluetooth pairing / Auto switch between Trigger & Presentation mode with cradle

High-Speed Laser Scanning Performance



Featuring laser scanning technology, the MS851B has the automatic scanning ability with a scan rate of up to 104 scans per second. It also has the ability to capture long range 1D barcodes, even damaged or poorly printed barcodes. This device enhances workflow efficiency at an affordable price.

Move without Restrictions



The MS851B supports Bluetooth® dual-mode technology (Bluetooth LE® V4.2 & Bluetooth® 2.1+EDR, Class 1) to give you the freedom and bring your business the flexibility. It is compatible with any smartphone, tablet, or computer–the MS851B pairs easily to any mobile device or PC. Besides, it allows users to transmit data to the host from up to 100 meters from the base.

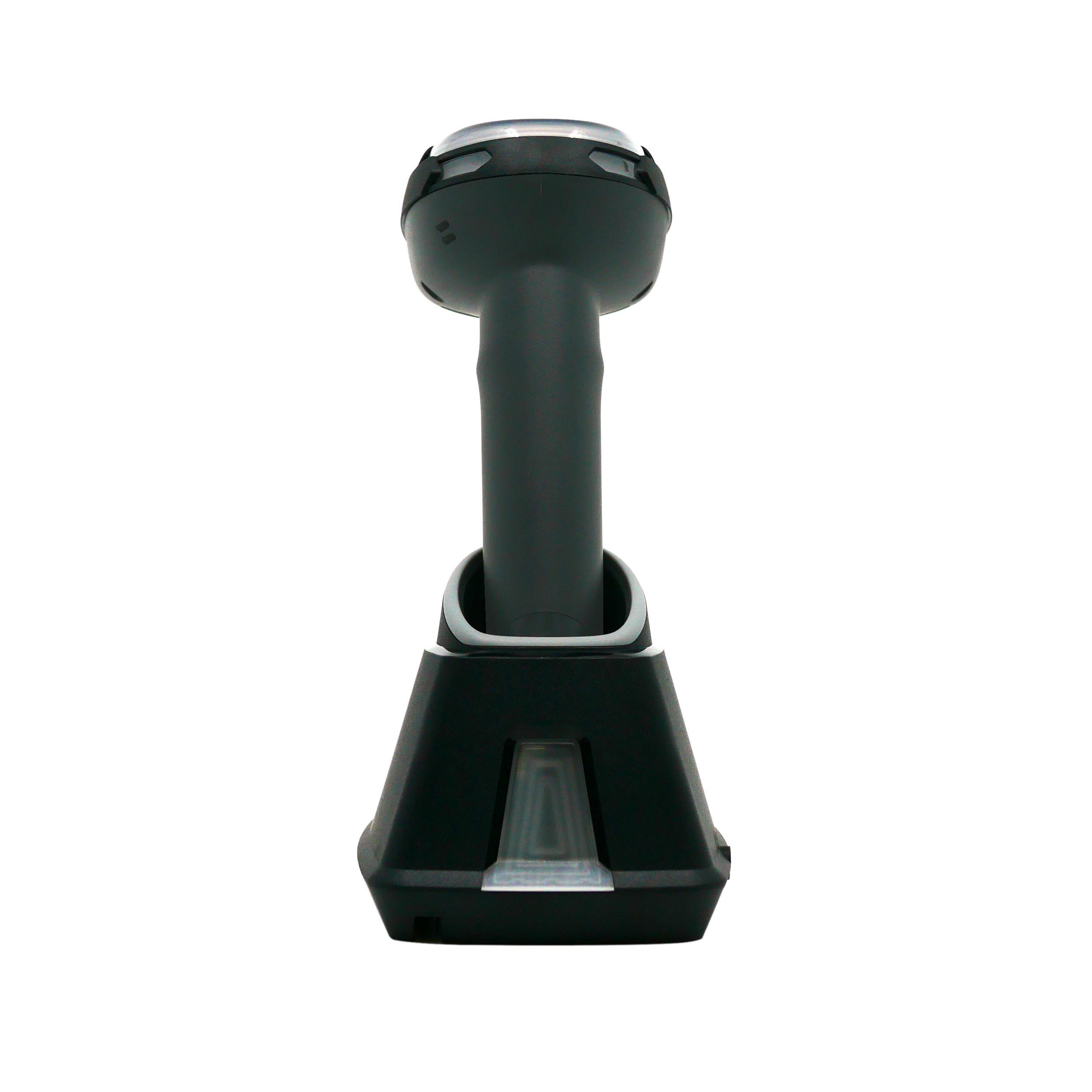

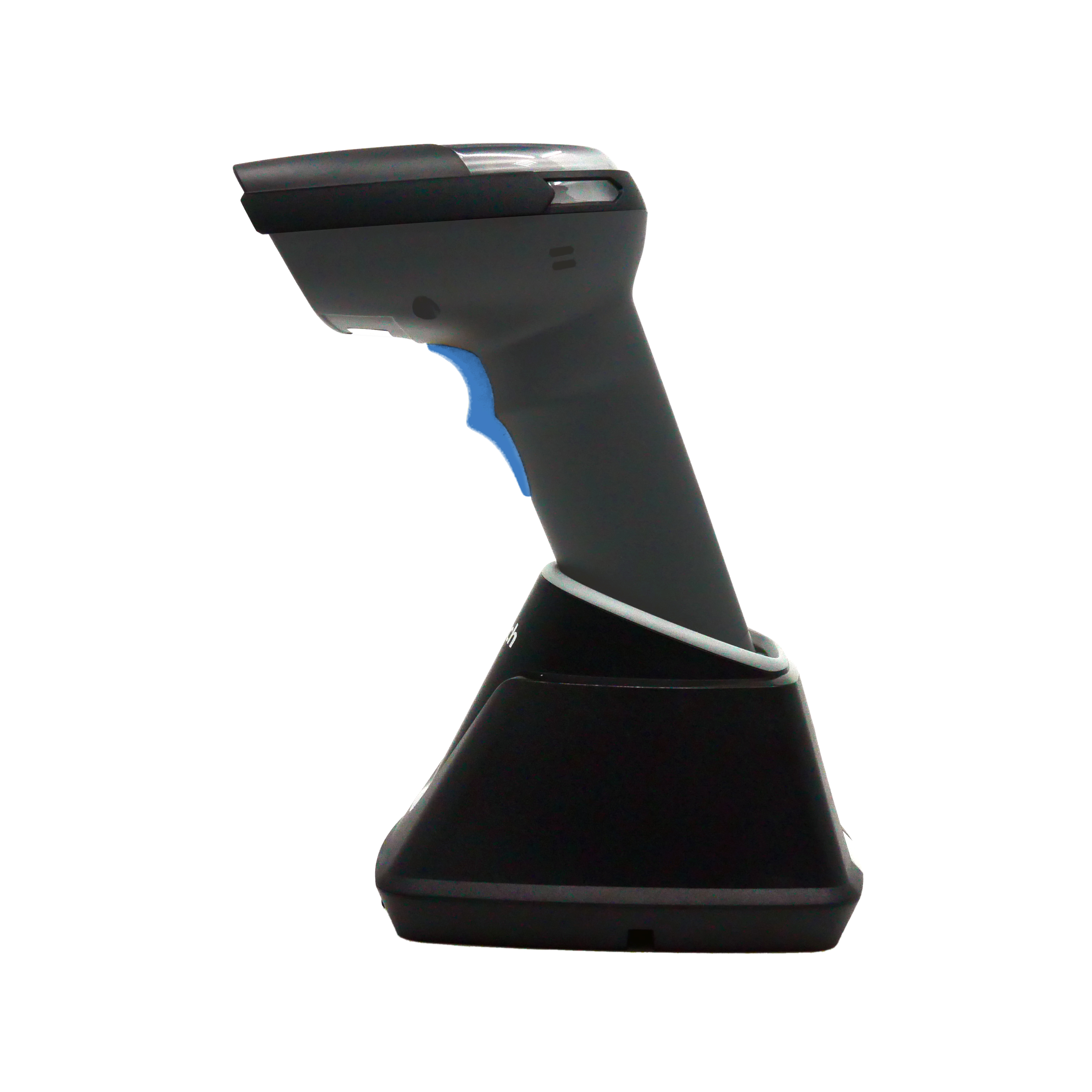

Flexibility with Cradle Accessory



This MS851B wireless scanner has a cradle accessory that supports auto Bluetooth® pairing and it has the ability to switch between trigger or presentation mode automatically. When it is out of range reading in Auto Mode, the scanned data will be saved into the MS851B memory buffer automatically and transmit to the host when back to the wireless coverage. Moreover, MS851B can be set to batch mode reading, all the scanned data will be stored in a memory buffer and upload to your devices at your own convenience.



Compact but Durable



While sustaining a 2.1-meter drop to concrete, MS852B+ incorporated with IP42 rugged design for protection against dust and moisture. Moreover, the built-in long lifecycle trigger of 10 million times guarantees a continuous productivity for the best reliability. This scanner can be used in the most practical way depending on the long-range scanning task in various solutions in retail and inventory applications.






IP42
Certification		 2.1m
Drop Protection


Specification

System

  • Memory 7.5MB (590,000 barcodes)
  • Key Trigger Key

Optical & Performance

  • Sensor 1D Laser
  • Illumination 650 nm visible laser diode
  • Ambient Light Sunlight:
    8000 Ft Candles (86,111 Lux)
  • Scan Rate 104 (± 12) scans/sec (bidirectional)
  • Skew Angle ±40°
  • Pitch Angle Sensor ±65°
  • Roll Angle ± 35° from vertical
  • Optical Resolution 4mil (0.1mm)
  • Printing Contrast Scale minimum 20%
  • Depth of Field (DOF PCS=80%)
    -----------------------------------------------Symbology | Density | Near | Far
    Code 128, 5 mils | 3.55 cm | 17.78 cm
    Code 39, 5 mils | 3.05 cm | 26.67 cm
    Code 39, 7.5 mils | 3.04 cm | 41.91 cm
    Code 128, 10 mils | 3.05 cm | 40.46cm
    UPC, 13 mils | 4.57 cm | 63.50 cm
    Code 128, 15 mils | 5.08 cm | 66.04 cm
    Code 39, 20 mils | 3.56 cm | 116.84 cm
    Code 39, 55 mils | 8.64 cm | 177.80 cm
    Code 39, 100 mils | 60.96 cm | 457.20 cm

Communication

  • Radio Bluetooth LE® V4.2
    & Bluetooth® 2.1+EDR, Class 1
    Dual mode
  • Wireless Coverage 100m ( line of sight)
  • Host Interface supported USB, RS232

Mechanical

  • Dimension 87.8 L x 71.6 W x 177.7 H (mm)
  • Weight 213g without cradle
  • Trigger Switch Life 10 million times
  • Cradle Dimension 120.6 L x 88.7 W x 86.0 H (mm)

Symbologies

  • 1D Barcodes Code 39, Full ASCII Code39, Interleave 2 of 5, UPC
    A/E/E1, MSI, Codabar, Code 11, EAN8/13, Code 93,
    Code 128, EAN128, Code32, GS1 databar Code,
    Bookland EAN, Discreate 2 of 5, Chinese 2 of 5, ISBT
    128, UCC Coupon Extended Code, Bookland 128
  • Data Formatting Prefix, Suffix, Code ID, Reformatting Date

Electrical

  • Indicator LED & Beeper & Vibrator
  • Battery Type Rechargeable and replaceable battery pack.
  • Battery Capacity 2850mAh
  • Battery Charging time <6.5 hours
  • Operating Time >30 hours

Environmental

  • ESD Protection Functional after 8K Contact and 15K Air
  • Mechanical Shock 2.1M onto concrete (scanner only)
  • Operating Temperature -10°C to 50°C (14°F to 122°F)
  • Storage Temperature -40°C to +70°C (-40°F to +158°F)
  • Relative Humidity 95% non-condensing
  • IP Rating IP42

Accessories

  • Accessories(Optional) ■ USB cable (PN# 1550-905890G)
    ■ RS232 cable (PN# 1550-905891G)
    ■ USB type C cable (PN# 1550-905892G)
    ■ 1-slot charging cradle (PN#5 000-900064G)
    ■ Battery pack (PN# 1400-900055G)

Regulatory Approvals

  • Regulatory Approvals CE, FCC, BSMI, VCCI, NCC, TELEC, BQB

What comes in the box

  • The standard package contents ■ MS851B Scanner with battery
    ■ Cradle
    ■ Interface cable
