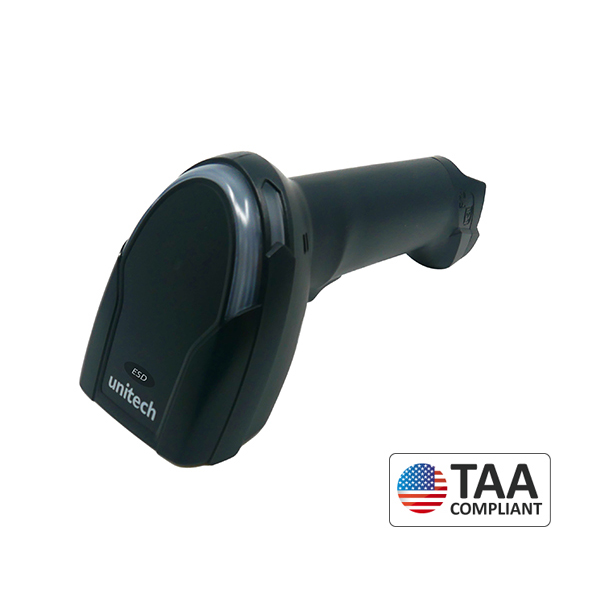

MS852B Plus_ESD

Bluetooth ESD-safe 2D Imager Scanner

The MS852B+ ESD (Electrostatic discharger) 2D imager scanner is a high-performance device but additional designed to satisfy the stringent requirements of cleanrooms and static-safe manufacturing environments.

  • Wireless

  • Bluetooth

  • 2D

  • ESD(Electrostatic Discharge)

  • RS232

  • USB

  • IP42

  • 2.1M

  • Warehousing

  • Manufacturing

unitech’s MS852B+ ESD-safe scanner is made by the internal mixed way with antistatic agent to protect MS852B series to be ESD safe to be used at ESD protected area including its cable.  The body of the product and its cable can withstand ESD up to 105 ~109 ohms per square and no containing Chlorine material.



Features

•  Withstands ESD up to 105~109 ohms per square

•  Megapixel barcode sensor that enhances the maximum compatibility

•  Support most 1D / 2D barcode on mobile screens, even damaged or poorly printed barcodes

•  Support OCR, Dot codes, and Digimarc barcodes

•  Support Bluetooth® dual-mode technology (Bluetooth LE® V4.2 & Bluetooth® 2.1+EDR, Class 1)

•  Wireless transmission range up to 100m in the line of open sight.

•  Long battery life up to 25 hours per a fully charged battery

•  Durable design: IP42 and 2.1m drop spec

•  Auto Bluetooth pairing / auto switch between trigger & presentation mode with cradle




Safeguard with unitech ESD-Safe Scanners


Specifically designed to satisfy the stringent requirements of static-safe environments

Introducing the new MS85x ESD (Electrostatic Discharger) series of high-performance 1D Laser and 2D Imager, USB corded, and cordless (Bluetooth®). unitech barcode scanners are specifically designed to satisfy the stringent requirements of static-safe environments such as manufacturing (semi-conductor), gas station, fuel grounds, mining fields, clean-rooms, and other situations that require electrostatic discharge control.
Applications

Manufacturing  |    Gas Station
Fuel grounds |  Mining fields  | Clean-rooms



MS85X ESD Series | Successful Cases


Our MS85X ESD Series has become a trustworthy partner for nationwide renowned electronic enterprises, such as Micron, ASE Group, SPIL, etc. In anti-static cleanrooms, a manufacturing environment following ESD-safe regulations can significantly reduce damage to electronic components and failure to onsite equipment. Check out how they lead to success with the latest Case Study.


ESD Protection


The MS852B+ ESD (Electrostatic discharger) 2D imager scanner  is a high-performance device but additional designed to satisfy the stringent requirements of cleanrooms and static-safe manufacturing environments. unitech’s MS852B+ ESD-safe scanner is made by internal mixed way with antistatic agent to protect MS852 series to be ESD safe to be used at ESD protected area including its cable. With the Internal mixed way, the body of the product and its cable can withstand ESD up to 105~109 ohms per square and no containing Chlorine material. The Internal mixed way can provide a longer time of ESD protection than external addition way due to external additional anti-static in the latter part of the packaging or processing process was wiped away. An internal mixed antistatic agent can continue to add antistatic agent to the plastic surface, to make up the surface due to wipe and the amount of antistatic agent consumed. It is a reliable tool to streamline your workflow in manufacturing environments.



Move without Restrictions


Featuring 2D scanning technology, the MS852B+ESD has the ability to capture most 1D / 2D barcodes n mobile screens, even damaged or poorly printed barcodes and special barcode symbologies such as OCR on passport, Dot codes on tires or cigarette package, and Digimarc barcode on special retail packages. Moreover, the MS852B+ESD supports Bluetooth® dual-mode technology (Bluetooth LE® V4.2 & Bluetooth® 2.1+EDR, Class 1) to give you the freedom and bring your business the flexibility. It is compatible with any smartphone, tablet, or computer–the MS852B+ESD pairs easily to any mobile device or PC. Besides, it allows users to transmit data to the host from up to 100 meters from the base.  MS852B+ ESD also can automatically populate electronic forms in a single scan from US driver’s licenses or ID card.  With its advanced barcode technology and durable design, the MS852B+ ESD handheld scanner is a highly reliable tool to increase productivity and efficiency.

Intuitive and User-Friendly



With excellent motion tolerance design, the MS852B+ ESD increased scan speed and operational effectiveness even while moving. Equipped with a louder beeper and brighter LED indicators, the MS852B+ ESD allows users to recognize the feedbacks easily even in dark environment.

Ultra-Durability



While sustaining a 2.1 meters drop to concrete, MS852B+ ESD incorporated with IP42 rugged design for protection against dust and moisture.  Moreover, the built-in long lifecycle trigger of 10 million times guarantees a continuous productivity for best reliability. This scanner can be used in the most practical way depending on the scanning task in various solutions in retail, logistics, manufacturing, hospitality, and government.

Specification

System

  • Memory 7MB for batch mode/ 20KB for auto mode
  • Key Trigger Key

Optical & Performance

  • Sensor 1280 X 800 global shutter
  • Illumination Red laser
  • Ambient Light White LED (exempt risk group)
    100,000 Lux (Sunlight)
  • Skew Angle ±60°
  • Pitch Angle Sensor ±60°
  • Roll Angle 0 - 360°
  • Optical Resolution 1D 3mil/ 0.075mm
  • Printing Contrast Scale Minimum 20%
  • Depth of Field Symbology | Density | Near | Far
    13 mil UPC 3.8 cm 40.5 cm
    3 mil C39 6.6 cm 18.3 cm
    5 mil C39 5.3 cm 26.5 cm
    6,7 mil DM 7.2 cm 18.0 cm
    10 mil DM 5.9 cm 24.8 cm
    5 mil PDF 7.4 cm 18.6 cm
    6,7 mil PDF 5.9 cm 23.8 cm
    6,7 mil QR 7.2 cm 16.3 cm
    15 mil QR 2.7 cm 30.8 cm

Communication

  • Radio Bluetooth LE® V4.2
    Bluetooth® 2.1+EDR, Class 2 Dual mode
  • Wireless Coverage 100m ( line of sight)
  • Interface/ Profile Serial Port and HID proles
  • Host Interface supported USB, RS232

Functionality

  • Operation Mode Trigger Mode, Presentation Mode, Buffer Mode

Symbologies

  • 1D Barcodes Codabar, Code 11, Code 128, Code 2 of 5,
    Code 39, Code 93 and 93i, EAN/JAN-13,
    EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of
    5, Matrix 2 of 5, MSI, GS1 Databar,
    UPC-A, UPC E, UPC-A/EAN-13 with Extended
    Coupon Code, Coupon GS1 Code 32(PARAF),
    EAN-UCC Emulation, GS1 Data Bar, TLC39
    2D Stacked: Codablock A, Codablock F,
  • 2D Barcodes PDF417, MicroPDF417
    2D Matrix: Aztec Code, Data Matrix,
    MaxiCode, QR Code, Chinese Sensible (Han
    Xin), Grid Matrix, Dot Code
    Postal:Australian Post, British Post, Canadian
    Post, China Post, Japanese Post, Korea Post,
    Netherlands Post, Planet Code, Postnet
    Support OCR barcodes
    Support DPM barcodes
  • OCR Barcodes Prefix, Suffix, Code ID, Reformatting Date

Electrical

  • Indicator LED & Beeper & Vibrator
  • Battery Type Rechargeable and replaceable battery pack.
  • Battery Capacity 2850mAh
  • Battery Charging time <6.5 hours
  • Operating Time >25 hours
    Up to 50,000 scans at 1 scan/5 second"

Environmental

  • ESD Protection Functional after 8K Contact and 15K Air
  • Mechanical Shock 2.1 M onto concrete (scanner only)
  • Operating Temperature -10°C to 50°C (14°F to 122°F)
  • Storage Temperature -40°C to +70°C (-40°F to +158°F)
  • Relative Humidity 95% non-condensing
  • IP Rating IP42

Accessories

  • Accessories(Optional) ■ USB cable (PN# 1550-905904G)
    ■ 1-slot charging cradle (PN#5000-900074G)
    ■ Battery pack (PN# 1400-900055G)

Regulatory Approvals

  • Regulatory Approvals CE, FCC, BSMI, VCCI, NCC, TELEC, BQB

What comes in the box

  • The standard package contents ■ MS852B+ ESD Scanner with battery
    ■ Cradle
    ■ Interface cable"

Accessories

USB Cable with ESD enhanced

PN#1550-900093G

Hand Free Stand

PN#5200-900009G
