MS852 DPM ESD

2D Imager DPM Scanner

The MS852 DPM ESD is designed to read 1D, 2D, and barcode markings using DPM technology and is intended to meet the stringent requirements of cleanrooms and static-safe manufacturing environments.

  • DPM Code

  • ESD(Electrostatic Discharge)

  • USB

  • IP42

  • 2.1M

  • Field Service

  • Manufacturing

  • Government

Specially built for satisfy the stringent requirements of cleanrooms and static-safe manufacturing environments, the MS852DPM ESD 2D barcode scanner enhances its outstanding value on supporting most 1D, 2D and barcodes marked with the DPM technology. It is an ideal choice for a variety of applications, from manufacturing, automotive, aeronautical, medical care, electronic equipment to healthcare markets.



Features

• Advanced barcode reading technology for decoding Direct Part Marking (DPM)
• Specifically designed to satisfy the stringent requirements of static-safe environments
• Support most 1D / 2D barcode on mobile screens
• Long lifecycle trigger design: Up to 10,000,000 times
• Ultra-rugged design: IP42 and 2.1m drop spec
• Louder beeper and brighter LED indicators for easily recognizing feedbacks

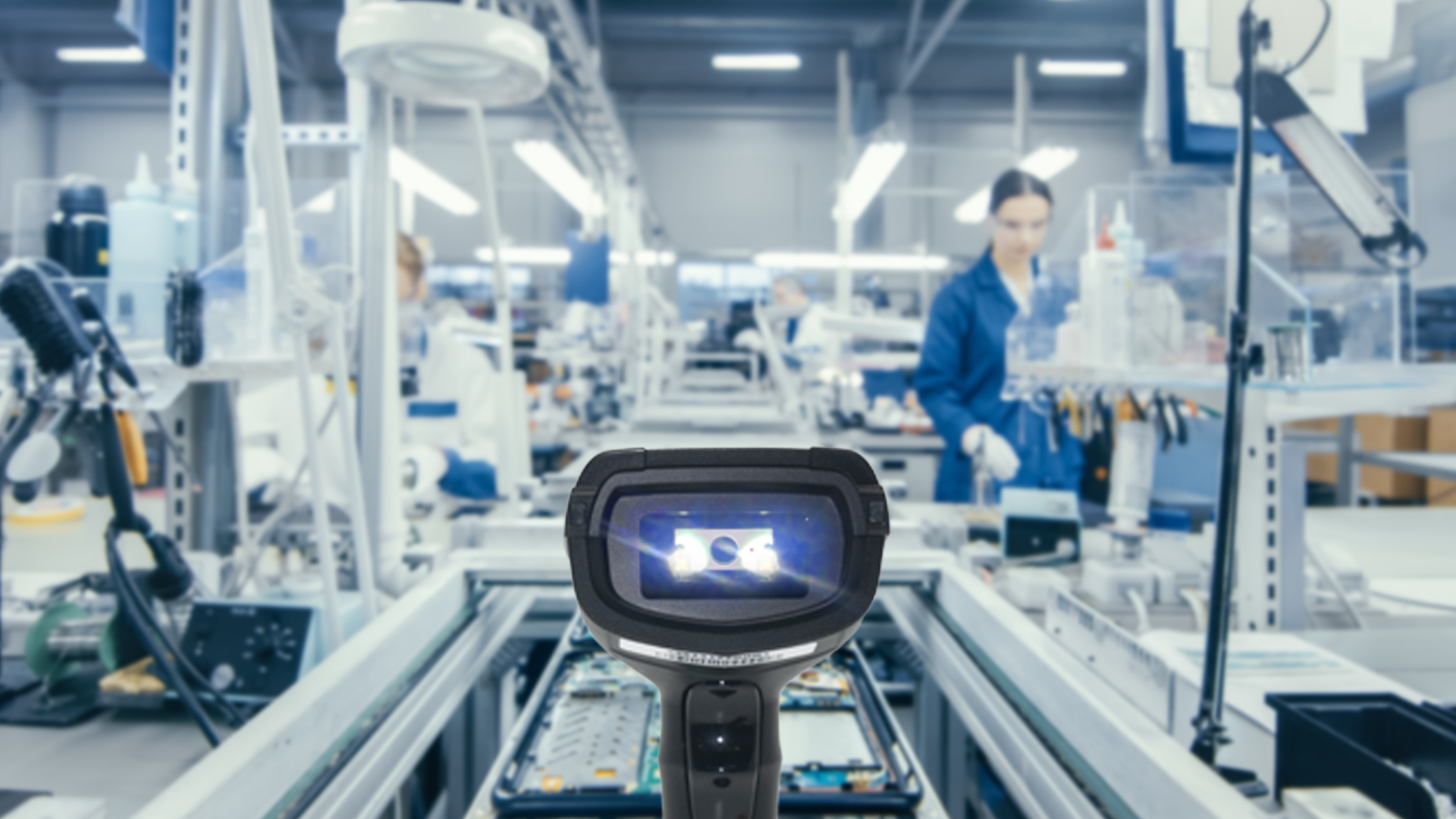

Increase Productivity with Superior Industrial Barcode Scanner



The MS852 DPM ESD is built in megapixel barcode sensor that enhances the maximum compatibility to capture most 1D / 2D
barcodes on mobile screens and special barcode symbologies such as Direct Part Marks(DPM) on chips. With its advanced barcode technology and durable design, the MS852 DPM ESD handheld scanner is a highly reliable tool to increase productivity and efficiency.





Megapixele
Image Resolution

Up to 70 fps

Frame Rate

1D/2D
Barcode Scanner





DPM technology (Direct Part Marking)



Direct Part Marking is a process that allows users to mark a barcode directly on an item instead of printing the barcode on a label, such as plastic and metal. There are three main technologies available for DPM:
laser etched marking, dot peening and ink jet printing, with the intent to create a permanent identifier for the item. The permanent nature of the marking, assures that the item can be identified throughout its full life-cycle during the supply chain, even while being exposed to harsh environmental conditions. When it comes to identifying DPM parts throughout the manufacturing process, tracking your valuable assets
though their lifecycle or quality control – the unitech MS852 DPM ESD really gets the job done!


DPM
Technology		 Laser Aimer  Low Light
Visible


ESD Protection


MS852 DPM ESD-safe scanner is made by internal mixed way with antistatic agent to protect our barcode scanner to be ESD safe to be used at ESD protected area including its cable. With the Internal mixed way, the body of the product and its cable can withstand ESD up to 105~109 ohms per square and no containing Chlorine material.  The Internal mixed way can provide a longer time of ESD protection than external addition way due to external additional anti-static in the latter part of the packaging or processing process was wiped away.  It is a reliable tool to streamline your workflow in manufacturing environments.



Ultra-Durability



While sustaining a 2.1 meter drop to concrete, MS852 DPM ESD incorporated with IP42 rugged design for protection against dust and moisture. Moreover, the built-in long lifecycle trigger of 10 million times guarantees a continuous productivity for best reliability.


IP42
Certification		 2.1m
Drop Protection


TAA Compliant Barcode Scanners




TAA refers to the Trade Agreements Act, which is a law that was passed for the purpose of making international trade more open and fair. One of the main requirements of the TAA is products purchased by the United States government can only be made in the U.S. or by a designated country such as Taiwan.



Founded in 1979 in Taiwan, Unitech is a global provider of AIDC technologies with over 40 years of experience. Our factories were built in Taiwan, and all the SMT and assembly are done in Taiwan as well. We offer a series of quality barcode scanner products to comply with the Trade Agreements Act (TAA) for U.S. government GSA (General Services Administration) Schedule contracts

Specification

Optical & Performance

  • Sensor 1280 X 800 global shutter
  • Aiming Element 650nm Laser Diode
  • Illumination Laser Diode
  • Ambient Light 0~8,600 Lux（Candkes）0~100,000 Lux (direct sunlight)
  • Scan Rate 70 FPS
  • Skew Angle ±55°
  • Pitch Angle Sensor ±55°
  • Roll Angle ±360°
  • Optical Resolution 1D : ≥3 mil ; 2D : ≥5 mil
  • Printing Contrast Scale ≥20% (UPC/EAN 100% , PCS 90%)
  • Depth of Field Code39 (4 mil) : 50 mm ~180 mm
    EAN -13 (13 mil) : 60 mm ~285 mm
    QR Code (7 mil) : 55 mm ~150 mm
    Data Matrix (7 mil) : 55 mm ~160 mm

Communication

  • Radio Corded
  • Host Interface supported USB (HID; CDC)

Mechanical

  • Dimension 87.8 L x 71.6 W x 177.7 H (mm)
  • Weight 165g without cable
  • Trigger Switch Life 10 million times

Symbologies

  • 1D Barcodes UPC A , UPC E , EAN 8 , EAN 13 , Code 128 , Code 39 , Code 93 , Codabar , Plessey , MSI , Interleaved 2 of 5
  • 2D Barcodes Data Matrix , QR , Micro QR
  • DPM Barcodes Data Matrix , QR , Micro QR

Electrical

  • Operation Voltage 4 VDC to 5.5 VDC
  • Current Consumption Operating: 252mA
    Standby: 77mA
  • Indicator Buzzer, LED

Environmental

  • ESD Protection Functional after 8K Contact and 15K Air
  • Mechanical Shock 2.1M onto concrete (scanner only)
  • Operating Temperature -10°C to 50°C (14°F to 122°F)
  • Storage Temperature -40°C to +70°C (-40°F to +158°F)
  • Relative Humidity 95% non-condensing
  • IP Rating IP42

Accessories

  • Accessories(Optional) ■ Standard Hands Free Stand (PN#5200-900009G, Optional)
    ■ USB Cable (PN#1550-905920G)
    ■ Protective Case (PN#386793G)

Regulatory Approvals

  • Regulatory Approvals CE, FCC, BSMI, VCCI

What comes in the box

  • The standard package contents ■ MS852 DPM ESD Scanner
    ■ Interface cable

Accessories

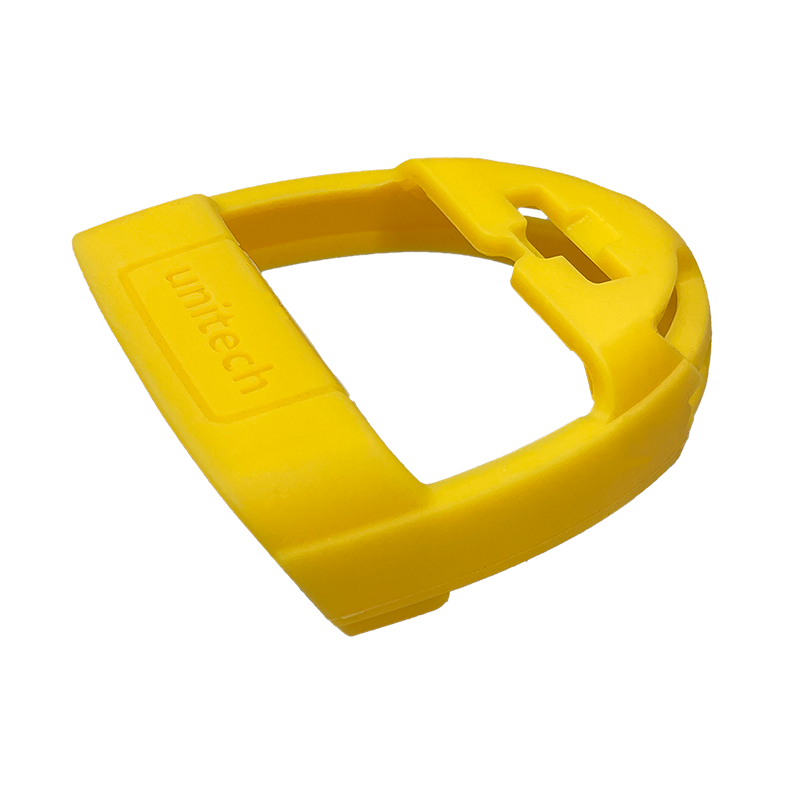

Protective Case

PN#386793G

USB Cable

PN#1550-905920G

Hand Free Stand

PN#5200-900009G
