MS852 LR

Ultra-Long-Range 2D Imager Scanner

Specially built for the extended-range work environment, the MS852 LR 2D imager long-range scanner features a superior performance with the scanning range up to 21m away from the spot.

  • 2D

  • USB

  • IP42

  • Warehousing

  • Field Service

  • Manufacturing



Specially built for an extended-range work environment, the MS852 LR 2D imager long-range scanner features a superior performance with the scanning range up to 21m away from the spot. The MS852 LR 2D barcode scanner enhances its outstanding value on supporting most 1D / 2D barcodes and special barcodes. It is an ideal choice for the environment where barcodes are difficult to reach, such as warehouse, yard, field service, and manufacturing facility applications.



Features

• Superior performance with the scanning range up to 21m away

• Support most 1D / 2D barcode on mobile screens, OCR and DotCode

• With excellent motion tolerance design suitable to read bar code while moving

• Long lifecycle trigger design: Up to 10,000,000 times.

• Ultra-rugged design: IP42 and 2.2m (with protection case) drop spec

• Louder beeper and brighter LED indicators for easily recognizing feedbacks

Superior Long Range Barcode Scanner



Built-in an advanced megapixel barcode sensor with excellent motion tolerance design, the MS852 LR increased scan speed and operational effectiveness even while moving. This device also supports most 1D / 2D barcodes on mobile screens and special barcode symbologies such as OCR on passport and DotCode on tires or cigarette package.








Megapixel
Image Resolution

Up to 55 fps

Frame Rate

Auto-Focus
Near to Far





Outstanding Performance For All Range



The MS852 LR has the ability to capture barcodes with the scanning range from 7.6cm near on a poor quality code to 21m far on a shelf item in the warehouse.


    21 m
Maximum Scanning Distance		 7.6 cm
Minimum Scanning Distance




Intuitive and User-Friendly


The MS852 LR is combined with an ergonomic design that allows users can easily to operate through the day. Equipped with a louder beeper and brighter LED indicators, the MS852 LR allows users to recognize the feedbacks easily even in a dark environment.



Ergonomic
Design

184 g

Lightweight Design



Ultra-Durability



While sustaining a 1.8-meter drop to concrete, MS852 LR incorporated with IP42 rugged design for protection against dust and moisture. Moreover, the built-in long lifecycle trigger of 10 million times guarantees a continuous productivity for the best reliability.






IP42
Certification		 2.2m
Drop Protection


Enhance Productivity in Warehouse Solutions



With MS852 LR long-range scanner, users can easily capture the barcodes on pallets or shelf at extended ranges that enhance productivity and revolutionizes the way you do business.







Specification

Optical & Performance

  • Sensor 1280 X 800 global shutter
  • Aiming Element 655nm
  • Illumination Hyper Red 660nm
  • Ambient Light 10,000 ft. candles (107,639 lux)
  • Skew Angle ±60°
  • Pitch Angle Sensor ±60°
  • Roll Angle 0 - 360°
  • Optical Resolution 3.0 mil (Code 39), 5.0 mil (PDF417)
  • Printing Contrast Scale 25%
  • Depth of Field SYMBOLOGY / X-DIM TYPICAL RANGE* Near Far(inches/centimeters)
    10 mil Code 39 3.0/7.6 * 85.0/215.9
    13 100% UPC 3.5/8.9 90.0/228.6
    15 mil Code 128 6.0/15.2 * 100.0/254.0
    20 mil Code 39 4.0/10.2 * 172.0/436.9
    40 mil Code 39 6.0/15.2 * 340.0/863.6 **
    55 mil Code 39 7.0/17.8 * 430.0/1092.2 **
    100 mil Code 39 (paper) 20.0/50.8 * 700.0/1778.0 **
    100 mil Code 128 (reflective) 30.0/76.2 * 700.0/1778.0
    DataMatrix 10 5.0/12.7 45.0/114.3
    DataMatrix 55 5.0/12.7 250.0/635.0
    15 mil Code 128 (4 in. wide) 8.0/20.3 * 100.0/254.0"
    100 mil QR Code 15.7in / 40.0 cm 820.7 in / 2085.0cm

Communication

  • Radio Corded
  • Host Interface supported USB

Mechanical

  • Dimension 87.8 L x 71.6 W x 177.7 H (mm)
  • Weight 184g without cable
  • Trigger Switch Life 10 million times

Functionality

  • Operation Mode Trigger Mode, Presentation Mode

Symbologies

  • 1D Barcodes Code 39, Full ASCII, Code 32, Italian Pharmacode, Trioptic, Code 128, EAN-128, ISBT-128, Codabar, Code 11, Matrix 2 of 5, Chinese Matrix 2 of 5, UPC/EAN, UPCA, UPCE, UPCE1, EAN-8, EAN-13, Bookland/ISBN, ISSN, Coupon Code, Interleaved 2 of 5, Discrete 2 of 5, IATA, Databar, Code 93, MSI, UK Plessy, Telepen
  • 2D Barcodes PDF Standard, Macro PDF, Micro PDF, Macro Micro PDF, Composite, TLC-39, Aztec, Data Matrix, QR Standard, Micro QR, GS1 QR, Maxicode, Han Xin, Grid Matrix, DotCode, OCR, Japan Postal, Australia Post, Canada Postal, Netherlands KIX Code, US Planet, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal, Mailmark, French Lottery, Posti4S, Korean 3 of 5
  • OCR Barcodes Support OCR barcodes
  • Data Formatting Prefix, Suffix, Code ID, Reformatting Date

Electrical

  • Operation Voltage 4 VDC to 5.5 VDC
  • Current Consumption Operating: 710mA
    Standby: 79mA
  • Indicator Buzzer, LED

Environmental

  • ESD Protection Functional after 8K Contact and 15K Air
  • Mechanical Shock 1.8M onto concrete (2.2M with protection case)
  • Operating Temperature -20°C to 50°C (-4°F to 122°F)
  • Storage Temperature -40°C to +70°C (-40°F to +158°F)
  • Relative Humidity 95% non-condensing
  • IP Rating IP42

Accessories

  • Accessories(Optional) ■Hand Free Stand (PN#5200-900009G)
    ■USB cable (PN#1550-900127G)
    ■USB Coiled Cable (PN#1550-900111G)
    ■Desktop stand (PN# 5200-900011G )

Regulatory Approvals

  • Regulatory Approvals CE, FCC, BSMI, VCCI

What comes in the box

  • The standard package contents ■ MS852 LR Scanner
    ■ USB Interface Cable
    ■ Y cable

Accessories

Hand Free Stand

5200-900009G

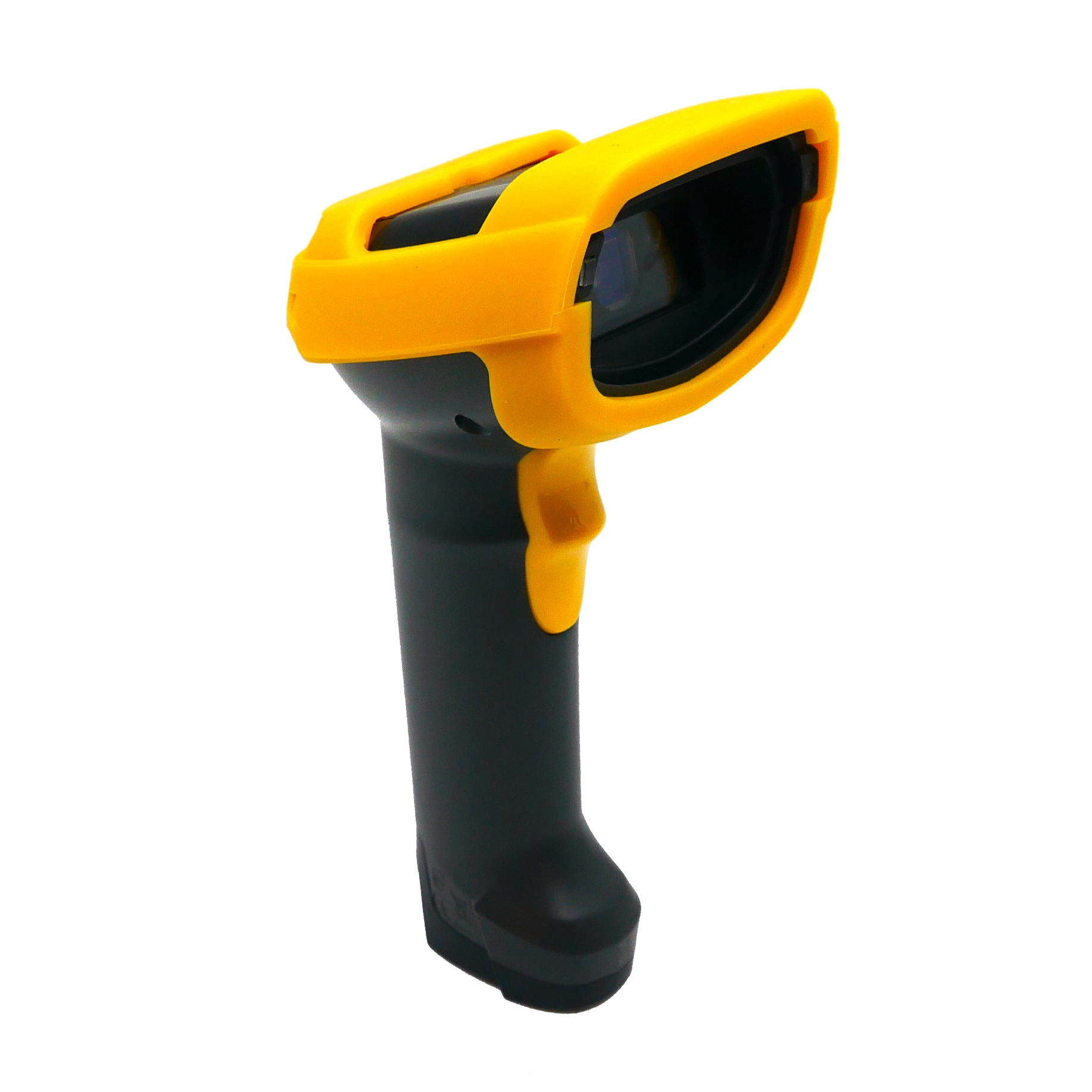

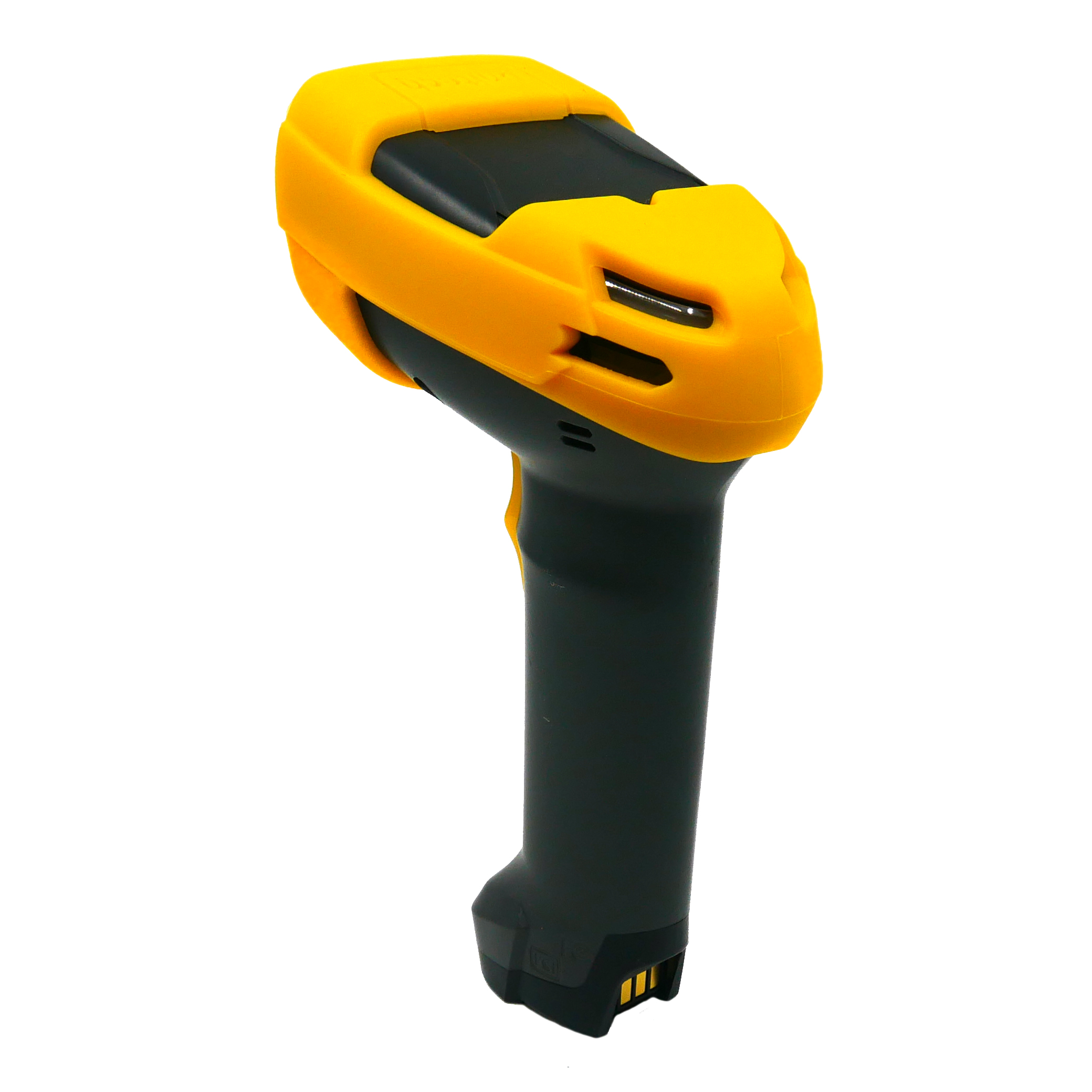

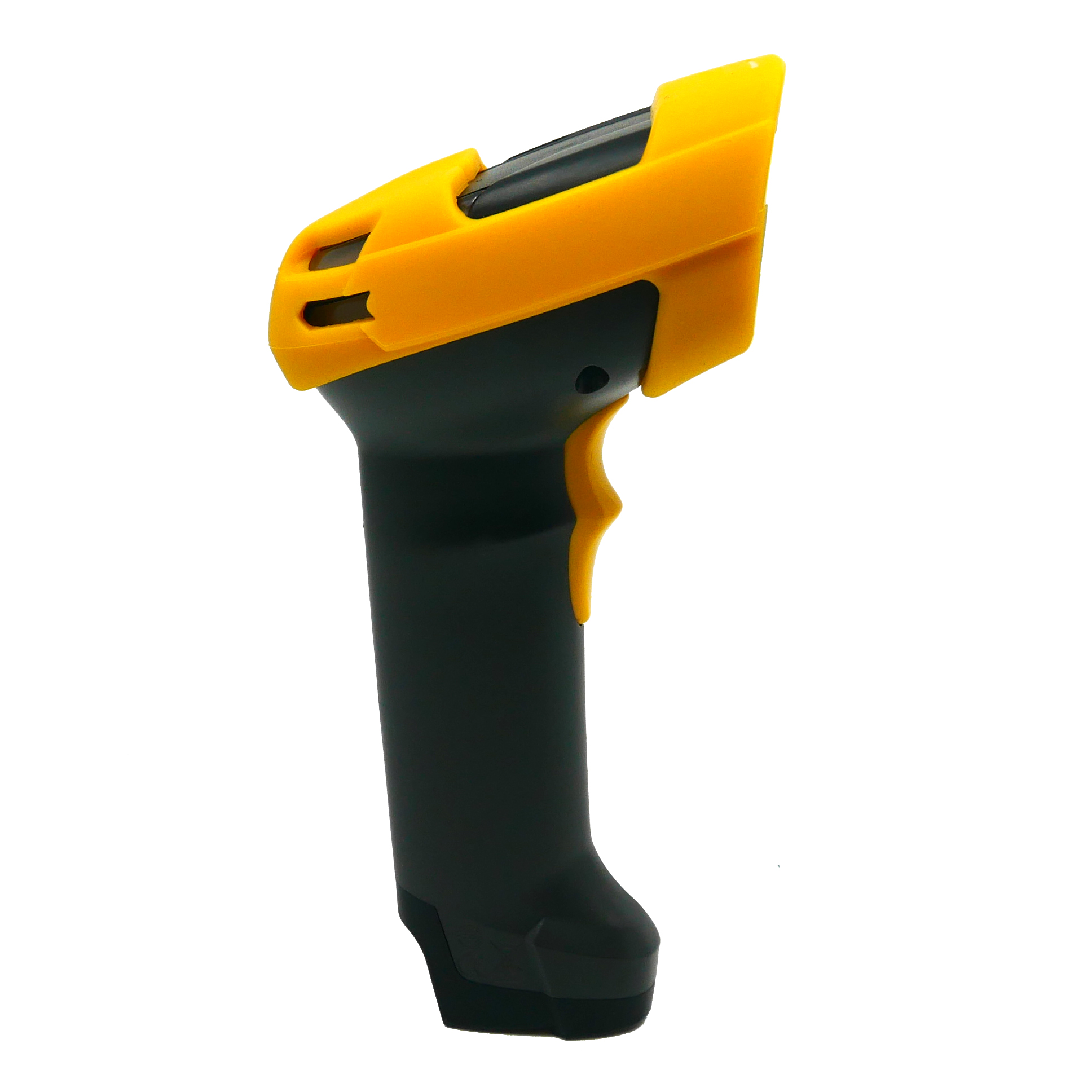

Protective case

386124G.

USB cable

1550-900127G
