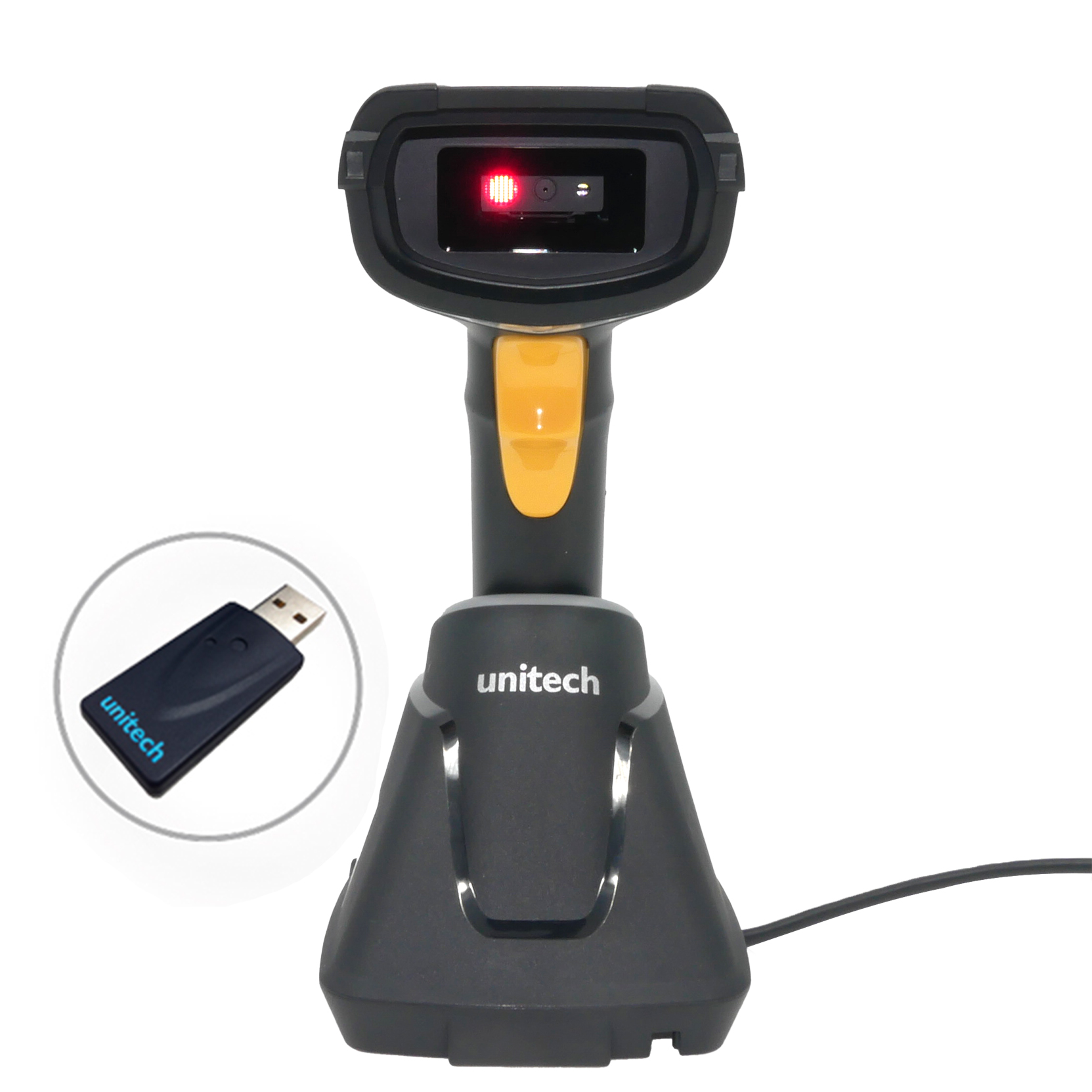

MS852P

Wireless 2D Imager Scanner

Optimized to read 1D, 2D and OCR Barcodes｜ Plug-and-play with USB dongle｜15 hours of operation time｜IP42 + 2.1m drop protection

  • 2.4GHz

  • Wireless

  • 2D

  • IP42

  • 2.1M

  • Retail

  • Logistics

  • Warehousing

  • Manufacturing

With reliable 2D barcode scanning performance, MS852P can read most 1D/2D barcodes, even when it comes to poorly printed or damaged ones. Special symbology such as OCR code is also supported. With its durable design and quick pairing dongle, MS852P makes users' daily tasks much easier.



Features

•  Reads all major 1D and 2D barcodes on mobile screens, even damaged or poorly printed barcodes
•  Rugged design with IP42 and 2.1m drop protection
•  Easy plug-and-play function with a dongle
•  Long-life and durable trigger design
•  Wireless transmission range up to 10m in the line of open sight
•  Long battery life up to 15 hours by a fully charged battery



High Level of 2D Barcode Scanning Performance

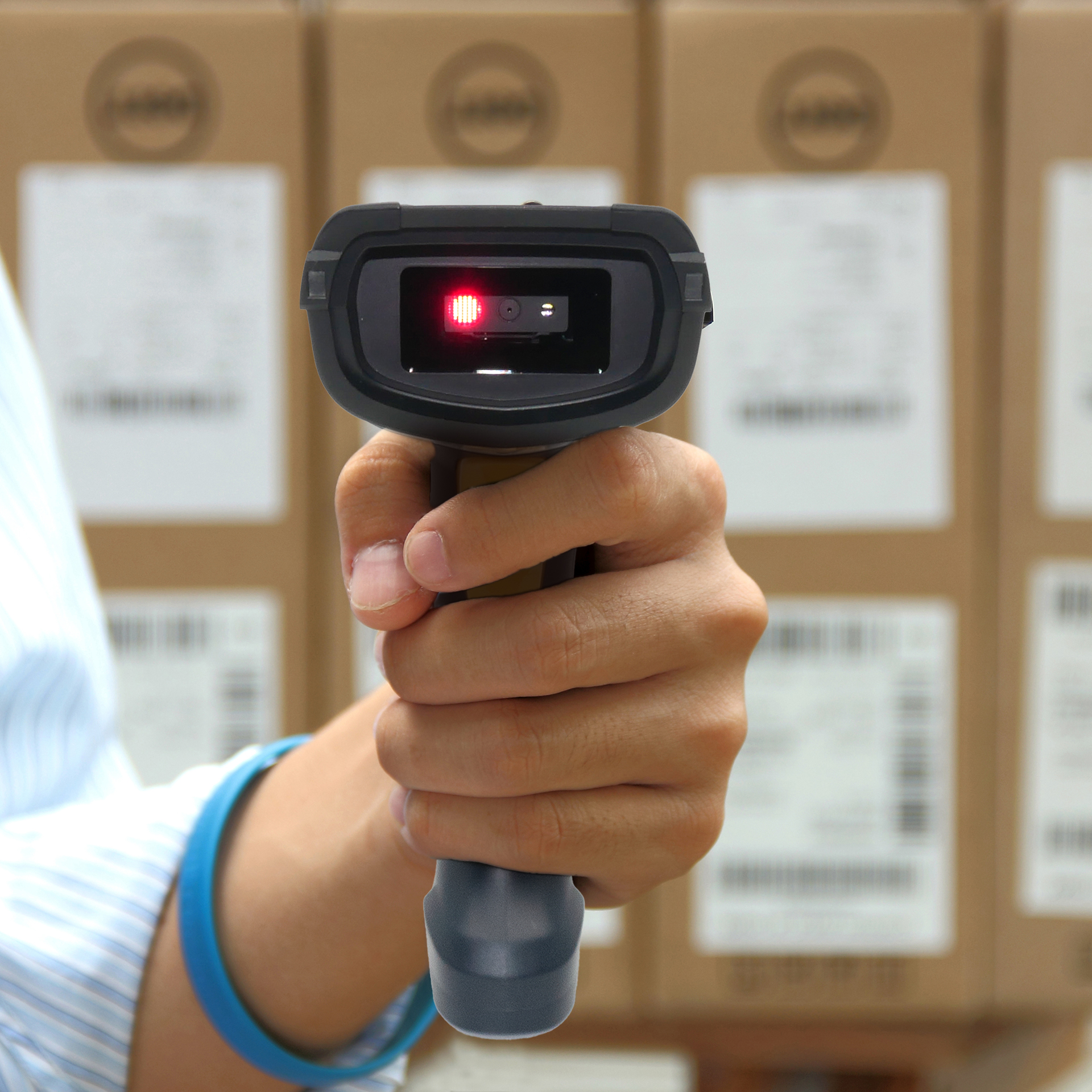

MS852P can read most 1D/2D barcodes, and supports OCR symbology which can be applied in reading ID numbers on passports. Even when the barcodes are poorly printed or damaged, MS852P is able to read them. From scanning barcodes on test tubes to inventory checking, its reliable 2D scanning performance makes it an ideal tool for the hospital, warehousing, manufacturing and government applications, and help users to optimize overall workflow and enhance working efficiency.



1D / 2D
Barcode Scanner		 1280 x 800 pixels
High resolution







Move with Flexibility

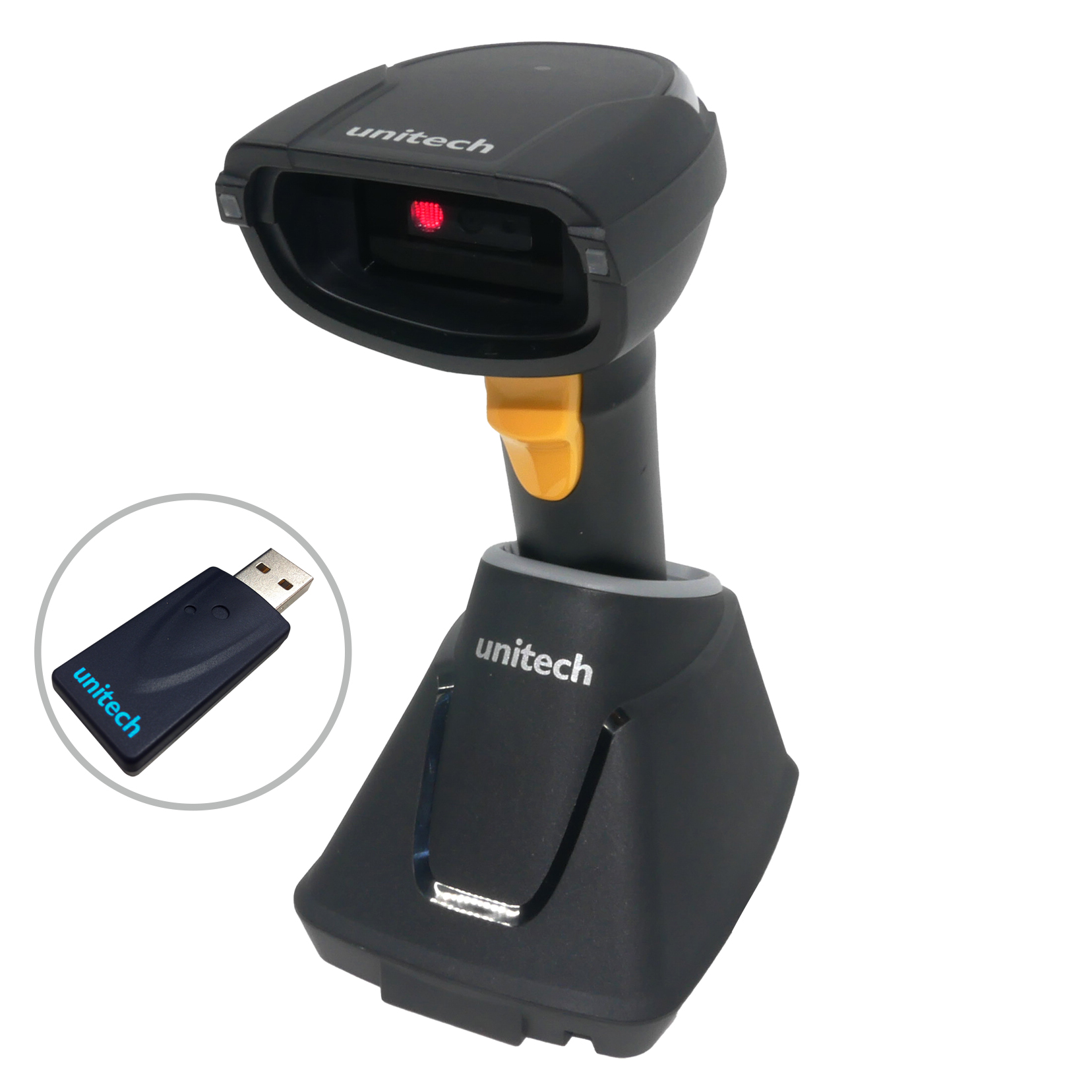

Comes with a dongle, the easy plug-and-play function of MS852P enables quick pairing with laptop or PCs, and allow users to move freely without restrictions.  Besides, it allows users to transmit data to the host from up to 10 meters from the base.


10 meters
Transmission range

Dongle
Easy Plug-and-Play






Durable and User-friendly Design

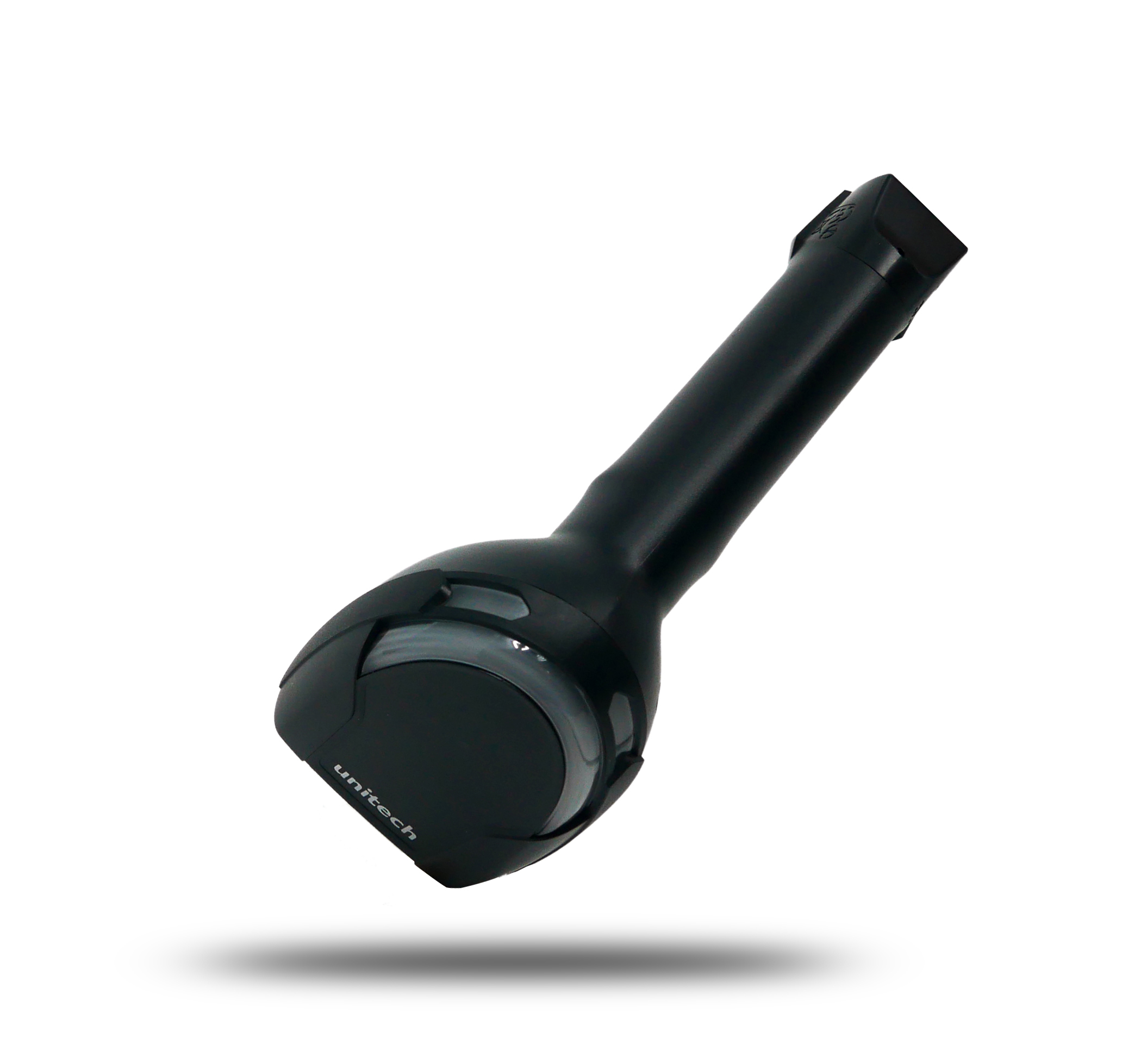

Combined with a 2.1m drop sustainability onto concrete and IP42 protection, MS852P allows users to work with ease.  The  replaceable lithium-ion battery which is charged via cradle guarantees 15 hours of operation time. More than that, the built-in long lifecycle trigger key ensures 10 million times of pressing.


IP42
Certification		 2.1m
Drop Protection


TAA Compliant Barcode Scanners




TAA refers to the Trade Agreements Act, which is a law that was passed for the purpose of making international trade more open and fair. One of the main requirements of the TAA is products purchased by the United States government can only be made in the U.S. or by a designated country such as Taiwan.



Founded in 1979 in Taiwan, Unitech is a global provider of AIDC technologies with over 40 years of experience. Our factories were built in Taiwan, and all the SMT and assembly are done in Taiwan as well. We offer a series of quality barcode scanner products to comply with the Trade Agreements Act (TAA) for U.S. government GSA (General Services Administration) Schedule contracts

Specification

System

  • Key Trigger Key

Optical & Performance

  • Sensor CMOS Sensor, 1280 x 800 pixels
  • Aiming Element 655 nm Laser
  • Illumination One (1) Hyper Red 660 nm LED
  • Skew Angle ±60°
  • Pitch Angle Sensor ±60°
  • Roll Angle 360°
  • Optical Resolution 3 mil (code 39), 5 mil (code128), 5 mil (PDF417)
  • Depth of Field Symbology/Resolution Near/Far
    Code 39: 3 mil 7.6 cm to / 14.7 cm
    Code 128: 5 mil / 5.8 cm to / 24.9 cm
    PDF417: 5 mil / 7.6 cm to / 20.1 cm
    PDF 417: 6.67 mil / 6.3 cm to/ 25.7 cm
    DataMatrix: 10 mil / 5.3 cm to / 27.8 cm
    UPCA (100%) / 4.1 cm to / 63.2 cm
    Code 128: 15 mil / 6.1 cm to/ 70.6 cm
    Code 39: 20 mil / 4.1 cm to / 91.7 cm
    QR Code: 20 mil / 2.8 cm to / 44.5 cm

Communication

  • Radio Unlicensed 2.4GHz
  • Wireless Coverage 10M( line of sight)
  • Host Interface supported USB(via dongle)

Mechanical

  • Dimension 87.8 L x 71.6 W x 177.7 H (mm)
  • Weight 213g without cradle
  • Trigger Switch Life 10 million times
  • Cradle Dimension 120.6 L x 88.7 W x 86.0 H (mm)

Symbologies

  • 1D Barcodes Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 Italian Pharma)
  • 2D Barcodes PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes. Supported OCR Symbologies: OCR-A, OCR-B
  • Data Formatting Prefix, Suffix, Code ID, Reformatting Date

Electrical

  • Operation Voltage DC 3V to 5V
  • Current Consumption Operation mode:80.6mA ,
    Standby mode:14.6mA
  • Indicator LED & Beeper & Vibrator
  • Battery Type Lithium-ion
  • Battery Capacity 2850 mAh charged via the cradle
  • Battery Charging time 7 Hours
  • Operating Time 15 Hours

Environmental

  • ESD Protection Functional after 8K Contact and 15K Air
  • Mechanical Shock 2.1M onto concrete (scanner only)
  • Operating Temperature -10°C to 50°C (14°F to 122°F)
  • Storage Temperature -40°C to 70°C (-40°F to 158°F)
  • Relative Humidity 95% non-condensing
  • IP Rating IP42

Accessories

  • Accessories(Optional) ■ Battery (PN# 1400-900055G)
    ■ Dongle (PN# 5500-900086G)
    ■ USB Cable for cradle (PN#1550-905920G)
    ■ Cradle (PN# 5000-900104G)
    ■ Power Adaptor (PN# 1010-900058G)

Regulatory Approvals

  • Regulatory Approvals CE, FCC, BSMI, VCCI, TAA Compliant

What comes in the box

  • The standard package contents ■ MS852P with battery
    ■ Dongle
    ■ USB Cable for cradle
    ■ Cradle
    ■ Power Adaptor

Accessories

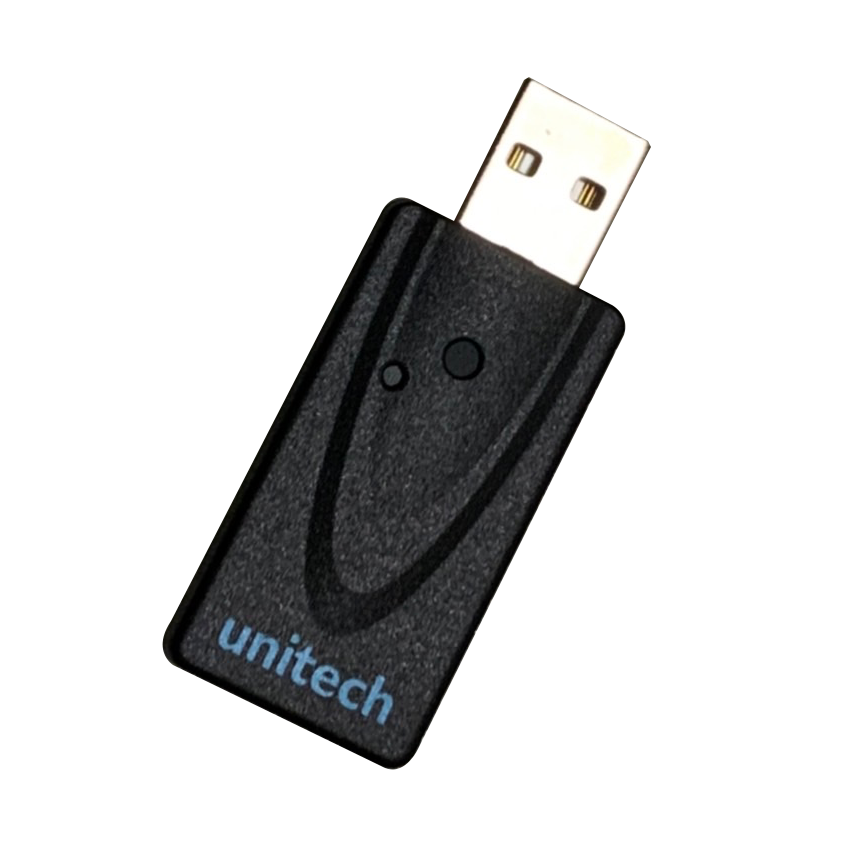

USB Wireless Receiver (ESD) (Dongle)

PN# 5500-900086G

USB Cable

PN#1550-905920G

Battery

1400-900055G.

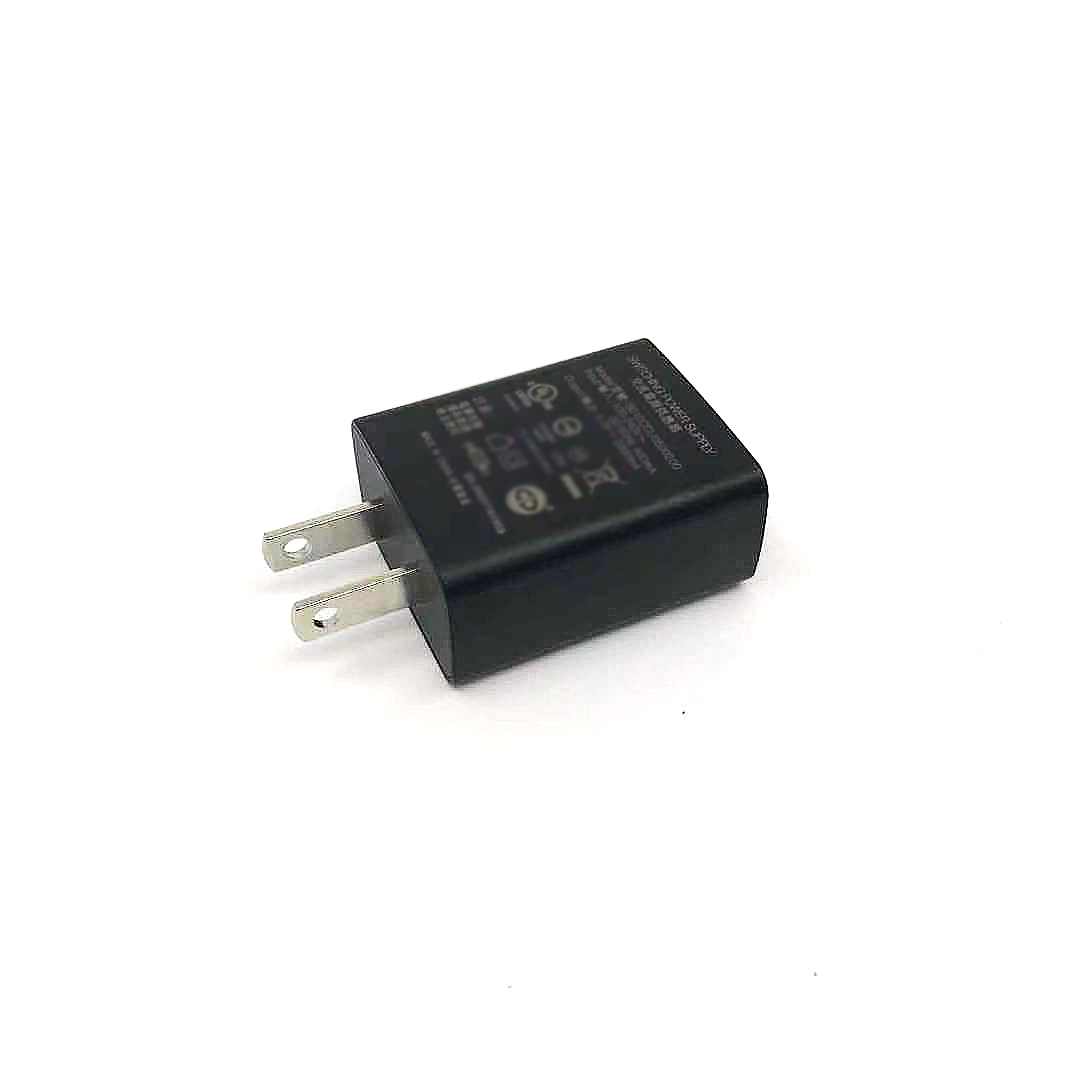

Adapter (US) for Terminal

PN#1010-900058G

MS852P 1-Slot Cradle

PN#5000-900104G
