RG630

UHF RFID Gun Grip

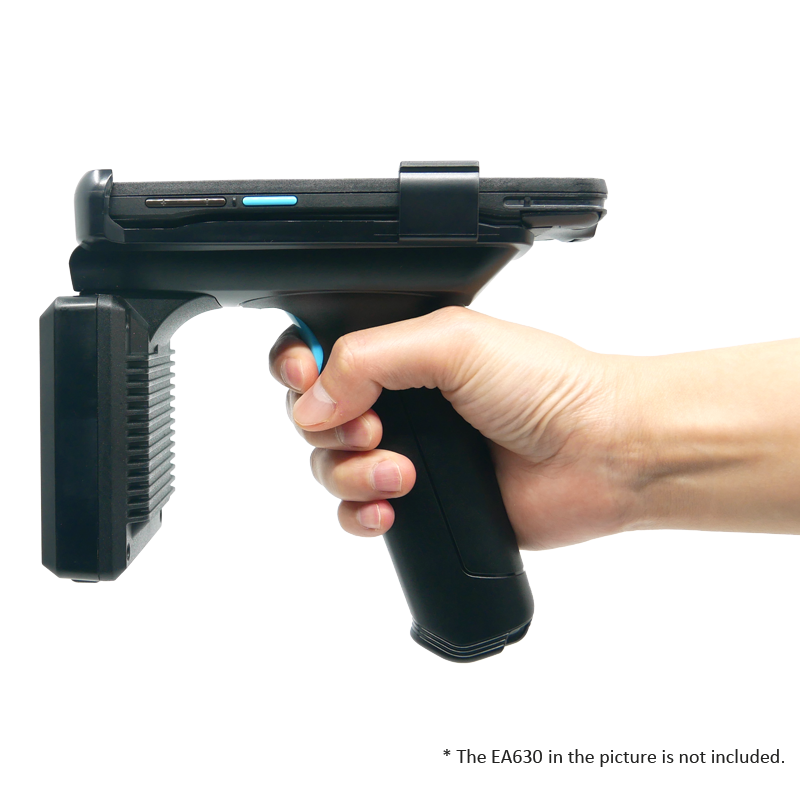

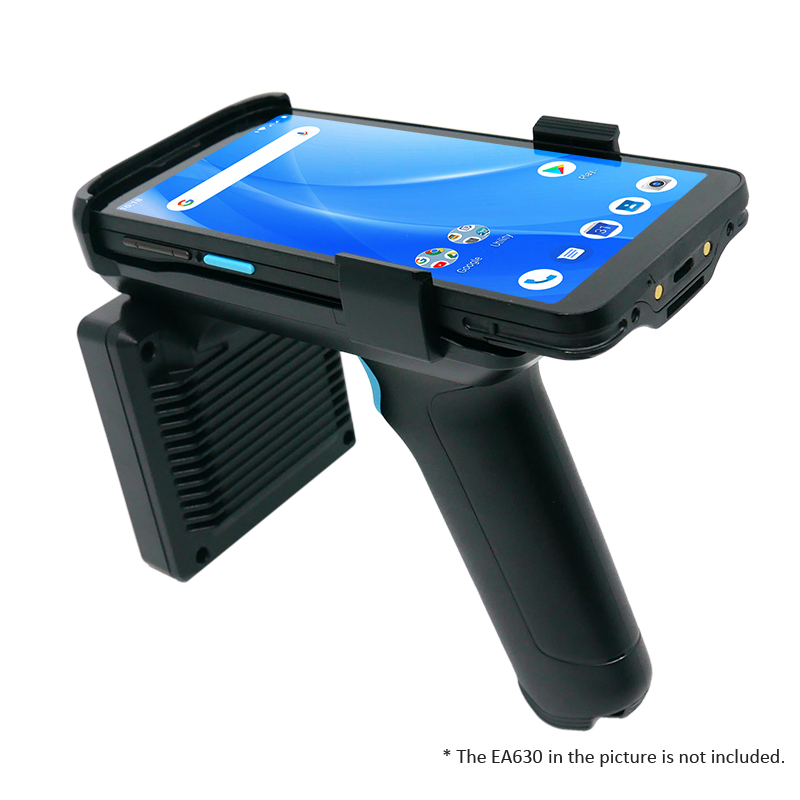

The RG630 comes with a holder that is specifically designed for EA630. Just slide the EA630 in the holder and close it. The EA630 is ready for both barcode and RFID/UHF reading.

  • Pogo pins

  • UHF RFID

  • IP52

  • 1.2M

  • Retail

  • Hospitality

  • Field Service

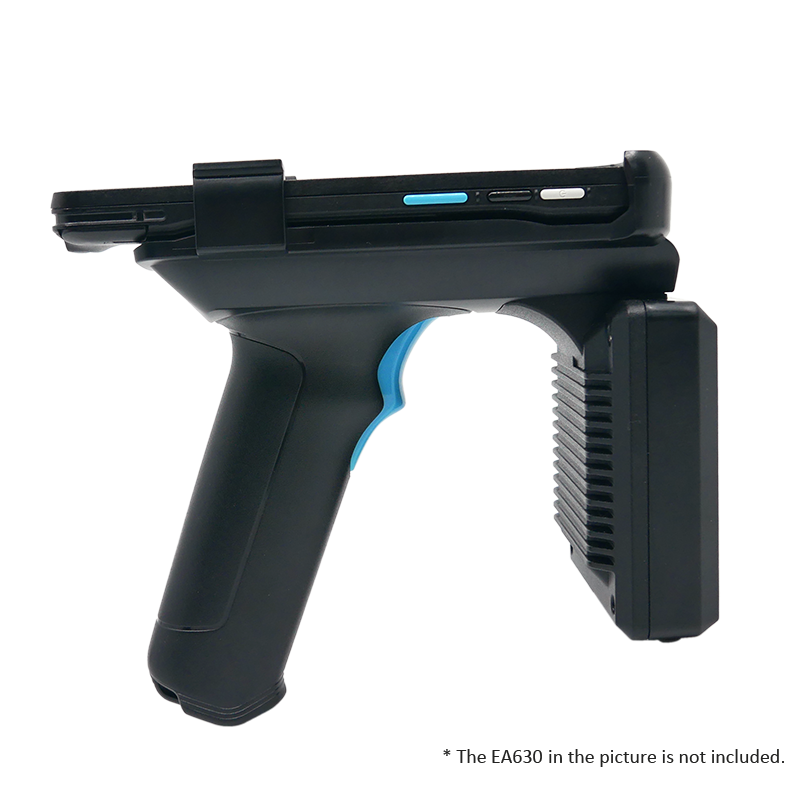

The RG630 features an easy-to-operate and sled design with UHF RFID data collection that is easily for users to attach the EA630 to the RG630 sled and get ready for both barcode and RFID/UHF reading solutions.



Features


• User-friendly operation with a sled enclosure
• Standards supported: EPC Class1 Gen2 V2
• Reading up to 8 meters away
• Fastest Read Rate: 750 tags/second
• IP52 dustproof, waterproof and 1.2 meters resistant to fall protection


Empowering EA630 for RFID/UHF applications



Looking for a durable solution for quick scanning and tagging inventory?
The unitech RG630 is a great new add-on for the EA630 rugged smartphone


Empowering EA630 for RFID/UHF applications
Equipped with the intuitive and easy-to-use handheld sled design, just attach the EA630 on RG630 and it's ready for both barcode and UHF RFID reading solutions.


Streamline Work Process

The RG630 delivers the ability to read major RFID tags including EPC Class1 Gen2 V2 standards. Besides, this device is capable to read 750 tags per second and users are able to read RFID tags up to 8 meters. The RG630 is a lightweight UHF RFID reader and it offers an easy way for users to streamline the work process in various applications.
 It delivers fast inventory control on retail shelves, cloth shop, restaurant, field service, and asset management applications.

Learn more about EA630 rugged smartphone...

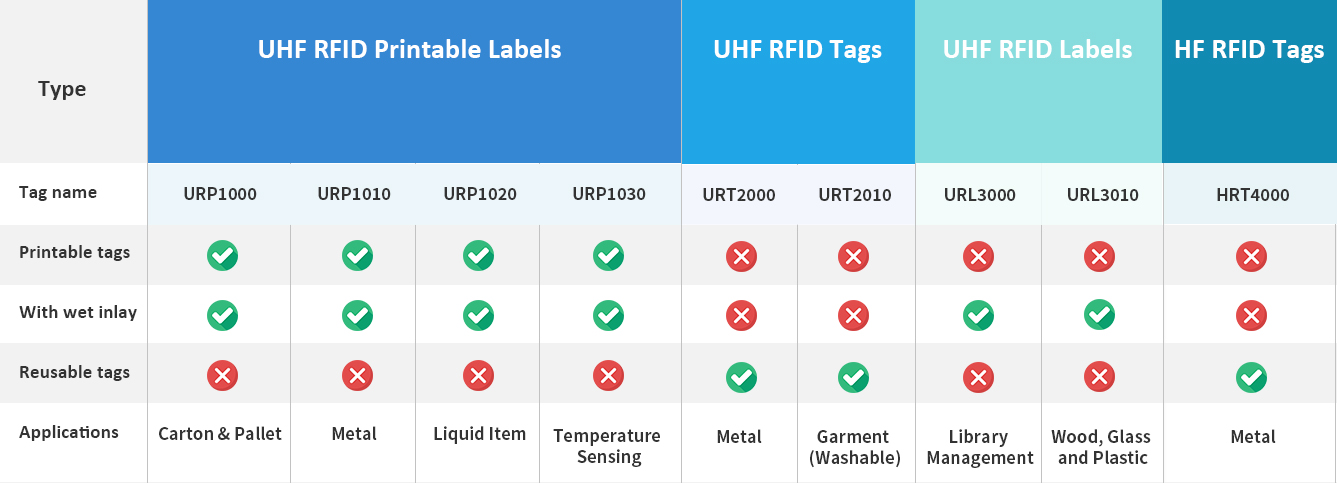

RFID Label & Tags Solutions for User’s Options



For a successful and complete RFID solution, the selection of RFID labels and tags is essential.
According to the target material and application that the customer wants to control, choosing the right labels or tags will greatly improve the operation process and efficiency of the entire RFID solution.


Learn more about RFID Label & Tags.



Specification

RFID

  • UHF Standards Supported : EPC Class1 Gen2 V2

UHF RFID Performance

  • RFID Module
     RFID Engine : M6e-Micro (RAIN RFID supported)
  • Reading Distance
     8m (Circular antenna)
  • Tag Read Rate
     750 tags/sec
  • Antenna Ports
     TW: 922-928 MHz
    US: 902-928 MHz
    EU: 865-868 MHz
    Japan: 916-921 MHz
    CH: 920-924 MHz

I/O Interfaces

  • Automatic Reboot Trigger Trigger

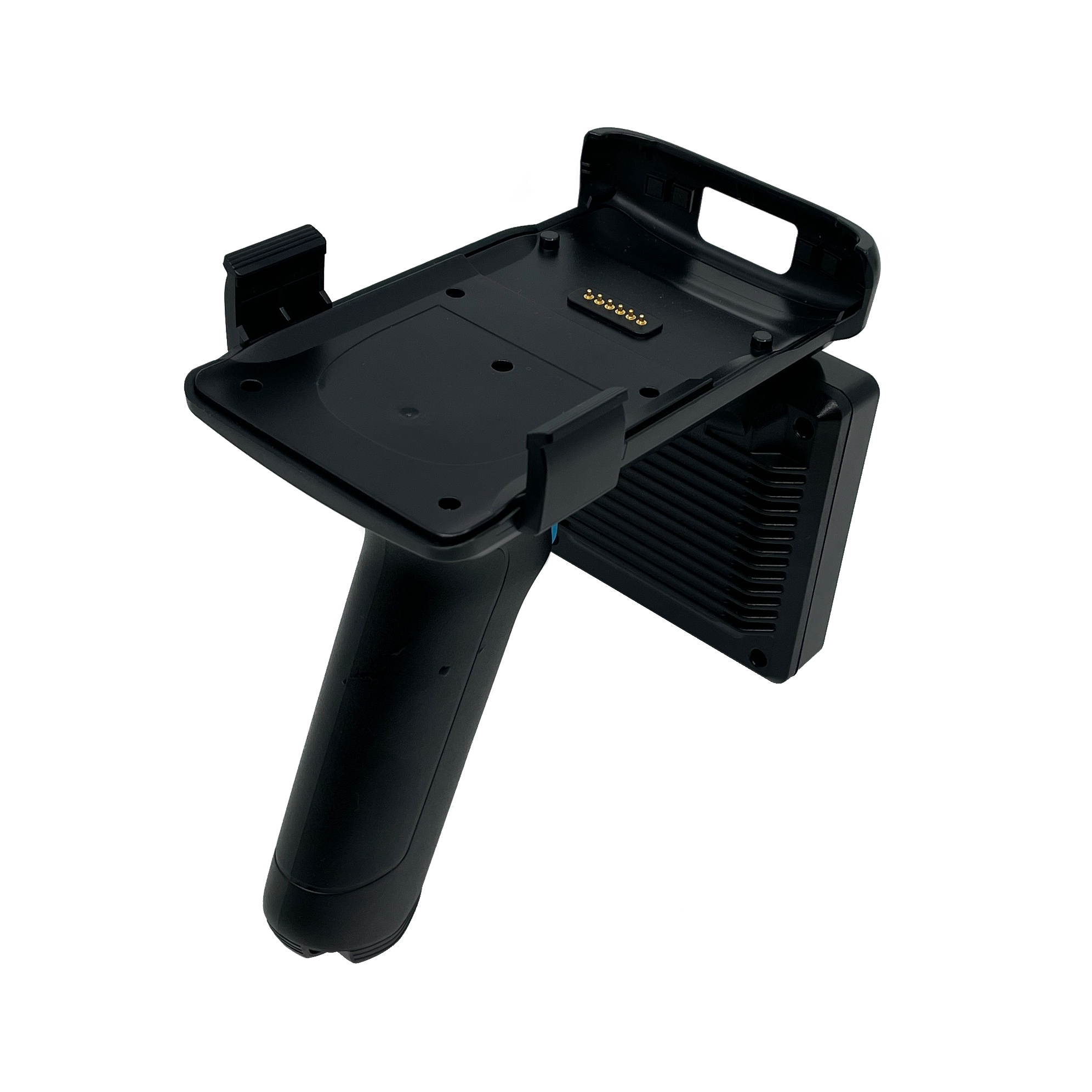

  • Connector Host Computer: Connected with EA630 via pogo pin
    Host Connection : Electrical 6-pin connection

Enclosure

  • Dimension 156 (L) * 85 (W) * 156 (H) mm
  • Weight 275g (without terminal)

Durability

  • Drop Specification 1.2m (with terminal)
  • Sealing IP52 (with terminal)

Environmental

  • Operating temperature -20 ~ 50°C
  • Storage temperature -30 ~ 60°C
  • Charging temperature 5% ~ 95%
  • Electrostatic Discharge +/- 15kV air discharge
    +/- 8kV contact discharge

Power Source

  • Main battery From EA630
  • Power From EA630
  • Push Button Trigger

What comes in the box

  • The standard package contents RG630
    Wrist Lanyard
    ALN-9654 RFID Tag
    Quick Start Guide
