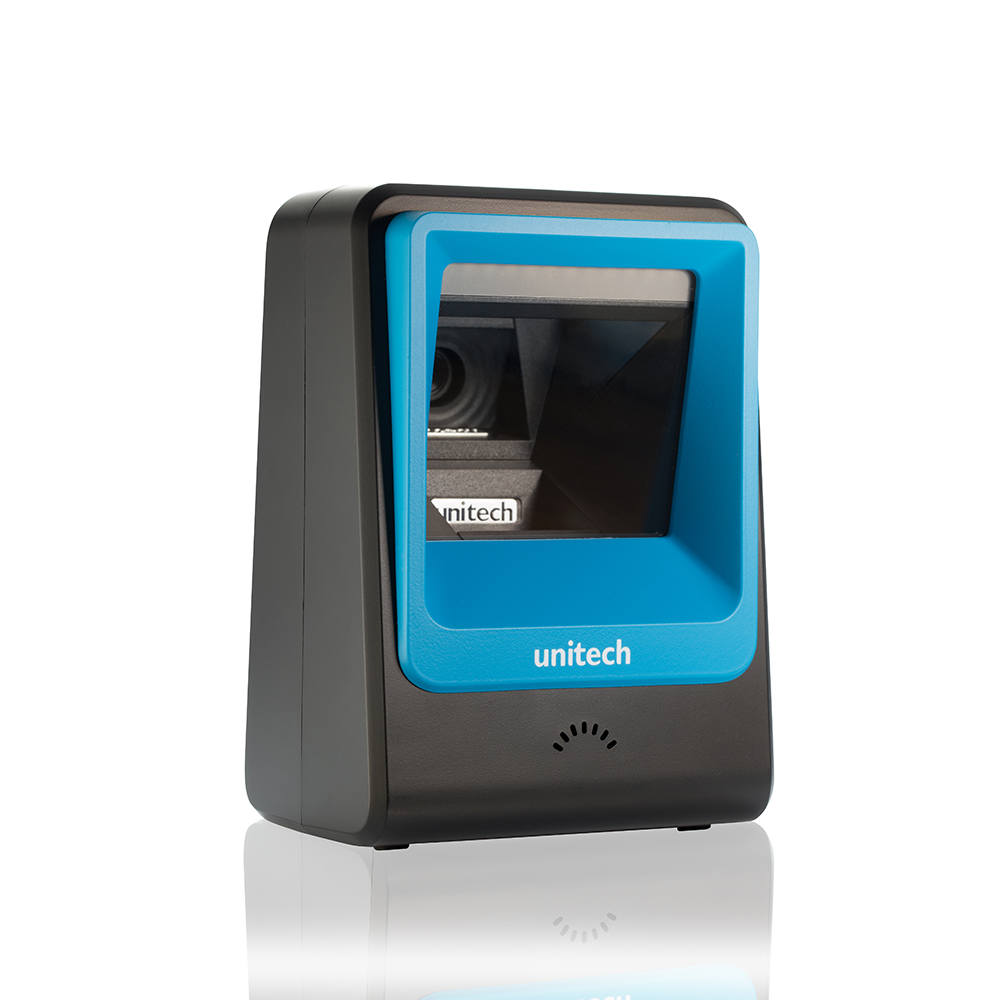

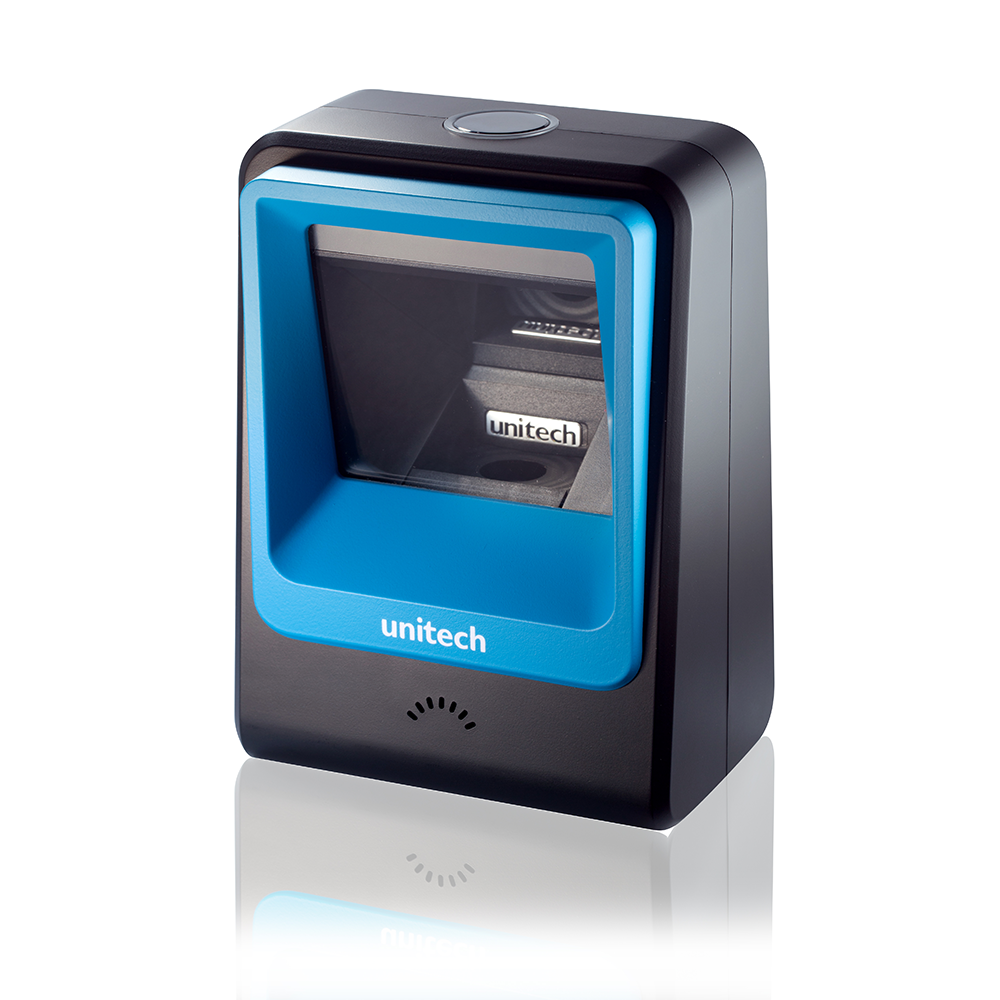

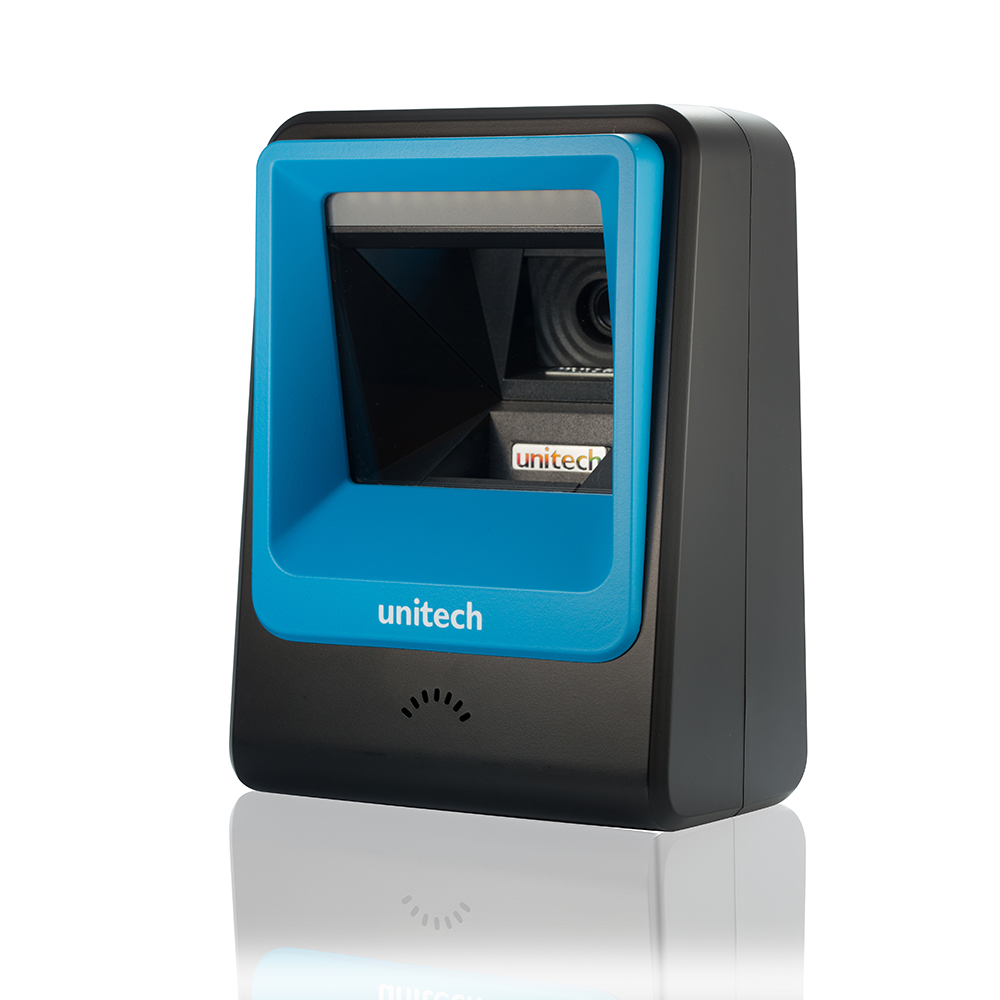

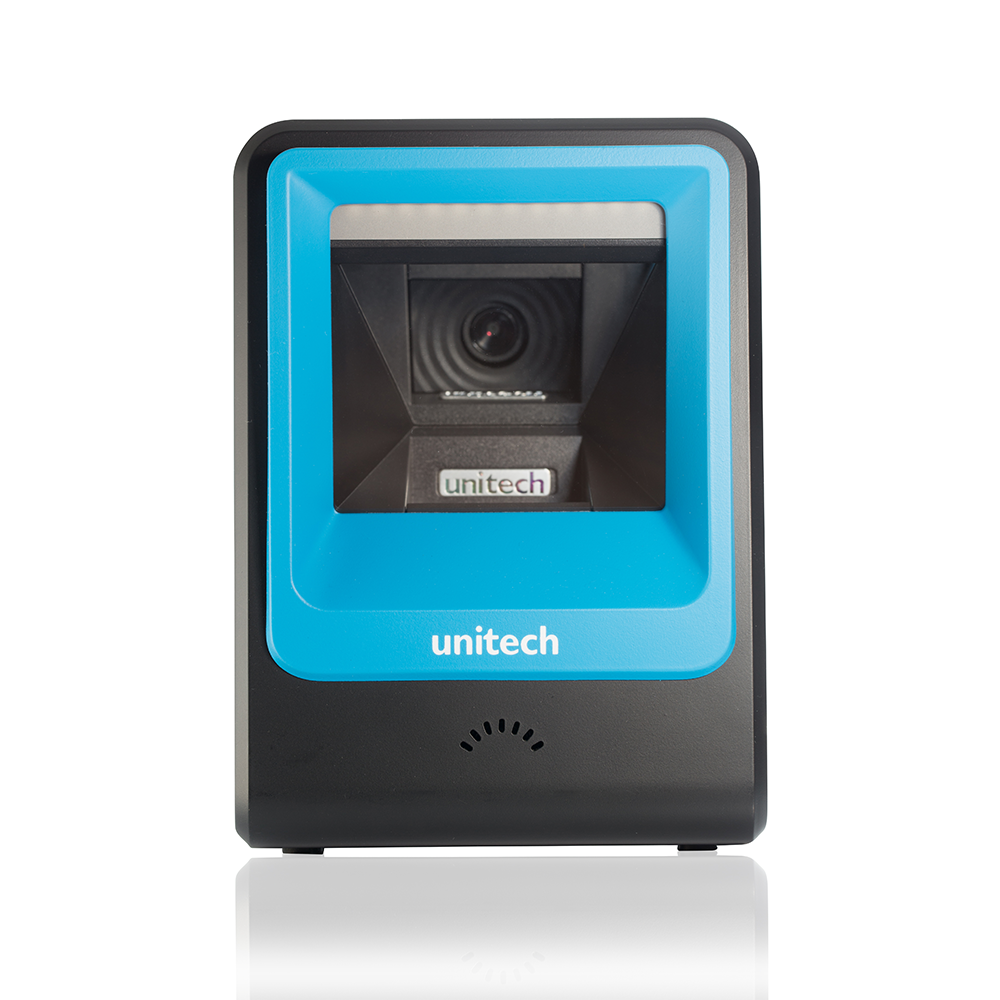

TS100

Presentation Scanner (2D)

Large Scan Window │Auto-sensing Mode │1D & 2D Barcode Scanner│Multiple Scanning Modes

  • 2D

  • RS232

  • USB

  • 1.0M

  • Retail

  • Hospitality

It is especially reader-friendly on smartphone & tablet displays and is incredibly effective for retailers running promotions with barcodes on network platforms. The Unitech TS100 is the perfect choice for retail, medical, and manufacturing industries with its rapid scanning speed and easily switchable scanning modes.



Features

• Large scan window; Increasing work efficiency

• Support auto-sensing mode

• Support most 1D & 2D barcodes

• Support multiple scanning modes (Trigger & Presentation modes)

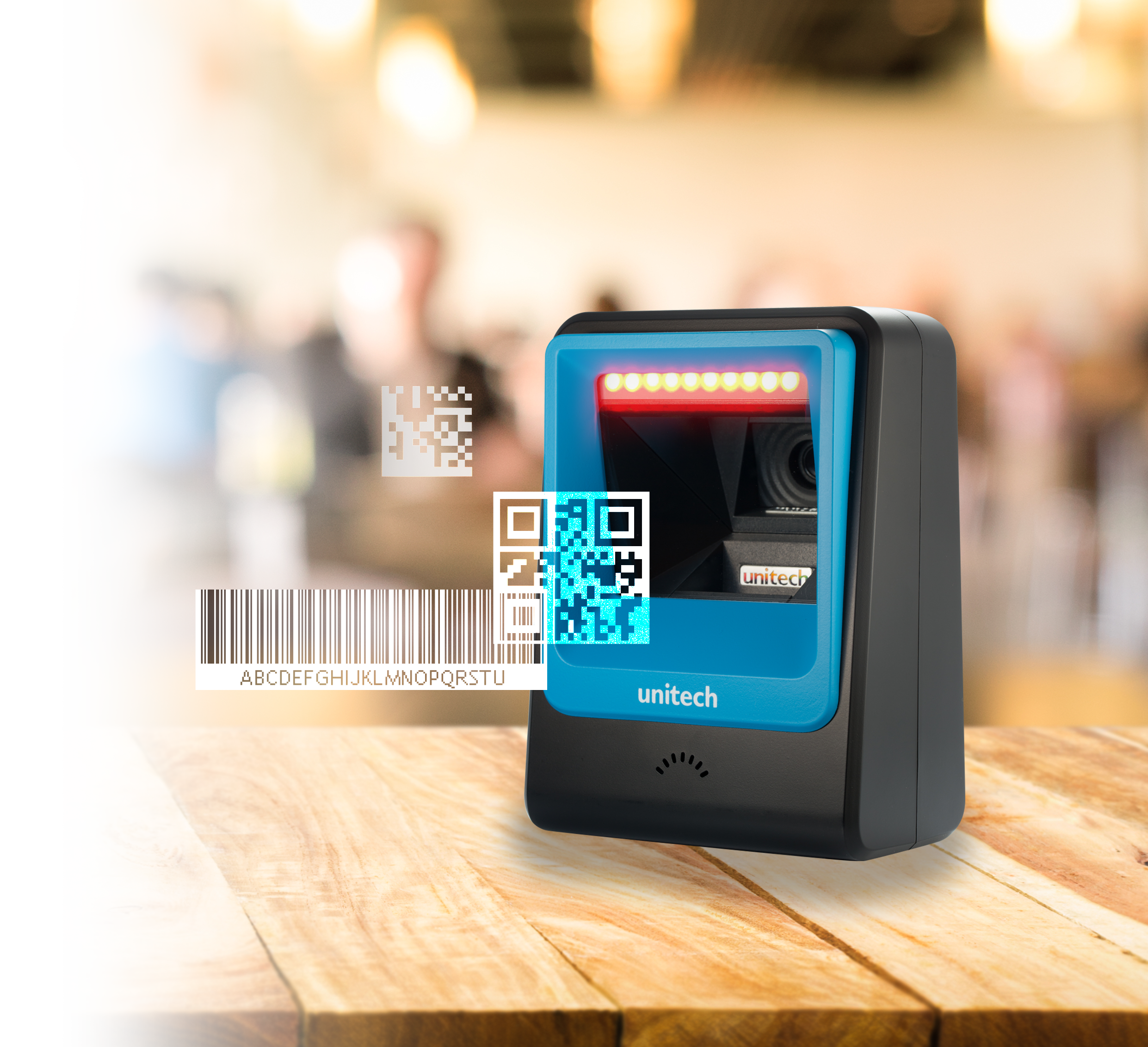

Accurate Scan on Large Scan Window



TS100 features a large rectangle scan window design to ensure the
widest possible scanning area for easy reading. Being the most
cost-efficient desktop 2D scanner on the market, it can scan and
decode 1D & 2D barcodes rapidly; significantly saving time and cost
in the process. The auto-sensing of 60 fps mode allows staff to fast
and accurately capture data with both hands-free.



1D / 2D
Support

60 fps

Scan Rate




 *A button on top can allow switching between custom scan modes by special request for custom firmware, please call unitech to get more information.

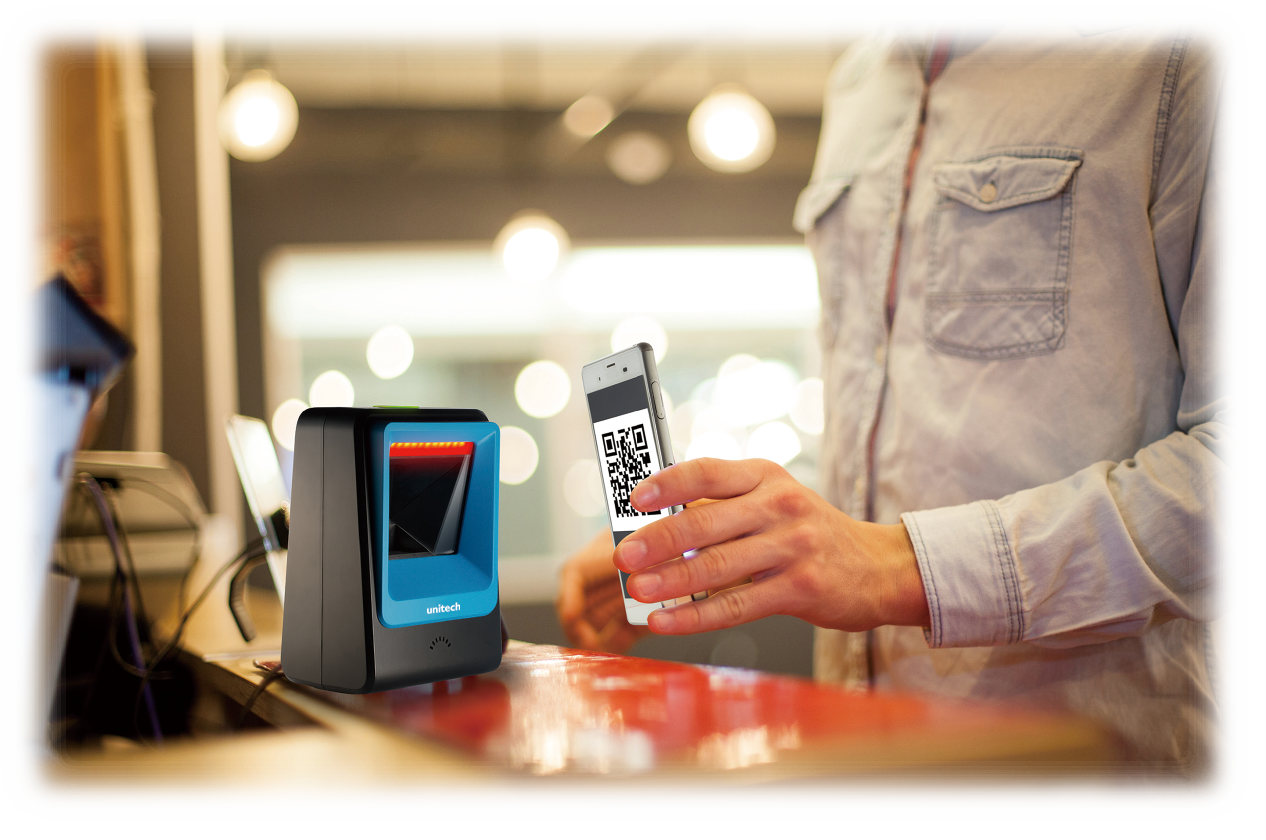

Effortless and Intuitive Retail Operation

The TS100 reads printed and digital barcodes efficiently, including codes on smartphone or tablet screens. Retail cashiers scan printed
barcodes on items and membership cards, and claim the payment with the digital barcode to satisfy customers’ shopping experience.
Simply switching between the tigger and presentation modes, your workers can scan virtually any
bar code in various situations, making TS100 an intuitive tool to speed up the checkout.



Adjustable Small Footprint



The TS100 is small enough for countertops with limited space. The in-store staff enjoys the privilege to instantly scan the item with a fast USB plug and play, and self-induction function creates a seamless scanning experience to boost productivity. TS100 takes scanning performance and simplicity to the next level.



Specification

Optical & Performance

  • Sensor Image Sensor with 1280x800 pixels
  • Illumination 650nm RED LED
  • Ambient Light 0-100000 Lux.
  • Scan Rate 60 fps
  • Skew Angle Horizontal Angle : 50°
    Vertical Angle : 35°
  • Pitch Angle Sensor ±65°
  • Roll Angle 360°
  • Optical Resolution 1D : 4 mil ; 2D :6.7mil
  • Printing Contrast Scale 25%

Communication

  • Host Interface supported USB, RS232

Mechanical

  • Dimension 105mm x 146mm x 70mm
  • Weight 345g (without cable)

Symbologies

  • 1D Barcodes UPC-A/E, EAN-8/13, UPC/EAN Supplementals, EAN-8 Extend, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5,
    Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc
  • 2D Barcodes PDF417, MicroPDF417, DataMatrix, DataMatrix-Inverse, Maxicode, QRcode, MicroQR, Aztec, Aztec Inverse, Han Xin, Han Xin Inverse

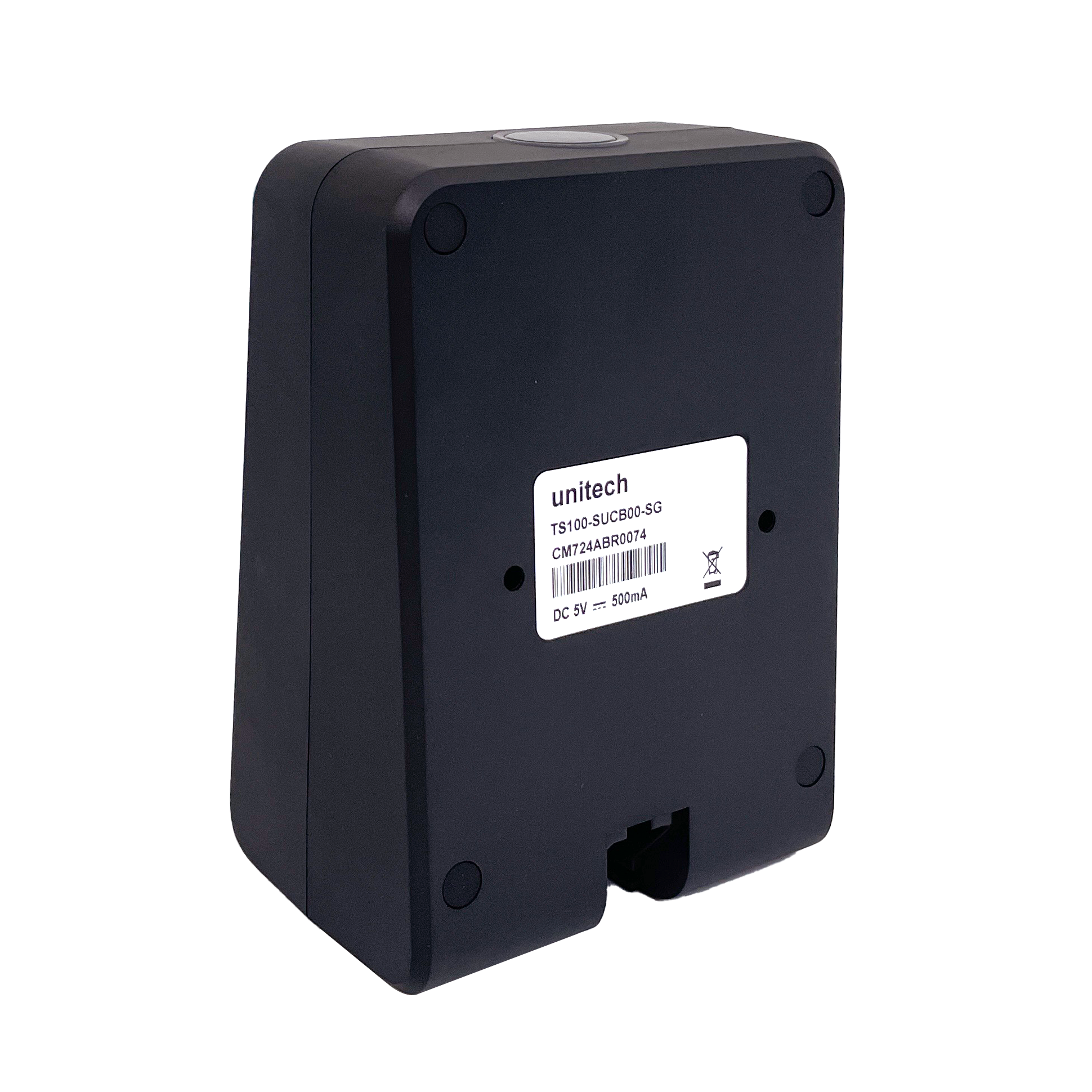

Electrical

  • Operation Voltage 5 VDC
  • Current Consumption 500 mA

Environmental

  • ESD Protection +/-15kv air discharge
  • Operating Temperature 0°C to 50°C
  • Storage Temperature -40°C to 70°C
  • Relative Humidity 0% to 95% non-condensing

Regulatory Approvals

  • Regulatory Approvals CE , FCC , BSMI

What comes in the box

  • The standard package contents TS100 with USB Cable, QSG
