Power your data collection with a device that optimizes the way you work. Browse the Internet and web-based apps faster with the user-friendly Android 10 OS with GMS certification. Experience heightened device performance with a 2.2GHz Octa-Core processor and ease of use with a wearable that fits wrists, necks, and belt loops. A 3.1inch touchscreen offers easy viewing and a 13MP camera captures barcodes and delivery confirmations
Features
• Android 10 with GMS certification
• Lightweight, ergonomic wearable computer
• 3.1” color display (800x480, 450nits). Supports gloves and wet resistance
• Powerful Qualcomm® 660 2.2GHz Octa-Core processor
• Support Bluetooth® 5 / NFC / WLAN 802.11 ac support 2X2 MU-MIMO Antenna / 4G LTE
• 13MP camera captures barcodes and delivery confirmations
• Ease of use with a wearable that fits wrists, necks, and belt loops
• IP67 rated, and 1.5m drop specification
• Dual MIC design, clear voice even in a noisy environment
• Long-lasting embedded 2050mAh battery (Up to 11 hours working time)
• Device supported versatile: SOTI, AirWatch, 42Gears, Ivanti Wavelink, and MoboLink
Powered by Android 10 OS with GMS Certified
|
|||
Power your data collection with a device that optimizes the way you work. Featuring a lightweight and ergonomic wearable design, the WD200 is a 3.1” Android 10 wearable device with GMS certification that supports users to work in an intensive picking environment that requires all hands to be free. A 3.1-inch sunlight-readable touchscreen offers easy viewing with 450 nits brightness and supports gloves and wet resistance, also comes with a 13MP camera that gives the flexibility to capture barcodes and delivery confirmations for applications in the warehouse, retail, logistic, transportation, and shipping yard.
|
|||
Android 10 Operation System |
GMS |
3.1 inch Display |
450 nits Brightness |
Smart, Hands-free Mobility
Want more efficiency without losing flexibility? The WD200 is designed to meet your expectations! Ease of use with a wearable that fits wrists, necks, and belt loops. The terminal is lightweight of 110g with a battery and it features EZ Lock arm strap design, easy to replace the main unit in a few seconds. Combined with one of our featured ring scanners, both hands can remain free during work without interfering with the workflow.
|
|||
Wrist Wearable |
Neck Wearable |
Belt Loop Wearable |
110g Lightweight |
Experience Heightened Device Performance
Browse the Internet and web-based apps faster and experience heightened device performance with a Qualcomm 660 2.2GHz octa-core processor. Power your data collection with a device that optimizes the way you work. |
|||
2.2GHz |
3 GB RAM 32GB Flash |
||
Long-Lasting Battery Life |
|||||
The WD200's powerful 2050mAh battery is designed to have up to 11 hours of operating time, giving you the flexibility to work through the day. |
|||||
Up to11 hours Operating Time |
2050 mAh Battery |
||||

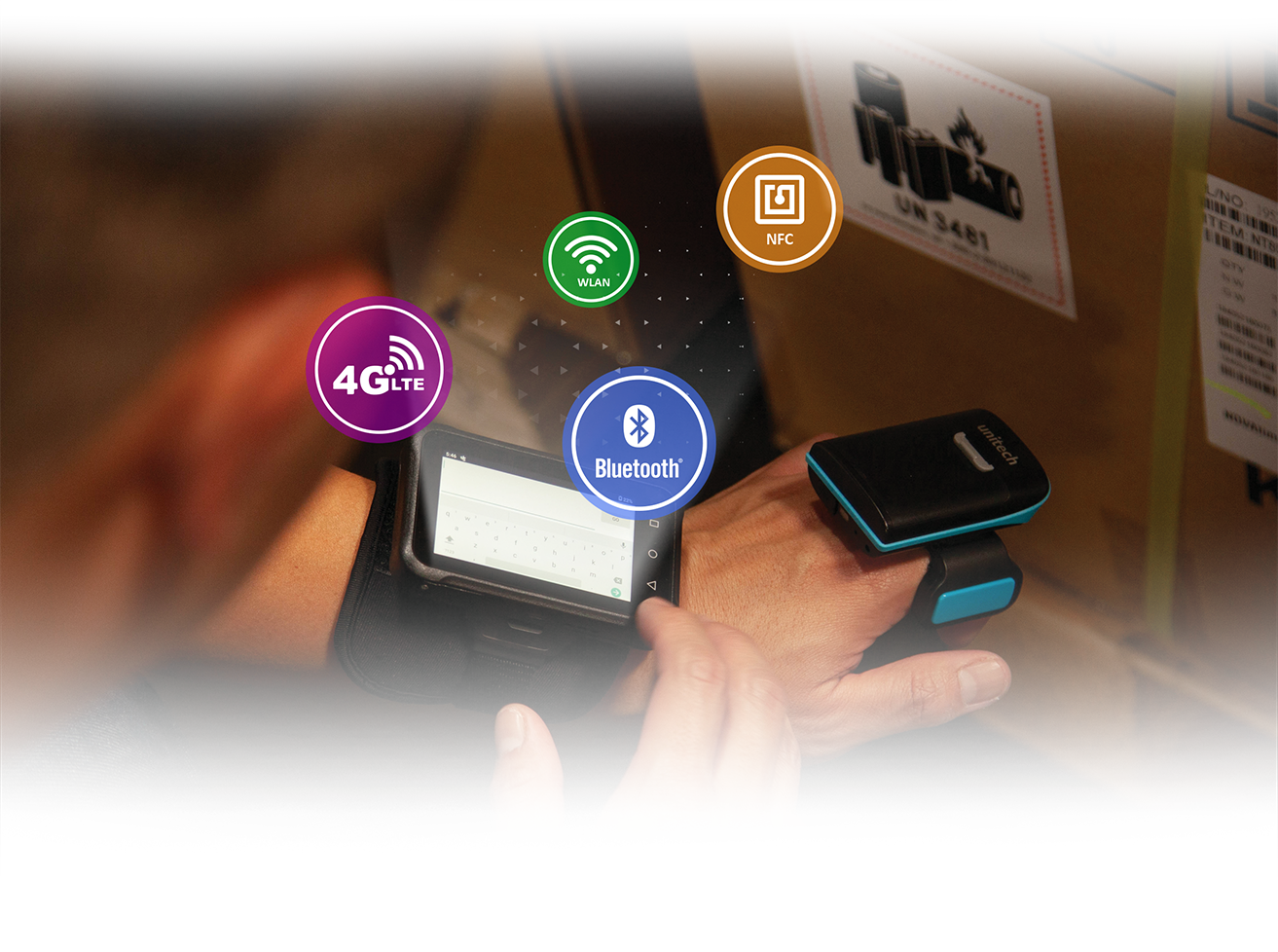

Get Connected
Together with extended connectivity, the WD200 supports Bluetooth®5, NFC, 4G LTE, and WLAN 802.11 AC with 2X2 MU-MIMO Antenna that boosts the performance by allowing devices to be connected simultaneously. |
|||
|
|||
Bluetooth®5 | NFC | 4G LTE | 2X2 MU-MIMO WLAN |

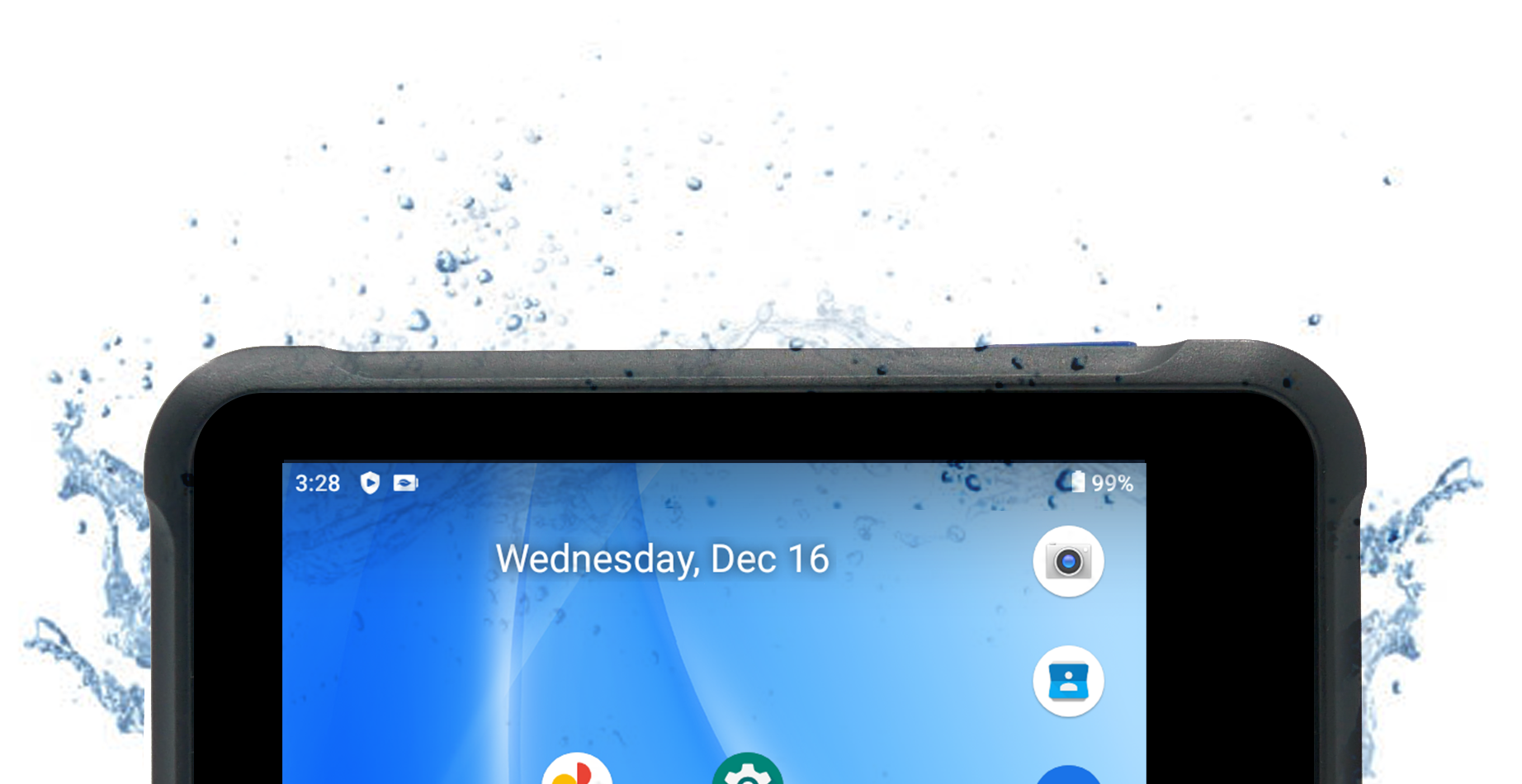

Durable Design
It is not only equipped with dual MIC design, giving clear voice even in a noisy environment but also enhances the industrial durable protection with features including IP67 dustproof and 1.5m drop resistant of fall protection. The WD200 is a reliable tool to improve business productivity. |
IP67 Certification |
1.5 m
Drop Protection |
MIL-STD 810G | |||
|
|
|||||
SmartPA: Better Audio Output |
|||||
|
|||||
SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.
|
|||||
|
|||||
Power Amplifier Better Audio Output |
Built-in Algorithm Lessen Circuit / Temperature Damage |
Specification
Operation System
- OS Android 10
- GMS certified GMS certified
- CPU Qualcomm Snapdragon™ 660 Octa Core, 2.2 GHz , 64bits
- Memory 3 GB RAM / 32GB Flash
- Languages support English, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
Display
- Screen Size 3.1” Color TFT-LCD (800 X 480) High Resolution Display (450 nits)
- Touchpanel Ultra sensitive capacitive touch screen, compatible with gloves and support wet resistance
Buttons / Keypad
- Buttons / Keypad ON / OFF button , 1x User-defined function button, 3x touch buttons
Camera
- Camera 13 MP Rear and Flash Light
Indicator Type
- Type LED, Speaker, Vibrator
RFID
-
HF RFID
Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693 standard
Communication
- Bluetooth® Bluetooth® 5
-
WLAN
IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v, IPv4, IPv6
Security of WLAN : WEP, WPA/WPA2 PSK, 802.1x EAP,OWE, SAE
Fast Roaming : PMKID caching, 802.11r, OKC
2x2 MU-MIMO -
WWAN
LTE:
FDD-LTE (B1/B3/B4/B7/B20)
TDD-LTE (B38/B39/B40/B41) - GPS GPS/GLONASS/Gallileo/Beidou
- Sensors Gyroscope, G-sensor, E-compass, Light Sensor
I/O Interfaces
-
USB
USB 3.1 (Type-C) support USB OTG
Support Display Port Mode
Ethernet/USB-Host via cradle - OTG Yes, over USB Type-C
- POGO PIN Charging via cradle
- SIM Slot Nano SIM Slot
-
Audio
One 1W speaker ,
Dual noise-cancelling microphones
Enclosure
- Dimensions ( W x D x H ) 96.7mm x 60.7mm x 14.43 mm
- Weight 110g (with battery)
Durability
- Drop Specification 1.5 meter, MIL-STD 810G
- Sealing IP67
Environmental
- Operating temperature -4°F to 122°F (-20°C to 50°C)
- Storage temperature -4°F to 158°F (-20°C to 70°C)
- Charging temperature 0°C to 45°C
- Relative Humidity 5% ~ 95% (non-condensing)
Power Source
- Main battery 3.85V, 2050mAh Li-polymer battery (embedded, can be repaired)
Software
- MDM Software SOTI, 42Gears, MoboLink, Airwatch, Ivanti Wavelink
Regulatory Approvals
-
Regulatory Approvals
CE, FCC, NCC, BSMI, VCCI, CCC, RoHS, CEC, BQB, N-Mark
compliance.
What comes in the box
-
The standard package contents
■ WD200 Terminal
■ USB 3.0 Cable (Type C)
Accessories
-
Accessories
■ Bluetooth noise cancellation headset (PN#B450-XT)

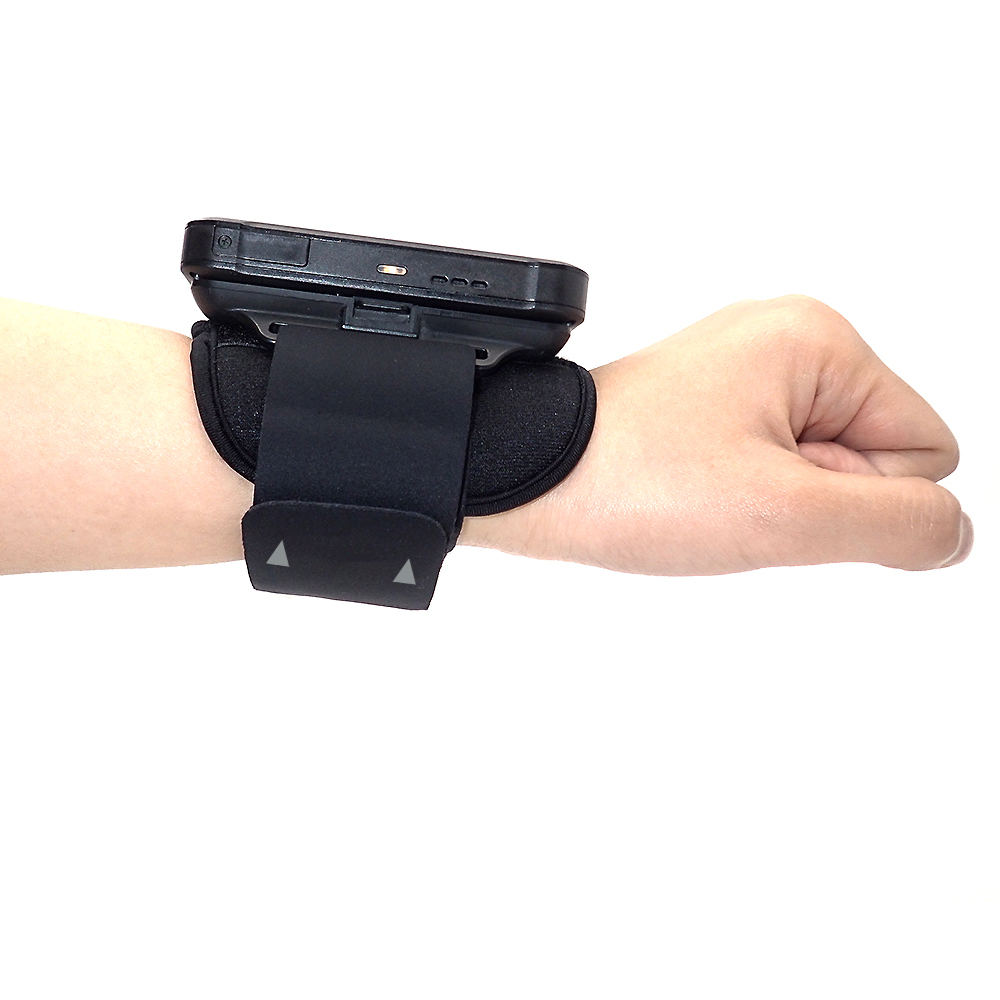

■ Wrist Holder (PN#3210-900026G)
■ Wrist Holder pad (PN#386215G) Wrist Holder strap (PN#609032G)
■ Wrist Bracket (PN#608941G)
■ Necklace Holder (PN#3210-900029G)
■ Belt Holder (PN#3210-900030G)
■ 9H glass screen protector (PN#401613G)
■ Professional armband strap-Normal size(28cm) (PN#5500-100002G)
■ Professional armband strap-Small size(16cm) (PN#5500-100004G)
■ Professional armband strap-Large size (30cm) (PN#5500-100003G)
■ USB 3.0 type-C cable(PN#1550-905908G)
■ Power Adaptor (PN#1010-900061G(US) PN#1010-900062G(EU)
■ Power Adaptor (PN#1010-900065G(UK) PN#1010-900064G(AUS)
■ 4 slot cradle(PN#5100-900030G)
■ MS650 1D Bluetooth Ring Scanner (PN#MS650-5UBB00-SG)
■ MS652 2D Bluetooth Ring Scanner (PN#MS652-2UDB00-SG)
■ MS622 2D Cord Ring Scanner (PN#MS622-2UCB00-SG)
■ WD200 2D Engine Extended module
