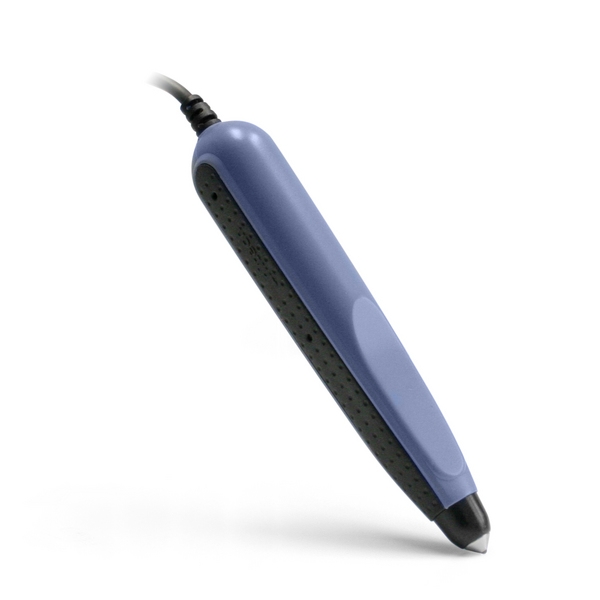

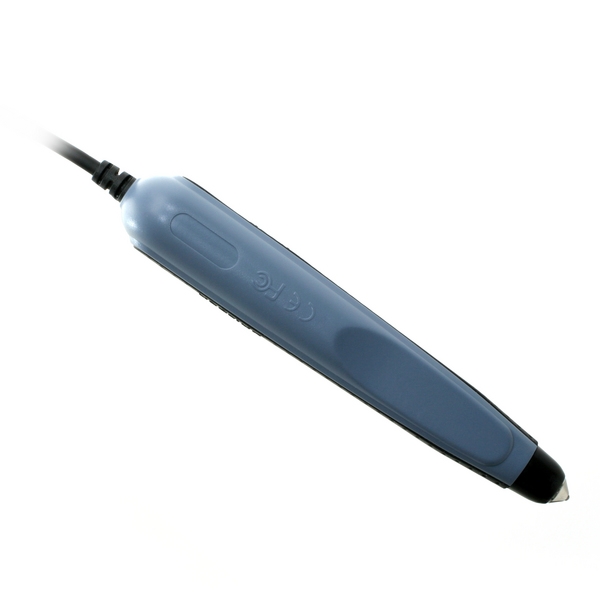

The MS100 is a wand/pen barcode scanner, an ergonomic and compact device best suited for low-volume applications. It’s likely that a wand barcode scanner such as the MS100 offers the best form factor for your application. As the least expensive type of barcode scanner in the market, there’s a lot to be said about the lasting value of a wand barcode scanner.
Features
• Rugged, lightweight design
• Easy to use and configure
• Low power consumption
• Wide read angle
• High scan speed
• User configurable via PC programming
• Advanced Data Editing
• Available with TTL, keyboard wedge RS232 and USB interfaces
Target Markets / Applications
Wand barcode scanners are the most accurate solution when an application calls for scanning multiple barcodes on a sheet of paper. It is much easier to run a pen scanner across the correct barcode than the alternative - aiming a laser directly on it without hitting any others accidentally. The MS100 can also read barcodes that are too wide for traditional barcode scanners to capture effectively.
• Libraries: Check-In / Check-Out
• SMB: Light Inventory
• Government: Ballot Entry Tracking
Powerful
Accurate and efficient, the MS100 is powerful enough to meet a wide variety of data entry needs. The MS100 wand barcode scanner can read any linear (1D) barcode even if it’s faded, damaged, or printed with low contrast.
Easy
The MS100 is a plug-and-play device. No downloads are required for installation and no configuration is necessary. Simply plug the wand scanner into your computer to start working. Scan by sweeping the tip across a barcode in any direction. Listen for the confirmation beep and you’re all finished.
Proven Value
The MS100 is simply the most cost-effective solution for low volume scanning. Though cumbersome for applications where hundreds of barcodes need to be captured in a work shift, the MS100 wand barcode scanner is a proven solution in less scan-intensive environments. A 2-year warranty and a durable design make for a lasting investment. The strong ABS plastic enclosure endures repeated 5-foot falls to concrete and seals the device against various environmental hazards such as dust and dirt. With no moveable parts, wand scanners are oftentimes the most durable types of barcode scanners out there.
Small and Ergonomic
The MS100 is designed to be both lightweight and compact. With an ergonomic grip, your team will benefit from a comfortable scanning experience.
TAA Compliant Barcode Scanners
Specification
Optical & Performance
- Sensor Photo Sensor
- Aiming Element 650 ~ 660nm Red LED
- Ambient Light 5000 Lux/Max
- Scan Rate 4 ~ 24 inches/sec. (10 ~ 60 cm/sec)
- Optical Resolution 5 mils (0.127mm)
- Depth of Field 0.04" (1.0mm)
Communication
- Host Interface supported USB, Keyboard wedge, RS232, TTL (undecoded)
Mechanical
-
Dimension
Length 5.5 Inches (140mm)
Diameter 1.2 x .9 Inches (30 x 23mm) - Weight 76g
Symbologies
- 1D Barcodes Code 39 standard and full ASCII, EAN-13, UPC-A, EAN-8, UPC-E, standard 2 of 5, Code 128, Code 93, MSI, Code 11, Code 32, Delta Code, Label Code, Plessey Code, Codabar
Electrical
- Operation Voltage 5V DC ± 10%
Environmental
- Mechanical Shock 1.5M onto concrete (scanner only)
- Operating Temperature 0°C to 50°C
- Storage Temperature -20°C to 60°C
- Relative Humidity 20% to 85% RH non-condensing
Regulatory Approvals
- Regulatory Approvals TAA Compliant
Warranty
- Hardware Warranty 15 months
- Statement This product is warranted against defects in workmanship and materials for a period of fifteen months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
