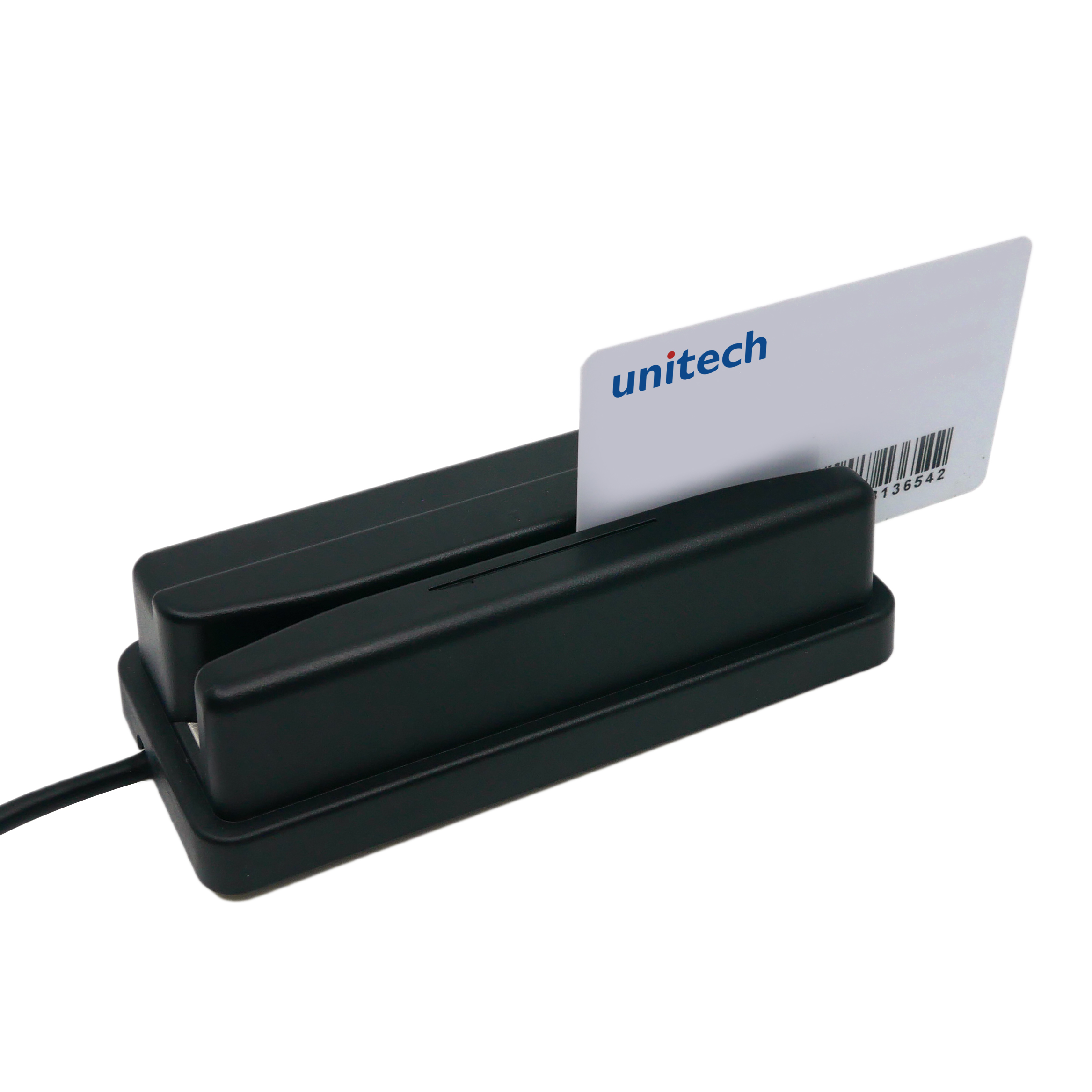

MS146

Barcode Slot Reader

The MS146 barcode card reader is designed for time and attendance, security, and access control applications that use badges, cards, or forms.

  • 1D

  • RS232

  • USB

  • 1.5 m

  • Field Service

  • Government

The MS146 reader is versatile enough to fit applications across the board. It can read ID cards for check-in, check-out, and access control. The infrared MS146 reads barcodes that have been secured by black panels to prevent photocopying.



Features

• Sealed optical system with IP54 rugged housing
• Wide barcode slot with flexible reading angle and higher resolution
• Multi-direction for flexibility of installation
• User configurable via PC programming
• Compatibility with all popular computer and devices
• Provide desktop or side-mounted application on the wall
• Suitable for different cards of different dimension and printing qualities
• Available with TTL, Keyboard wedge RS232 and USB interfaces
• Advanced Data Editing
• 50 mm to 700 mm/sec Scan Rate
• 6 mil minimum resolution

Target Markets / Applications



• Libraries:  Library Cards & Check-in/Check-out
• Fitness Centers: Access Control & Time / Attendance

Maximum Versatility



The MS146 barcode card reader is easy to integrate into your business. With a large reading slot, the MS146 is a suitable solution for cards of many different sizes and widths.

Multiple interface options and an infrared model ensures that there’s an MS146 perfectly suited for your business. Mount the MS146 to a wall or desktop for easy access. The reader is multidirectional, making installation that much easier.

Durability



With the MS146 you can rest assured knowing you’ve made a lasting investment. The high-quality sealing on the optical system protects the device from dust, dirt, and even water spills. The MS146 is at home in industrial settings, enduring repeated use and exposure to hazards without wearing out or degrading in any way.

Powerful Performance



The MS146 reads 2-27 inches per second at a high resolution and with a flexible reading angle. Advanced data editing is available on this device, enabling you to tailor your solution to your exact needs.

TAA Compliant Barcode Scanners

Specification

Optical & Performance

  • Sensor Photo diode
  • Aiming Element Infrared: 930nm LED

    Visible light: 660nm LED
  • Scan Rate 50 ~ 700mm/sec
  • Optical Resolution 6mils (0.15mm) min
  • Printing Contrast Scale 0.6 minimum
  • Depth of Field 2mm

Mechanical

  • Dimension 128 x 53 x 33 mm
  • Weight 180g

Symbologies

  • 1D Barcodes Code 39 standard and full ASCII, EAN-13, UPC-A, EAN-8, UPC-E, Standard 2 of 5, Code 128, Code 93, MSI, Code 11, Code 32, Delta Code, Label Code, Plessey Code, Codabar

Environmental

  • Mechanical Shock 1.5M onto concrete (scanner only)
  • Operating Temperature 0°C to 50°C
  • Storage Temperature -20°C to 60°C
  • Relative Humidity 0 ~ 95% RH non-condensing
  • IP Rating IP54

Regulatory Approvals

  • Regulatory Approvals TAA Compliant

What comes in the box

  • The standard package contents MS146 Slot Reader

Warranty

  • Hardware Warranty 24 months
  • Statement This product is warranted against defects in workmanship and materials for a period of two years from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
