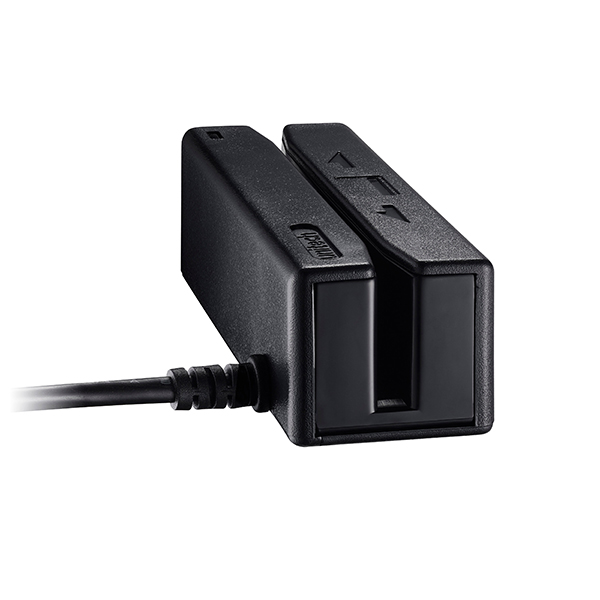

MS242

Magnetic Stripe Reader

MS242 reads up to 3 tracks of information when the card is swiped in either direction. The MS242 is the perfect MSR tool for applications such as point of sale, access control, banking, student ID and self-service applications.

  • 1D

  • USB

  • 1.5 m

  • Field Service

  • Government

Delivering a reliable and compact magnetic stripe reading solution, MS242 reads up to 3 tracks of information when the card is swiped in either direction.



Features

  • • Bi-directional card swiping

  • • Support single, dual or triple track cards

  • • With data editing function

  • • Compatible with all popular computers

  • • Easily desktop or wall mounted

  • • Compact space-saving design

Reliable and Compact Design



Enclosed in sturdy sheet-steel housings, MS242 is built with highest quality components for an extra smooth swipe. It delivers the most convenience to the user and the reading head lasts longer than 1 million cycles and ensures the data is captured on every swipe. The entire unit is just 100mm long, about the length of a credit card. It supports three tracks of magnetic stripe card data regardless of swiping direction and over a large speed range.

Smart Flexibility



The MS242 is available to be connected to any PC or Mac via USB interface and it is programmable so that the data format and output can be configured to match application and communication requirements.

Embedded 2 mounting holes with brass threaded inserts Velcro strips in its base, it is allowed to be mounted onto a counter or another flat surface. Moreover, an LED indicator turns red to alert the user of a decoding error. The Unitech MS242 is an intelligent, programmable magnetic stripe reader that provides a full functionality and value in a convenient package size.





TAA Compliant Barcode Scanners

Specification

Communication

  • Host Interface supported USB 2.0 Full speed

Mechanical

  • Dimension 100mm (L) x 35mm (W) x 30mm (H)
  • Weight 120g

Functionality

  • Operation Mode USB

Electrical

  • Indicator LED, beeper

Environmental

  • ESD Protection 4kV contact and 8kV air discharge
  • Operating Temperature -10 °C to 55 °C
  • Storage Temperature -40 °C to 70 °C
  • Relative Humidity 10% to 90% non-condensing

Regulatory Approvals

  • Regulatory Approvals TAA Compliant

Warranty

  • Hardware Warranty 12 months
  • Statement This product is warranted against defects in workmanship and materials for a period of one year from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
