The PA692A is an Android rugged handheld computer designed to yield impressive results in various work environments. It is a powerful and versatile data collection tool in warehousing, logistics, field service, and government.
Features
.Stable release Andriod 4.3
.Advanced performance with industrial grade 1.5GHz Dual Core processor
.Latest 4G wireless communication, WiFi, GPS
.Large 3.8" WVGA high-resolution LCD
.Rugged Construction: IP65 rated and 1.5M drop certified
.All-in-one Function: High-Performance 1D/2D barcode engine
.Excellent LCD visibility up to 570nit under sunlight for outdoor users
★This product has reached its End of Sale.
To explore our latest products, please visit :
https://www.ute.com/en/products/category/MobileComputers/TouchComputers
Stay competitive with latest wireless technology
The PA692A is a rugged mobile computer that combines the latest 4G wireless communication and advanced performance to provide the best data communications in today’s aggressive business environment.
PA692A also offers field-based workers with a host of data collection tools and a comprehensive wireless communication platform, all in a compact, durable and ergonomic form factor.
Faster and more productive
Powered by industrial grade 1.5GHz Dual Core processor and runs on a flexible Andriod 4.3 Operation System, PA692A delivers the faster performance in highly mobile environments. In addition to 1GB Mobile DDR RAM and 8GB NAND Flash to boast ample internal memory, PA692A also supports microSD expansion with an additional 32GB of storage capacity for data-intensive applications.
Rugged design
Able to withstand multiple 5-foot drops to concrete and IP65-sealed against water and dust, the PA692A is an extremely rugged outside-the-four-walls device you can count on to perform under harsh conditions. This durable design mitigates device downtime that negatively impacts business-critical applications. The PA692A features a comprehensive wireless platform that includes integrated GPS, WiFi and 4G connectivity. The PA692A’s external antenna for WWAN and WLAN ensure excellent wireless connectivity and performance. Field mobile workers can easily access information and accelerate their workflow while they’re on the go.
All-in-one Functionality
PA692A offers 1D/2D scanning capability and a high resolution 5.0-megapixel digital camera, combining multiple functions in one compact size which reduces the cost to purchase different devices. It enhances the service levels in ticket tracking, identity asset management applications.
Accessories and options
PA692A offers various model options and accessories to fit your needs. Complement your mobile solution with various communications and charging cradles, extended batteries, car kits and headsets - anything and everything you’ll need to make the PA692A the ideal rugged handheld solution for your mobile workforce.
Specification
Operation System
- OS Andriod 4.3
- CPU 1.5GHz, TI OMAP 4470 Dual Core Processor
- Memory 1GB RAM / 8GB Flash
- Languages support English, Thai, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
- Others Input Chinese/ English
Display
- Screen Size 3.8 inch full WVGA (480 x 800) color screen
- Touch Panel Multi-Touch User Interface with Capacitive Stylus Compatibility
Buttons / Keypad
- Buttons / Keypad 44-key QWERTY keypad26-key Numeric keypad
Camera
- Camera 5MP rear camera with LED flash and auto-focus function
Indicator Type
- Type LEDs, Vibrator
Symbologies
- 1D Barcodes UPC-A/E, EAN-8/13, Codabar, Code 39, Code 39 full ASCI, Code 93,Code32, Interleaved 2 of 5, Discrete 2 of 5 (IATA), UCC/EAN-128, Code 11, MSI/Plessey, Code 128
-
2D Barcodes
1D codes : All major codes
2D codes : PDF417, MicroPDF417, Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code,Aztec, MaxiCode, Postal Codes: US PostNet, USPlanet, UK Postal, Australian Postal, Japan PostalDutch Postal (KIX)
I/O Interfaces
- USB USB 2.0 Client and Host
- Expansion Slot MicroSD x 1, up to 32 GB
- Audio Microphone, speaker and 3.5mm audio jack
Power Source
- Main battery 8.14 Watt-Hour 3.7V @2200 mAh14.8 Watt- Hour 3.7V @4000 mAh
Communication
- WLAN IEEE 802.11 a/b/g/n
- WWAN 4G LTE FDD:EU(Band3/Band8), US(Band2/Band5)UMTS (WCDMA):EU(900/1800/2100MHz), US(850/1900 MHz)GSM/GPRS/EDGE:EU(900/1800 MHz), US(850/1900 MHz)
- GPS u-blox® 6 High Performance GPS chipsetAssistNow® Online and AssistNow® Offline A-GPS services, OMA SUPL compliantSupports new European satellite system GALILEO
- Sensors eCompass, G-sensor
Software
- MDM Software MoboLink
- Azure Azure Certified
Enclosure
- Dimensions ( W x H x D ) 177 mm x 74 mmx 40 mm
- Weight 390g with 2200mAh Battery430g with 4000mAh Battery
Durability
- Drop Specification 1.5m
- Sealing IP65
- Tumble test Tumble 600 times (1.6 ft./0.5 m)
Environmental
- Operating temperature 14°F to 122°F (-10°C to 50°C)
- Storage temperature -4°F to 140°F (-20°C to 60°C)
- Relative Humidity 5% ~ 95% (non-condensing)
Accessories
-
Accessories

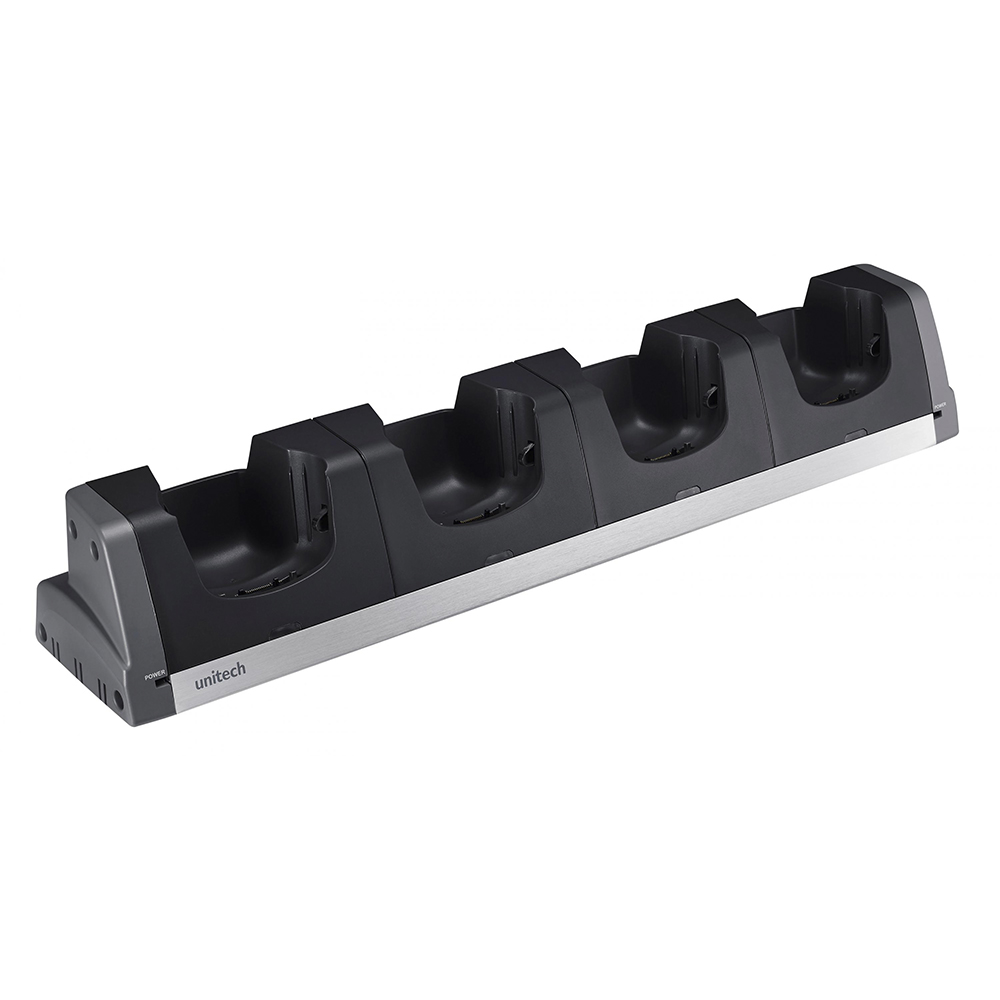

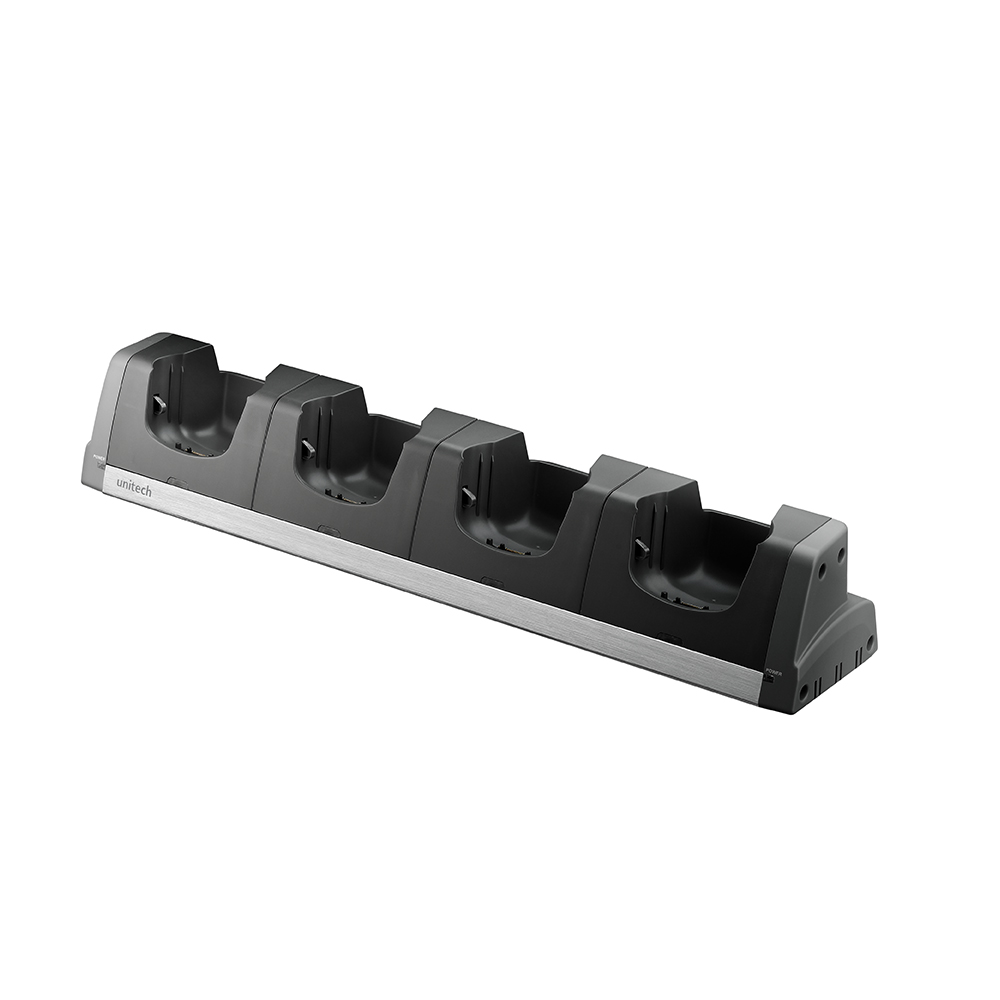

■ 4-slot multi-bay Ethernet cradle (PN# 5000-900006G)

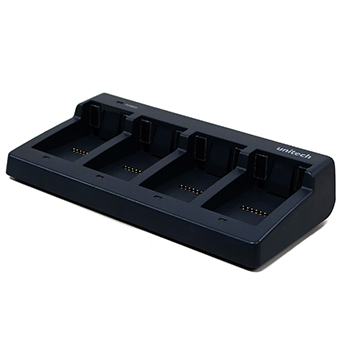

■ 4-slot battery charger (PN# 5100-603493G)

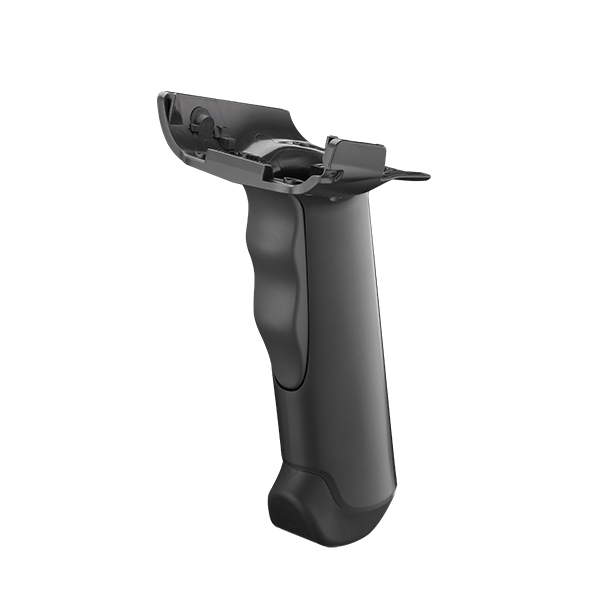

■ Gun grip (PN# 5500-900005G)

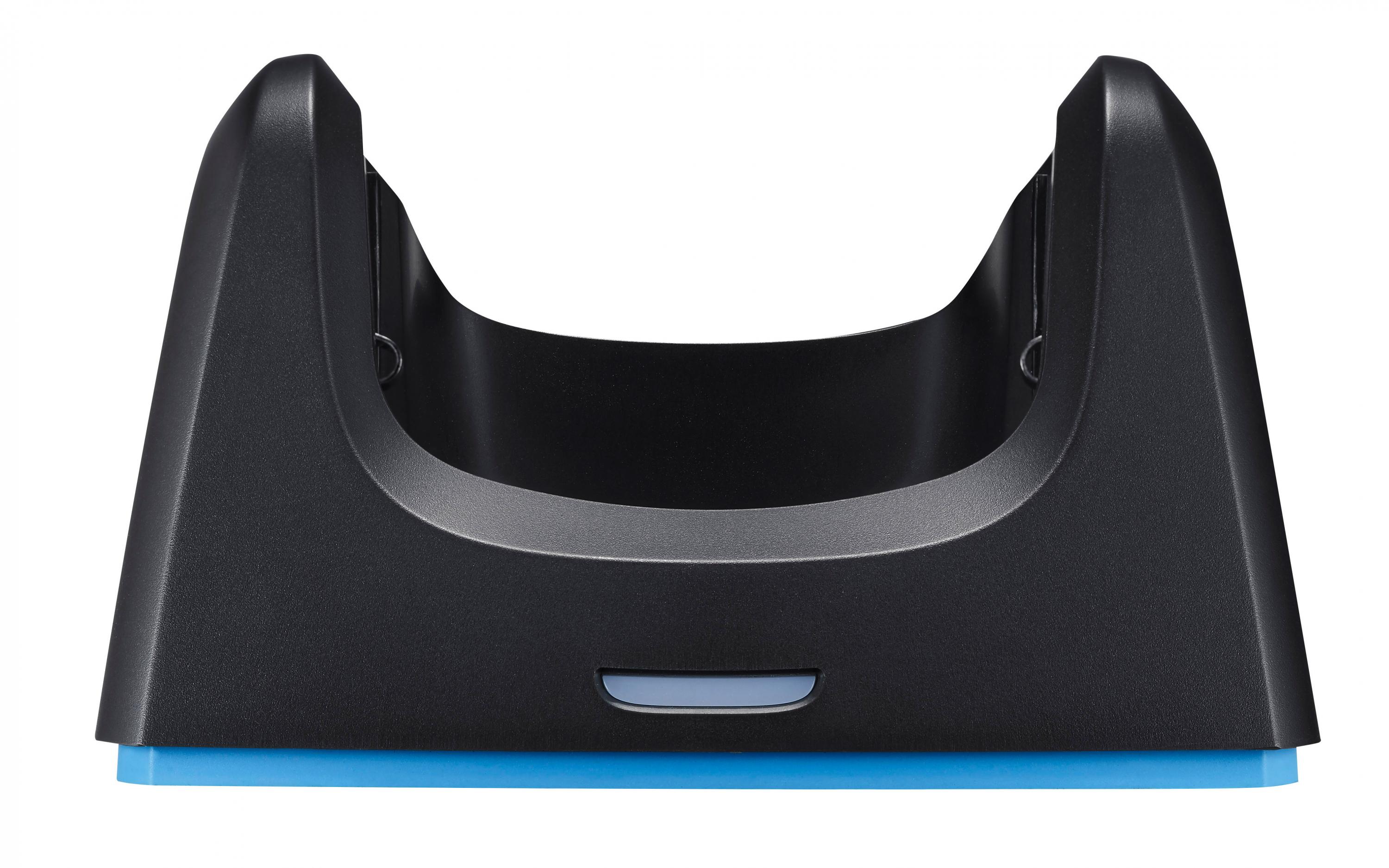

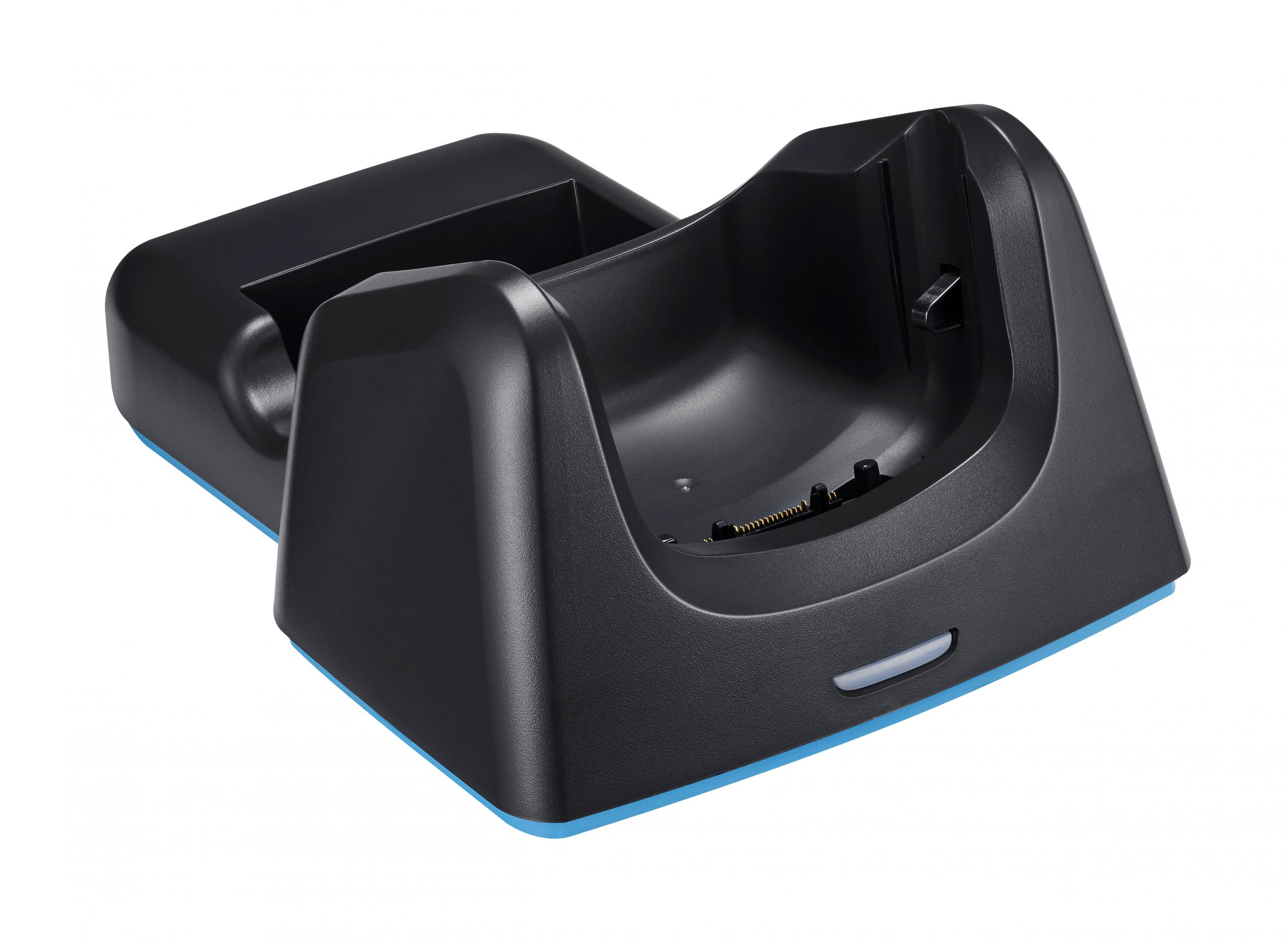

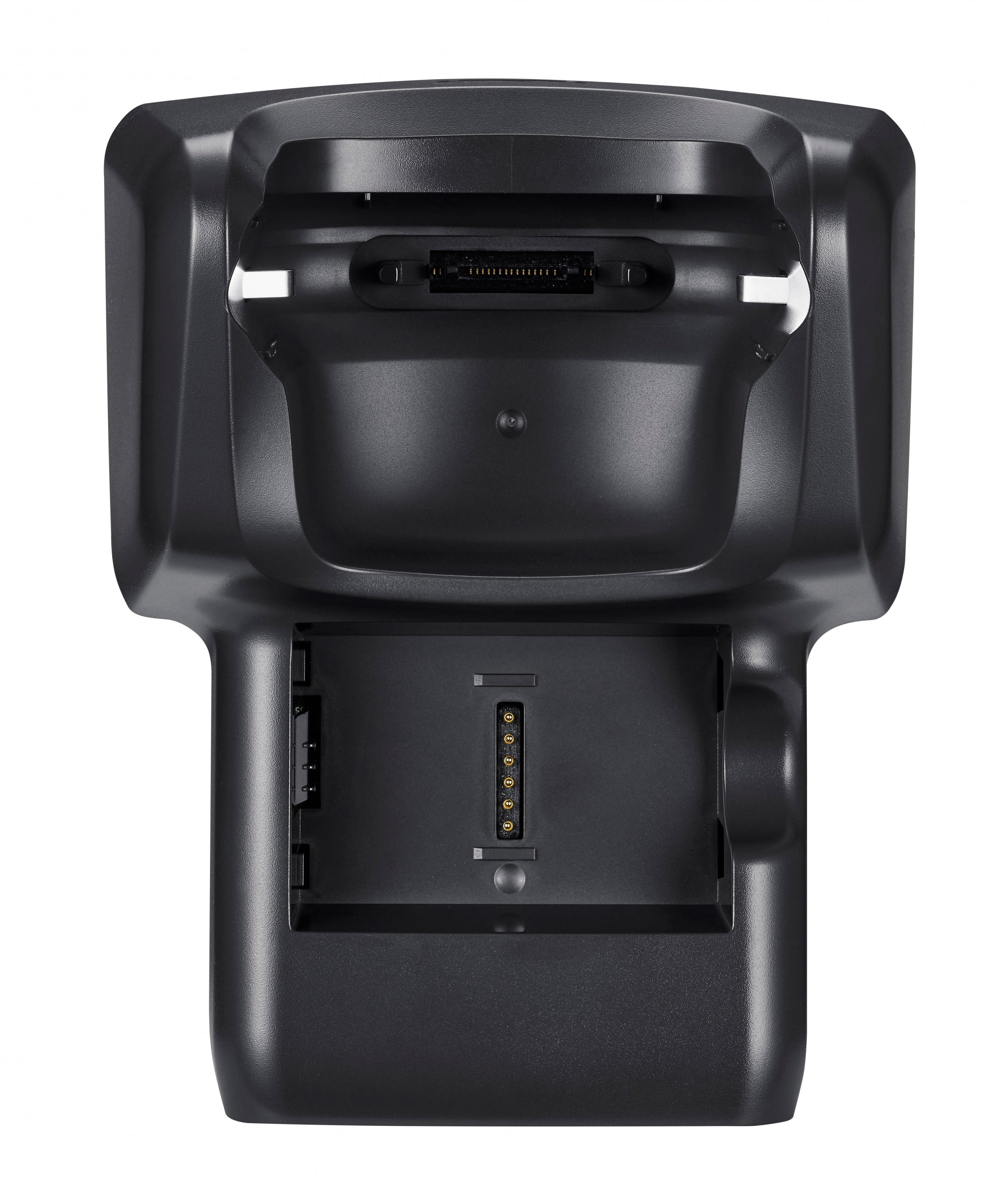

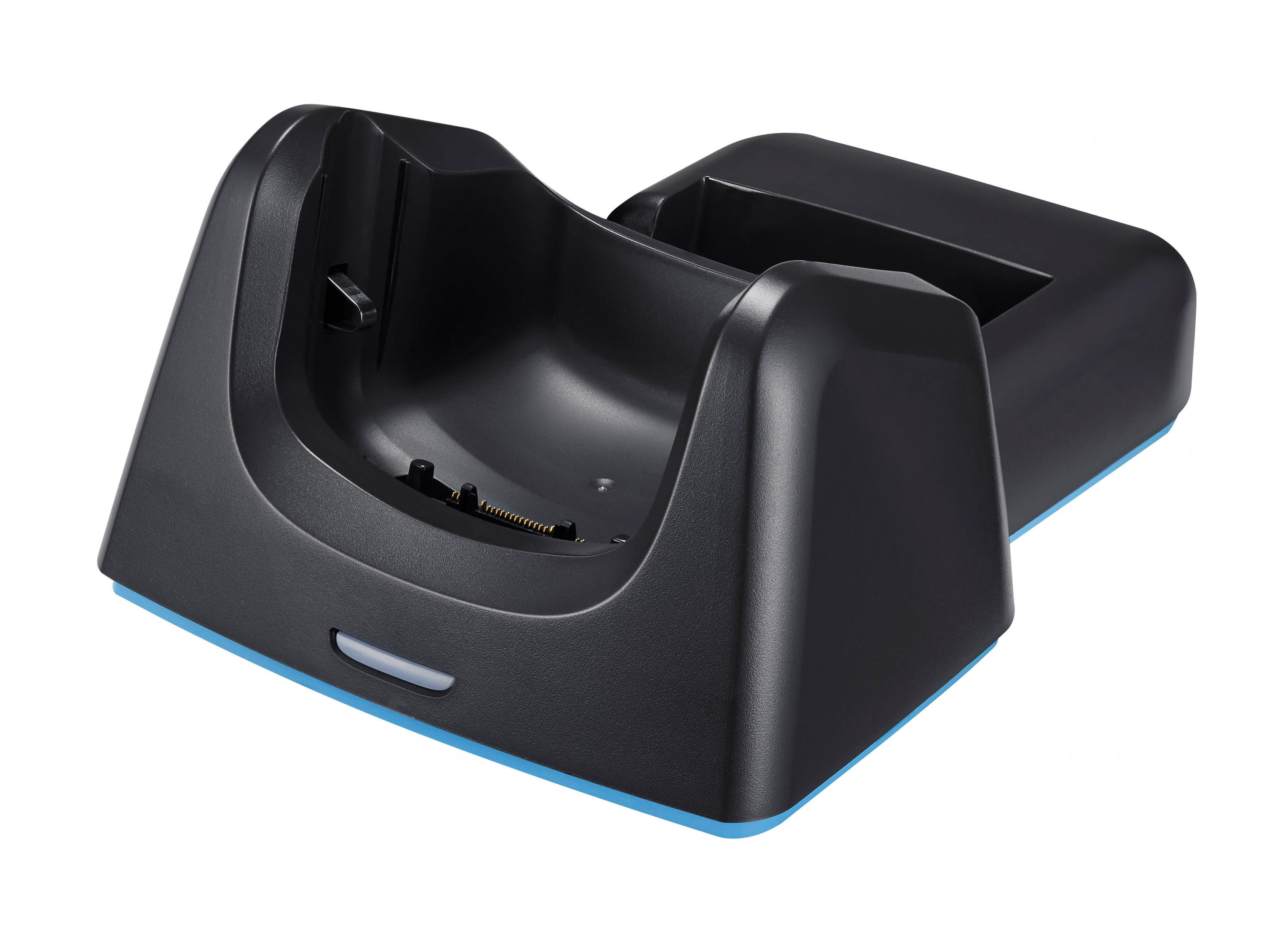

■ Single slot USB cradle with spare battery slot (PN#5000-900005G)

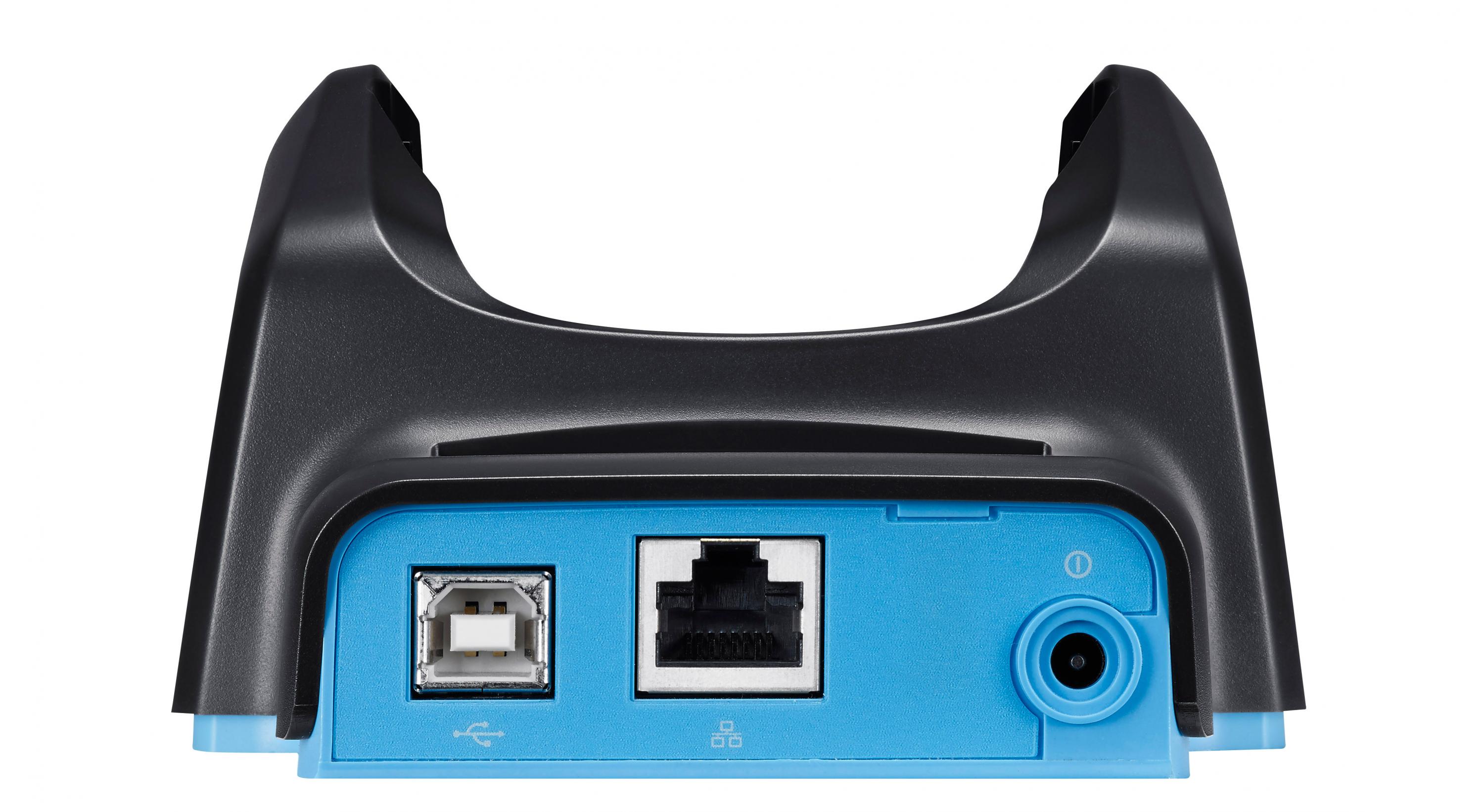

■ Single slot Ethernet cradle with spare battery slot (PN#5000-900004G)
■ Main battery (2200mAh, PN# 1400-900001G )
■ Extended-life battery (4000mAh,PN# 1400-900005G)
■ USB cable (PN# 1550-900043G)
■ RS232 cable (PN# 1550-900044G)
■ Power Adapter with plugs (PN# 1010-900014G)

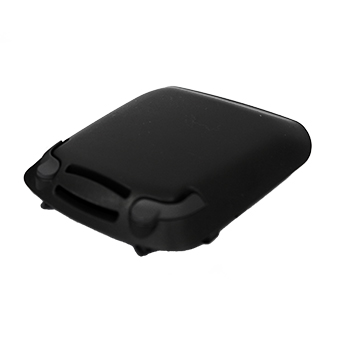

■ Standard battery cover (PN# 604142G)
■ Extended battery cover (PN# 605431G)

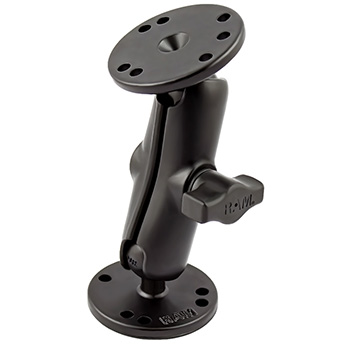

■ Screw mount kit (PN# RAM-B-101U)
■ PA69X extended battery cover (PN#605431G)

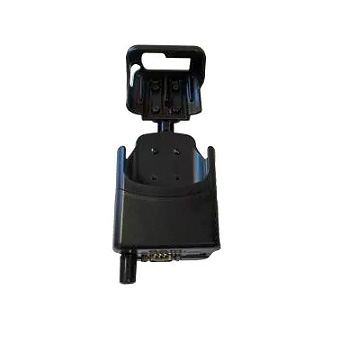

■ PA69X Vehicle cradle (PN#RAM-HOL-UNI2PAU)
■ PA69X Screen Protector (PN# 384807G)
What comes in the box
-
The standard package contents
■ PA692A Terminal
■ Battery
■ Hand Strap
■ USB cable
■ Adaptor with plugs(US/EU/UK)
Regulatory Approvals
- Regulatory Approvals CE, NCC, FCC, BSMI, VCCI, CCC, RoHS
Warranty
- Hardware Warranty 15 months
