Power your data collection with a device that optimizes the way you work. Browse the Internet and web-based apps faster with the user-friendly Android 10 OS with GMS certification. Experience heightened device performance with a 2.2GHz Octa-Core processor and ease of use with a wearable that fits wrists, necks, and belt loops. A 3.1inch touchscreen offers easy viewing and a 13MP camera captures barcodes and delivery confirmations
Features
• Android 10 with GMS certification
• Lightweight, ergonomic wearable computer
• 3.1” color display (800x480, 450nits). Supports gloves and wet resistance
• Powerful Qualcomm® 660 2.2GHz Octa-Core processor
• Support Bluetooth® 5 / NFC / Wi-Fi 802.11 ac support 2X2 MU-MIMO Antenna / 4G LTE
• 13MP camera captures barcodes and delivery confirmations
• Ease of use with a wearable that fits wrists, necks, and belt loops
• IP67 rated, and 1.5m drop specification
• Dual MIC design, clear voice even in a noisy environment
• Long-lasting embedded 2050mAh battery (Up to 11 hours working time)
• Device supported versatile: SOTI, AirWatch, 42Gears, Ivanti Wavelink, MoboLink and Staylinked
Powered by Android 10 OS with GMS Certified
|
|||
Power your data collection with a device that optimizes the way you work. Featuring a lightweight and ergonomic wearable design, the WD200 is a 3.1” Android 10 wearable device with GMS certification that supports users to work in an intensive picking environment that requires all hands to be free. A 3.1-inch sunlight-readable touchscreen offers easy viewing with 450 nits brightness and supports gloves and wet resistance, also comes with a 13MP camera that gives the flexibility to capture barcodes and delivery confirmations for applications in the warehouse, retail, logistic, transportation, and shipping yard.
|
|||
Android 10 Operation System |
GMS |
3.1 inch Display |
450 nits Brightness |
Smart, Hands-free Mobility

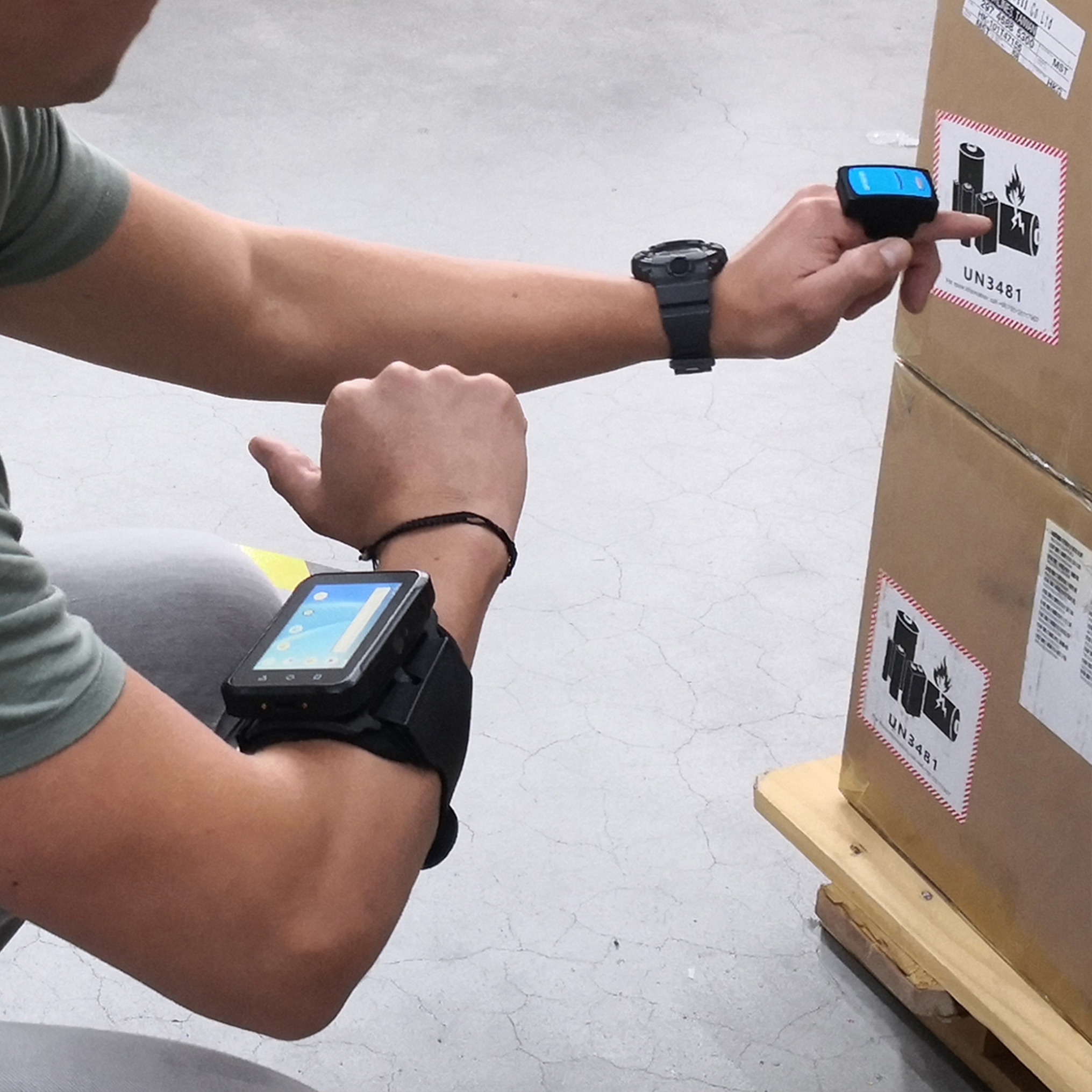

Want more efficiency without losing flexibility? The WD200 is designed to meet your expectations! Ease of use with a wearable that fits wrists like a smartwatch, necks like a smartbadge, and belt loops like a smartpager. The terminal is lightweight of 110g with a battery and it features EZ Lock arm strap design, easy to replace the main unit in a few seconds. Combined with one of our featured ring scanners, both hands can remain free during work without interfering with the workflow.
|
|||
Wrist Wearable like a smartwatch |
Neck Wearable like a smartbadge |
Belt Loop Wearable like a smartpager |
110g Lightweight |
Experience Heightened Device Performance
Browse the Internet and web-based apps faster and experience heightened device performance with a Qualcomm 660 2.2GHz octa-core processor. Power your data collection with a device that optimizes the way you work. |
|||
2.2GHz |
3 GB RAM 32GB Flash |
||
Long-Lasting Battery Life |
|||||
The WD200's powerful 2050mAh battery is designed to have up to 11 hours of operating time, giving you the flexibility to work through the day. |
|||||
Up to11 hours Operating Time |
2050 mAh Battery |
||||
Get Connected
Together with extended connectivity, the WD200 supports Bluetooth®5, NFC, 4G LTE, and Wi-Fi 802.11 AC with 2X2 MU-MIMO Antenna that boosts the performance by allowing devices to be connected simultaneously. |
|||
|
|||
Bluetooth®5 | NFC | 4G LTE | 2X2 MU-MIMO Wi-Fi |
Durable Design
It is not only equipped with dual MIC design, giving clear voice even in a noisy environment but also enhances the industrial durable protection with features including IP67 dustproof and 1.5m drop resistant of fall protection. The WD200 is a reliable tool to improve business productivity. |
IP67 Certification |
1.5 m
Drop Protection |
MIL-STD 810G | |||
|
Smaller Than a Dollar Bill
Imagine the compact form factor, the WD200 wearable computer is smaller than a dollar bill and it is also fitting in the palm of your hand, slipping inside your pocket easily.
Unitech Enterprise Camera Scanner
Gives a Great Option to Serve Your Barcode Scanning Needs
Do you need more precise aiming to capture barcodes?
But tight budget to purchase barcode readers?
Now, Unitech Enterprise Camera Scanner gives a great option to serve your barcode scanning needs for users on a tight budget. Just a tap of the app, enable users to capture barcode automatically via the camera of Unitech devices and streamline productivity.
Featuring center mode technology, it enhances the accurate barcode scanning even with multiple barcodes in the field of view. With Barcode to keyboard function, users is able to scan barcodes directly into the text fields for inventory control. It can support a wide range of barcode types, including UPC/EAN, UCC/EAN 128, Code 39, Code 39 Full ASCII.
- Center mode for accurate barcode scanning
- Barcode to keyboard function
- Support multiple barcode types
This innovative app comes pre-installed on Unitech WD200 wearable computer & EA630 rugged smartphone, ready to use for free.
|
|||||
SmartPA: Better Audio Output |
|||||
|
|||||
SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.
|
|||||
|
|||||
Power Amplifier Better Audio Output |
Built-in Algorithm Lessen Circuit / Temperature Damage |
Boost Your Productivity with WD200 Wearable Solutions |
|||||
The WD200 supports USB 3.1 Type-C (with the quick charge and the display port alternate mode) that is available to connect with the head-up display. Just plug it into the host mobile devices and put on the head-up display; you can instantly experience the benefits of smart wearable solutions, getting the right information at the right time, and increasing workers' productivity in the warehouse industry. |
|||||
|
Specification
Operation System
- OS Android 10
- GMS certified GMS certified
- CPU Qualcomm Snapdragon™ 660 Octa Core, 2.2 GHz , 64bits
- AI 1st Gen Qualcomm AI Engine
-
Memory
RAM 3GB
Flash 32GB - Languages support English, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
Display
- Screen Size 3.1” Color TFT-LCD (800 X 480) High Resolution Display (450 nits)
- Touch Panel Ultra sensitive capacitive touch screen, compatible with gloves and support wet resistance
Buttons / Keypad
- Buttons / Keypad ON / OFF button , 1x User-defined function button, 3x touch buttons
Camera
- Camera 13 MP Rear and Flash Light
Indicator Type
- Type LED, Speaker, Vibrator
RFID
-
HF RFID
Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693 standard
I/O Interfaces
-
USB
USB 3.1 (Type-C) support USB OTG
Support Display Port Mode
Ethernet/USB-Host via cradle - OTG Yes, over USB Type-C
- POGO PIN Charging via cradle
- SIM Slot Nano SIM Slot
-
Audio
One 1W speaker with Smart PA ,
Dual noise-cancelling microphones
Power Source
- Main battery 3.85V, 2050mAh Li-polymer battery (embedded, can be repaired)
Communication
- Bluetooth® Bluetooth® 5
-
WLAN
IEEE 802.11 a/b/g/n/ac/d/h/i/k/r/v, IPv4, IPv6
Security of Wi-Fi : WEP, WPA/WPA2 PSK, 802.1x EAP,OWE, SAE
Fast Roaming : PMKID caching, 802.11r, OKC
2x2 MU-MIMO, Dual-Band Simultaneous (DBS) -
WWAN
LTE:
FDD-LTE (B1/B3/B4/B7/B20)
TDD-LTE (B38/B39/B40/B41)
- GPS GPS/GLONASS/Gallileo/Beidou
- Sensors Gyroscope, G-sensor, E-compass, Light Sensor
Software
- MDM Software SOTI, 42Gears, MoboLink, Airwatch, Ivanti Wavelink
Enclosure
- Dimensions ( W x H x D ) 96.7mm x 60.7mm x 14.43 mm
- Weight 110g (with battery)
Durability
- Drop Specification 1.5 meter, MIL-STD 810G
- Sealing IP67
- Tumble test 1,000 tumbles @ 1.6 ft./0.5 m
Environmental
- Operating temperature -4°F to 122°F (-20°C to 50°C)
- Storage temperature -4°F to 158°F (-20°C to 70°C)
- Charging temperature 0°C to 45°C
- Relative Humidity 5% ~ 95% (non-condensing)
Accessories
-
Accessories
■ Wrist Holder (PN#3210-900026G)
■ Wrist Holder pad (PN#386215G)
■ Wrist Holder strap (PN#609032G)
■ Wrist Bracket (PN#608941G)
■ Necklace Holder (PN#3210-900029G)
■ Belt Holder (PN#3210-900030G)
■ 9H glass screen protector (PN#401613G)
■ USB 3.0 type-C cable(PN#1550-905908G)
■ Power Adaptor *(PN#1010-900073G(US) PN#1010-900062G(EU))
■ Power Adaptor *(PN#1010-900065G(UK) PN#1010-900064G(AUS))
■ 4-Slot Terminal Charging Cradle *(PN#5100-900030G)
■ 3-Pin Power Cord (US) PN#1010-601551G
■ 3-Pin Power Cord (EU) PN#1550-602333G
■ 3-Pin Power Cord (UK) PN#1550-602689G

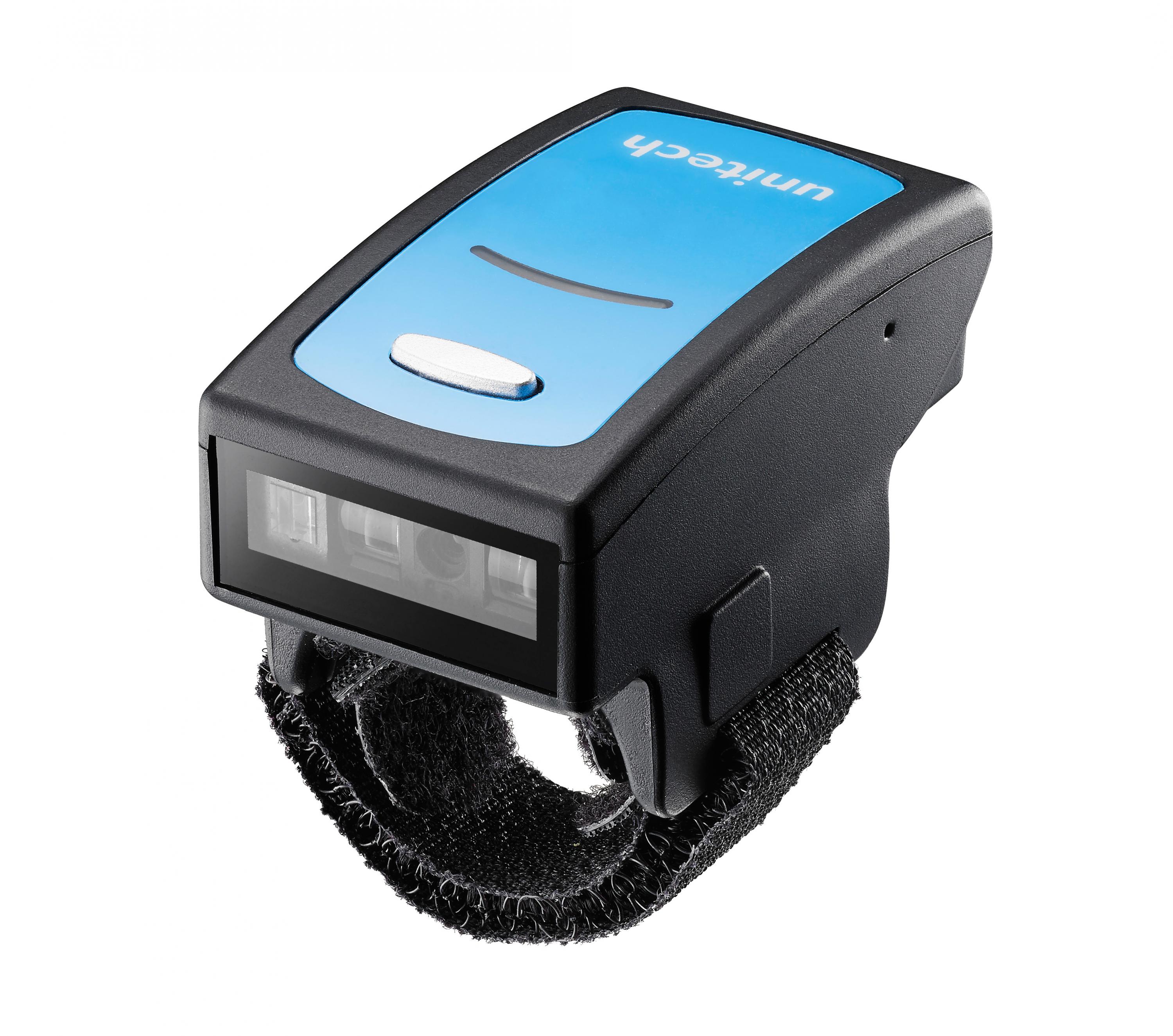

■ MS650 1D Bluetooth Ring Scanner (PN#MS650-5UBB00-SG)
■ MS652 2D Bluetooth Ring Scanner (PN#MS652-2UDB00-SG)
■ MS622 2D Cord Ring Scanner (PN#MS622-2UCB00-SG)
■ Bluetooth noise cancellation headset (PN#B450-XT)
■ Head-Up Display (PN# SIX15-ST1)
■ RP902 Bluetooth UHF RFID Pocket Reader (PN#RP902-33E8S0G (EU), PN#RP902-43A8S0G (US), PN#RP902-43F8S0G (JP))
*Support Qualcomm® Quick Charge™ 3.0. Recharge an empty battery in 2.5 hrs. (+/-5%)
■ Dimension Detector(PN# Cubetape C200)
What comes in the box
-
The standard package contents
■ WD200 Terminal
■ USB 3.0 Cable (Type C)
Regulatory Approvals
-
Regulatory Approvals
CE, FCC, NCC, BSMI, VCCI, CCC, RoHS, CEC, BQB, N-Mark
compliance.
Warranty
- Hardware Warranty 12 months
- Statement This product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
