Wi-Fi 6 Technology | 130g with 2500mAh battery | 2X2 MU-MIMO Wi-Fi

Android 13
Wearable
Wi-Fi
MU-MIMO
16MP
IP68
1.5 m
GMS certified
Bluetooth
Logistics
Warehousing
Field Service

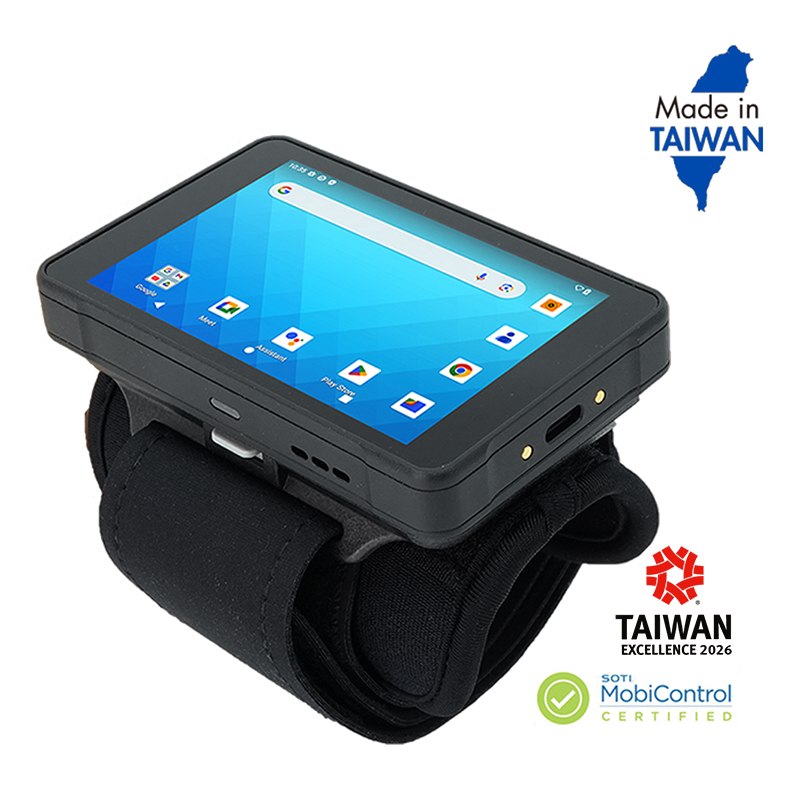

Streamline your workflow with a lightweight 130g device featuring a 3.54-inch display and a 2500mAh battery for all-day performance. Powered by Android 13 OS with GMS certification, it ensures secure and efficient app access. With Wi-Fi 6 technology, enjoy real-time data collection and seamless operations, ideal for warehouses, retail, and logistics.

Features

• Android 13 with GMS certification
• Lightweight design with a 3.54”color display (960x640, 500 nits)
• Support gloves and wet resistance
• Support Wi-Fi 6 (2X2 MU-MIMO Antenna) and Bluetooth® 5
• 16MP camera captures barcodes and delivery confirmations
• IP68 rated, and 1.5m drop specification
• Dual MIC design, clear voice even in a noisy environment
• Long-lasting embedded 2500mAh battery
• Device supported versatile: SOTI, AirWatch, 42Gears, Ivanti Wavelink, MoboLink and Staylinked

Powered by Android 13 OS with GMS Certified

Enhance your data collection with the WD200 Plus, a device designed to revolutionize your workflow. This lightweight, ergonomic wearable runs on Android 13 with GMS certification, perfectly suited for intensive picking environments where hands-free operation is essential. The 3.54-inch sunlight-readable touchscreen, with 500 nits brightness, ensures clear visibility and supports use with gloves or in wet conditions. Equipped with a 16MP camera, the WD200 Plus offers the flexibility to capture barcodes and delivery confirmations seamlessly, making it an ideal solution for warehouse, retail, logistics, transportation, and shipping yard applications.

Android 13 Operation System	GMS Certification	3.54 inch Display	500 nits Brightness	130 g Lightweight

Advanced Technology: Wi-Fi 6

With Bluetooth® 5 and low-latency Wi-Fi 6 connectivity, the WD200 Plus enables real-time data collection. Users can scan items and instantly connect to backend systems to check stock quantities or place online orders for customers. Designed to deliver a seamless work experience, the WD200 Plus enhances productivity across various applications, offering faster downloads and uploads at your fingertips on the most reliable networks for your business.

Bluetooth®5		Wi-Fi 6



	High-Capacity Memory and Powerful Battery

	Building on the foundation of the WD200, the WD200 Plus elevates performance with enhanced memory and battery capacity. Equipped with 4GB of RAM and 64GB of flash storage, it ensures smoother multitasking and ample space for your data, maximizing productivity and efficiency.


	4GB RAM 64 GB Flash			2500 mAh Battery

Durable and Reliable Design

The WD200 Plus enhances industrial-grade durability with features such as IP68-rated dustproof and waterproof protection, along with resistance to drops from heights of up to 1.5 meters. This ensures complete protection against dust and survival in over 1 meter of water for up to 1 hour. Additionally, the MIL-STD-810H certification guarantees resilience against environmental vibrations and humidity.

IP68

Certification

1.5 m

Drop Protection

MIL-STD 810G

Pocket-Sized Excellence: Power at Your Fingertips

The WD200 Plus wearable computer boasts a compact form factor that fits perfectly in the palm of your hand and slips easily into your pocket—making it the ultimate portable solution.


SmartPA: Better Audio Output
SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.


Power Amplifier Better Audio Output			Built-in Algorithm Lessen Circuit / Temperature Damage

MoboLink Android Enterprise ready EMM for monitoring device health and managing apps, configs and files. Learn More	StageGO Barcode-based device staging utility offering hundreds of script commands for you to work with. Learn More	OEMConfig If you are using a third party EMM, OEMConfig will allow those EMM solutions to configure unitech specific settings on the device. Learn More
Battery info Monitor advanced Battery health and manage the battery replacement cycle. Use with MoboLink to get real-time attery health alerts delivered to your phone.	Enterprise Launcher Secure your devices by kiosking them with Enterprise Launcher. Block access to the Android system and only allow limited number of apps to be run. Learn More	Software Update Check and install software updates online. To let a device always stay up-to-date, setup the device to automatically check and install for updates on boot up.
System Update Center Check and install firmware updates via FOTA. You can update the firmware via online FOTA server, or by using a OTA ZIP file placed in the internal storage.	Unitech Scanner Utility An Android application which helps users connect, configure and use a supported Unitech Bluetooth scanner. Learn More	USS Configure all scanner settings with friendly user interface and enable the service to make scanning data as keypad input.
USS Camera Capture barcode data using the device camera and send the data to your applications as keyboard inputs.	KeyRemap Reprogram physical buttons to act as another key or to launch an app. Learn More	WLAN Advanced Configure advanced WLAN settings such as power saving mode and roaming parameters.
NTP Server Settings Customize the NTP server setting to keep your device date and time synchronized.	UNote A simple text viewer and editor for use in your work flows.	Startup Auto-run apps when device boots up.
TagAccess For versatile functions of RFID command via integrating with Unitech RFID Readers. Learn More	Logger An easy and fast way to get logs from a device. Learn More	Enterprise Keyboard Enterprise Keyboard gives various methods for user to input data to enhance efficiency and productivity. Learn More
EBrowser Modern Web Browsing with Enterprise Controls and Full SDK Integration. Learn More	Mobile SDK Develop apps that work with uniech Android based devices. Apps can configure unitech-specific settings and get advanced access to manage apps, file system or system info, etc.	Scanner SDK Develop apps that work with unitech scanners when customization of scanner settings and data processing workflow are required.
RFID SDK Develop apps that work with unitech RFID mobile and fixed readers if customization of the inventory collection workflow or tag data processing are required.

Operation System

OS Android 13
GMS certified GMS certified
CPU Octa Core, 2GHz
Memory RAM 4GB
Flash 64GB
Languages support English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages

Display

Screen Size 3.54” Color TFT-LCD (960 X 640) High Resolution Display (500 nits)
Touch Panel Ultra sensitive capacitive touch screen, compatible with gloves and support wet resistance

Buttons / Keypad

Buttons / Keypad ON / OFF button , 1x User-defined function button

Camera

Camera 16 MP Rear(AF) and Flash Light

Indicator Type

Type LED, Speaker, Vibrator

RFID

HF RFID Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693 standard

I/O Interfaces

USB USB 2.0 (Type-C) support USB OTG
OTG Yes, over USB Type-C
POGO PIN Charging via cradle
Audio One 1W speaker with Smart PA ,

Power Source

Main battery 3.85V, 2500mAh Li-polymer battery (embedded, can be repaired)

Communication

Bluetooth® Bluetooth® 5
WLAN Wi-Fi 6 (MIMO 2X2)
802.11a/b/g/n/ac/ax 2x2,
802.11 dh/r/k/v/w/i
GPS GPS/GLONASS/Gallileo/Beidou
Sensors Gyroscope, G-sensor, E-compass

Software

MDM Software SOTI, 42Gears, MoboLink, Airwatch, Ivanti Wavelink, Staylinked

Enclosure

Dimensions ( W x H x D ) 96.7mm x 60.7mm x 14.9 mm
Weight 130g (with battery)

Durability

Drop Specification 1.5 meter, MIL-STD 810G
Sealing IP68
Tumble test 500 tumbles @ 1.6 ft./0.5 m

Environmental

Operating temperature -20°C to 50°C
Storage temperature -20°C to 70°C
Charging temperature 0°C to 45°C
Relative Humidity 5% ~ 95% (non-condensing)

Accessories

Accessories ■ Wrist Holder (PN#3210-900026G)
■ Wrist Holder pad (PN#386215G)
■ Wrist Holder strap (PN#609032G)
■ Wrist Bracket (PN#608941G)
■ 5V/2A Adaptor with US plug for Terminal (PN#1010-900058G)
■ 5V/2A Adaptor with Universal plugs for Terminal (PN#1010-900067G)
■ USB Type C Cable (PN#1550-905919G)
■ 4-Slot Terminal Charging Cradle *(PN#5100-900030G)
■ 3-Pin Power Cord (US) PN#1010-601551G
■ 3-Pin Power Cord (EU) PN#1550-602333G
■ 3-Pin Power Cord (UK) PN#1550-602689G
■ MS650 1D Bluetooth Ring Scanner (PN#MS650-5UBB00-SG)
■ MS652 2D Bluetooth Ring Scanner (PN#MS652-2UDB00-SG)
■ MS622 2D Cord Ring Scanner (PN#MS622-2UCB00-SG)
■ Bluetooth noise cancellation headset (PN#B450-XT)
■ Head-Up Display (PN# SIX15-ST1)
■ RP902 Bluetooth UHF RFID Pocket Reader (PN#RP902-33E8S0G (EU), PN#RP902-43A8S0G (US), PN#RP902-43F8S0G (JP))
*Support Qualcomm® Quick Charge™ 3.0. Recharge an empty battery in 2.5 hrs. (+/-5%)
■ Dimension Detector(PN# Cubetape C200)

What comes in the box

The standard package contents ■ WD200 Plus Terminal
■ USB Type C Cable (PN#1550-905919G)

Regulatory Approvals

Regulatory Approvals TBD

Warranty

Hardware Warranty 12 months
Statement This product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
