The Unitech EA630Plus continues progressing with an advanced Android12 system to optimize high-performance 2D barcode experience, accelerating and improving labor productivity tremendously than ever. The full touch 6” Gorilla screen offers clear visibility up to 80% screen-to-body ratio. A bigger 4G/64G mobile storage mitigates the possibility of data being missed. The Ultra Slim Rugged Smartphone drives up stock management more efficiently in the retail, hospitality, and health service industries.
Features
• 6-inch rugged smartphone with a screen-to-body ratio of over 80% Android 12 OS with GMS Certification
• All-In-One functionality: 2D Imager, NFC, 5MP front camera, and 16MP rear camera
• Rugged: Corning® Gorilla® Glass touch display, IP65 rated, and 1.2M drop (1.5M with boot case)
• Long-lasting removable 4000mAh smart battery
• Dual bands Wi-Fi with fast roaming / 4G LTE / Bluetooth® 5

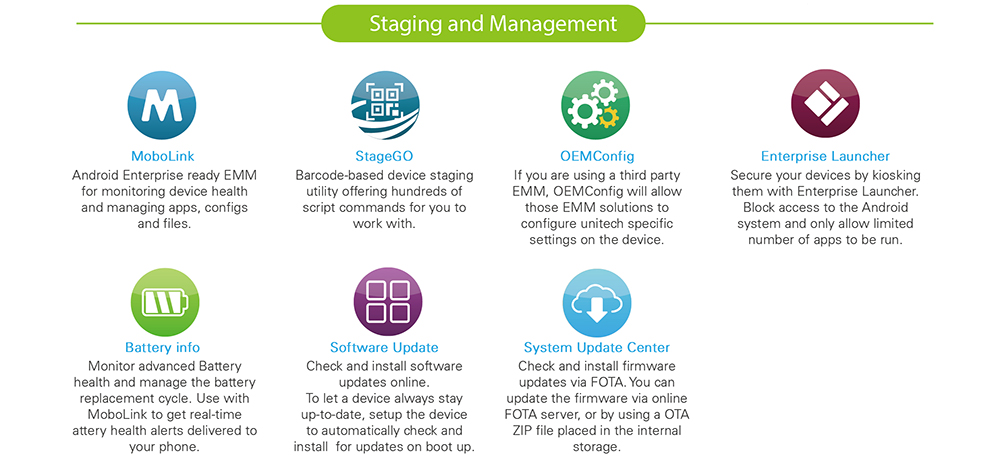

• Support unitech software solutions, SDKs, MoboLink, and MDM solutions
Upgrade to Android 12 OS with GMS Certified
• Advanced 64-bit Octa-core CPU (2 GHz) with 4 GB RAM / 64 GB Flash |
|
|||
Android 12 Operation System |
GMS Certification |
Octa-Core CPU |
4 GB RAM 64 GB Flash |
Note: Learn more about Android Security bulletin information |
|||
|
![]() |
|||||

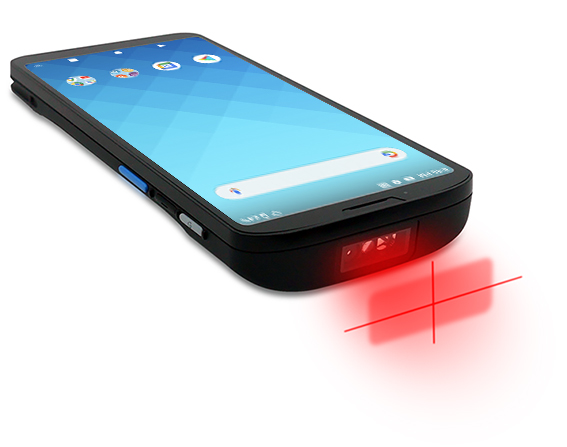

High Performance 2D Scanner |
||||||
|
||||||
The EA630Plus is built-in a Powerful 2D scanning engine featuring a laser aimer that enables the reading of high-resolution codes (down to 3 mils on Code 39 1D barcode) and it is available to read EAN 100% at 541 mm distance (typical read range). Moreover, it enhances the visibility to capture most 1D / 2D barcodes even in low light or bright light environments. |
||||||
Powerful Barcode Scanner |
Laser Aimer | Low Light Visible |
||||

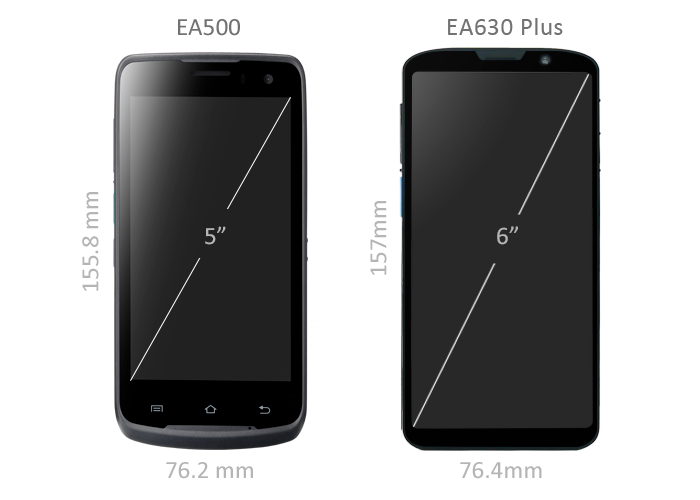

High Screen to Body Ratios
The EA630Plus rugged smartphone has a 6-inch 18:9 display as offering 80% screen to body ratio. It also provides the 450nits brightness for easy viewing in outdoor environment. |
|
||||
|
||||
6" Display |
18:9 Ratio |
80 % Screen to body ratio |
450nits
Brightness |
Gorilla® GlassTouch Display |
|
|
|||
Specially Designed for Portability |
|||
|
|||
The EA630Plus is combined with a compact and durable design that makes it an ideal tool to increase higher efficiency for applications in the retail, hospitality, and healthcare service. |
|||
![]() |
|||
13.9mm |
232g |
||
|
|||||
Long-Lasting Battery Life |
|||||
The EA630 Plus' powerful 4000mAh battery is designed to have up to 14 hours operating time, giving you the flexibility to work through the day. |
|||||
Up to14 hours Operating Time |
4000 mAh Battery |
||||

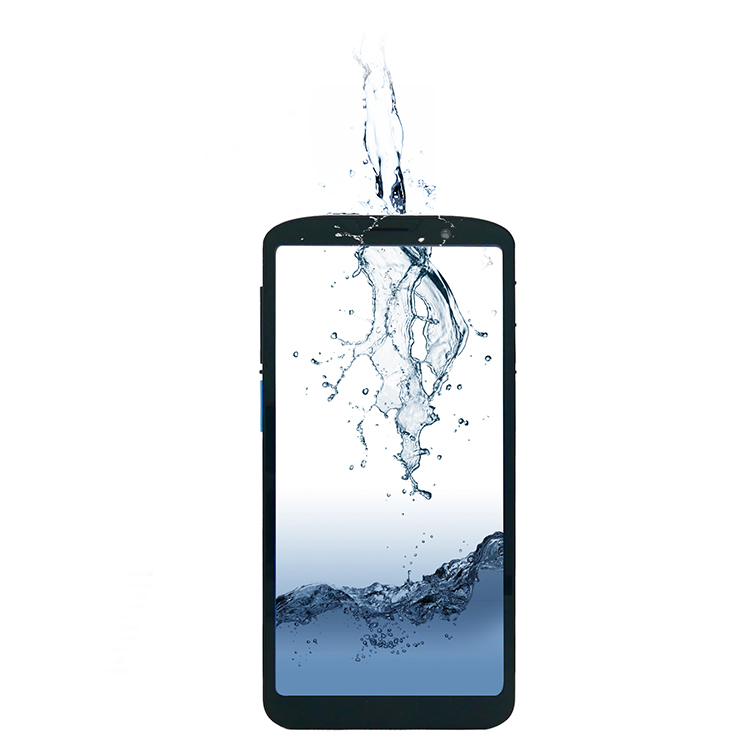

Durable Design
It enhances the industrial durable protection with features including IP65 dustproof, waterproof and 1.2 meters resistant to fall protection. (1.5 meters with boot case) |
|
|||||
IP65 |
1.2 m
Drop Protection |
1.5 m
Drop Protection |
|||
|
|
||||||||
A Data Collector for All Your Need |
||||||||
EA630 Plus not only fulfills superior 1D/2D scanning performance but surpasses end-user expectations. A wide series of practical features, including an NFC reader/writer, GPS, and a high-resolution 5MP front and 16MP rear camera, further strengthen traceability and functionality in a compact device.
Featuring the fastest data speeds with fast roaming function on dual bands Wi-Fi, 4G LTE connectivity, and Bluetooth® 5, the EA630 Plus bridges the gap between associates to ensure instant messages and alerts are received within teams. |
||||||||
1D/2D Barcode Scanning |
16 MP
Rear Camera |
4G LTE | Wi-Fi
Dual Bands |
Bluetooth® 5 | NFC RFID reader / Writer |
|||
|
|||||

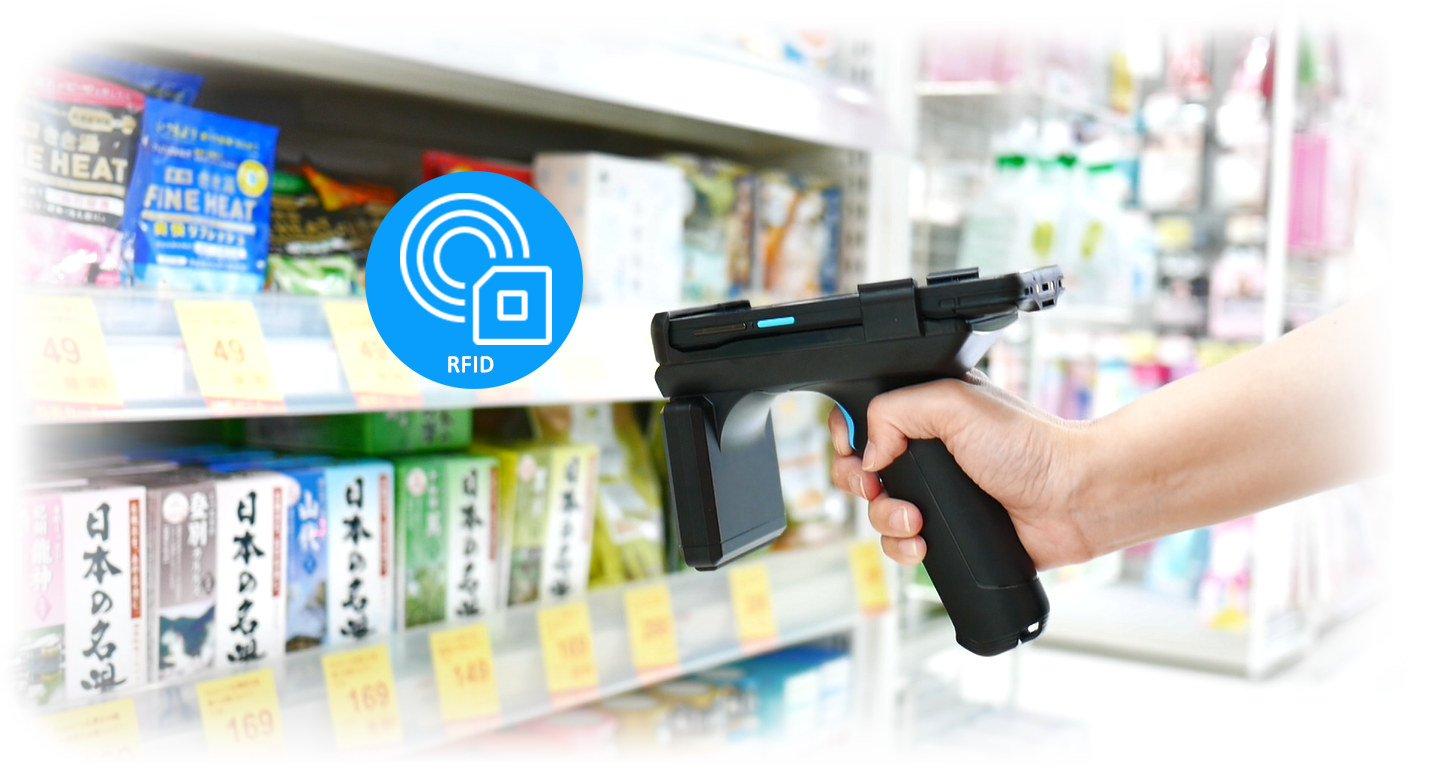

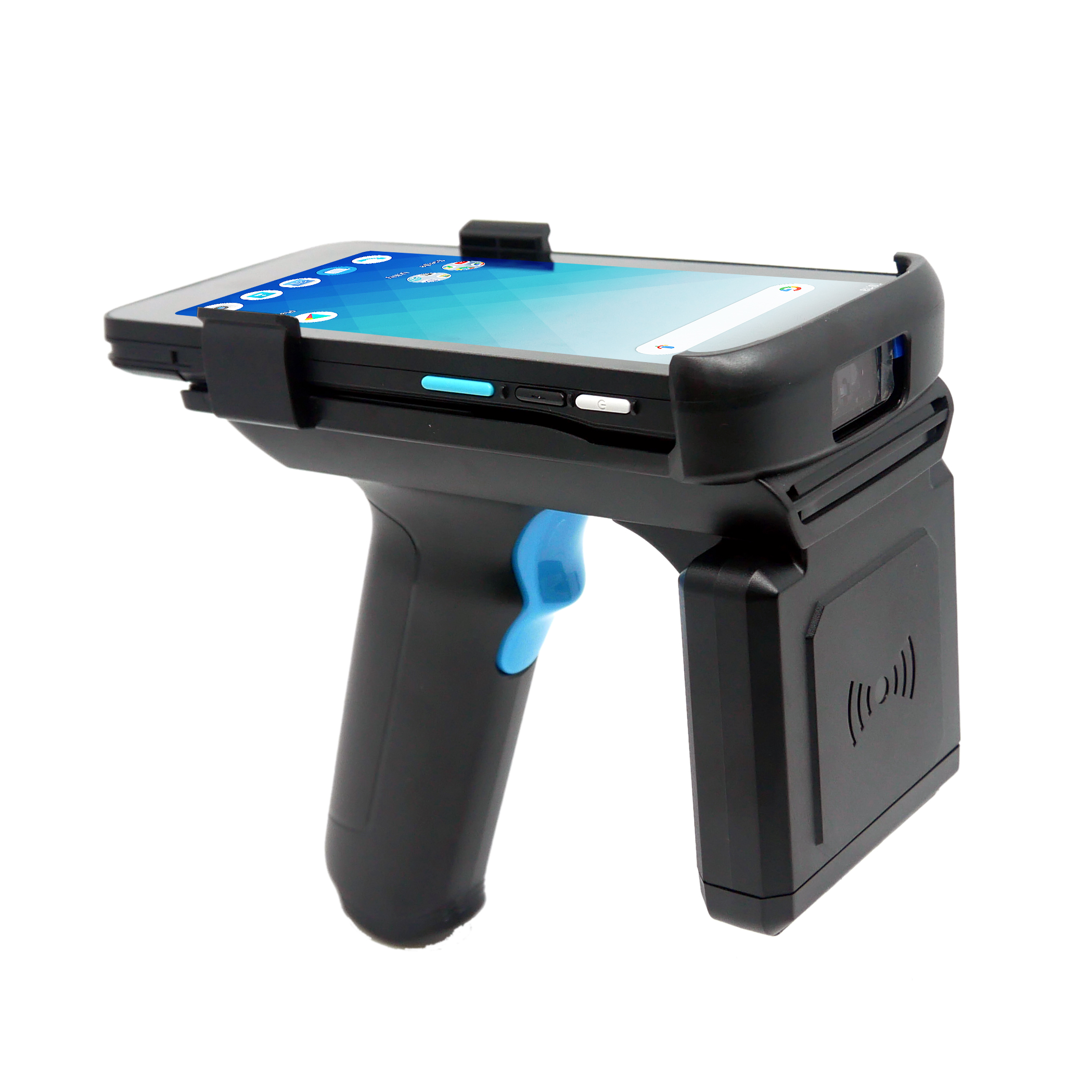

Ergonomic Gun Grip Design |
|||||
|
|||||
It allows users to add values to your device with the unique UHF RFID gun grip or 2D long-range gun grip (optional). Just simply attaches it and it delivers a convenient way to support standard barcode scanning, RFID scanning or 2D long-range scanning in inventory tracking and taking solutions. |
|||||
![]() |
|||||
------- Unique Gun Grips for Optional Choice ------- |
|||||
Standard Easy to hold |
2D LR
- 25 m distance |
RFID - 6 m distance - 750 tags / second |
|||
|
|
||||
|
|||||
Optical Character Recognition (OCR) |
|||||

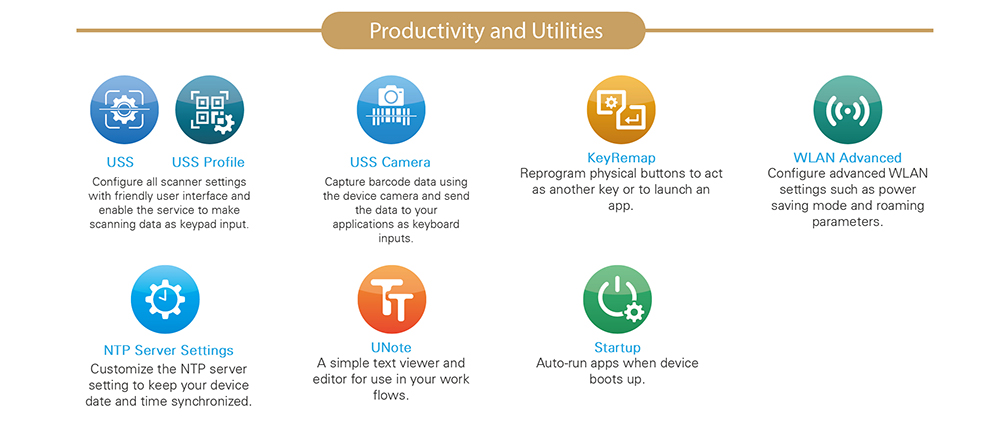

EA630Plus provides Optical Character Recognition (OCR) technology in Unitech USS software to streamline your tedious typing process and minimize the typing mistakes when entering the numbers. Our OCR technology allows users to easily convert numbers or characters to digital formats on cardboards, paperwork, electronic chips, and any other readable surface.
|
|||||
![]() |
|||||
Airline | Manufacturing | Logistics | |||
✔The Airline Ground Services|Read ID numbers from passports ✔Manufacturing|Read vehicle registration numbers and electronic chips ✔ Logistics&Retail|Read lot numbers printed on the package
|
|
|||||
SmartPA: Better Audio Output |
|||||
|
|||||
SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer.The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.
|
|||||
|
|||||
Power Amplifier Better Audio Output |
Built-in Algorithm Lessen Circuit / Temperature Damage |
Specification
Operation System
- OS Android 12
- GMS certified GMS certified
- CPU 2GHz, Qualcomm® Snapdragon™ 662, 64bits Octa-core Processor
- AI 3rd Gen Qualcomm AI Engine
-
Memory
RAM 4GB
Flash 64GB -
Languages support
English, Simplified Chinese, Traditional Chinese, Japanese,
Spanish, German, French, Italian, Portuguese, Korean and multiple languages -
Others
Input Chinese/ English
Supports handwriting and soft keyboard
Display
- Screen Size 6”, 18:9 Full-HD (2160x1080), color screen backlight up to 450nits
- Touch Panel Gorilla® Glass with 5-point Capacitive Touch Panel, compatible with gloves and supports wet resistance
Buttons / Keypad
- Buttons / Keypad 5 keys- Programmable function button; dual dedicated scan buttons; volume up/down buttons; on/off button
Camera
-
Camera
5 MP Front camera,
16 MP Rear withauto-focus function and Flash Light
Indicator Type
- Type LED, Speaker, Vibrator
Symbologies
- 1D Barcodes UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 11, Code 93, Codabar/NW7, Interleaved 2 of 5, Matrix 2 of 5, MSI, Trioptic, Code 32
-
2D Barcodes
PDF417, MicroPDF417, GS1 Composite, Aztec Code, Data Matrix, QR Code, Micro
QR Code, MaxiCode, Han Xin Code, DOT Code
- Postal Intelligent Mail Barcode, Postal-4i, Australian Post, Japanese Post, Netherlands (KIX) Post, Postnet, Planet Code
- OCR OCR-A, OCR-B, E13B (MICR)
RFID
- UHF RFID UHF gun grip (see RG630)
-
HF RFID
Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693, Mifare, Felica(ISO/IEC18092) compliance
I/O Interfaces
-
USB
USB 3.1 (type-C) support USB OTG
Ethernet/USB-Host via cradle - OTG Yes, over USB Type-C
-
POGO PIN
PogoPin backside: Support Gun-grip, UHF reader
PogoPin bottom: Charging via cradle - SIM Slot Dual nano SIM Slot
- Expansion Slot MicroSD, up to 256 GB
- Audio One speaker with SmartPA (95 dB at 10cm), One receiver, Dual-Microphone support noise cancellation
Power Source
-
Main battery
3.85V, 4000mAH Li-polymer battery
RTC battery: back up 4 days
Communication
- Bluetooth® Bluetooth® 5
-
WLAN
Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz
Support 802.11d/e/h/i/k/r/v, fast roaming
Compliant with WEP, WPA and IEEE 802.11i WPA2 -
WWAN
4G LTE (FDD): B1/B2/B3/B4/B5/B7/B8/B12/B17/B19/B20/B28
LTE (TDD):B38/B39/B40/B41
3G WCDMA: B1/B2/B5/B8
GSM: 850/900/1800/1900 MHz
Dual nano SIM Slot - GPS AGPS, GPS, GLONASS, Beidou, Galileo
-
Sensors
Gyroscope, Light sensor, e-Compress, Proximity sensor,
Accelerometer sensor
Software
- MDM Software SOTI, AirWatch and MoboLink
Enclosure
- Dimensions ( W x H x D ) 76.4mm x 157mm x 13.9mm
- Weight 232g (with battery)
Durability
- Drop Specification 1.2m, 1.5m with boot case
- Sealing IP65
- Tumble test MIL-STD 810G
Environmental
- Operating temperature -10°C to 50°C
- Storage temperature - 30°C to 70°C (without battery)
- Charging temperature 0°C to 45°C
- Relative Humidity 10% ~ 90% (Non-Condensing)
Accessories
-
Accessories
■ USB 3.0 type-C cable(Support Quick Charge) (PN#1550-905908G)
■ Quick charge adaptor via USB type-C cable (PN#1010-900061G US plug/ #1010-900062G EU plug)
■ hand strap (PN#5400-900040G)

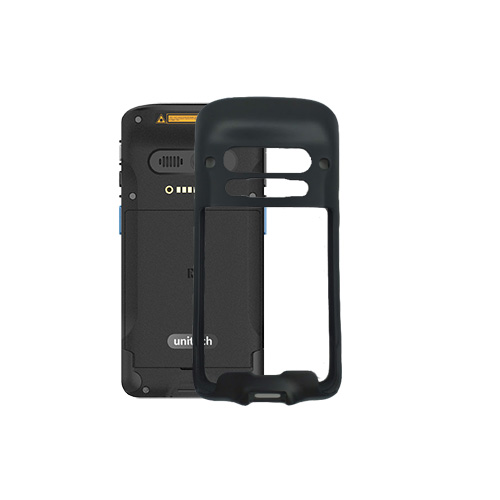

■ Boot case (PN# 3210-900023G)

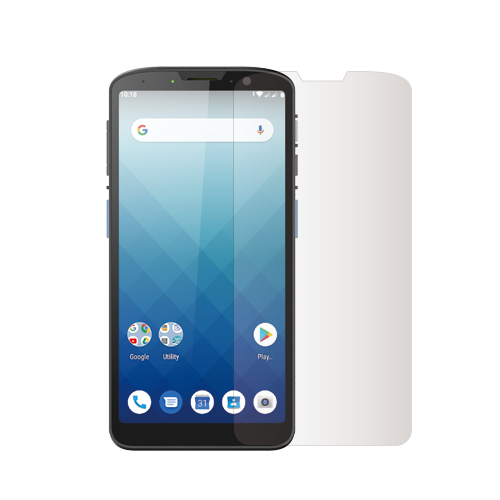

■ 9H glass screen protector (PN#5400-900037G. 10pcs with packing)

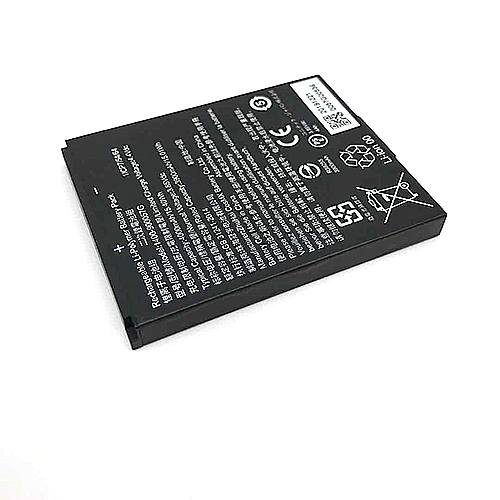

■ Battery 3.85V 4000mAh (PN#1400-900057G)
■ Stylus (8mm PN# 384896G, 5.5mm #386534G)
■ Coiled strap (PN# 383642G)

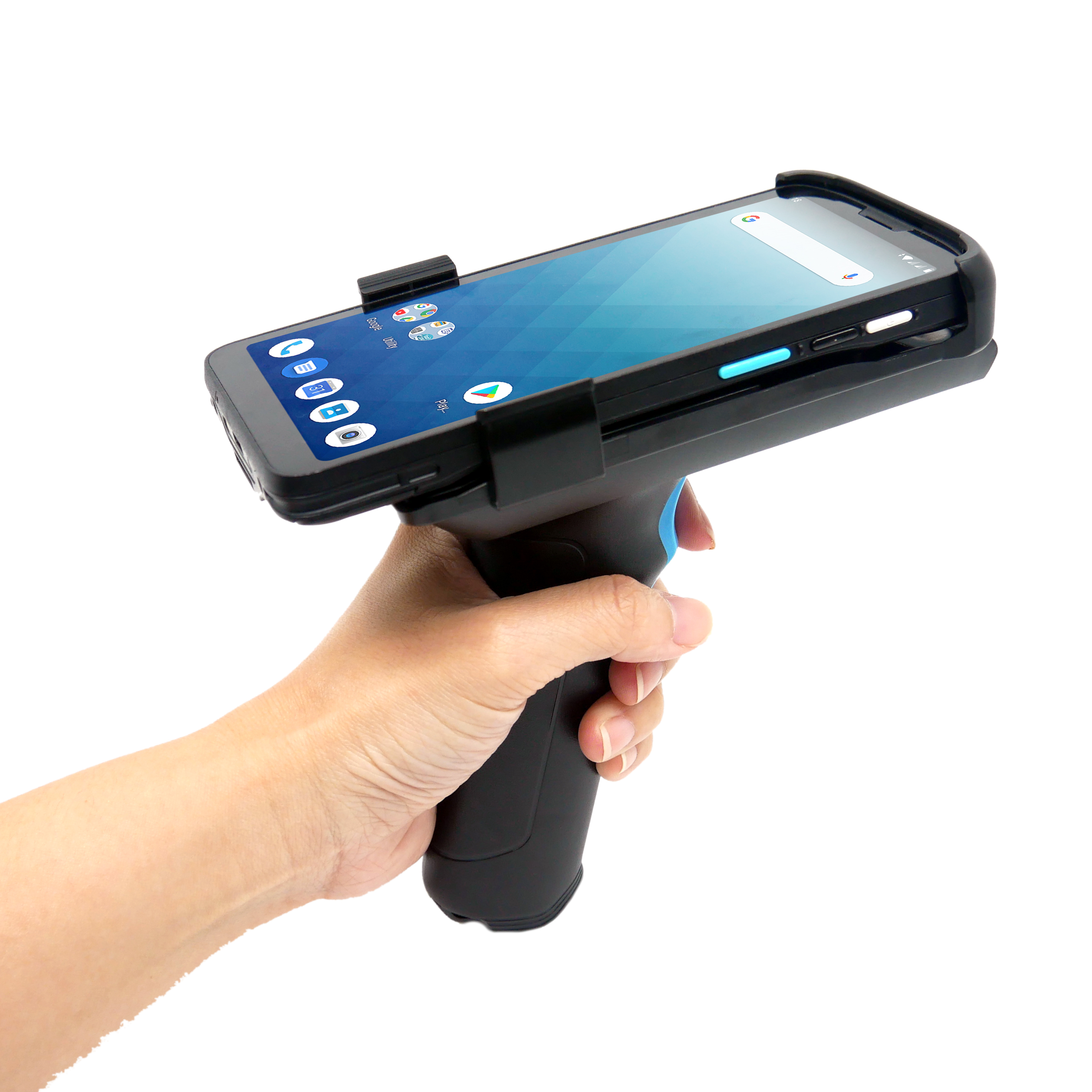

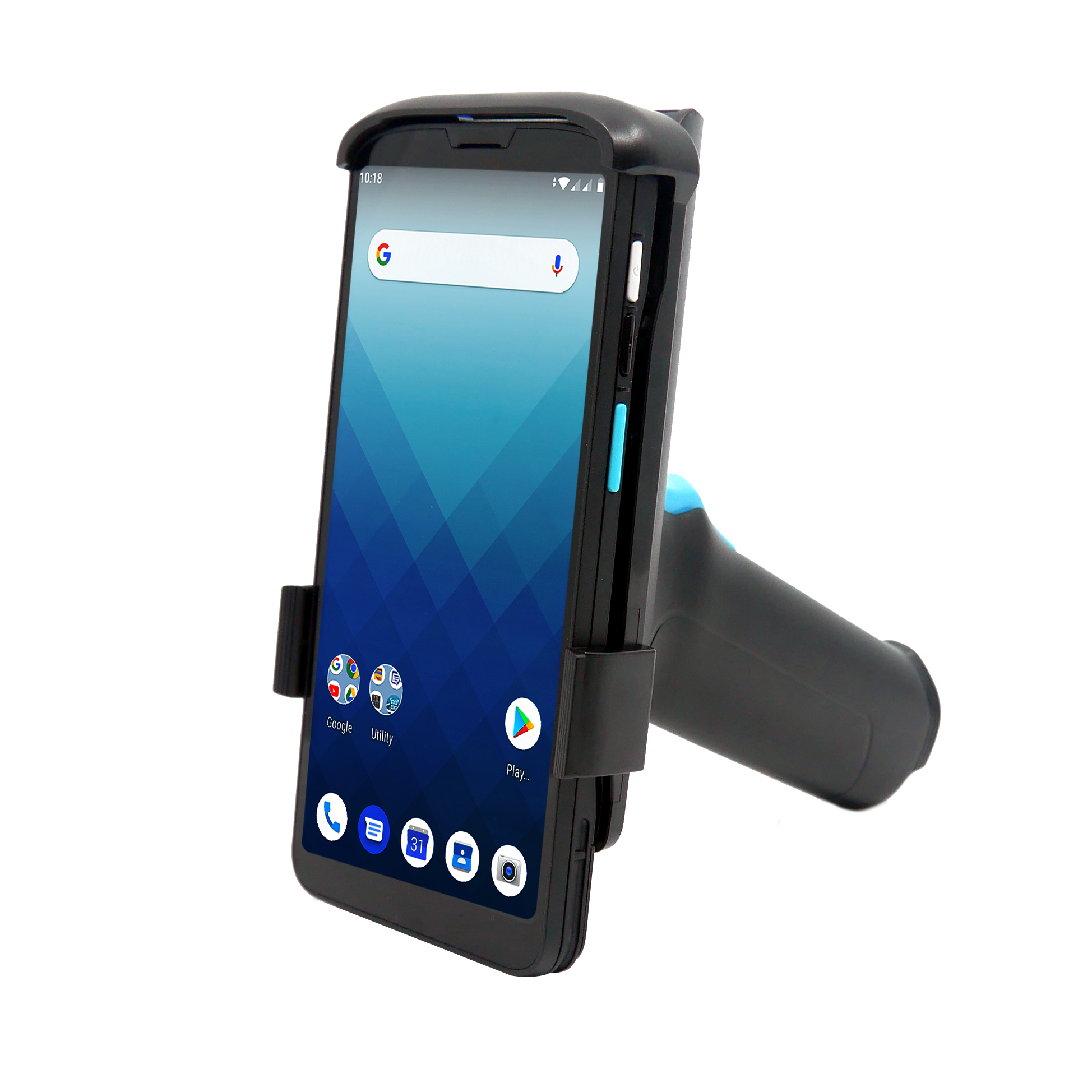

■ Standard gun grip (PN# 5500-900075G)

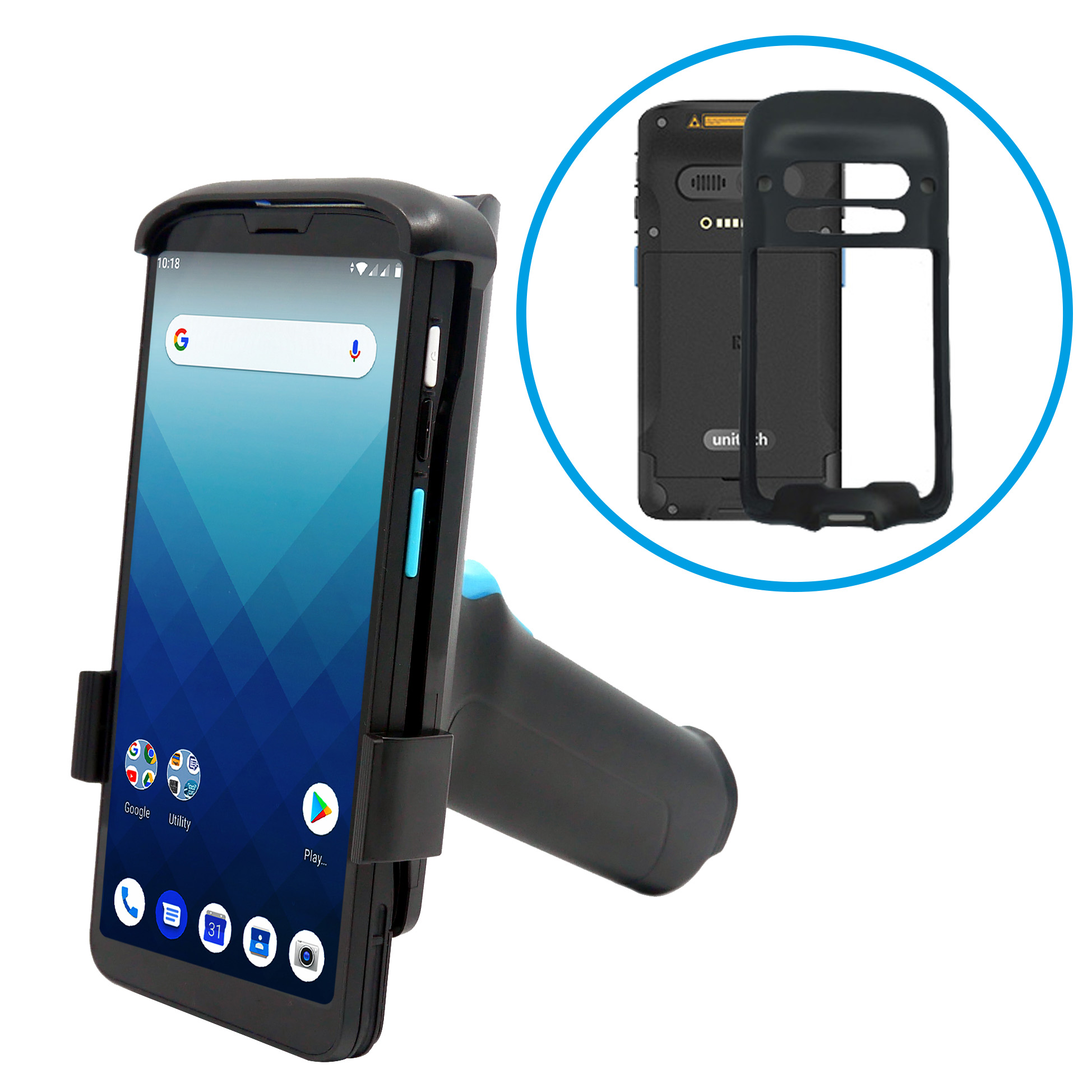

■ Standard gun grip for terminal with boot case (PN#5500-900076G)

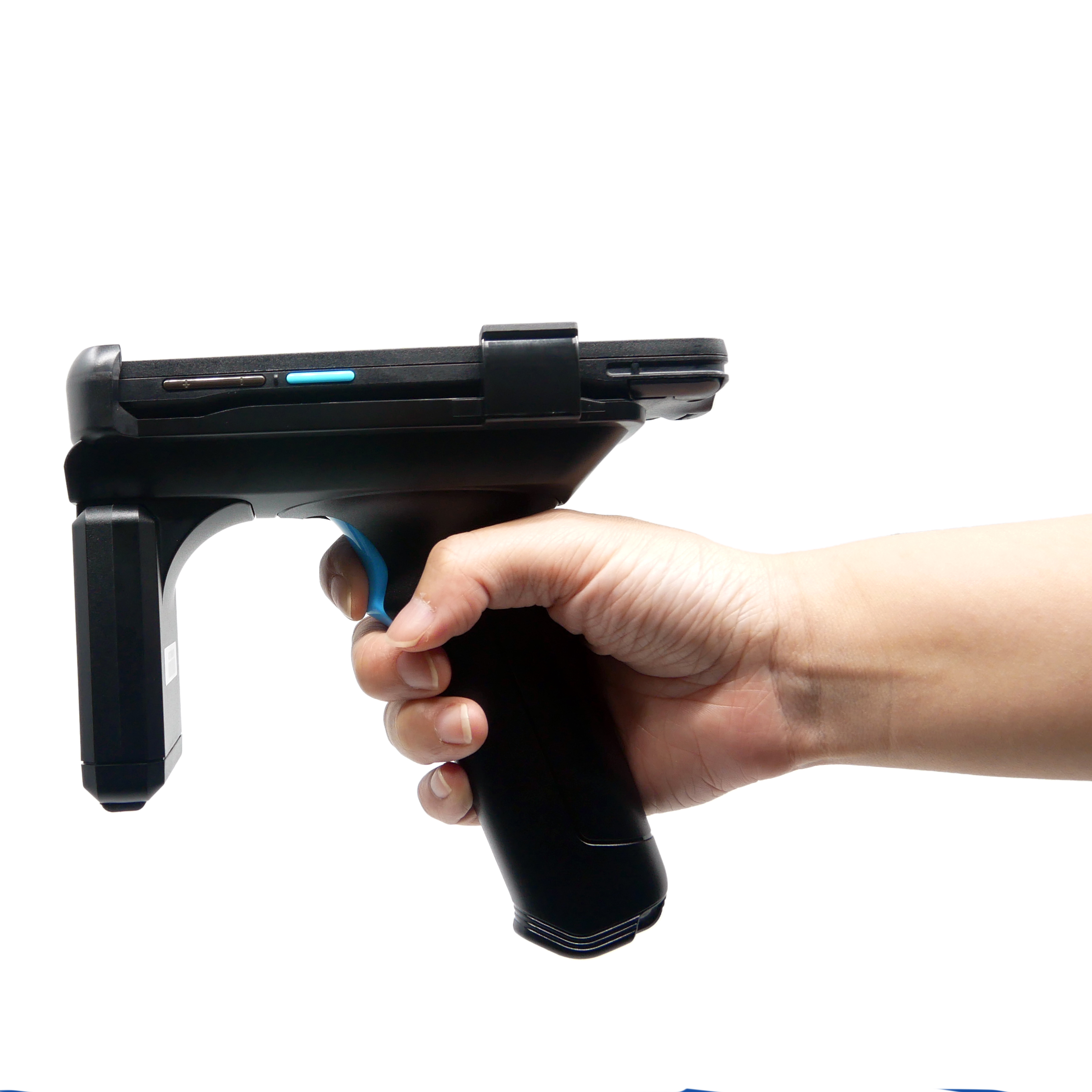

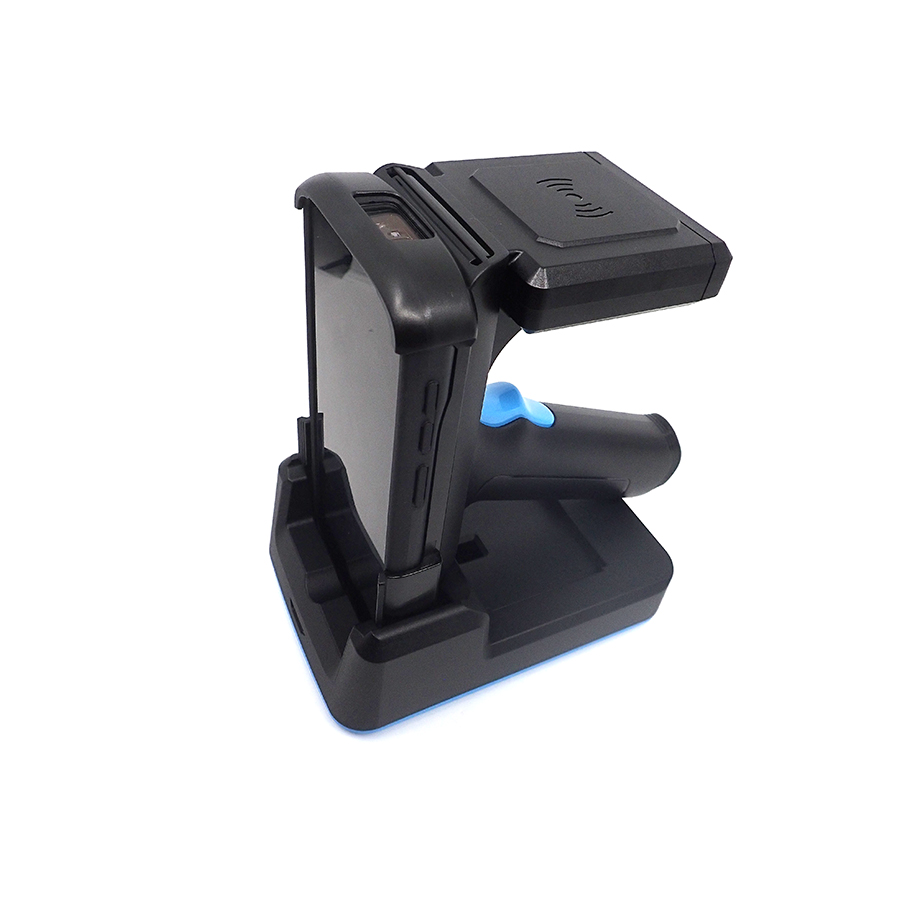

■ RG630 UHF gun grip (PN# 5500-900092G (US), PN# 5500-900093G (EU))

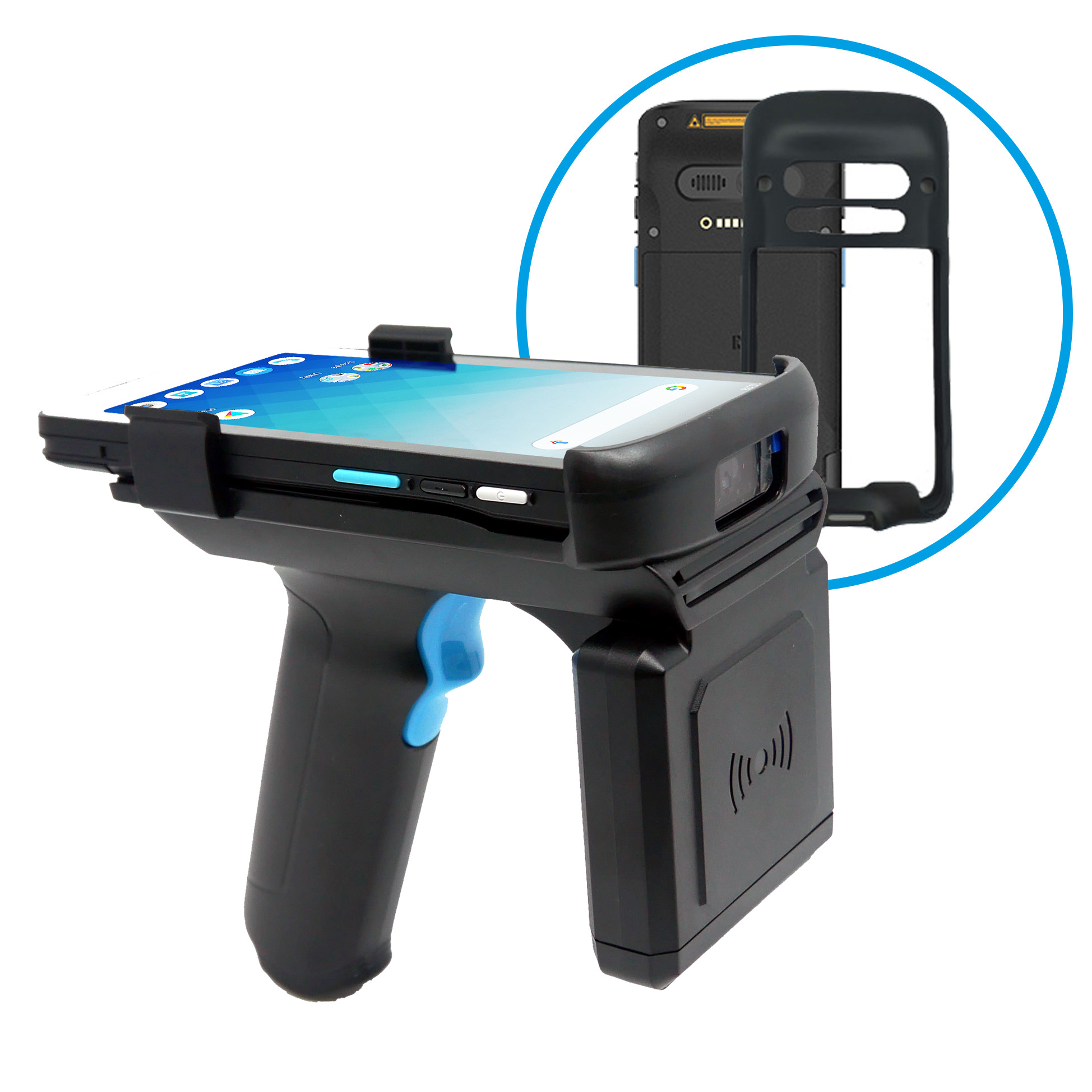

■ RG630 UHF gun grip for terminal with boot case (PN# 5500-900094G (US), PN# 5500-900095G (EU))

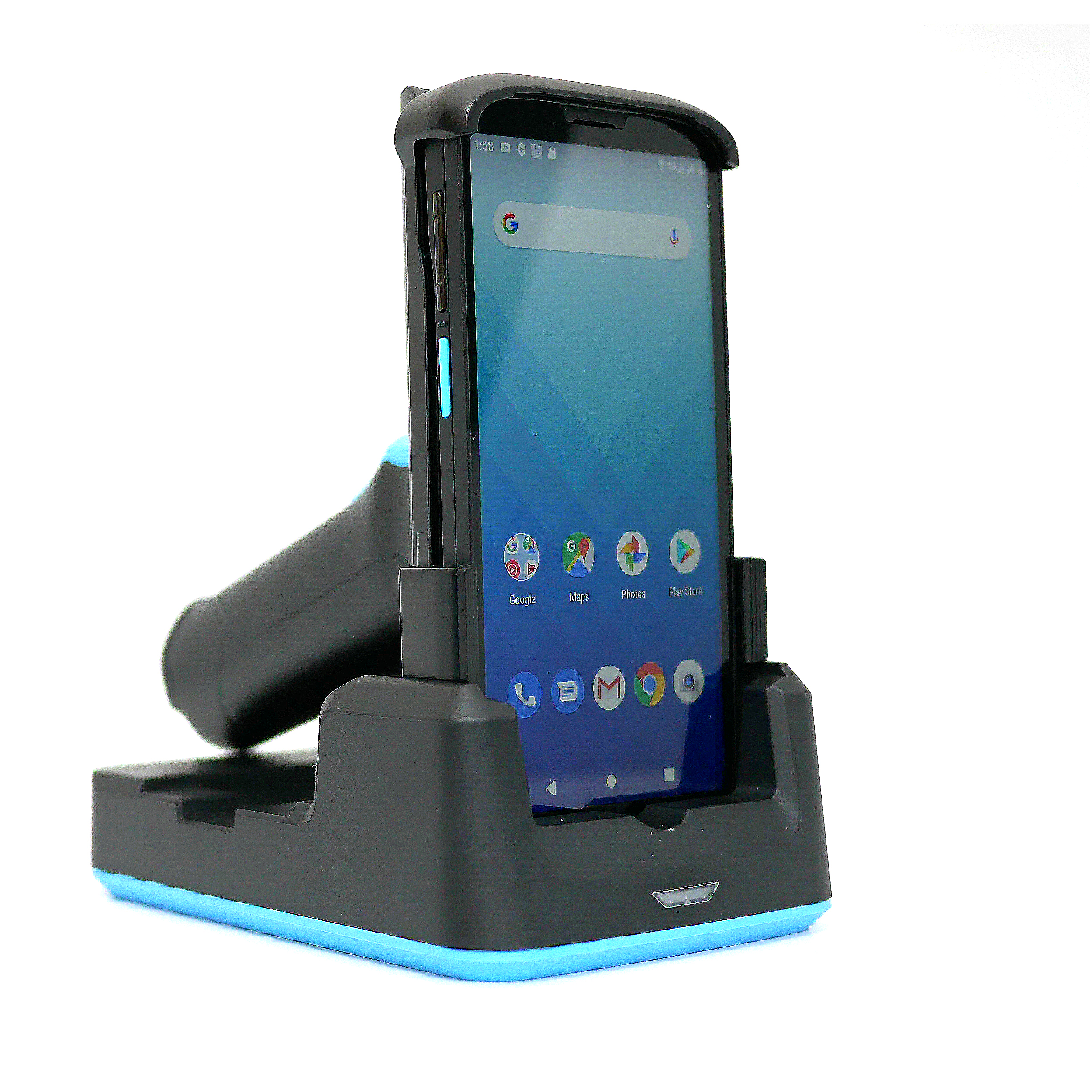

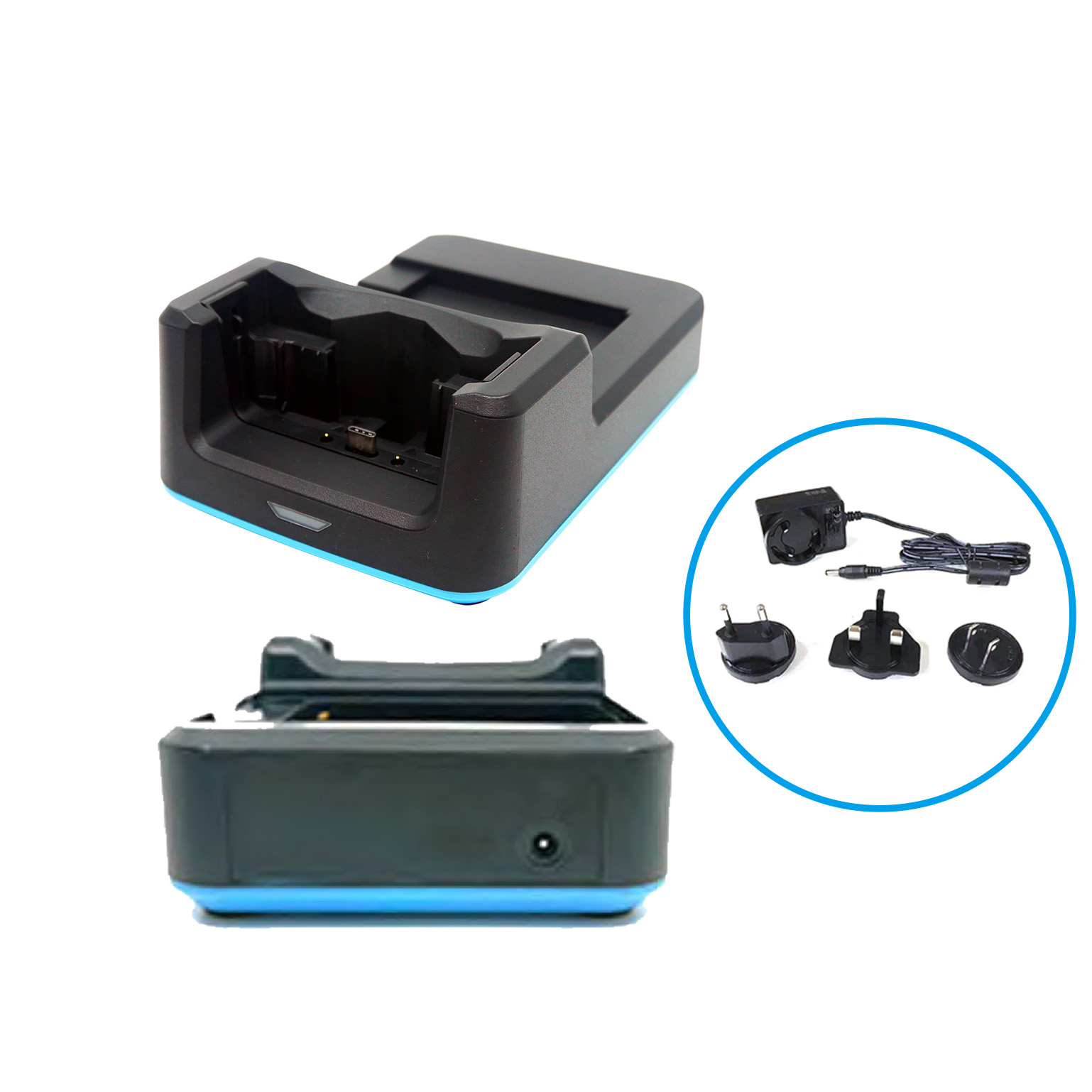

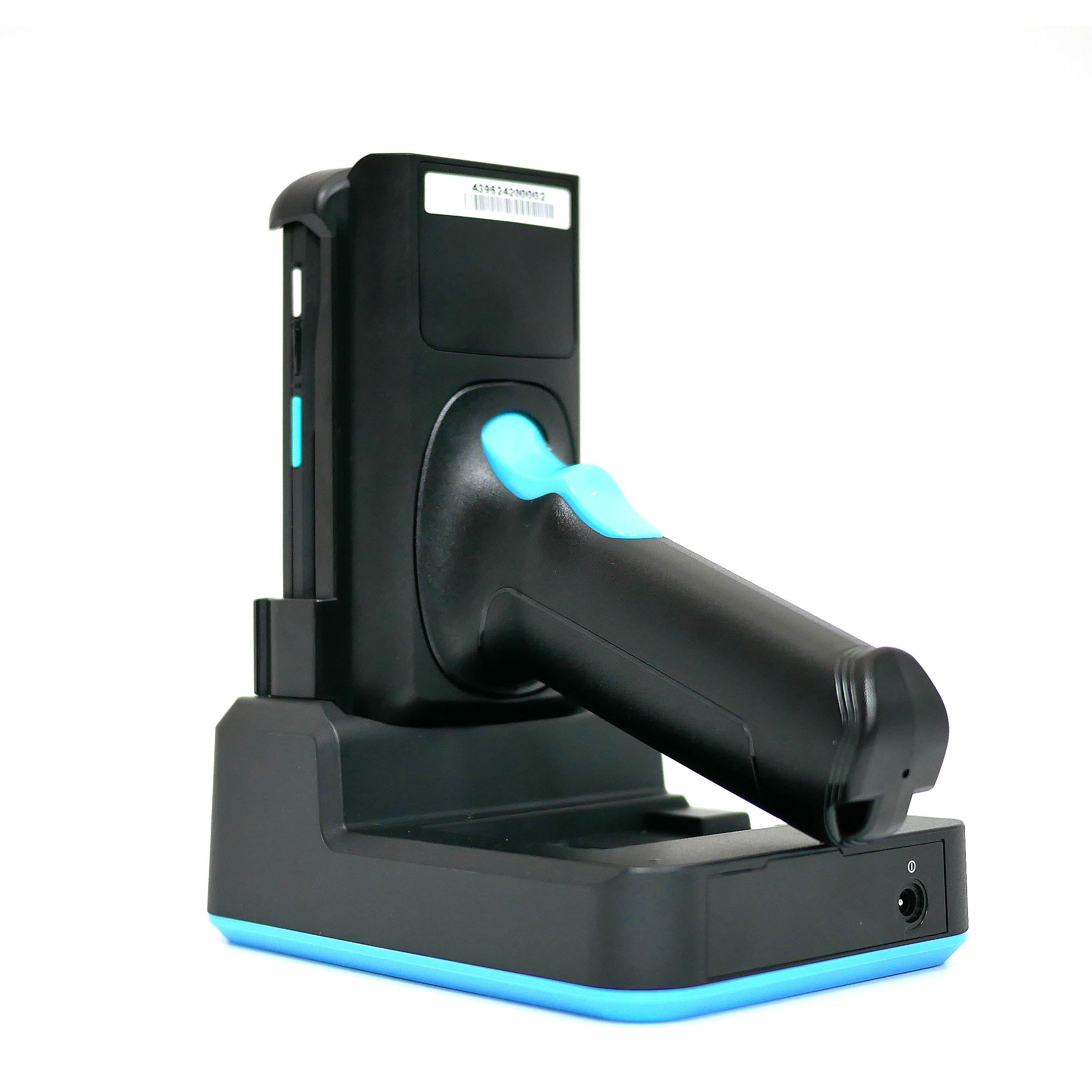

■ Single Slot Charging Cradle*(PN# 5000-900072G)

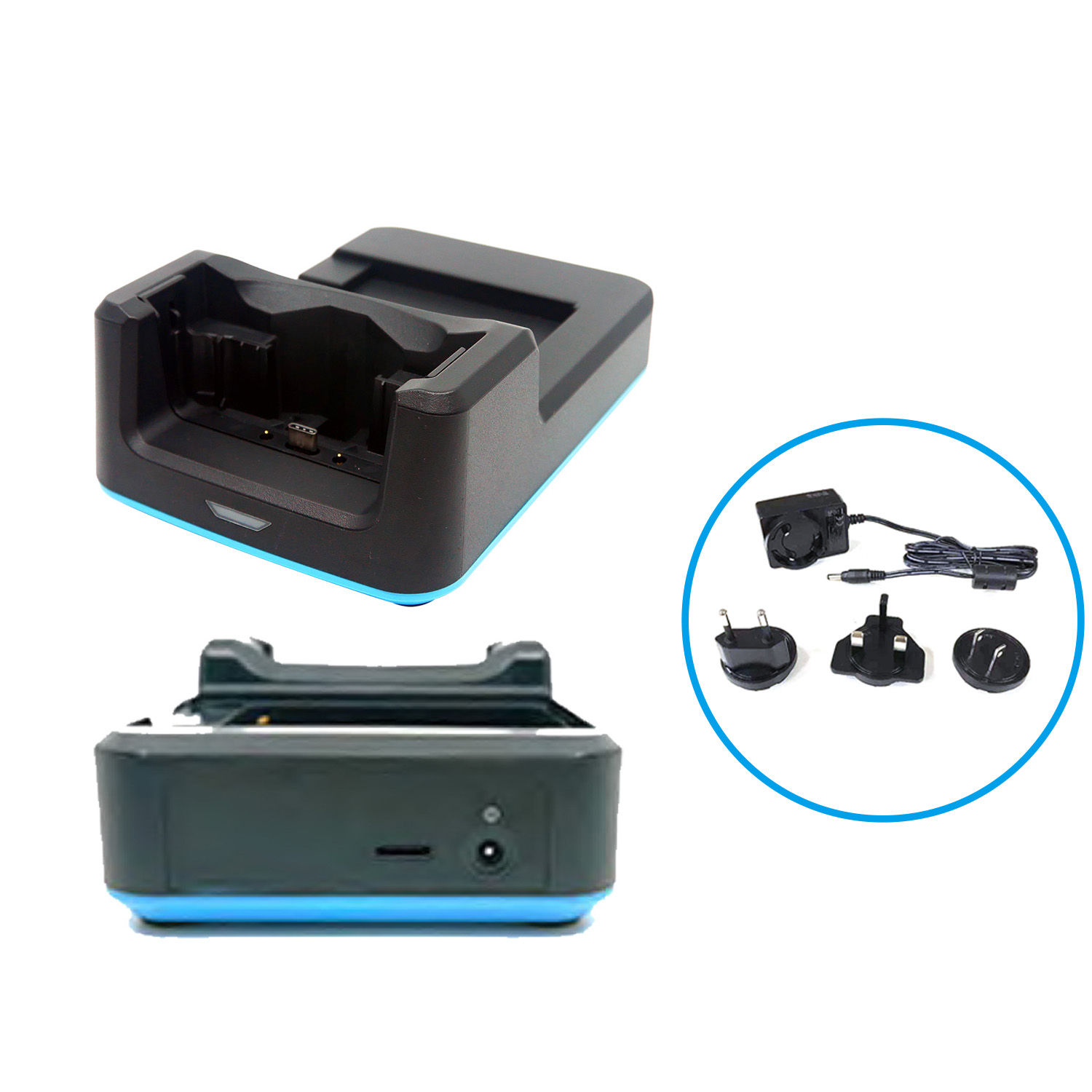

■ Single Slot USB Cradle*(PN# 5000-900070G)

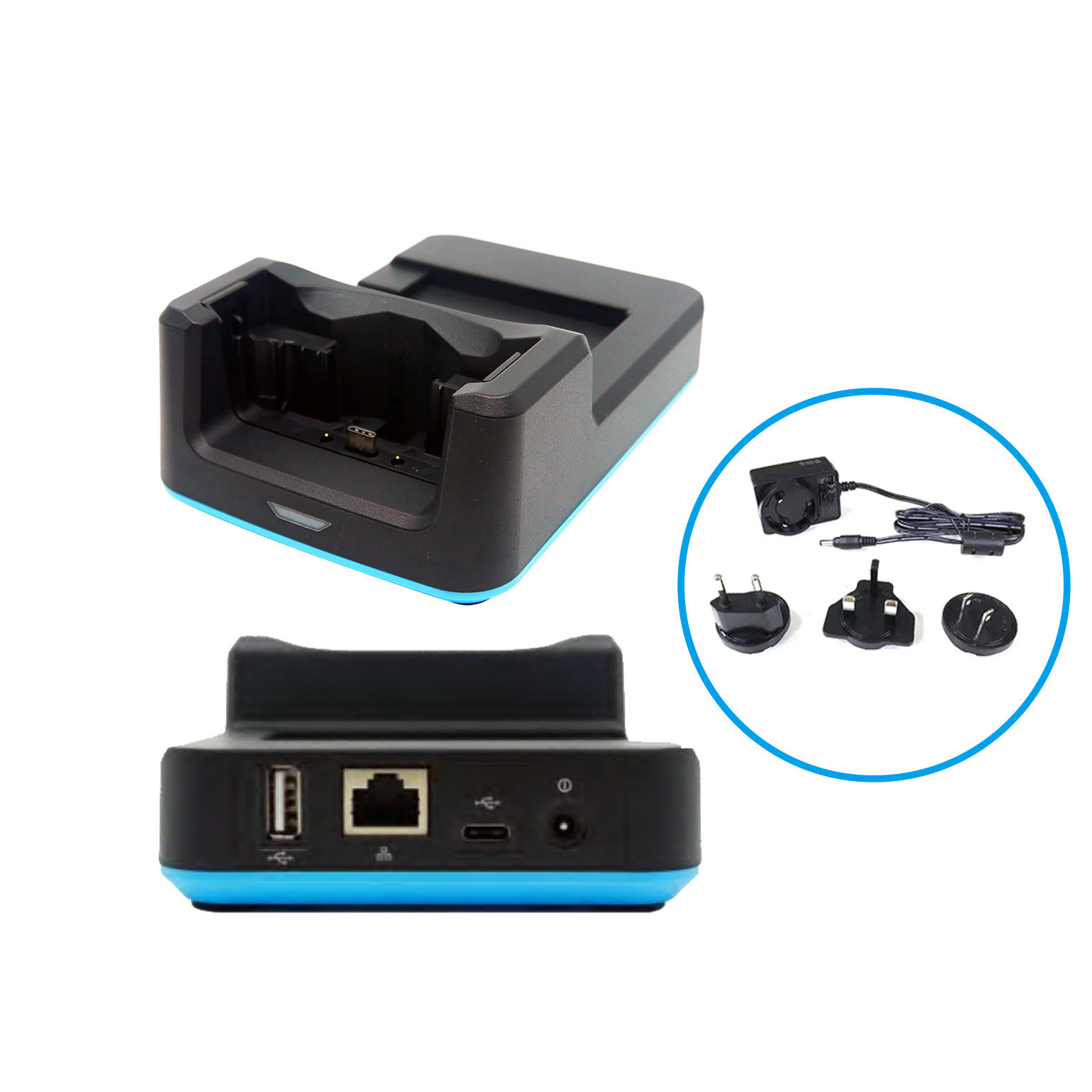

■ Single Slot Ethernet Cradle*(PN# 5000-900071G)

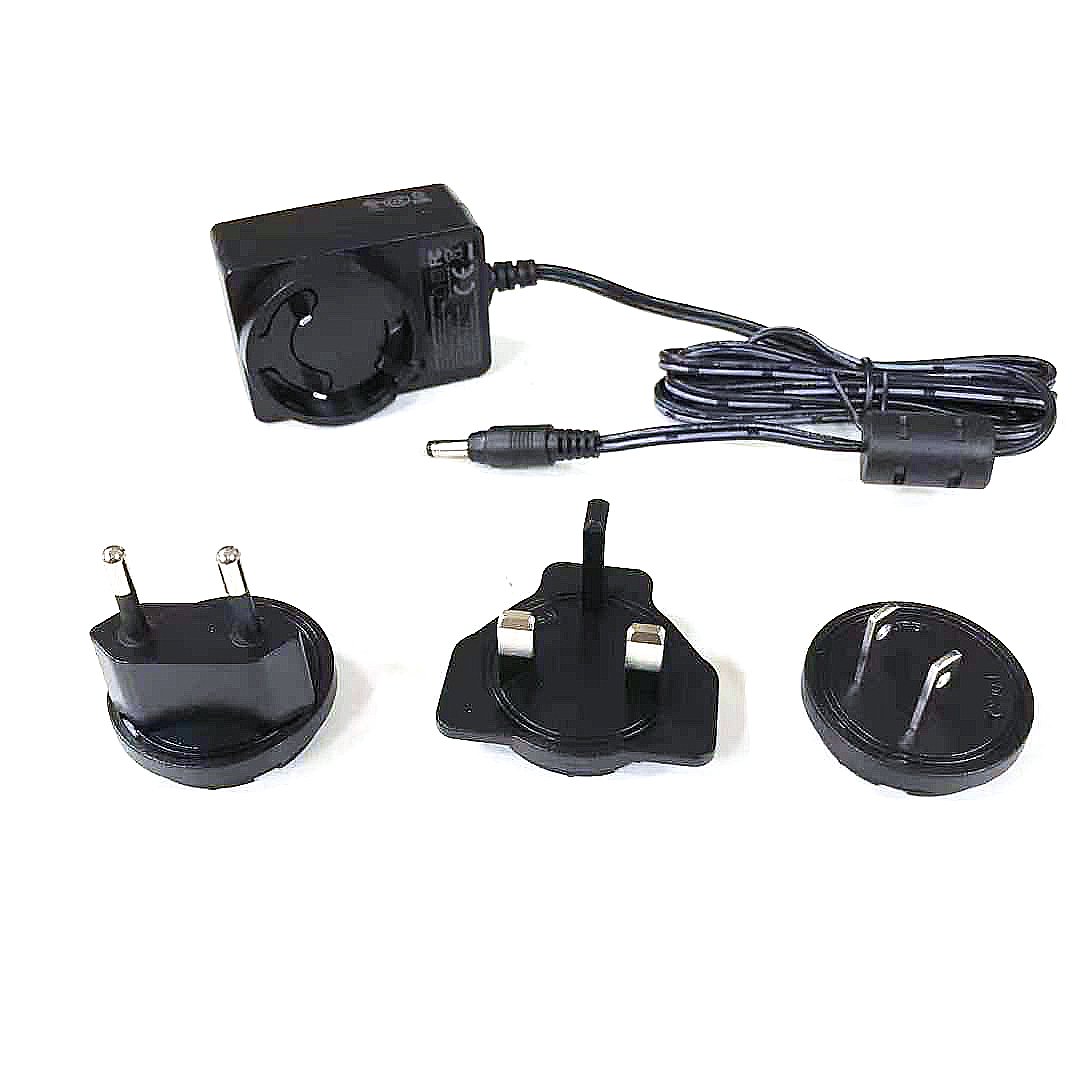

■ Adaptor with plugs for 1-slot cradle (PN#1010-900057G)

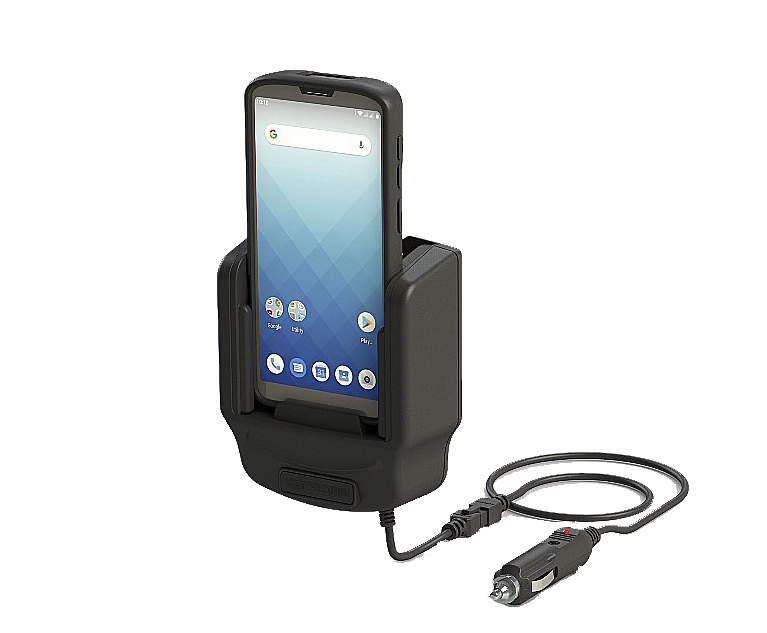

■ Active car kit /vehicle cradle (PN#5000-63C0001G)

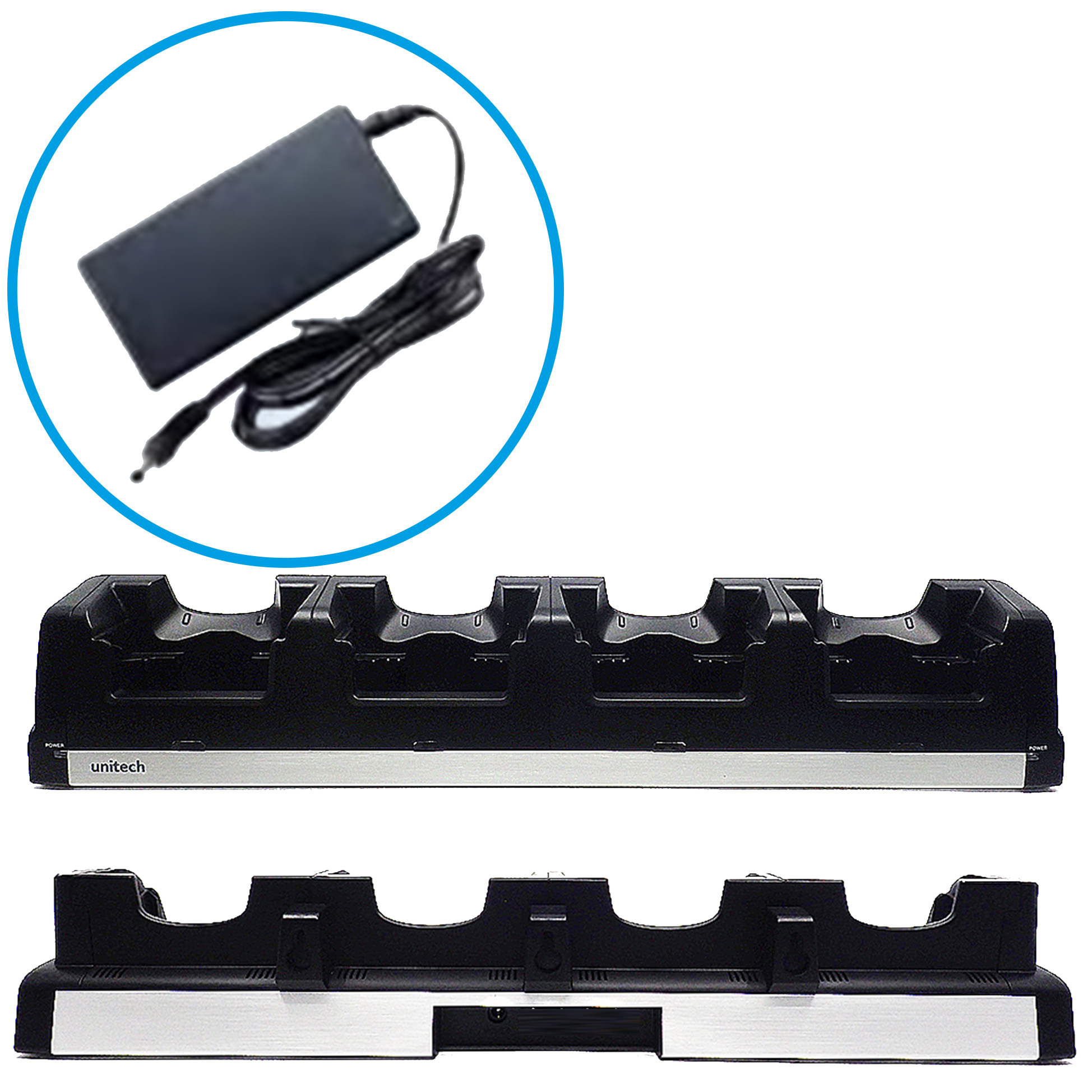

■ 4-Slot Terminal Charging Cradle*(PN#5000-900075G (PSU+US cord) , PN#5000-900076G (PSU Only))

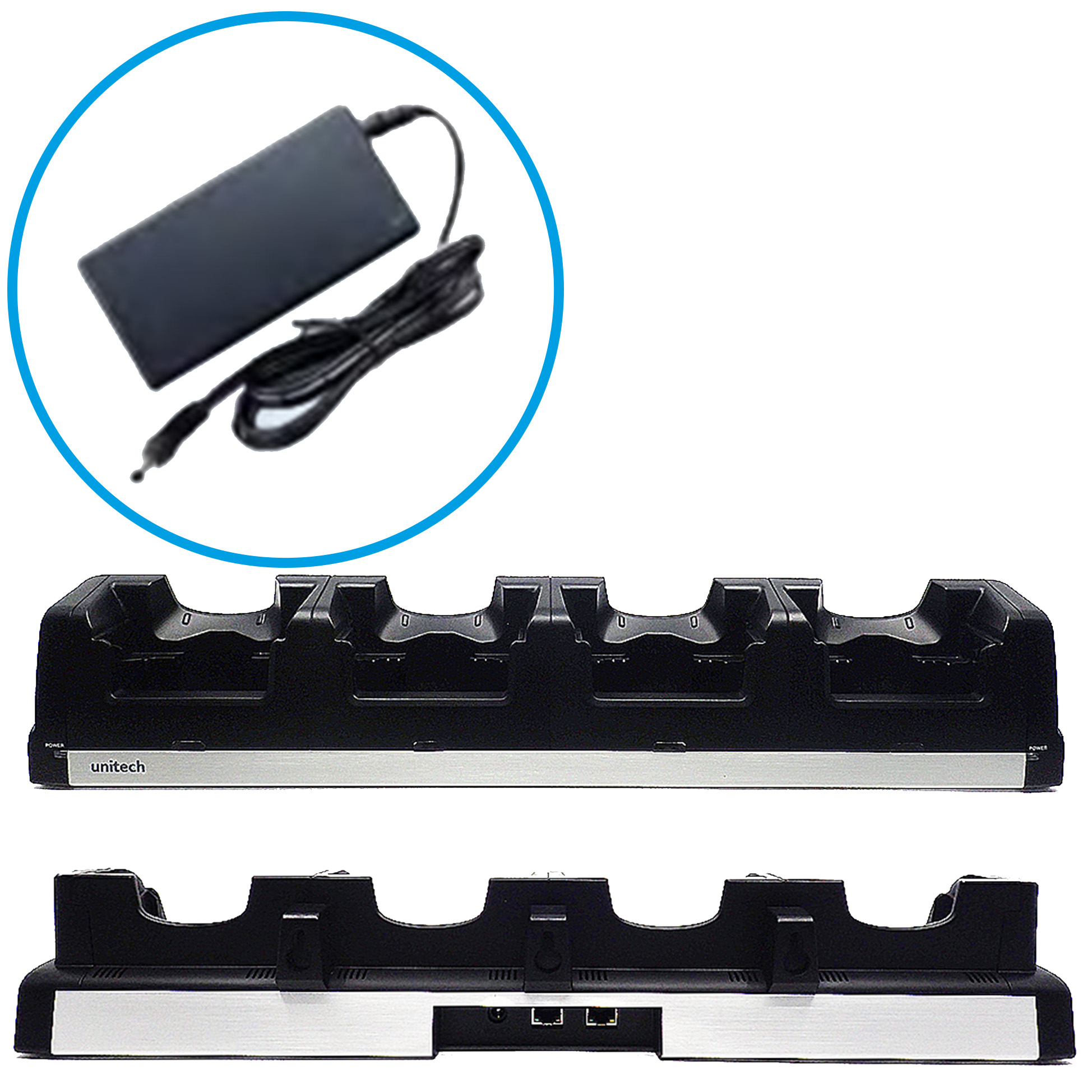

■ 4-Slot Ethernet Cradle*(PN#5000-900077G (PSU+US cord), PN#5000-900078G (PSU Only))

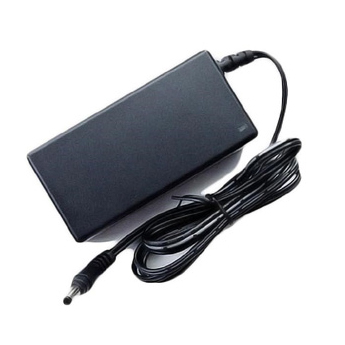

■ Power supply for 4-slot Cradle (PN# 1010-900066G(US), PN#1010-900031G(EU))
■ 3-Pin Power Cord (UK) PN#1550-602689G
■ 3-Pin Power Cord(EU)PN#1550-602333G
■ 3-Pin Power Cord(US)PN#1010-601551G
■ Bracket arm with screws for hand strap (PN#5400-900051G)
■ RP902 Bluetooth UHF RFID Pocket Reader (PN#RP902-33E8S0G (EU), PN#RP902-43A8S0G (US), PN#RP902-43F8S0G (JP))
* Fit the EA630 with and without the boot on
■ Power Adapter 5V/3A (EU,UK,US,AU) (PN# 1010-085001G)
■ Soft Belt holster with belt clip(EU ONLY) (PN#DT3669)
■ Bracket arm for hand-strap (1x arm and 2x screws) (PN#386078G)
■ Bracket only (without screws) (PN#386239G)

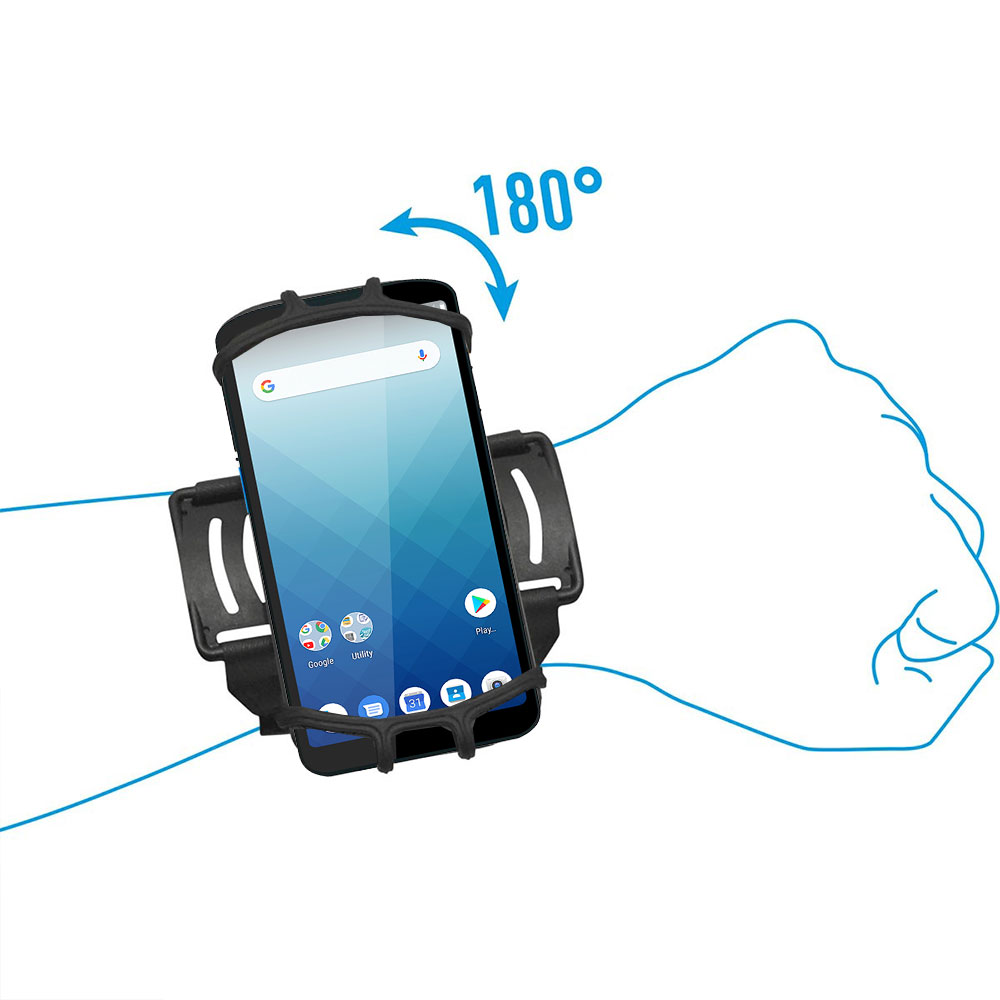

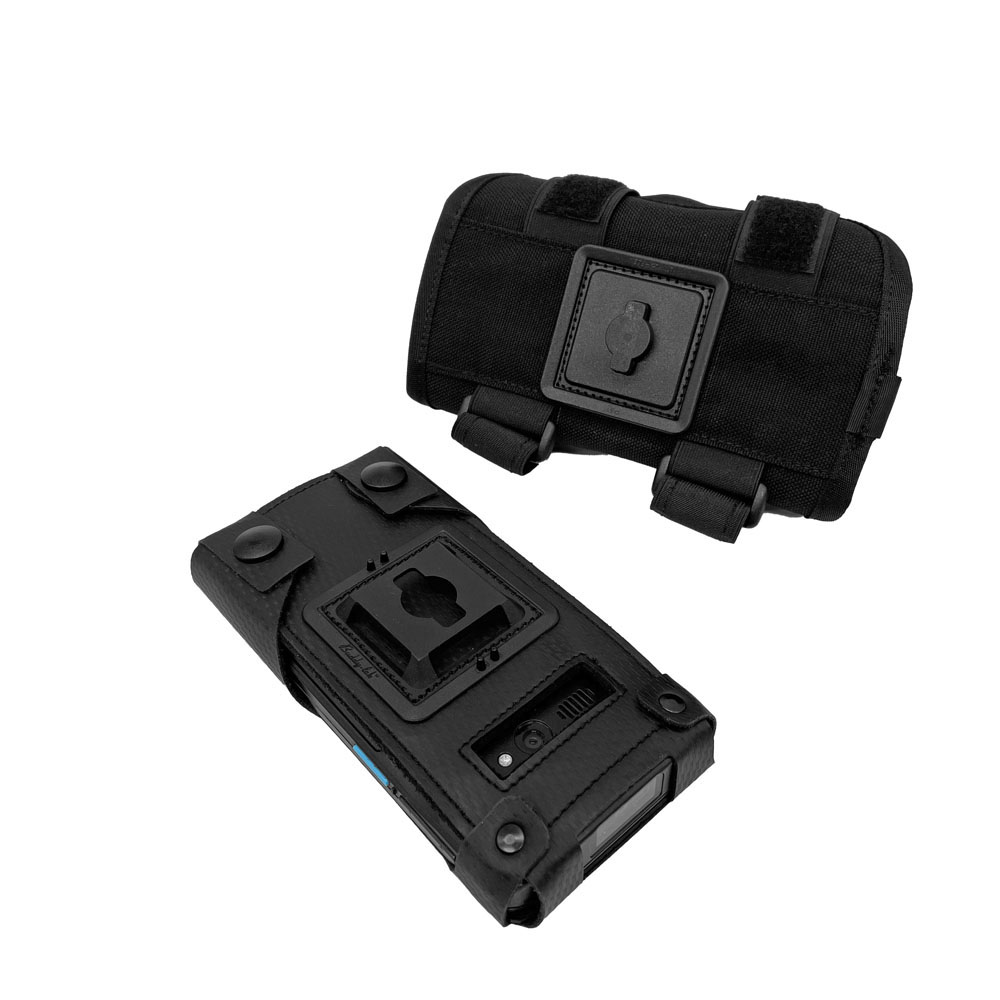

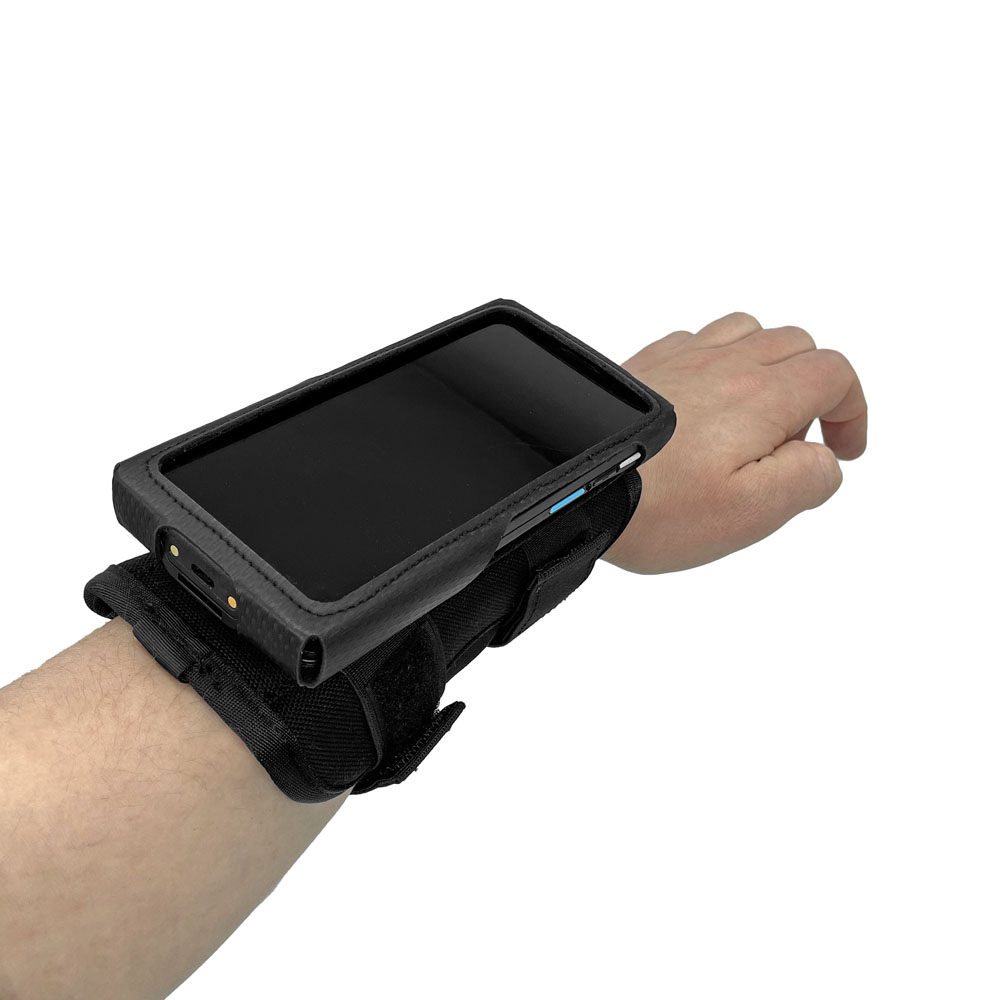

■ Wrist / Arm band holder 180° rotating holder(EU ONLY) (Contact Unitech for more information about Partner Mobilis Case )

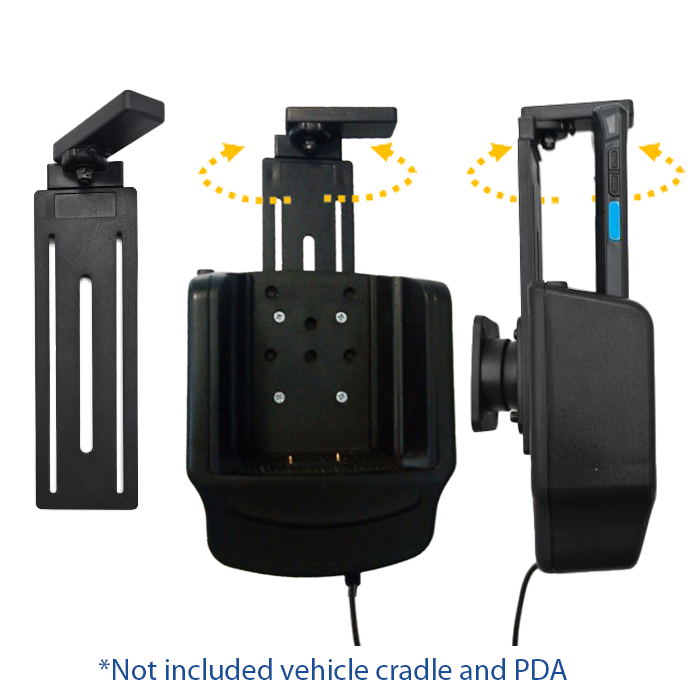

■ Retainer mount 100-160mm for vehicle cradle (EU ONLY) (PN#CRM-11)

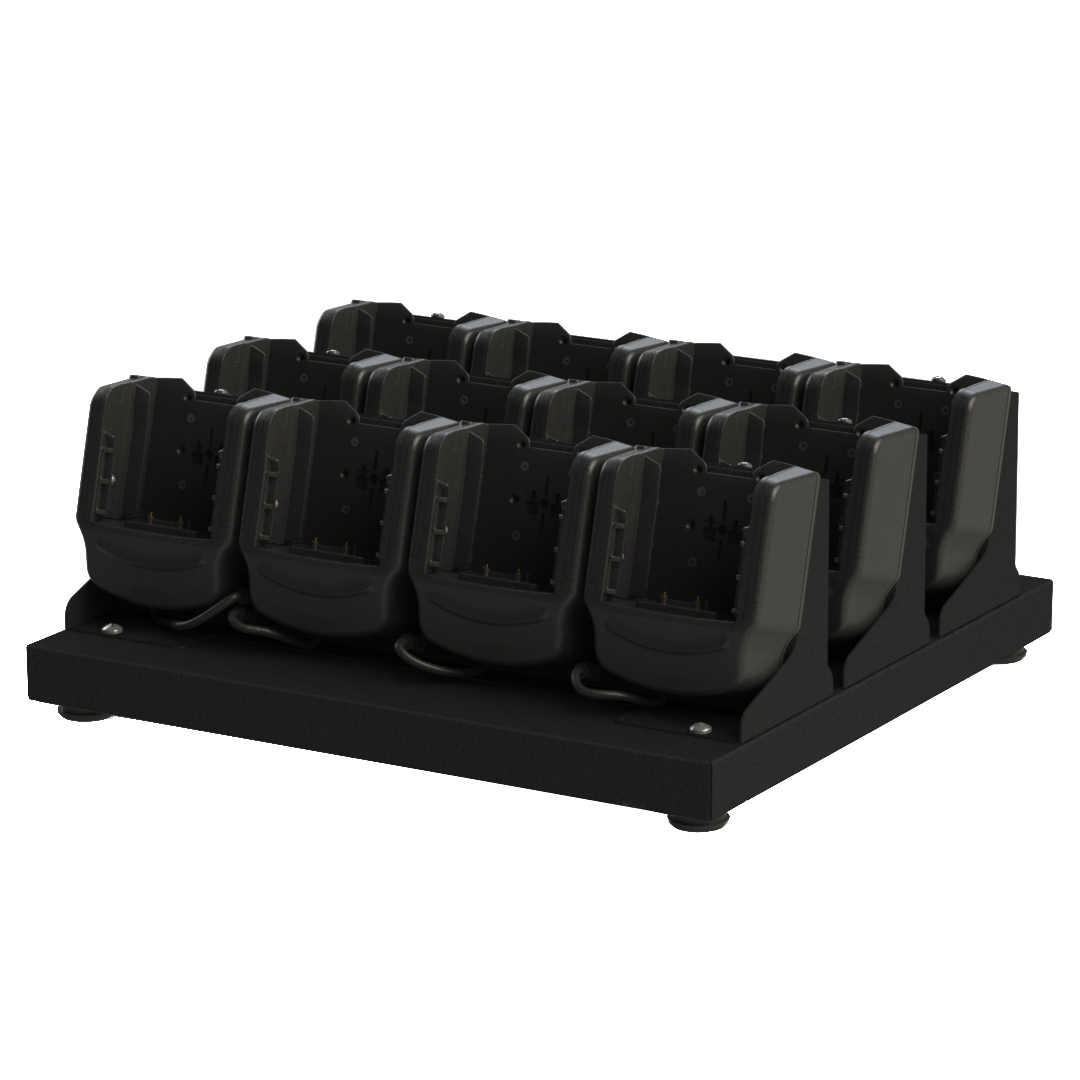

■ 12-Slot desktop cradle for EA630 with protective boot (EU ONLY) (PN#5000-63C0003G)
What comes in the box
-
The standard package contents
■ EA630 Plus Terminal
■ Battery
■ USB 3.0 Cable (Type C)
■ Adaptor (US or EU plug) -
The basic package contents
■ EA630Plus Terminal
■ Battery
Regulatory Approvals
- Regulatory Approvals CE, FCC, NCC, VCCI, TELEC, CCC, SRRC, RoHS, CEC, BQB, N-Mark
Warranty
- Hardware Warranty 12 months
- Statement This product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
