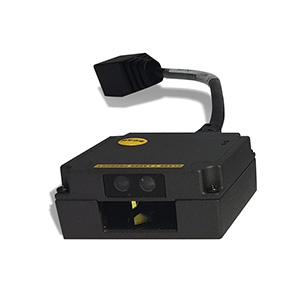

ES922
1D/2D Advanced Embedded Automatic Barcode Reading
The Unitech ES series are metal alloy cased barcode readers to be embedded in Kiosk, installed at production line or to be used as a loosen device at different applications.
-
2D
-
RS232
-
USB
-
IP52
-
Retail
-
Hospitality
-
Field Service
-
Government
Designed for Embedded Automatic Barcode Reading - The Unitech ES series are metal alloy cased barcode readers to be embedded in Kiosk, installed at production line or to be used as a loosen device at different applications. The ES series is available from Linear laser based, 2D imager and 2D imager higher performance version to meet different requirements.
Designed for Embedded Automatic Barcode Reading
The Unitech ES series are metal alloy cased barcode readers to be embedded in Kiosk, installed at production line or to be used as a loosen device at different applications. The ES series is available from Linear laser based, 2D imager and 2D imager higher performance version to meet different requirements.
Features ES922
The ES922 2D imager (1280*800 pixels) offers high reading performance. It's high performance and flexibility makes the ES922 the optimal choice for reliable 2D and 1D reading in embedded instruments. This 2D embedded scanner is designed for different application/usage such as:
- ● Scanning all types of barcodes
- ● Scan packages on the assembly line
- ● To scan coupons on mobile devices
- ● Personal registration & allow access
- ● Security keycard & unlock the door
- ● 1D/2D imager with high image size (1280*800 pixels)
- ● Scanning angles ± 70°, ± 72°, 360° (Skew, Pitch, Roll)
- ● It has four versions: SR (Standard range), HD (High density), WA (Wide Angle) and ER (Enhanced Range)
- ● Industry level IP52 rated
- ● Compact design and easy integration
Specification
Optical & Performance
-
Sensor
Image size: 1280 x 800 pixels
- Illumination Artificial Light Immunity: 100,000 Lux
- Scan Rate 60 frames/sec
-
Skew / Pitch / Roll Angle
± 70°, ± 72°, 360° (Skew, Pitch, Roll)
Image field of view: Horizontal: 45°, Vertical: 28° - Printing Contrast Scale 20% minimum reflective difference
-
Depth Of Field
High density (HD) - Standard range (SR):
3 mil Code 39 (3 chars): 55 - 83mm (HD)
4 mil Code 128 (9 chars): 45 - 142 mm (HD) 90 - 160mm (SR)
13 mil UPC (6 chars): 40 - 380mm (HD), 40 - 550mm (SR)
5 mil QR (40 chars): 48 - 100mm (HD)
6.7 mil PDF417 (20 chars): 30 - 160mm (HD), 70 - 160mm (SR)
10 mil QR (20 chars): 17 - 200mm (HD), 25 - 190mm (SR)
20 mil QR (20 chars): 20 - 320mm (HD), 20 - 380mm (SR)
Communication
- Host Interface supported RS232 (3.3V TTL-level), USB, USB virtual COM port
Mechanical
- Dimension 45.5mm x 41.0mm x 19.0mm
- Weight 68g (without cable)
Operation Mode
- Operation Mode Manual trigger, Auto-detection, Command
Symbologies
- 2D Barcodes All major 1D and 2D symbologies
Electrical
- Operation Voltage 3.4 - 5.5 VDC
-
Current Consumption
Working power: White LED: 435mA
Standby power: White LED: 105mA - Indicator Beeper
Environmental
-
Mechanical Shock
IEC60064-2-6: Un-powered scanner withstands a random vibration along each of
the X, Y and Z axes for a period of one hour per axis, define as follows:
20 Hz to 80 Hz Ramp up to 0.04 G2/Hz at the rate of 3 dB/oct
80 Hz to 350 Hz 0.04 G2/Hz, 350 Hz to 2000 Hz Ramp down at the rate of 3 dB/oct
Mechanical shock IEC60064-2-27: Shock pulse: 0.5 ms, Maximal acceleration: 1500 G,
Shock direction & time: ± X-axis, ± Yaxis, ± Z-axis, 3 times for each direction,
total of 18 times. - Operating Temperature -20˚C to 50˚C
- Storage Temperature -20˚C to 70˚C
- Relative Humidity 5% to 95% (non-condensing)
- IP Rating IP52
Safety & EMC
-
Safety & EMC
Photobiological Safety: EN62471:2008 EMC: EN55022 ESD Protection: EN55024
(IEC61000-4-2, contact discharge: ±2 KV, air discharge: ±8 KV, IEC61000-4-4,
IEC61000-4-5, IEC61000-4-6, IEC61000-4-11) RF Immunity: IEC61000-4-3, 10 V/m

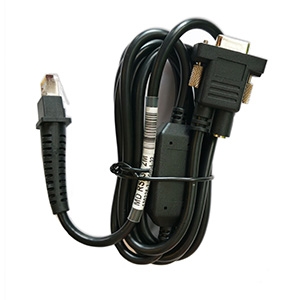

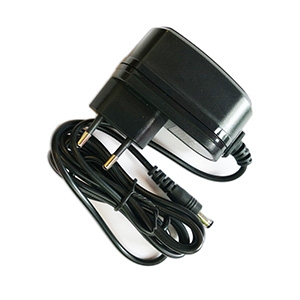

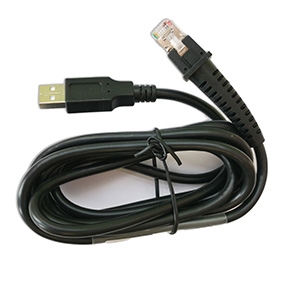

Accessories
