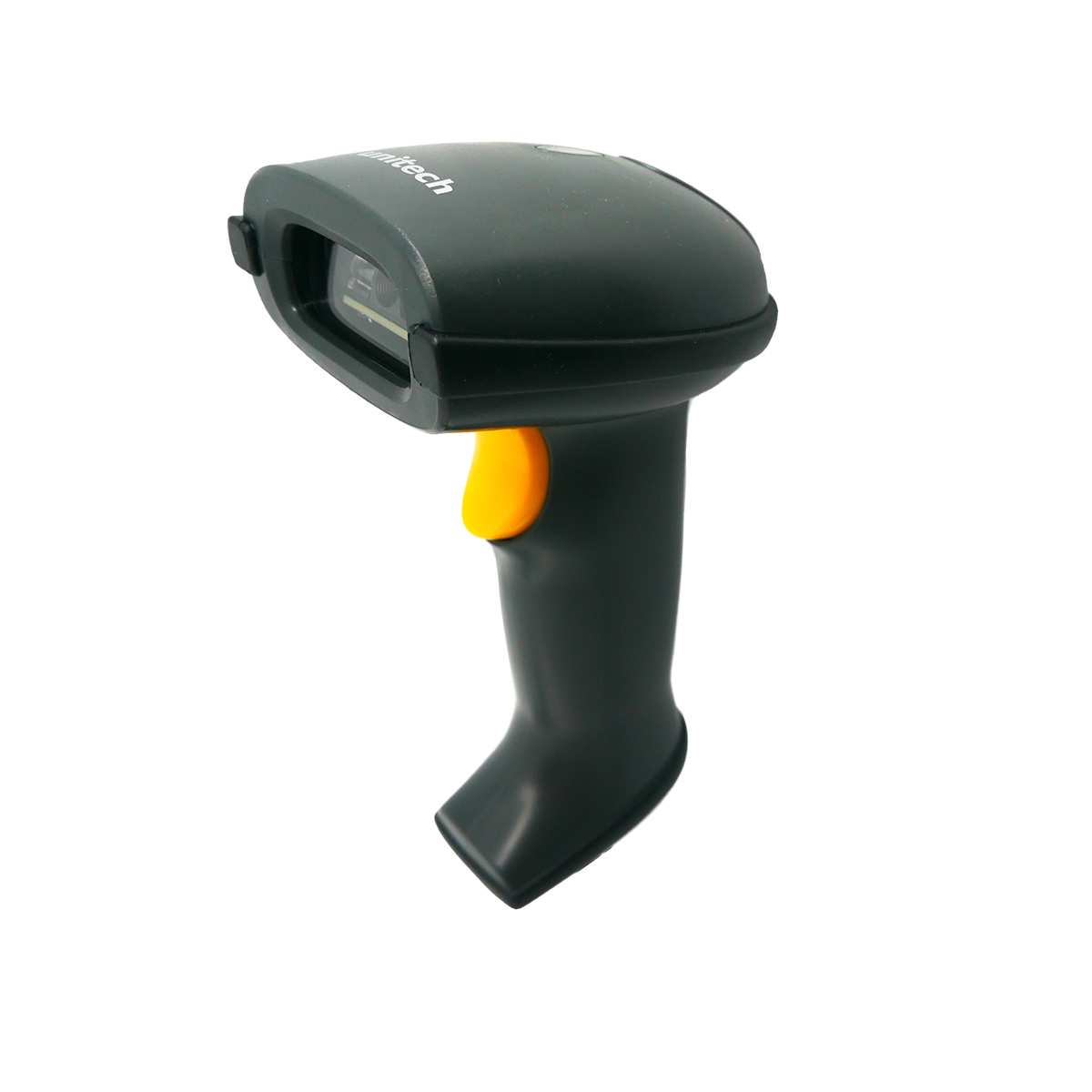

MS838

2D Imager Scanner

High C/P value | IP54 protection + 1.5 m drop | Read 3 mil barcode

  • 1D CCD

  • 2D

  • RS232

  • USB

  • IP54

  • 1.5 m

Delivering reliable performance and affordable price, MS838 2D imager scanner offers excellent performance for increasing productivity even when the barcodes are damaged or poorly printed. This cost-effective and reliable handheld scanner provides the optimum combination of performance which makes it an ideal scanning tool for a wide range of market applications, such as point-of-sale, personal data identification and inventory control.



Features

• Reliable performance, affordable price

• Fast reading all 1D and 2D barcodes on paper and screen

• Quick decoding 3mil barcode even with damaged or poorly printed

• Supports trigger mode & presentation mode.

• Durable design: 1.5 meters drop test and IP54-rated

Real User Testimonials


Customer in Vietnam
We've been using Unitech's products in our retail and logistics operations throughout Vietnam because they are r...

Reliable Performance, Affordable Price



Delivering users an affordable price, MS838 2D imager scanner offers excellent performance for increasing productivity even when the barcodes are damaged or poorly printed. The MS838 has the capability to read up to 3 mil barcode (Code 39). This device is a brilliant choice for various industrial application requirements for retail stores, supermarket, pharmacy and hotel.



Easy to Operate



Featuring a convenient plug-and-play design, the MS838 imager scanner is easy to connect to your computer via USB/RS232 cable. There is no need to do any additional installation or training, it’s ready to work. In addition, it supports trigger mode, presentation mode(auto-sensing mode) that effectively meeting requirements for all industrial use.






USB / RS232
Interface		 Hands-Free Stand
(Optional)


Durable Design



This ergonomic design makes the MS838 fit comfortably in any hand, reducing fatigue during long-time scanning tasks. Additionally, the MS838 features an IP54 rating and can withstand multiple drops to concrete from 1.5 meters, ensuring durability and reliability.







IP54
Certification		 1.5m
Drop Protection


Specification

Optical & Performance

  • Sensor 640 X 480 CMOS
  • Aiming Element Red LED
  • Illumination White LED
  • Ambient Light 0~100,000lux (natural light)
  • Scan Rate 60fps
  • Skew Angle ±60°
  • Pitch Angle Sensor ±60°
  • Roll Angle 0 - 360°
  • Optical Resolution (1D)≥3mil
  • Depth of Field 60-360mm (13 mil PCS=90%)

Communication

  • Host Interface supported USB / RS232

Mechanical

  • Dimension 174mm × 72mm × 96mm (L x W x H)
  • Weight 245g
  • Trigger Switch Life 1 million times

Functionality

  • Operation Mode Trigger Mode, Presentation Mode

Symbologies

  • 1D Barcodes Code 128, EAN-13, EAN-8, Code 39, Code 32, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Code 93, GS1-128, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded, Matrix 2 of 5,
    Code 11, Industrial 2 of 5, Matrix 2 of 5,
  • 2D Barcodes PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec Code
  • Data Formatting Prefix, Suffix, Code ID, Reformatting Date

Electrical

  • Current Consumption Operation mode: <142mA, Standby mode: <42mA
  • Indicator Buzzer, LED

Environmental

  • Mechanical Shock 1.5m onto concrete
  • Operating Temperature -10°C to 50°C
  • Storage Temperature -20°C to 60°C
  • Relative Humidity 5%-95% non-condensing
  • IP Rating IP54

Accessories

  • Items ■ Hands-Free Stand (P/N: 5200-900014G)
    ■ Power Adaptor (P/N: 1010-900058G)

Regulatory Approvals

  • Regulatory Approvals CE, FCC, BSMI, VCCI

What comes in the box

  • The standard package contents ■ MS838 Scanner
    ■ Interface cable
    ■ Hands-Free Stand (optional)

Warranty

  • Hardware Warranty 15 months
  • Statement This product is warranted against defects in workmanship and materials for a period of thirty-six months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.

Accessories

Hands free stand

PN#5200-900014G

Power Adaptor

PN# 1010-900058G

5V/2A Adaptor with universal plugs

PN#1010-900067G

5V/2A Adaptor with universal plugs

PN#1010-900067G
