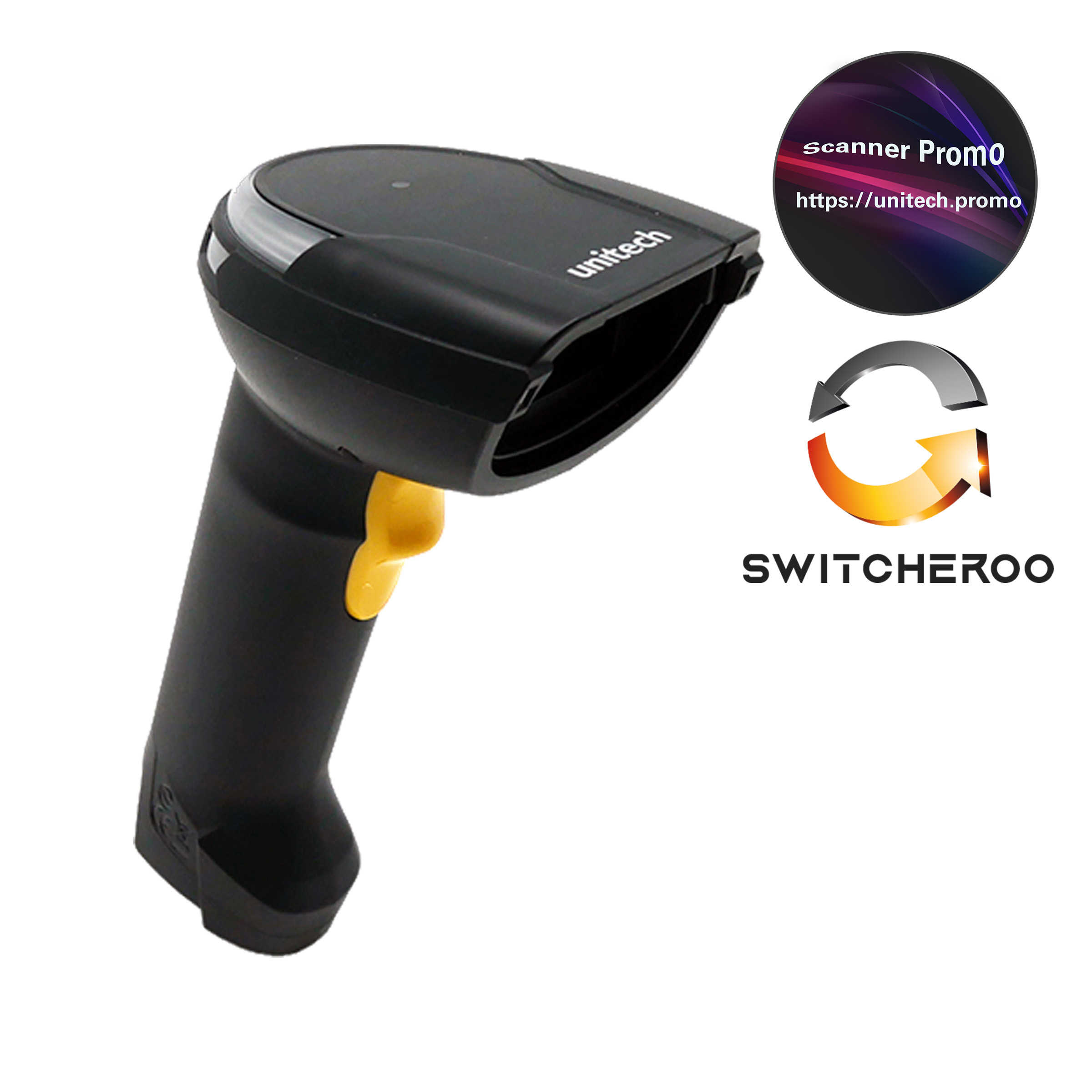

MS852 Plus

High Performance 2D Imager Scanner

The MS852 Plus is a 2D barcode scanner, and it is available to read special OCR, DotCode, and Digimarc barcodes.

  • 2D

  • RS232

  • USB

  • IP42

  • 2.1 m

  • Retail

  • Manufacturing

  • Government

Delivering the superior barcode scanning performance, the new unitech MS852 Plus 2D barcode scanner is suitable for a wide range of markets and applications, from mobile ticketing in airports, point-of-sale system or mobile coupons in retail store to industrial purpose manufacturing scanning.



Features

•  Megapixel barcode sensor that enhances the maximum compatibility
•  Support most 1D / 2D barcode on mobile screens, even damaged or poorly printed barcodes
•  Support OCR,  DotCode, and Digimarc barcodes
•  With excellent motion tolerance design suitable to read bar code while moving
•  Long lifecycle trigger design: Up to 10,000,000 times.
•  Auto-switching function between trigger mode and presentation mode with its stand.
•  Ultra-rugged design: IP42 and 2.1m drop spec
•  Louder beeper and brighter LED indicators for easily recognizing feedbacks

Increase Productivity with Superior Industrial Barcode Scanner



Specially built for challenging work environment, the MS852 Plus is built in megapixel barcode sensor that enhances the maximum compatibility to capture most 1D / 2D barcodes on mobile screens, even damaged or poorly printed barcodes and special barcode symbologies such as OCR on passport, Dot codes on tires or cigarette package, and Digimarc barcode on special retail packages. MS852 Plus also can automatically populate electronic forms in a single scan from US driver’s licenses or ID card (*optional). With its advanced barcode technology and durable design, the MS852 Plus handheld scanner is a highly reliable tool to increase productivity and efficiency.



(*Note: An additional license purchase is required for the enhanced features of EASYDL 2.0. To access this functionality,
please contact us at info@hq.ute.com.)

Intuitive and User-Friendly



With excellent motion tolerance design, the MS852 Plus increased scan speed and operational effectiveness even while moving. Featuring an automatically switching function for best customer experience, the handheld device can be detected via the sensor on the stand to switch auto-sensing mode or trigger mode. Equipped with a louder beeper and brighter LED indicators, the MS852Plus allows users to recognize the feedbacks easily even in dark environment.

Ultra-Durability



While sustaining a 2.1-meter drop to concrete, MS852 Plus incorporated with IP42 rugged design for protection against dust and moisture. Moreover, the built-in long lifecycle trigger of 10 million times guarantees a continuous productivity for the best reliability.






IP42
Certification		 2.1m
Drop Protection


Various Applications


This scanner can be used in the most practical way depending on the scanning task in various solutions in retail, manufacturing, and government.

TAA Compliant Barcode Scanners




TAA refers to the Trade Agreements Act, which is a law that was passed for the purpose of making international trade more open and fair. One of the main requirements of the TAA is products purchased by the United States government can only be made in the U.S. or by a designated country such as Taiwan.



Founded in 1979 in Taiwan, Unitech is a global provider of AIDC technologies with over 40 years of experience. Our factories were built in Taiwan, and all the SMT and assembly are done in Taiwan as well. We offer a series of quality barcode scanner products to comply with the Trade Agreements Act (TAA) for U.S. government GSA (General Services Administration) Schedule contracts

Specification

Optical & Performance

  • Sensor 1280 X 800 global shutter
  • Aiming Element Red laser or 528 nm visible green LED
  • Illumination White or Red LED
  • Ambient Light 100,000 Lux (Sunlight)
  • Skew Angle ±60°
  • Pitch Angle Sensor ±60°
  • Roll Angle 0 - 360°
  • Optical Resolution 1D 3mil/ 0.075mm
  • Printing Contrast Scale Minimum 20%
  • Depth of Field (DOF PCS=80%)
    -------------------------------------------------------SYMBOLOGY / X-DIM TYPICAL RANGE* Near Far
    13 mil UPC 1.34 in / 3.4 cm 22.5 in / 57.3 cm
    5 mil Code 39 2.76 in / 7 cm 11.85 in / 30.1 cm
    10 mil Code 39 1.14 in / 2.9 cm 20.3 in / 51.7 cm
    20 mil Code 39 1.38 in / 3.5 cm 31.5 in / 80 cm
    15 mil Code 128 1.34 in / 3.4 cm 25.6 in / 65 cm
    10 mil DM 2.84 in / 7.2 cm 11.7 in / 29.7 cm
    6,7 mil PDF417 3.3 in / 8.4 cm 9.6 in / 24.4 cm
    15 mil QR Code 1.3 in / 3.3 cm 15.35 in / 39 cm

Communication

  • Radio Corded
  • Host Interface supported USB / RS232

Mechanical

  • Dimension 87.8 L x 71.6 W x 177.7 H (mm)
  • Weight 165g without cable
  • Trigger Switch Life 10 million times

Symbologies

  • 1D Barcodes Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar,
    UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data Bar, TLC39
  • 2D Barcodes 2D Stacked: Codablock A, Codablock F, PDF417, MicroPDF417
    2D Matrix: Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code
    Postal:Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet
  • Special Barcodes Support OCR, DotCode, and Digimarc barcodes

Electrical

  • Operation Voltage 4 VDC to 5.5 VDC
  • Current Consumption Operating: 252mA
    Standby: 77mA
  • Indicator Buzzer, LED

Environmental

  • ESD Protection Functional after 8K Contact and 15K Air
  • Mechanical Shock 2.1M onto concrete (scanner only)
  • Operating Temperature -10°C to 50°C (14°F to 122°F)
  • Storage Temperature -40°C to +70°C (-40°F to +158°F)
  • Relative Humidity 95% non-condensing
  • IP Rating IP42

Accessories

  • Items ■ Standard Hands Free Stand (Optional) )(PN#5200-900009G)
    ■ RS232 Cable (PN#1550-900060G)
    ■ USB Cable (PN#1550-905920G)

Regulatory Approvals

  • Regulatory Approvals CE, FCC, BSMI, VCCI,TAA Compliant

What comes in the box

  • The standard package contents ■ MS852 Plus Scanner
    ■ Interface cable

Warranty

  • Hardware Warranty 60 months
  • Statement This product is warranted against defects in workmanship and materials for a period of five years from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.

Accessories

Hand Free Stand

PN#5200-900009G

RS232 Cable

PN#1550-900060G

USB cable

PN#1550-905920G

USB Coiled Cable

PN#1550-900111G

Power supply for RS232 cable

PN# 1010-900008G

Desktop/ Wall mount holder

PN# 5200-900011G

USB cable

PN#1550-900121G

Protective Case

PN#386793G
