PS900
2D High performance desktop presentation scanner
The Unitech PS900 is the ideal on-counter/desktop presentation imager where a large format design and high performance is required.
-
2D
-
RS232
-
USB
-
IP52
-
Retail
-
Hospitality
The Unitech PS900 is the ideal on-counter/desktop presentation imager where a large format design and high performance is required. Besides reading all common 1D and 2D barcodes, this imager is able to read digital barcodes from mobile screens (including QR codes) without losing scanning quality or performance.

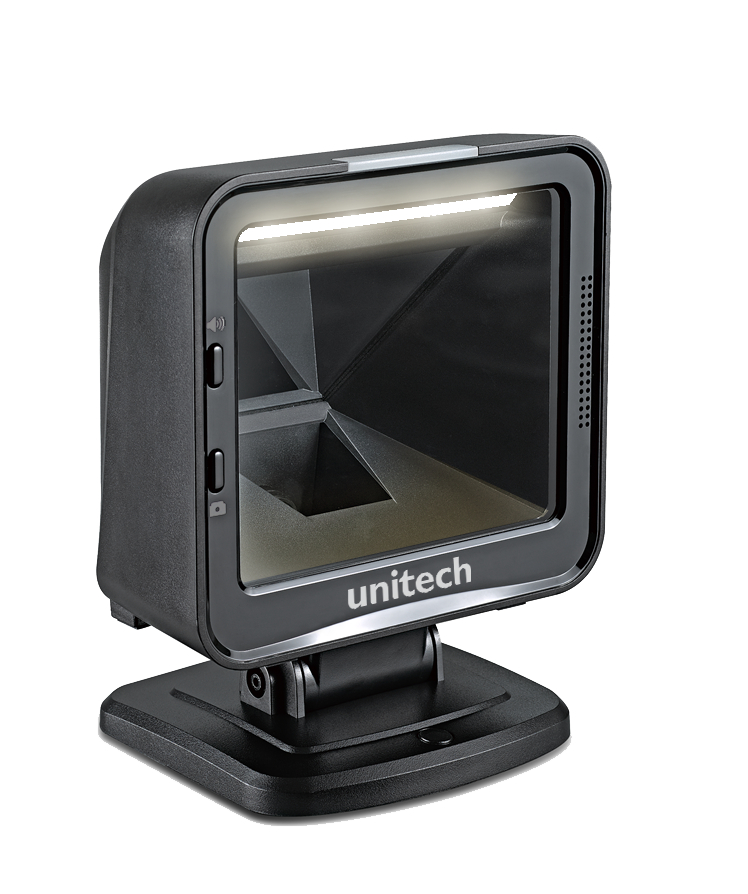

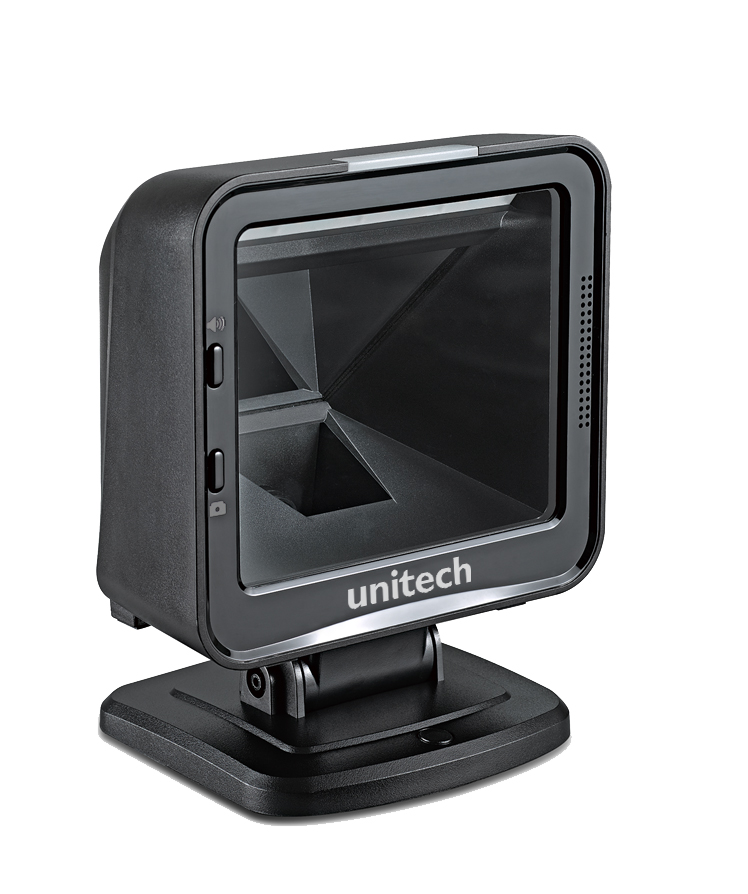

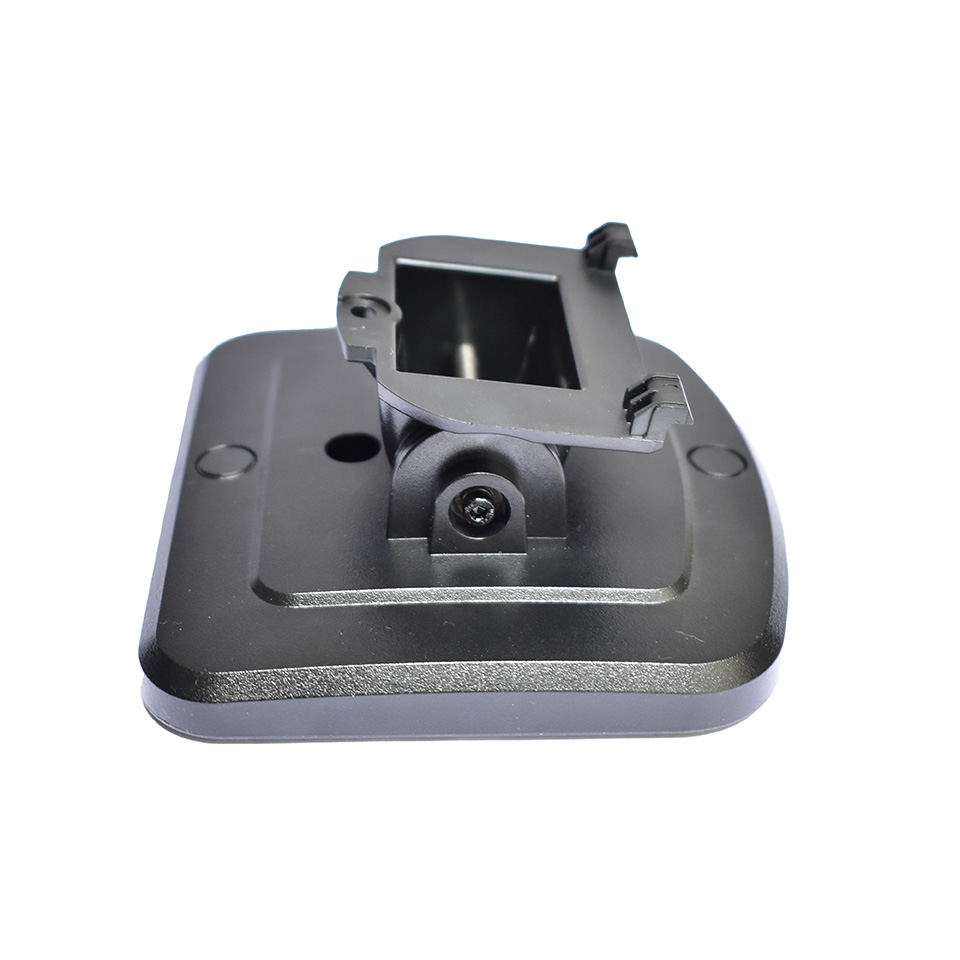

• The PS900 comes with desktop stand. This desktop stand allows the PS900 to become tilt-able besides a fixed vertical standing position, but it also removable if desired.
• The PS900 supports multiple interfaces such as: USB/HID, USB/SPP and OPOS* protocol. * Additional software driver needed.
• Besides auto-sending mode this imager also support trigger mode when required. In addition the auxiliary interface offers the option to connect an additional handheld scanner.
• The PS900 features a loud but adjustable speaker and offers convenient visual confirmation of good scans.
• The PS900 comes standard with stand, 2 meter USB cable and 3 year warranty. A competitive package and at an extremely competitive price.
On-counter / desktop solution - The Unitech PS900 is the ideal on-counter/desktop presentation imager where a large format design and high performance is required. Besides reading all common 1D and 2D
barcodes, this imager is able to read digital barcodes from mobile screens (including QR codes) without losing scanning quality or performance.
Its wide field-of-view, omin-directional scanning capability, fantastic motion tolerance and advanced decoding software, the PS900 will facilitate users to scan all barcodes at speed on their first pass.
Features PS900

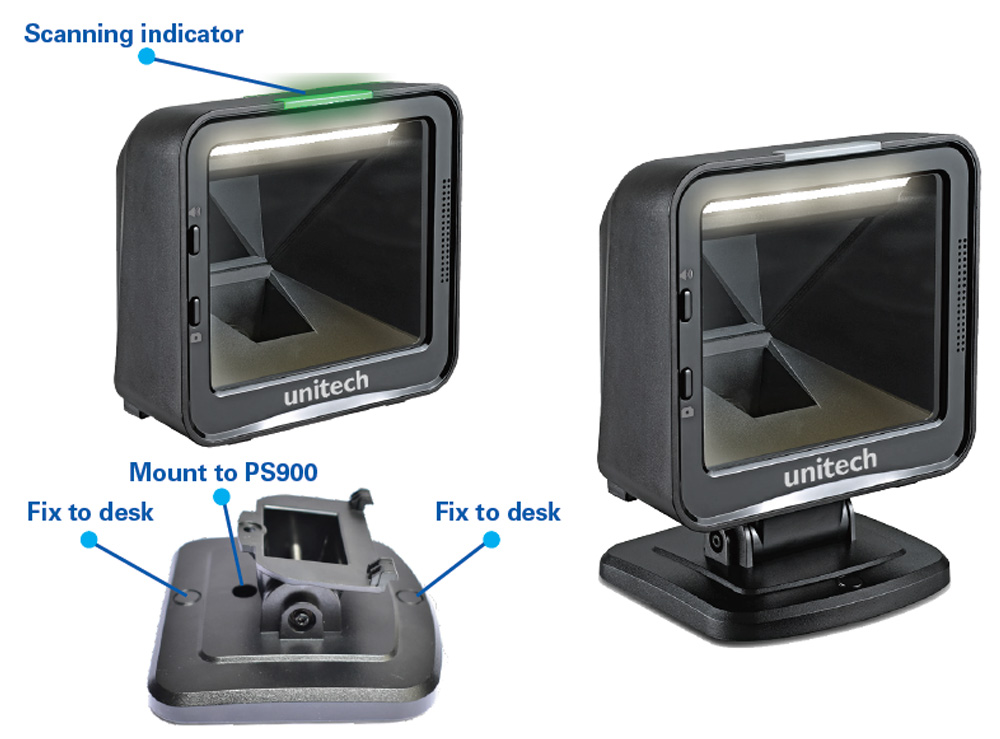

• The PS900 comes with a desktop stand. This desktop stand allows the PS900 to become tilt-able besides a fixed vertical standing position, but it also removable if desired.
• The PS900 supports multiple interfaces such as: USB/HID, USB/SPP and OPOS* protocol. * Additional software driver needed.
• Besides auto-sending mode this imager also supports trigger mode when required. In addition the auxiliary interface offers the option to connect an additional handheld scanner.
• The PS900 features a loud but adjustable speaker and offers convenient visual confirmation of good scans.
• The PS900 comes standard with stand, 2 meter USB cable and 3 year warranty. A competitive package and at an extremely competitive price.
Compact design and high-performance reading rate
The PS900 form factor can be integrated in most situations. The imager is specially designed with performance in mind and can be
used in a wide variety of applications such as
|
|
|||||
SWITCHEROO - Trade-UP Program |
|||||
|
Unitech Europe has a wide range of great devices from enterprise mobility, tablets and RFID to embedded solutions. We have also launched many new scanning devices that are high in performance yet affordable. We are confident that our new scanning range are some of the best devices in the market today – so why not trade up and test ours! Become more efficient when scanning poorly printed or damaged barcodes or even when scanning from mobile phones for loyalty programmes or promotions. |
|||||
| SWITCHEROO Trade-Up Program |
MORE INFO https://unitech.promo |
||||
Specification
Optical & Performance
- Sensor 1280×1024 pixels
- Illumination 100,000 lux
- Ambient Light Light source 2700K, LED White
-
Scan Rate
Frames/second 60
Scanning rate 95.3 inches/second
Motion tolerance no less than 3m/s - Skew / Pitch / Roll Angle Scan angle ±60° skew ±54° ptich 360° roll
- Printing Contrast Scale 20% minimum reflectance difference
-
Depth Of Field
Depth of Field 1D: 0mm to 210mm 2D: 0mm to 100mm
4 mil Code39 (9 chars) 35 mm - 70 mm
5 mil Code39 (3 chars) 25 mm - 80 mm
10 mil Code39 (3 chars) 0 mm - 120 mm
13 mil UPC (6 chars) 0 mm - 140 mm
15 mil Code39 (1 char) 0 mm - 145 mm
20 mil Code39 (1 char) 0 mm - 210 mm
6.7mil PDF417 (20 chars) 20 mm - 95 mm
10mil QR (20 chars) 10 mm - 100 mm
20mil QR (20 chars) 10 mm - 100 mm
* Depending on width, type and quality of barcode.
Communication
-
Interface/ Profile
Interface USB/HID (USB/SPP, OPOS*) * = Additional software driver needed.
Connector type RJ-45 phone jack connector

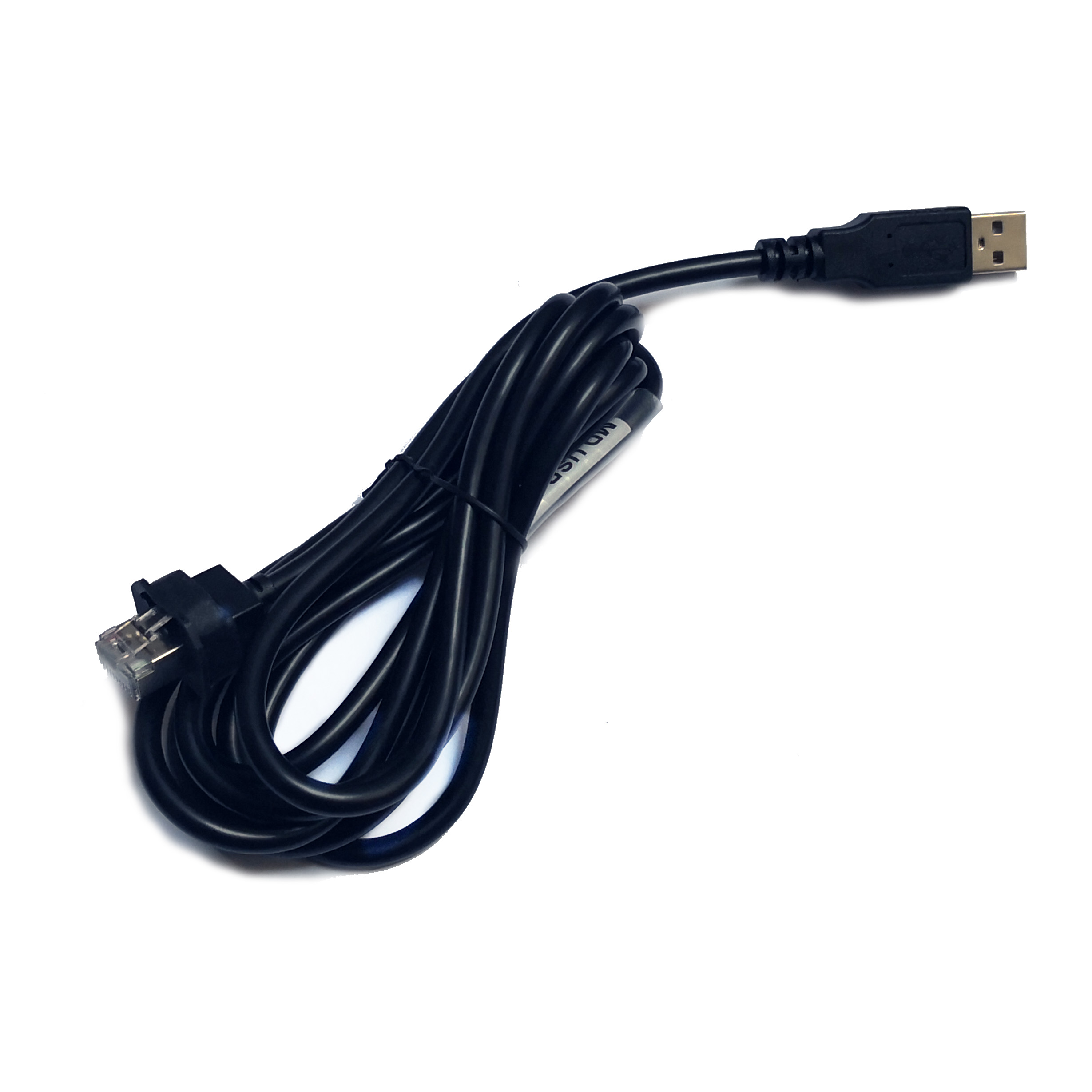

- Connectivity Cable Black straight 2.0m USB cable
- Host Interface supported Interfaces RS-232, USB keyboard, USB virtual COM, OPOS, JPOS
Mechanical
-
Dimension

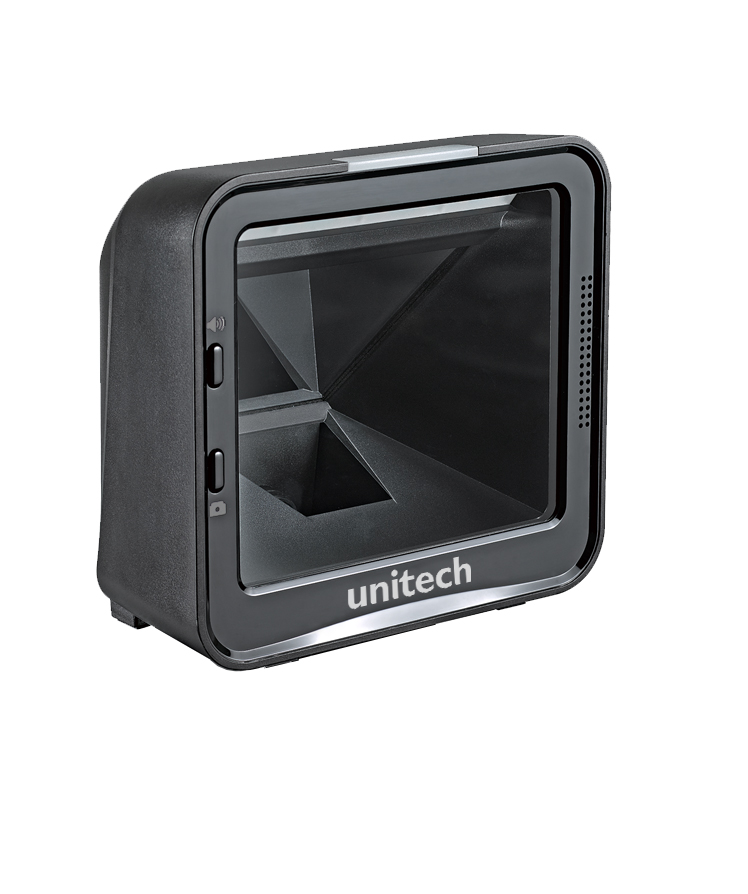

145 mm × 82 mm × 153 mm (without stand) / 187 mm × 112 mm × 153 mm (with stand)
- Weight Weight: 482g (without stand / without cable) / 755g (with stand / without cable)
Operation Mode
-
Operation Mode
Scanning mode: Auto-detection Mode / Continue mode / Host mode
Programming method: Scanning special barcodes in sequence
Symbologies
- 1D Barcodes 1D: UPC-A, UPC-E, UPC-11, EAN-13, EAN-8, ISBN, ISSN, Code39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar, Code 128, UCC/EAN 128 (GS1-128), ISBT 128, Code 93, Code 11, MSI/Plessey, UK/Plessy, China Post, China Finance, GS1 DataBar, GS1 DataBar Trucated, GS1 DataBar Limited, GS1 DataBar Expaneded Stacked code: GS1 Composite, PDF417, MicroPDF417* (* = Update specific firmware required to support it.)
- 2D Barcodes 2D: DataMatrix, QR code, Micro QR code,Han Xin Code, Aztec Code
Electrical
- Operation Voltage 5 DC ± 0.25 V
- Current Consumption Power: Working: 410 mA (Max: 700 mA) / Standby: 300 mA
- Indicator Indicator Loud speaker/Beeper (adjustable), LED (2700K), MP60
Environmental
- Operating Temperature 0°C to 50°C
- Storage Temperature -40°C to 70°C
- Relative Humidity 5% to 95% non-condensing
- IP Rating IP52
Safety & EMC
-
Safety & EMC
EMC: EN55032:2015, EN55024
Electrical safety: EN60950-1
Photobiological Safety: EN62471
RF Immunity: IEC61000-4-3, 10 V/m
Warranty
-
Warranty
3 Years scanner
1 Year USB cable
