RM300

2-port / 4-port UHF RFID Reader Module

RM300 series is a high-performance UHF RFID reader module based on Impinj R2000 chip and compliant with EPC C1 Gen2 / ISO 18000-6C and FCC modular approval requirements.

  • Field Service

  • Manufacturing

Unitech’s RM300 series is a high-performance UHF RFID reader module based on Impinj R2000 chip and compliant with EPC C1 Gen2 / ISO 18000-6C and FCC modular approval requirements.  System Integrators, RFID device makers could use RM300 to develop their own products with the benefits of cost-efficiency and high-performance.



Features

• Support for EPC C1 Gen2 / ISO 18000-6C tag protocol with anti-collision, DRM and Listen-Before-Talk features
• International operation with global frequency coverage over 860-960 MHz band
• Offer two kinds of models with two or four (MMCX) antenna connectors for choice
• Adjustable transmit output level control from 5 dBm to 30 dBm in 1 dB step
• Maximum tag read rate of over 900 tags per second

• Maximum tag read distance of over 27 feet (9 m) with 6 dBi antenna
• Easy to use Starter Kit to shorten product development time

Unitech’s RM300 series is a high-performance UHF RFID reader module based on Impinj R2000 chip and compliant with EPC C1 Gen2 / ISO 18000-6C and FCC modular approval requirements.  System Integrators, RFID device makers could use RM300 to develop their own products with the benefits of cost-efficiency and high-performance.

RM300 series has two models, one is named RM300-2port with two (MMCX) antenna connectors and the other one is RM300-4port with four (MMCX) antenna connectors. The antenna connectors of  RM300-2port that can be configured as one bi-static antenna or two mono-static antennas.  It also supports dense reader mode (DRM), anti-collision, and Listen-Before-Talk (LBT) features. RM300 has an operating distance up to 9 meters when its adjustable TX power is set to 30 dBm with a 6 dBi antenna. In addition, RM300 is small and ideal for adding UHF RFID read/write capabilities to a wide range of products and solutions such as handheld PDA, label printers, stationary readers, or any other device for UHF RFID applications. RM300 uses Serial and USB interfaces to connect to an external processor board or PC host.

Unitech offers a starter kit to enable you to design RM300 into your products quickly and easily. This kit includes SDK, demo code, driver, and documentation. With its tiny size, excellent operating range, and high quality UHF RFID technology, RM300 is the perfect solution for embedded RFID applications.


RFID Label & Tags Solutions for User’s Options



For a successful and complete RFID solution, the selection of RFID labels and tags is essential.
According to the target material and application that the customer wants to control, choosing the right labels or tags will greatly improve the operation process and efficiency of the entire RFID solution.


Learn more aboutRFID Label & Tags.



Specification

Operation System

  • CPU ATMEL AT91SAM7S - 256

RFID

  • UHF FCC (US) 902- 928 MHz,
    SRRC (China) 920.5 – 924.5 MHz,
    TELEC (Japan) 916.8 - 923.4 MHz,
    NCC (Taiwan) 922 - 928 MHz
    CE (Europe) 865 – 868 MHz

UHF RFID Performance

  • Chip IMPINJ R2000
  • Reading Distance 9m with a 6 dBi antenna ( 36 dBm EIRP )
  • Tag Read Rate Over 900 tags/second
  • Antenna Ports Two/Four MMCX antenna connectors supporting 2/4mono-static antennas,
    or one bi-static antenna, with VSWR less than 2:1
  • RF Power output Adjustable from 5 dBm to 30 dBm @ ±1 dBm

I/O Interfaces

  • USB USB 2.0 Full Speed (12 Mbps )
  • Serial Interface UART : Baud rates: 9,600 to 115,200 bps, Logic levels: 3.3 / 5 V
  • Digital IO Interface 5 GPIO pins, Logic levels: 3.3 / 5 V
  • Connector ■ RM300-2port 50-pin ( HRS-DF12 SMT connector )
    PIN / NAME
    1. UART_CTS
    2. UART_RTS
    3. UART_TX
    4. UART_RX
    5. GND
    6. /BD_RESET
    7. /BD_PWR_EN
    8. GPIO_6
    9. GPIO_5
    10. GPIO_4
    11. GPIO_3
    12. GPIO_2
    13. GPIO_1
    14. GPIO_0
    15. GND
    16. VCC_5V
    17. VCC_5V
    18. VCC_5V
    19. VCC_5V
    20. VCC_5V
    21. VCC_5V
    22. VCC_5V
    23. VCC_5V
    24. NC
    25. VBUS
    26. GND
    27. DM
    28. DP
    29. GND
    30. GND
    31. GND
    32. GND
    33. GND
    34. GND
    35. GND
    36. GND
    37. GND
    38. GND
    39. GND
    40. GND
    41. GND
    42. GND
    43. GND
    44. GND
    45. GND
    46. GND
    47. GND
    48. GND
    49. GND
    50. GND

    ■ RM300-4port 20-pin ( ZIF FPC 0.5mm connector )
    PIN / NAME
    1. VCC_5V
    2. VCC_5V
    3. VCC_5V
    4. VCC_5V
    5. VCC_5V
    6. GND
    7. DGB_RX
    8. GND
    9. GB_TX
    10. GND
    11. UART_RX
    12. GND
    13. UART_TX
    14. GND
    15. GND
    16. DM
    17. DP
    18. GPIO_0
    19. GPIO_1
    20. GPIO_2

Enclosure

  • Dimension 76.5mm ( L ) x 50mm ( W ) x 4.2 mm ( H ) (2-port)
    92.5mm ( L ) X 63mm ( W ) x 4.5 mm ( H ) (4-port)

Environmental

  • Operating temperature -20°C to 60°C
  • Storage temperature -30°C to 85°C
  • Relative Humidity 10% ~ 85% Non-condensing
  • Electrostatic Discharge 10 KV to antenna conductor with the antenna attached

Power Source

  • Power 5V VDC

Regulatory Approvals

  • Types RM300-2port (FCC, TELEC, NCC)
    RM300 4-port (FCC, TELEC, NCC, CE)

What comes in the box

  • The standard package contents ■ RM300 UHF RFID Reader Module
    ■ Power Adaptor
    ■ Interface board
    ■ USB Cable
    ■ Antenna
    ■ RFID Tag
    ■ RS232 Cable

Accessories

  • Items ■ USB Cable
    ■ RS232 Cable
    ■ Power Adapter
    ■ RFID Tag
    ■ CD
    ■ Test Board
    ■ Antenna

Warranty

  • Hardware Warranty 15 months
  • Statement This product is warranted against defects in workmanship and materials for a period of fifteen months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.

Accessories

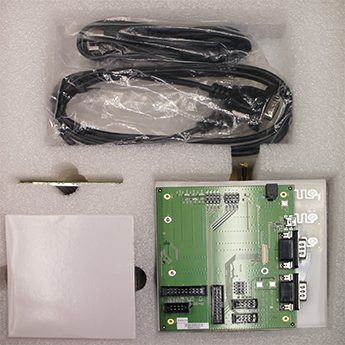

RM300 starter_kits
