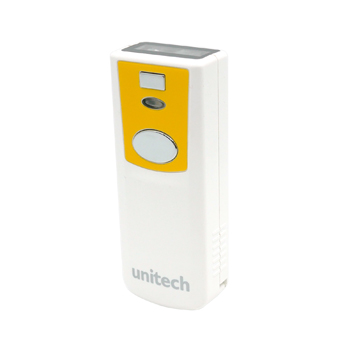

MS925
Bluetooth Companion Scanner (2D)
¡Diminuto pero poderoso! El escáner de código de barras MS925 de bolsillo es ideal para entornos de hospitalidad, servicio de campo y atención médica.
• Lee todos los códigos de barras 1D y 2D, incluso en pantallas móviles
• Carcasa antimicrobiana para profesionales de la salud, que propaga menos gérmenes
• Tecnología Bluetooth confiable para una fácil comunicación
La asequibilidad se une a la eficiencia con el nuevo escáner de bolsillo MS925. Diseñado para aplicaciones de trabajo intensivo, este pequeño caballo de batalla es ideal para el inventario de la tienda, la gestión de activos, la gestión de la salud y la recopilación de datos de clientes.
Características
‧Funcionamiento fácil de usar con una carcasa de bolsillo
‧Diseño liviano y compacto: solo 1.04 oz (29.5 g)
‧ Carcasa blanca con materiales antimicrobianos para instituciones médicas
‧Rendimiento confiable de escaneo de códigos de barras: lea todos los estándares 1D, 2D y
códigos de barras en pantallas
‧Gran tolerancia al movimiento a 28 cm (11 pulg.) / Seg. Que beneficia a los usuarios
Siempre moviéndose.
‧Durabilidad empresarial: protección contra caídas de 1,5 m (5 pies) y sellado IP41 para
protección de ingreso
‧ Admite Bluetooth® 2.1 + EDR, Clase 2
Ergonomic Pocket-Sized Enclosure
The MS925 weighs in at just 1.04 oz and features a tiny enclosure, while
also supporting various mobile devices running on Windows, Android, or
iOS. It doesn’t take up too much space and give users an easy way to
carry around. It supports Bluetooth® 2.1+EDR wireless technology
which make barcode data collection simple with a 32 foot (10 m) operating
range, reliable for all users. Above that, the MS925 features a flash
memory storage capacity of 2MB, reducing data loss, even when it is out of range of the wireless signal. This allows users to complete long tasks without interruption.
Reliable Barcode Scanning Performance
The 11 inch (28 cm) per second (IPS) motion tolerance and reliable 2D
scanning engine offer fast and accurate scanning results. The MS925 reads 1D or 2D barcodes including PDF417, Data Matrix, QR Code, Micro QR Code, and Aztec creating a versatile platform on the job. It is capable of reading barcodes on the screen of mobile phone and automatically captures barcodes within its field of view in any lighting condition from darkness to direct sunlight (100,000 lux).
Improve Workflow
Featuring anti-microbial housing design, the MS925 is a user friendly device in healthcare environments with high hygienic regulations. In addition, it includes a single-button scanning design making it easy to collect data accurately without complex settings. The barcode scanning solution significantly reduces human error and helps users to improve workflow efficiency. The MS925 is a versatile tool that is easily integrated into field sales, hospitality, supply chain operations, and retail applications.
Durable Design and Flexible Accessories
The MS925 not only incorporates rugged design with an IP41 environmental
sealing against moisture and dust, it is also built to survive 5 foot (1.5 m)
drops to concrete.
Especificación
Model Numbers
-
SKUs
MS925-2UBB00-SG:
MS925 Pocket Scanner, 2D Imager, Bluetooth, USB Cable
System
- Key Scan with power, on/off feature
Optical & Performance
- Sensor Array image sensor
- Aiming Element 625nm visible red LED linear aimer
- Illumination 3000K CCT white LED
- Ambient Light 100,000 Lux (Sunlight)
- Scan Rate 60 frames/sec
- Skew Angle ±30°
- Pitch Angle Sensor ±60°
- Roll Angle 360°
-
Optical Resolution
4mil/ 0.1mm (Code 39)
8mil/ 0.2mm (QR Code) - Printing Contrast Scale 30%
-
Depth of Field
Decode Range | Near | Far
4 Mil Code 39 : 65 ~ 143mm
5 Mil Code 39 : 62 ~ 174mm
10 Mil Code 39 : 32 ~ 280mm
15 Mil Code 39 : 40 ~ 358mm
13 Mil UPC/EAN : 38 ~ 281mm
10 Mil QR Code : 47 ~ 193mm
15 Mil QR Code: 37 ~ 257mm
40 Mil QR Code: 72 ~ 424mm
6.67 Mil PDF417 : 64 ~ 131mm
10 Mil PDF417: 40 ~ 182mm
10 Mil Data Matrix : 53 ~ 171mm
20 Mil Data Matrix: 34 ~ 278mm
Communication
- Radio Bluetooth® 2.1+EDR, Class 2
- Wireless Coverage 33 ft/ 10m (line of sight)
- Interface/ Profile BT HID, BT SPP, USB HID, USB VCP, Memory
- Host Interface Supported Micro USB
Mechanical
-
Dimension
1.08 in x 2.6 in x 0.63 in (W x L x H)
27.5 mm x 68.4 mm x 16.2 mm - Weight 1.04 oz / 29.5 g
Functionality
- Operation Mode Trigger mode, presentation mode, buffer mode
Symbologies
-
1D Barcodes
UPC-A/UPC-E, EAN-8/EAN-13,
Industrial 2 of 5, Codabar, Matrix 2 of
5, Code 11, Code 93, Code 32, Code
128, Standard Code 39, Full ASCII
Code 39, Interleaved 2 of 5, China
Postal Code, MSI Plessy Code, UK
Plessy Code, EAN/UCC 128, Telepen
Code, IATA Code, GS1 Databar
-
2D Barcodes
PDF417, DataMatrix, QR Code, Micro
QR Code, Aztec
Electrical
- Operation Voltage 3.7 VDC ± 5%
- Current Consumption < 330mA
- Indicator LED, Buzzer
- Battery Type 3.7V, 400mAh, Li-Polymer Battery
- Battery Capacity 400mAh
- Battery Charging Time < 3 hours
- Operating Time 4,000 scans (1scan/5sec)
Environmental
- ESD Protection Functional after 4KV contact, 8KV Air discharge
- Mechanical Shock 5 feet (1.5 m)
- Operating Temperature 14°F to 122°F (-10°C to 50°C)
- Storage Temperature -4°F to 140°F (-20°C to 60°C)
- Relative Humidity 0% ~ 95%RH (non-condensing)
- IP Rating IP41
Accessories
-
Items
■ Neck Strap
■ Micro USB to USB cable
Regulatory Approvals
- Regulatory Approvals CE, FCC, BSMI, VCCI
What comes in the box
-
The standard package contents
■ MS925 scanner
■ USB cable (Micro USB)
■ Neck strap
Warranty
- Main Unit 1 Year
