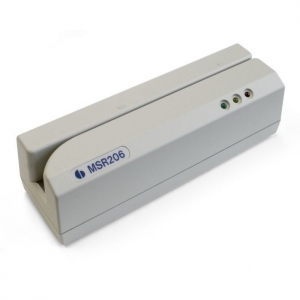

MSR206
Magnetic Stripe Encoder
The MSR206 Manual Swipe Magnetic Card Reader/Writer is designed to offer a card reading/writing solution for ISO 7811-6 formats. The MSR206 reads and writes up to 3 tracks of data, e.g. decoding/encoding and verifies up to 3 tracks of data simultaneously.
• Read / write magnetic stripe cards (ISO 7811 / 1 - 6 formats)
• Read / write high and low coercive force (300~4000 Oe)
• Write / verify data on single, dual, or triple track in one swipe
The MSR206 Reader/Writer provides a standard RS-232 interface to communicate with a host system or other terminal computers.
Features
• Read / write magnetic stripe cards (ISO 7811 / 1 - 6 formats)
• Read / write high and low coercive force (300~4000 Oe)
• Write / verify data on single, dual, or triple track in one swipe
• Programming software included for various read / write applications
• Programming software for DOS and Windows
• Compact size with dimensions of 8.34”(L) x 2.58”(W) x2.38”(H)
• Programmable leading bit, raw data, DMV/AAMVA, and user defined format
• 1-year warranty
Especificación
Model Numbers
-
SKUs
MSR206-33U:
MSR206, USB / RS232, Power Adapter
MSR206-77:
MSR206, USB (with AMC-722 Emulation), Power Adapter
Performance
-
Recording Density
Track 1: 210 bpi
Track 2: 75/210 bpi
Track 3: 210 bpi - Coercive Force Read/write: 300 - 4000 Oe Mag. Card
- Card Width 0.76 - 1.2mm
-
Read/Write Speed
Read speed:
Standard card: 5 - 55 ips
Jitter card (±15%): 5 - 50 ips
Low amplitude (60%): 5 - 50 ips
Write speed:
5 - 30 ips -
Error Rate
Read: ?0.5%
Write: ?0.8% - Head Life Min. 1000K swipes for both read and write heads
Environmental
- Operating Temperature 14ºF to 131ºF
- Storage Temperature -22ºF to 158ºF
- Humidity 10 to 90%
Warranty
- Warranty 12 months
