The EA300 offers a host of data collection options to enhance the service level for a variety of vertical applications such as retail, inventory management, asset tracking, and light warehousing.
Features
• All-in-one function: Keypad, 2D Imager, HF/NFC and 5MP Camera.
• Industrial grade: 1.2GHz Quad-Core processor with Android 5.1 OS.
• Suitable for any mobile worker: 4G / LTE, Dual-Band 802.11 a/b/g/n WiFi, and GPS.
• Rechargeable and swappable 3800mAh battery.
• 4” HD display touch screen and 17-key keypad.
• Rugged: Gorilla Glass 3, IP64 rated and 1.2m drop specification.
• Dual Scanning Buttons (left and right side) and the scanning button on the keypad.
• Device supported versatile: SOTI, 42Gears, 12Manage.
★This product has reached its End of Sale.
To explore our latest products, please visit :
https://www.ute.com/en/products/category/MobileComputers/TouchComputers
Powerful Android terminal data entry and collection
The EA300 is designed with “intensive data entry a data collection” in mind. This device has a 4” TFT-LCD HD touch screen and features an integrated 17-key keypad (incl. alpha/numeric, scan keys and special characters) as well as dual scanning buttons (left and right side) for convenient barcode capturing.
In addition the EA300 offers an integrated 2D imager, GPS, 5.0 MP camera, HF/NFC RFID reader/writer to complete your data collection requirements. This device offers everything you’ll need.
All-in-one Functionality
Equipped with a 1.2GHz Quad-Core processor and running on the Android 5.1 operating system, making this device suitable for data-intensive applications in highly mobile environments. Mobile workers can easily accelerate their workflow as this device is equipped with a 2GB RAM, 16GB ROM and supports an additional microSD expansion (up to 32GB storage capacity).
Holding a 3800mAh removable battery the EA300 provides continuous usage time without needing to worry about running out of juice. Enjoy the fastest data speeds out there with the Dual-band 802.11 a/b/g/n WiFi, and 4G LTE connectivity. This device is truly an excellent mobility device and offers job improvement and efficiency at a competitive price!
Rugged Design
Capable to withstand multiple 1.2m drops to concrete and IP64 rated against water and dust, makes this EA300 a rugged device. Equipped with a POGO PIN (for quick and non-intrusive charging) it will prolong life span and durability.
Specification
Operation System
- OS Android 5.1
- GMS certified -
- CPU 1.2GHz, Qualcomm 8916 Quad-Core Processor, 64bits
- Memory 2GB RAM / 16GB Flash
- Languages support English, Thai, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
-
Others
Input Chinese/ English
Supports handwriting and soft keyboard
Display
- Screen Size 4 inch TFT-LCD HD (480 x 800) color screen
-
Touch Panel
Gorilla Glass 3. Ultra sensitive capacitive touch screen,
compatible with gloves and supports wet resistance
Buttons / Keypad
-
Buttons / Keypad
Front: 17 physical keys including Alpha/numeric, scan keys and special characters.
Side: SCAN button x 2 (Left / Right), User-defined function button (programmable key), Volume switch button (+ / -), ON / OFF button.
Camera
- Camera 5MP rear camera with LED flash and auto-focus function
Indicator Type
- Type LEDs, Vibrator
Symbologies
- 1D Barcodes All major codes
- 2D Barcodes All major codes
RFID
-
HF RFID
Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693 standard
I/O Interfaces
- USB Micro USB
- OTG Yes, over Micro USB
- POGO PIN Charging via cradle and USB client
- SIM Slot Micro SIM x 1, SAM x 1
- Expansion Slot MicroSD x 1, up to 32 GB
- Audio Microphone, speaker and 3.5mm audio jack
Power Source
-
Main battery
Rechargeable and swappable
, 3.8 V, 3800mAh Polymer Li-ION pack.
Communication
- WLAN IEEE 802.11 a/b/g/n
-
WWAN
WWAN: 4G TDD/FDD/UMTS/EV-DO/GSM, TDD-LTE (B38/B39/B40/B41) FDD-LTE (B1/B3)
- GPS GPS, AGPS, Glonass
- Sensors Proximity sensor, light sensor and G-sensor
Software
- MDM Software SOTI, 42Gears, 12Manage
- Azure Azure Certified
Enclosure
- Dimensions ( W x H x D ) 152 mm x 78 mm x 30 mm
- Weight 310g
Durability
- Drop Specification 1.2m
- Sealing IP64
- Tumble test Tumble 600 times (1.6 ft./0.5 m)
Environmental
- Operating temperature (-10°C to +50°C)
- Storage temperature (-20°C to60°C)
- Relative Humidity 5% ~ 95% (non-condensing)
Accessories
-
Accessories
■ Single slot USB cradle (PN# 5000-300001G)
■ Aadaptor (5.5V/2.6A) with US/EU/UK plug for Terminal / Cradle (PN# 1010-900044G)
■ USB-cable ( PN# 1550-600001G)
■ 3800mAH Li-ON Battery pack (PN# 1400-300001G)

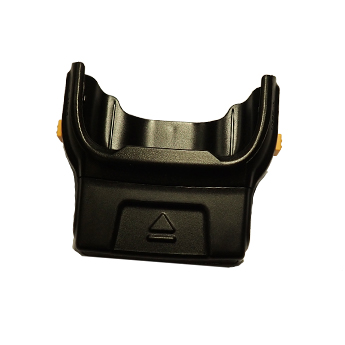

■ Charger Holder (PN# 5100-900019G)
What comes in the box
-
The standard package contents
■ EA300 Terminal
■ Battery
■ Hand Strap
■ USB Cable
■ Cradle
■ Adaptor (US or EU)
■ Charger Holder
Regulatory Approvals
- Regulatory Approvals CE, RED, CCC, NCC, FCC, RoHs
Warranty
- Hardware Warranty 15 months
