Unitech EA660 Rugged Smartphone │ Unitech

Copied to clipboard

5G & Wi-Fi 6E｜6” Gorilla® Glass Victus® & 630nits display｜12m Barcode Reading Distance

Android 13
AER certified
2D
NFC
6"
Wi-Fi
5G
16MP
IP67
1.5 m
GMS certified
Bluetooth
Retail
Hospitality
Logistics
Healthcare

Featuring an advanced Android 13 operating system and 5G & Wi-Fi 6E wireless communication, the EA660 offers real-time data collection, a seamless working experience, and enhances stock management efficiency in industries such as retail, hospitality, logistics, and healthcare.

Features

• Android 13 OS with GMS & AER Certification
• Wireless Communication: 5G & Wi-Fi 6E
• All-In-One functionality: 2D Imager, NFC, 5MP front camera, and 16MP rear camera
• Rugged: Corning® Gorilla® Glass Victus® touch display, IP65 & IP67 rated, and 1.5M drop (1.8M with boot case)
• Premier barcode reading distance : Up to 12M (Optional engine)
• Long-lasting removable 5000mAh UL certified smart battery
• Support unitech software solutions, SDKs, MoboLink, and MDM solutions

Real User Testimonials

Customer in UK

There is only one clear winner and it's the Unitech device. Excellent large, clear screen with bold easy to use keyb...

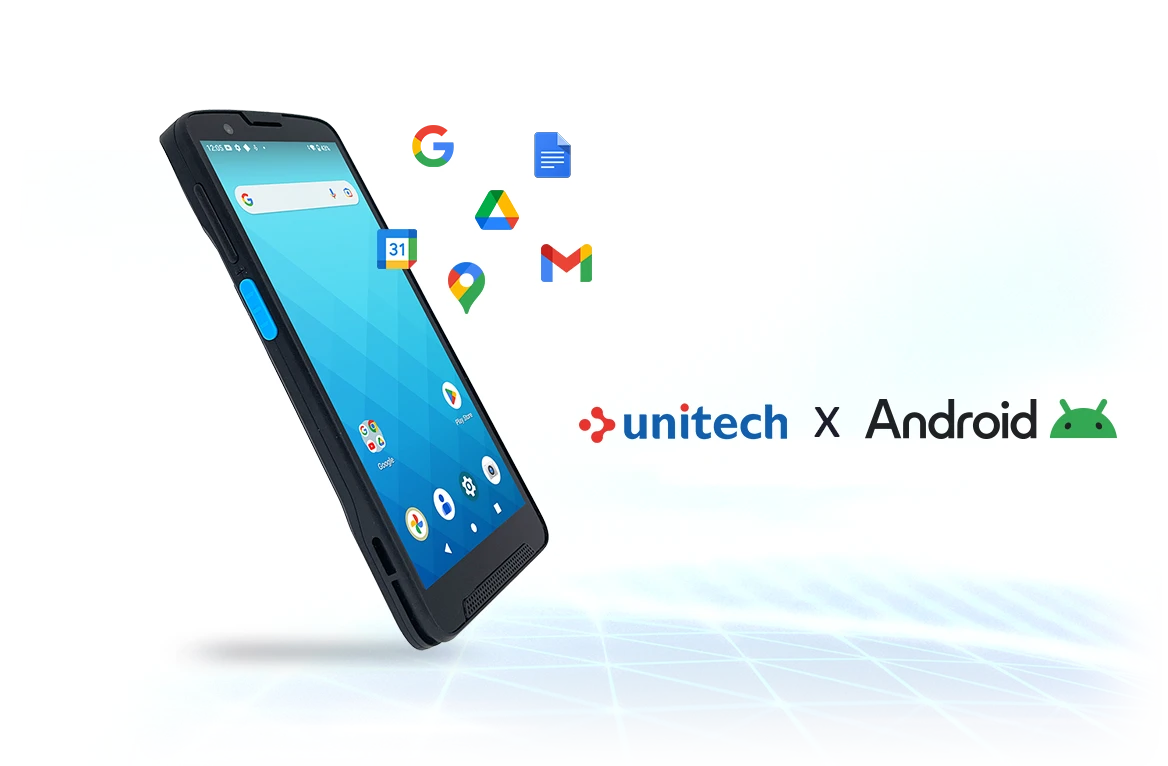

Powered by Android 13 OS with GMS & AER Certified

The EA660 is a 6-inch Android 13 rugged smartphone equipped with an advanced 64-bit Octa Cores CPU capable of reaching speeds up to 2.4 GHz. It effortlessly handles demanding tasks while ensuring smooth multitasking. With the distinction of Google Certification, encompassing Google Mobile Service (GMS) and Android Enterprise Recommended (AER) endorsement, the dual certification assures a secure and efficient business environment.


Android 13 Operation System	GMS & AER Certification	Octa-Core CPU	6 GB RAM 128 GB Flash
Note: Learn more about Android Security bulletin information

Premier Barcode Reading Performance

Featuring powerful 1D/2D scanning capabilities and utilizing premier 2D barcode scanning technology, the EA660 rugged smartphone offers an optional engine that enables barcode reading at distances of up to 12m with 5G and Wi-Fi 6E connectivity. This provides the perfect solution for the retail and logistics environments, allowing users to enjoy high-performance barcode reading, whether it's from a short or long distance, and optimize their work efficiency.

1D/2D Support	NFC Reader / Writer	16MP Camera

Sunlight Readable Display

The EA660 has a sunlight-readable, high brightness (630 nits) display that responds to the touch commands even with gloves and support wet-touch mode. Its touch display features Gorilla Glass 7 (Victus), which provides twice the drop resistance height compared to the Gorilla Glass 5 used in the EA630 Plus, resulting in even better rugged performance.



6" Display	630 nits Brightness	Gorilla^® Glass Victus^® Touch Display

Seamless and Connectivity via Wireless Communication

Featuring 5G connectivity and enhanced by the latest Wi-Fi 6E technology, the EA660 offers unprecedented wireless connectivity across 2.4GHz, 5GHz, and 6GHz bands for extensive coverage and blazing-fast internet speeds. With fast roaming, Bluetooth® 5.2 for real-time data collection, and DBS (Dual-Band Simultaneous) technology supporting simultaneous transmissions over both 2.4GHz and 5GHz frequencies, it ensures a more reliable and efficient network performance. This setup allows users to scan items and instantly connect to the backend system to find out the quantity in stock or make an online order for customers. The EA660 delivers a seamlessly work experience and improves productivity for various applications, making it faster downloads and uploads at user's fingertips on the most reliable networks for your business.

5G
Communications

Wi-Fi 6E
Wireless

Bluetooth 5.2

Support ARCore Technology

The EA660 rugged smartphone supports ARCore technology that allows developers to create augmented reality apps to sense its environments and interact with information. The EA660 enhances the CPU and built in the quality of both the camera and the motion sensors, it gives users stable performance to handle everything.

The ARCore technology transforms the way people work that helps to locate and identify the elements in warehouse management, allows training for the user while executing the production processes, and precise details of the areas at risk allow for increased vigilance limiting accidents in field service applications.

Durable at Its Best

The EA660 enhances industrial durability with features such as simultaneous IP65 and IP67 dustproof and waterproof ratings, along with resistance to falls from a height of 1.5 meters (1.8 meters with boot case). This makes the EA660 the perfect tool for maximizing data collection, management, and traceability in nearly every aspect of retail, transportation, logistics, hospitality, and more!

IP65 & IP67
Certification

1.5m
Drop Protection

1.8m
Drop with Boot case


Optical Character Recognition (OCR)

EA660 provides Optical Character Recognition (OCR) technology in Unitech USS software to streamline your tedious typing process and minimize the typing mistakes when entering the numbers. Our OCR technology allows users to easily convert numbers or characters to digital formats on cardboards, paperwork, electronic chips, and any other readable surface.


Airline	Manufacturing	Logistics
✔The Airline Ground Services｜Read ID numbers from passports ✔Manufacturing｜Read vehicle registration numbers and electronic chips ✔ Logistics&Retail｜Read lot numbers printed on the package


SmartPA: Better Audio Output

SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer.The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.


Power Amplifier Better Audio Output			Built-in Algorithm Lessen Circuit / Temperature Damage

Effortlessly Process Payments with Softpay

The Unitech EA660 offers support for the Softpay softPOS application, providing a unique mobile point-of-sale solution. This empowers store staff to assist customers on the shop floor and process payments anywhere within the store, eliminating the need for traditional cashier counters. By simply downloading the Softpay solution onto your existing EA660 device, it transforms into a versatile contactless payment terminal. Over time, this innovation allows users to reduce the number of conventional checkout counters in their stores, resulting in a more streamlined and seamless customer experience.

* Learn more about Softpay: https://softpay.io/



	Associated Press News Report

	Boosting Retail with Free OS Upgrades, Extended Battery Life, and Advanced 5G Connectivity We are deeply grateful to the Associated Press (AP) News for their coverage and spotlight on our latest innovation, the EA660 rugged smartphone, designed to meet the unique demands of the dynamic retail industry.
	View original AP News, please visit: https://reurl.cc/54Agyq

MoboLink Android Enterprise ready EMM for monitoring device health and managing apps, configs and files. Learn More	StageGO Barcode-based device staging utility offering hundreds of script commands for you to work with. Learn More	OEMConfig If you are using a third party EMM, OEMConfig will allow those EMM solutions to configure unitech specific settings on the device. Learn More
Battery info Monitor advanced Battery health and manage the battery replacement cycle. Use with MoboLink to get real-time attery health alerts delivered to your phone.	Enterprise Launcher Secure your devices by kiosking them with Enterprise Launcher. Block access to the Android system and only allow limited number of apps to be run. Learn More	Software Update Check and install software updates online. To let a device always stay up-to-date, setup the device to automatically check and install for updates on boot up.
System Update Center Check and install firmware updates via FOTA. You can update the firmware via online FOTA server, or by using a OTA ZIP file placed in the internal storage.	Unitech Scanner Utility An Android application which helps users connect, configure and use a supported Unitech Bluetooth scanner. Learn More	USS Configure all scanner settings with friendly user interface and enable the service to make scanning data as keypad input.
USS Camera Capture barcode data using the device camera and send the data to your applications as keyboard inputs.	KeyRemap Reprogram physical buttons to act as another key or to launch an app. Learn More	WLAN Advanced Configure advanced WLAN settings such as power saving mode and roaming parameters.
NTP Server Settings Customize the NTP server setting to keep your device date and time synchronized.	UNote A simple text viewer and editor for use in your work flows.	Startup Auto-run apps when device boots up.
TagAccess For versatile functions of RFID command via integrating with Unitech RFID Readers. Learn More	Logger An easy and fast way to get logs from a device. Learn More	Enterprise Keyboard Enterprise Keyboard gives various methods for user to input data to enhance efficiency and productivity. Learn More
Mobile SDK Develop apps that work with uniech Android based devices. Apps can configure unitech-specific settings and get advanced access to manage apps, file system or system info, etc.	Scanner SDK Develop apps that work with unitech scanners when customization of scanner settings and data processing workflow are required.	RFID SDK Develop apps that work with unitech RFID mobile and fixed readers if customization of the inventory collection workflow or tag data processing are required.

Operation System

OS Android 13 (upgradable to Android 15 & 17)
Support Google ARcore
GMS certified GMS certified
Android Enterprise AER certified
CPU Qualcomm Snapdragon™ 4490 Processor, 64bits, Octa Cores up to 2.4GHz
Memory RAM 6GB
Flash 128GB UFS Flash
Security Supports Secure Boot and Verified Boot
Languages support English, Simplified Chinese, Traditional Chinese, Japanese,
Spanish, German, French, Italian, Portuguese, Korean and multiple languages
Others Input Chinese/ English
Supports handwriting and soft keyboard

Display

Screen Size 6", 18:9 Full-HD+ (2160X1080), color screen, High sunlight visibility- LCD backlight up to 630nits
Touch Panel Corning® Gorilla® Glass Victus®, Multi-Touch User Interface with Capacitive, stylus (5mm) , glove mode (3mm), wet-finger Compatibility

Buttons / Keypad

Buttons / Keypad 5 keys- Programmable function button; dual dedicated scan buttons; volume up/down buttons; on/off button

Camera

Camera 5 MP Front camera,
16 MP Rear with auto-focus function and Flash Light

Indicator Type

Type LED, Speaker, Vibrator

Symbologies

1D Barcodes UPC/EAN, GS1-128 , Code128, Code 39, Code 93, , Code 11, Interleaved 2 of 5, Matrix 2 of 5, Codabar, MSI, GS1 DataBar
2D Barcodes PDF417, MicroPDF417, Data Matrix, MaxiCode, QR Code, Micro QR Code, Aztec, Han Xin, GS1 Composite
Postal US Postnet, US Planet, UK Postal, Japanese Postal, Australian Postal, Netherlands (KIX)/ Dutch Postal, USPS 4CB/ One Code/ Intelligent Mail/ UPU FICS Postal
OCR OCR-A, OCR-B, E13B (MICR)

RFID

HF RFID Support HF/NFC
Frequency 13.56Mhz
Support ISO14443-4 (Type A, Type B), ISO15693, Mifare, Felica(ISO/IEC18092) compliance

I/O Interfaces

USB USB 3.1 (type-C) support USB OTG, DRP, DRD, Type C
Ethernet/USB-Host via cradle
OTG Yes, over USB Type-C
POGO PIN PogoPin backside: Support Gun-grip, UHF reader
PogoPin bottom: Charging via cradle
SIM Slot Dual nano SIM Slot
Expansion Slot MicroSD, up to 1TB
Audio One 1.5W output speaker with SmartPA (95 dB at 10cm), One receiver, Dual-Microphone support noise cancellation

Power Source

Main battery 3.87V, 5000mAh UL certified smart battery
Support Warm SWAP

Communication

Bluetooth® Bluetooth® 5.2
WLAN Wi-Fi 6E, 2.4GHz & 5GHz & 6Ghz
IEEE 802.11a/b/g/n/ac/ax/d/e/h/i/k/r/v (MIMO 2X2), Support DBS & Fast roaming
Security WPA3, WPA2, WPA & WEP
WWAN 5G NR Sub 6GHz: n1/n2/n3/n5/n7/n8/n12/n20/n28/n34/n38/n39/ n40/n41/n48/n66/n77/n78/n79
4G LTE (FDD): B1/B2/B3/B4/B5/B7/B8/B12/ B13/B14/B17/B19/B20/B28/B66
LTE (TDD): B34/B38/B39/B40/B41/B48
3G: B1/B2/B4/B5/B8
2G: 850/900/1800/1900 MHz
Dual nano SIM Slot
*Support Data/ SMS and Voice capabilities
*n48& B48 for CBRS
GPS GPS, GLONASS, Gallileo, BeiDou, QZSS,
supports L1+L5, a-GPS
Sensors Gyroscope,G-sensor, E-Compass,Light & Proximity Sensor

Software

MDM Software SOTI, VMware and MoboLink

Enclosure

Dimensions ( W x H x D ) 162.9mm x 77mm x 14.9mm
Weight 270g ± 1.5% (with battery)*
*The weight will vary depending on the configuration.

Durability

Drop Specification 1.5m drops to concrete per MIL-STD-810H
1.8m with boot case
Sealing IP65 & IP67
Tumble test 0.5m tumbles for 300 cycles / 600 drops

Environmental

Operating temperature -20°C to 55°C
Storage temperature -40°C to 70°C (without battery)
Charging temperature 0°C to 45°C
Relative Humidity 5% ~ 95% (Non-Condensing)

Accessories

Accessories ■ USB 3.0 type-C cable for terminal & 1-slot cradle (PN#1550-905908G)
■ Quick charge Adaptor with US plug for terminal & 1-slot cradle (PN#1010-900073G)
■ Quick charge Adaptor with EU plug for terminal & 1-slot cradle (PN#1010-900062G)
■ hand strap (PN#5400-900052G)
■ Boot case (PN#3210-900040G)
■ 9H glass screen protector ( PN#5400-900062G, 10pcs with Packing )
■ Battery 3.87V 5000mAh (PN#1400-900074G)
■ Stylus ( 5.5mm #386534G)
■ Coiled strap (PN# 383642G)
■ Standard gun grip (PN# 5500-900108G)
■ RP902 Bluetooth UHF RFID Pocket Reader (PN# RP902-33E8S0G (EU) / RP902-43A8S0G (US) / RP902-43F8S0G (JP)
■ Single Slot Charging Cradle *(PN#5000-900129G)
■ Single Slot USB Cradle *(PN#5000-900130G)
■ Single Slot Ethernet Cradle *(PN#5000-900131G)
* Use USB Cable & Power Adapter from EA660
■ 5-Slot Terminal Charging Cradle(PSU Only) (PN#5000-900132G)
■ 5-Slot Ethernet Cradle(PSU Only) (PN#5000-900134G)
■ 4-Terminal+ 4-battery Charging Cradle(PSU Only) (PN#5000-900133G)
■ 4-slot battery charger(PSU Only) (PN#5100-900037G)
■ Power supply for Multi-Slot Cradle (PN#1010-900068G)
■ 3-Pin Power Cord (UK) PN#1550-602689G
■ 3-Pin Power Cord(EU) PN#1550-602333G
■ 3-Pin Power Cord(US) PN#1010-601551G
* Fit the EA660 with and without the boot on

What comes in the box

The standard package contents ■ EA660 Terminal
■ Battery
■ USB 3.0 Cable (Type C)
■ Adaptor (US or EU plug)
The basic package contents ■ EA660 Terminal
■ Battery

Regulatory Approvals

Regulatory Approvals CE, UKCA, FCC, IC, NCC, VCCI, TELEC, CCC, SRRC, RoHS, BQB, N-Mark

Warranty

Hardware Warranty 12 months
Statement This product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
