Powered by Android 4.4 OS, the HT1 is a pocket-sized mobile computer with superior data collection solution, suitable for a wide range of applications including retail, transportation, and warehousing
Features
• 2” ergonomic handheld terminal with Android 4.4 operating system
• Integrated superior 1D CCD (HT1 1D Batch), 1D/2D (HT1 2D) barcode imaging technology
• Ergonomic design for one-handed operation, 30 degree scanning tilt
• Support 12Management and MoboLink, Airwatch, SOTI (HT1 2D version)
• Built in Robust Pogo pins and Micro USB (Support OTG)
• WLAN IEEE 802.11 a/b/g/n (HT1 2D version)
• Rugged Construction: IP54 rated and 1.5M drop certified
★This product has reached its End of Sale.
To explore our latest products, please visit :
https://www.ute.com/en/products/category/MobileComputers/HandheldTerminals
Compact Pocket-Sized Design
Coming with intelligent imaging technology for high-performance scanning, the HT1 ensures read reliability for mobile phone screens and paper in any orientation. Running with Android 4.4 operating system, HT1 has a 2-inch LCD display that supports 240x320 pixel resolutions, allowing users to get feedback of the scanned information immediately. Base on its pocket-sized design for one-handed operation, it is highly portable with simple keyboard layout that is easy to carry around and easier typing. HT1 is an ideal tool
to automate the capture of inventory data and allows user to take action quickly and accurately.
Reliable and Durable
Engineering with industrial materials, HT1 is rugged enough to withstand multiple 5 feet drop to concrete and equipped with IP54 environmental seal against water and dust. Featuring a great adaptable design, the device provides multiple wireless communications such as Wi-Fi and wireless LAN a/b/g/n radio (HT1 2D version) that ensures seamless wireless data transmission and real-time collections to back-end system. Combing with multi-functionality and lightweight design, unitech HT1 perfectly reflects its high performance at a best available price.
Versatile MDM solutions (HT1 2D version)
It also supports Mobile Device Management (MDM) solutions, users can easily remote to set up, update, monitor and troubleshoot all of your devices. It is ideal for use to do garment processing, food order taking, logistics controlling and inventory management. Combing functionality with durable design, the unitech HT1 provides the power for enterprise to streamline business processes and increase productivity and efficiency in all data collection applications.
Specification
Operation System
- OS Android 4.4
- CPU 1.2GHz, Freescale iMx6
- Memory 1GB RAM / 4GB Flash
-
Languages support
English, Simplified Chinese, Traditional Chinese,
Japanese, Spanish, German, French, and multiple languages - Others Input Chinese/ English
Display
- Screen Size 2 inch TFT (240x 320) color screen
-
Touch Panel
Transflective TFT screen ;
With screen backlight adjustment
Buttons / Keypad
- Buttons / Keypad 10 numeric keys, scan keys, Alpha / Power (on/off) / Enter key, 4 function keys
Indicator Type
- Type LEDs, Vibrator
Symbologies
- 1D Barcodes 1D : All major codes
-
2D Barcodes
2D : PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX)
30 degree scanning tilt.
I/O Interfaces
- USB Micro USB connector
- OTG Yes, over Micro USB
- POGO PIN POGO pin
- Audio Speaker & MIC
Power Source
-
Main battery
Li-ion battery 1100mAh / 4540mAh (Option)
Detachable with back cover all in one
Communication
- WLAN IEEE 802.11 a/b/g/n
Software
- Azure Azure Certified
Enclosure
- Dimensions ( W x H x D ) 147.8mm x 53.8mmx 30.31mm
- Weight 170g
Durability
- Drop Specification 1.5m
- Sealing IP54
- Tumble test Tumble 600 times (1.6 ft./0.5 m)
Environmental
- Operating temperature -10°C~50°C
- Storage temperature -30°C to 70°C
- Relative Humidity 20% ~ 85% ( non-condensing )
Accessories
-
Accessories

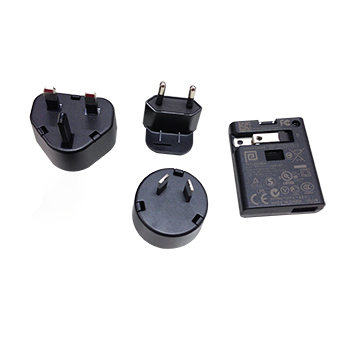

■Power Adaptor with universal plugs
(PN#1010- 900026G (global)/PN#1010- 900027G (China))
■Power adapter (PN#1010-900014G)
■Micro USB_Charging_Communication_Cable (PN#1550-900082G)

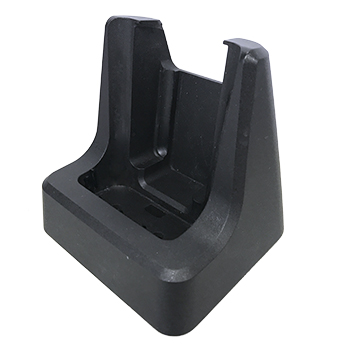

■Single Slot cradle (PN#5000-900036G)

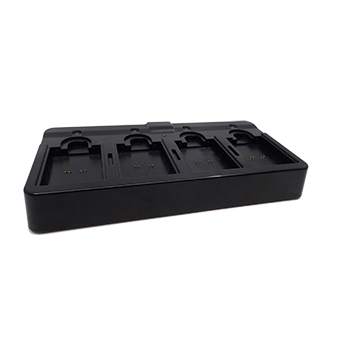

■4-Bay Battery Charger (PN#5100-900016G)

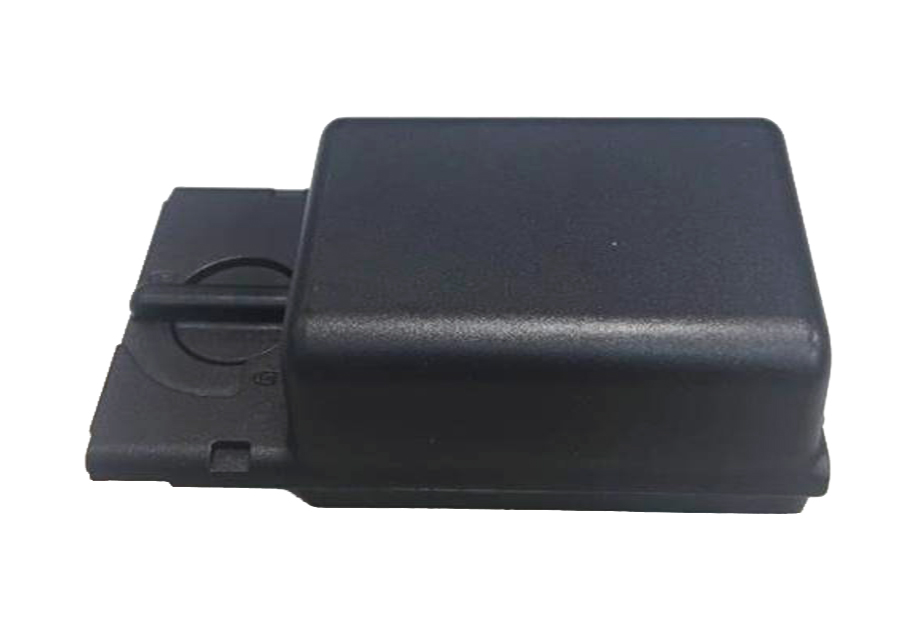

■Double Battery (PN#1400-900045G)

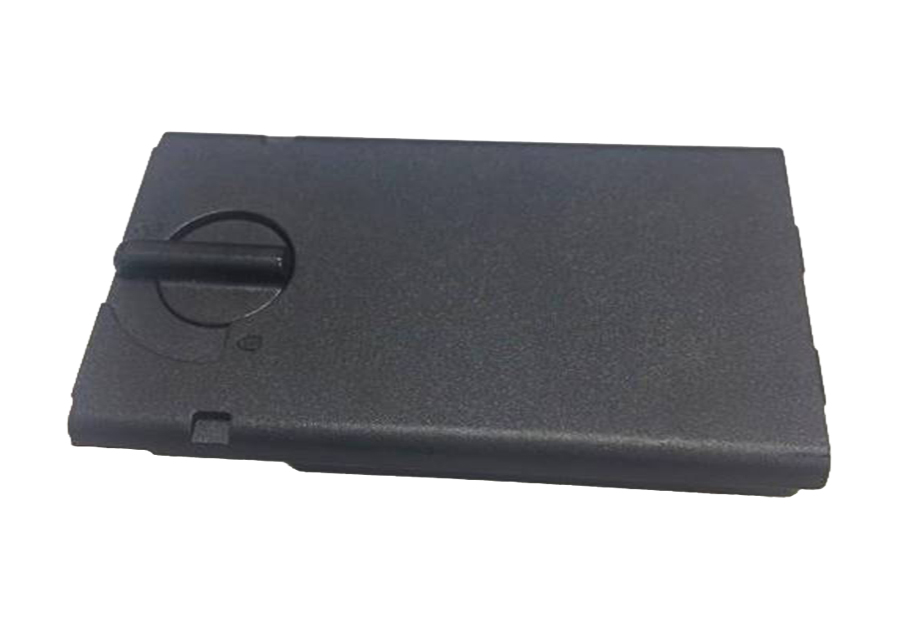

■Standard Battery (PN#1400-900044G)
■Wrist Lanyard (PN#385892)
■HT1 4-slot Cradle Adapter (PN#1010-900043G)

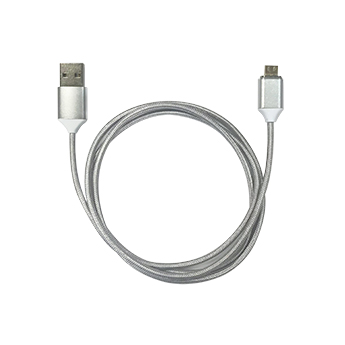

■Magnetin cable(PN#1550-900109G)
What comes in the box
-
The standard package contents
■ HT1 Terminal
■ Wrist Lanyard
■ Single Slot Cradle + Cradle Adaptor -
The basic package contents
■ HT1 Handheld Computer
■ Wrist Lanyard
■ Plugs + Adaptor
Regulatory Approvals
- Regulatory Approvals CE, FCC, BSMI, PSE
Warranty
- Hardware Warranty 15 months
