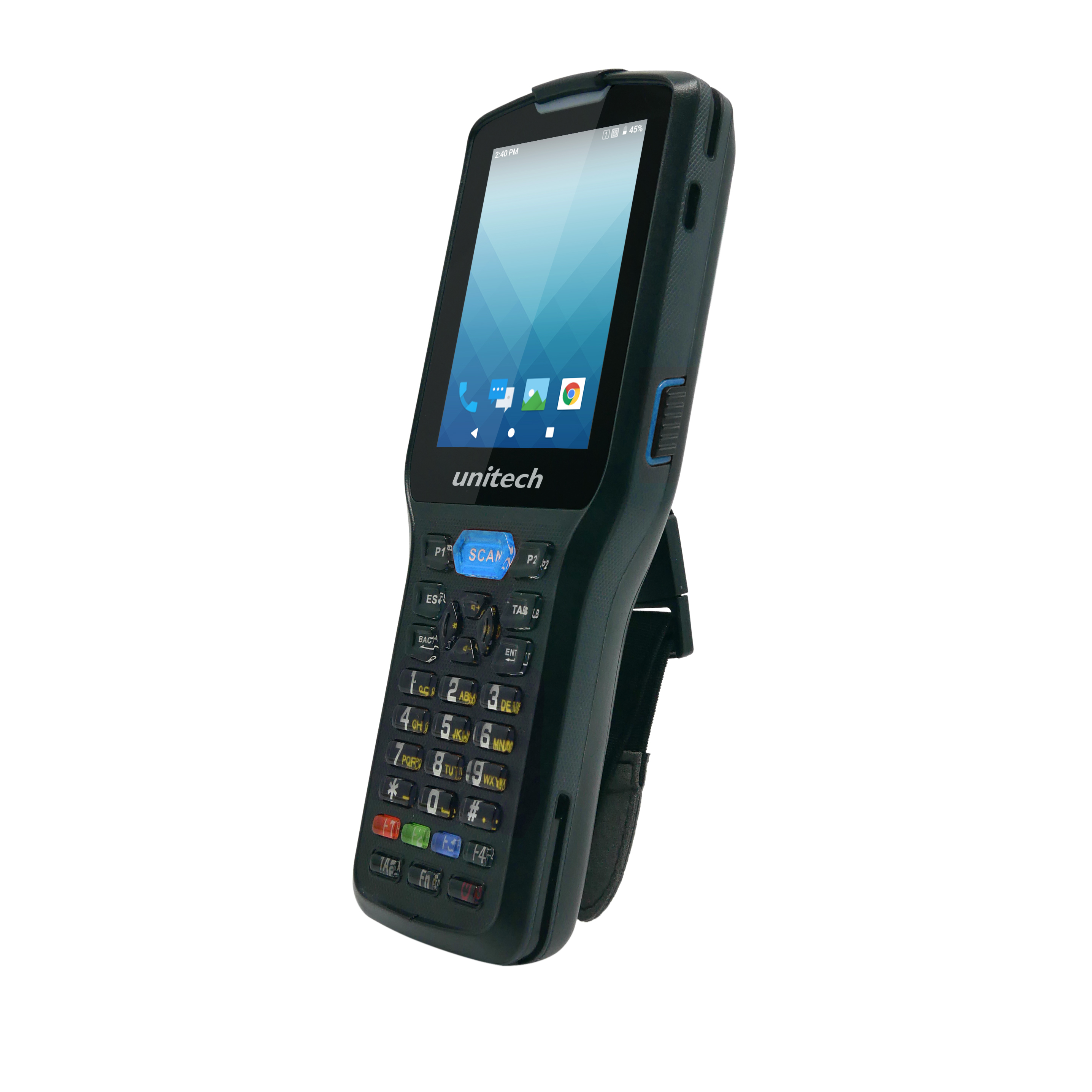

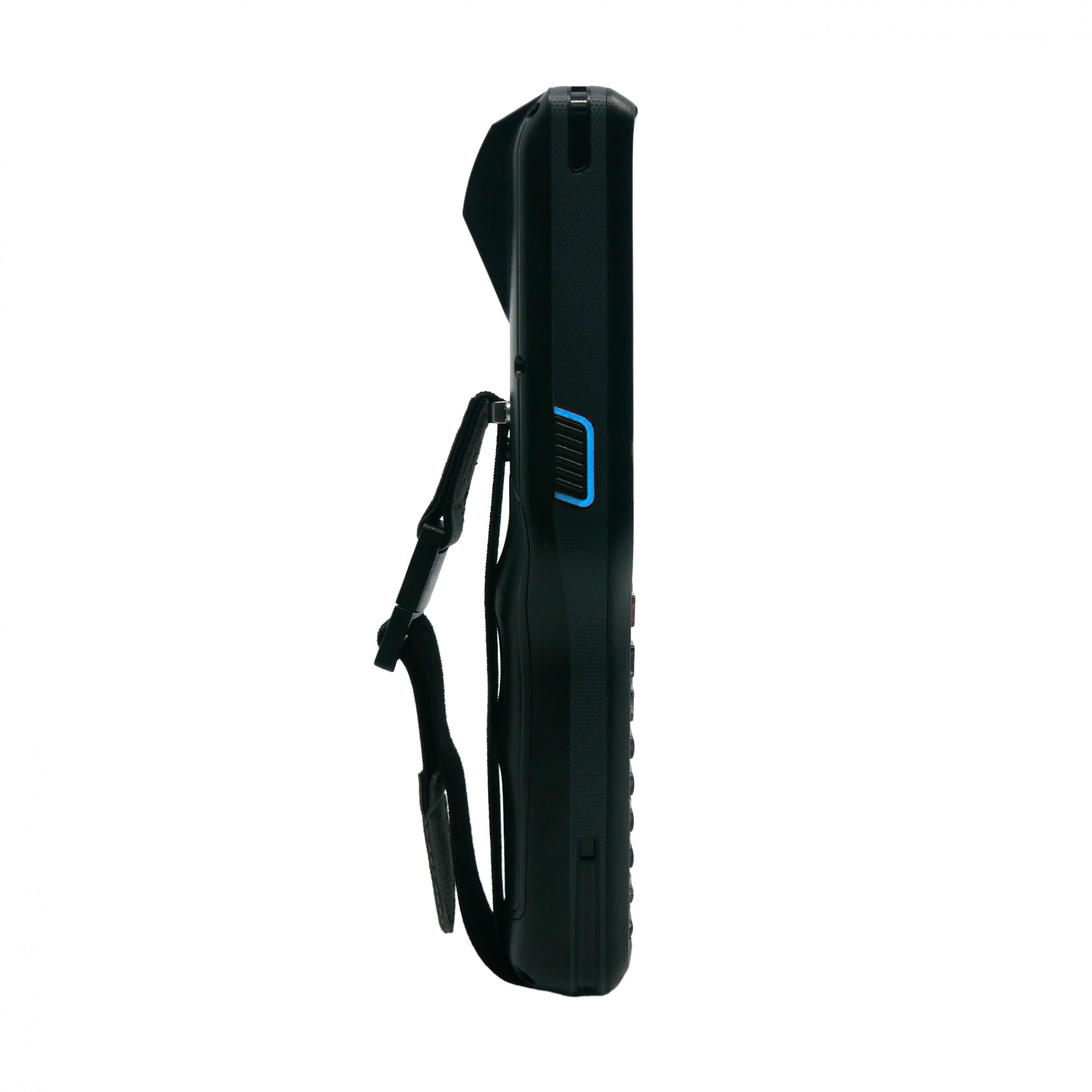

HT380

Rugged Handheld Terminal

Powered by Android 9 OS, HT380 is a durable handheld terminal with 32 key keypad.

  • Android 9

  • 2D

  • NFC

  • 3.2"

  • Keypad

  • Type-C

  • Wi-Fi

  • 8MP

  • IP65

  • 1.5 m

  • Bluetooth

  • Retail

  • Warehousing

  • Manufacturing

Offering the latest OS of Android 9, one-handed easy operation and ergonomic keypad design, a long-running 4500mAh battery, the unitech HT380 is a versatile handheld terminal with superior data collection solutions that increases your efficiency in the workplace, suitable for a wide range of applications in manufacturing, retail and inventory management in warehousing.


Features

 •   Android 9 OS with 1.4GHz octa-core processor

 •   Lightweight and ergonomic one-handed operation

 •   Superior 2D scanning performance: Support 45-degree scanning tilt down
 •   Support Bluetooth® 4.2 and IEEE 802.11  a/b/g/n/ac/d/e/h/i/k/r/v/w dual-band standards
 •   Rechargeable and swappable 4500mAh battery for full-day operation
 •   Durable keypad: 32-keys with 2.5 million lifetime clicks and backlight design
 •   IP65 rated and 1.5m drop specification.



★This product has reached its End of Sale.
To explore our latest products, please visit :
https://www.ute.com/en/products/category/MobileComputers/HandheldTerminals

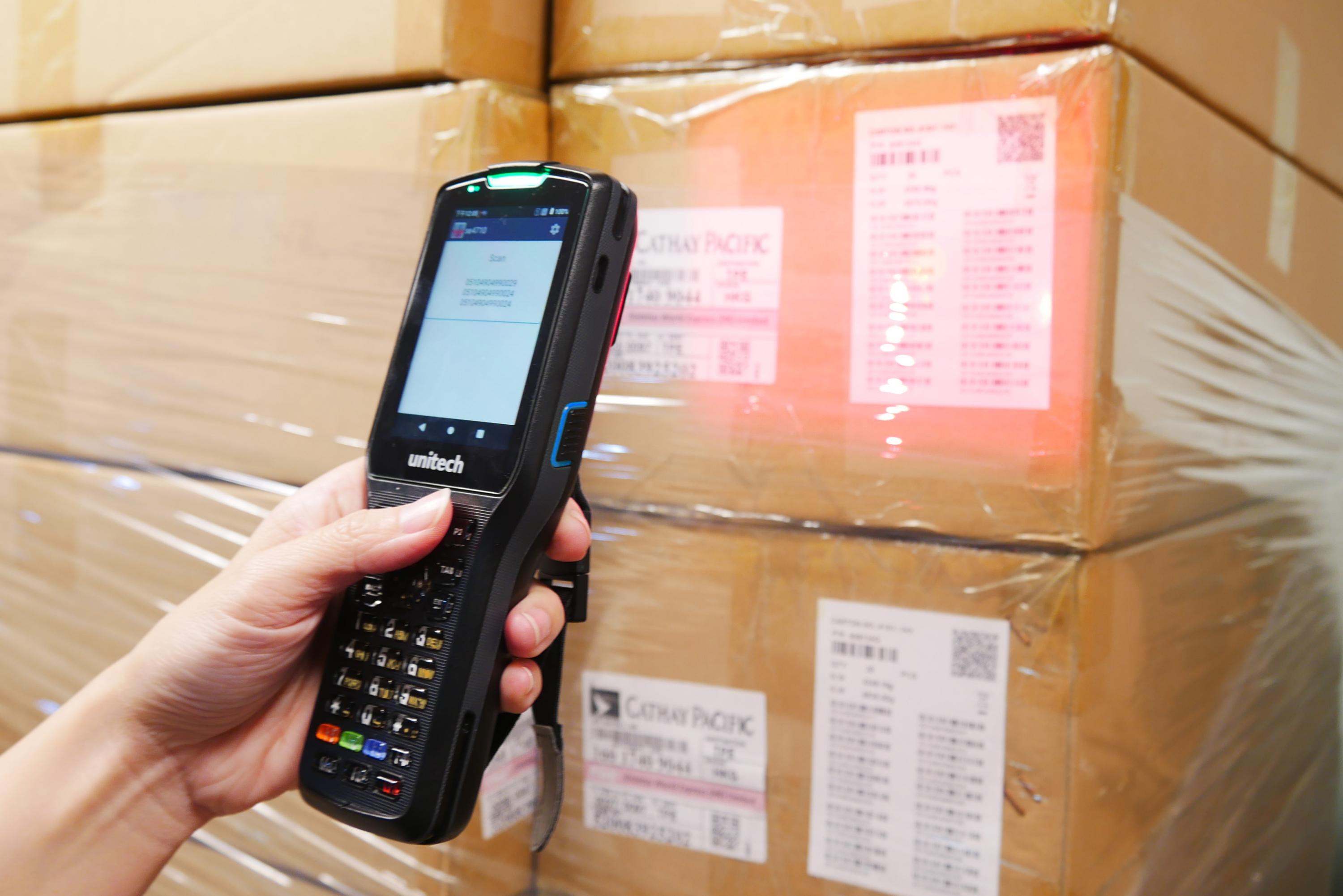

Intelligent Imaging Technology

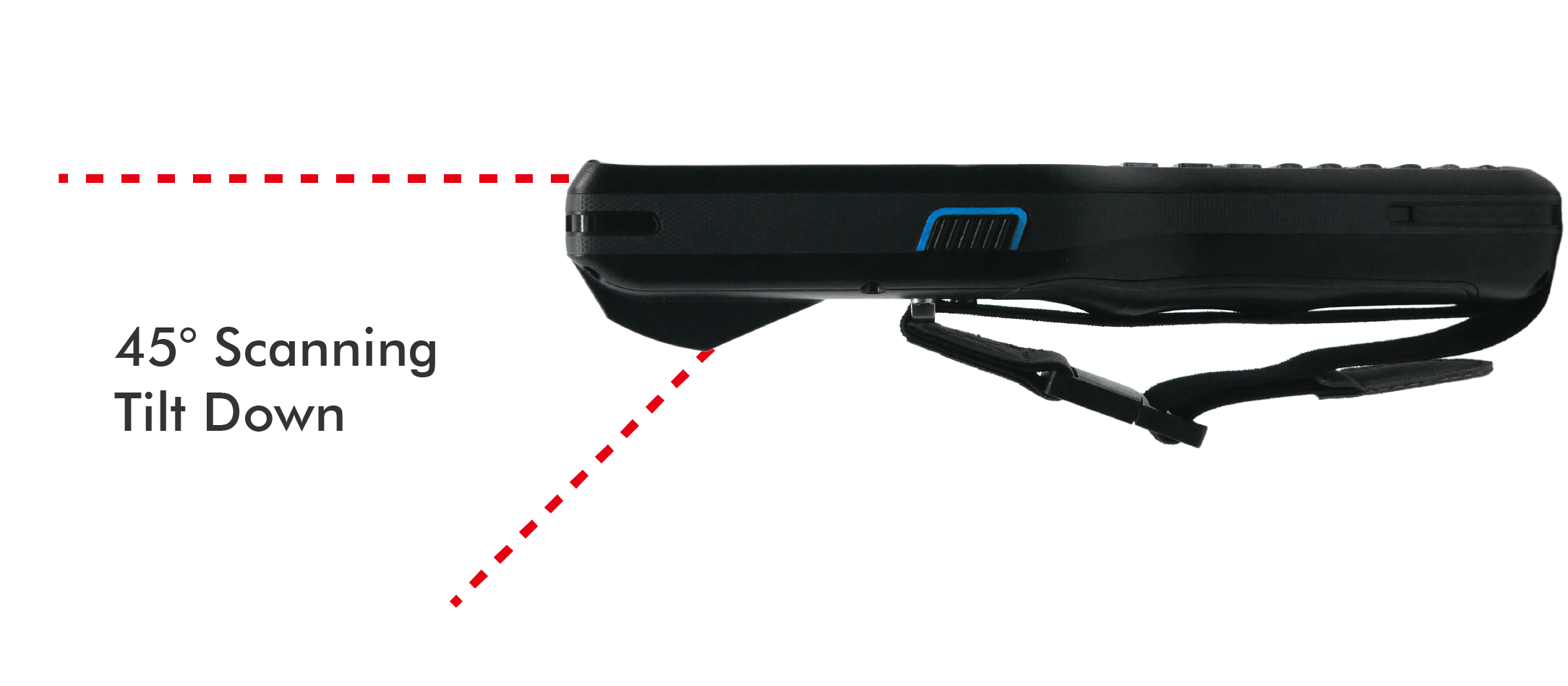

Running with Android 9 OS with Qualcomm octa-core CPU, the HT380 is built in a 3.2 inch display for users to check feedback of the scanned information.  Coming with a superior 2D scanning performance, the HT380 offers 45 degree scanning tilt down design and it’s available to capture barcodes from near contact to farther than 60cm away.




45°
Scanning tilt down		 3.2”
Display		 400 nits
Brightness		 32
keys

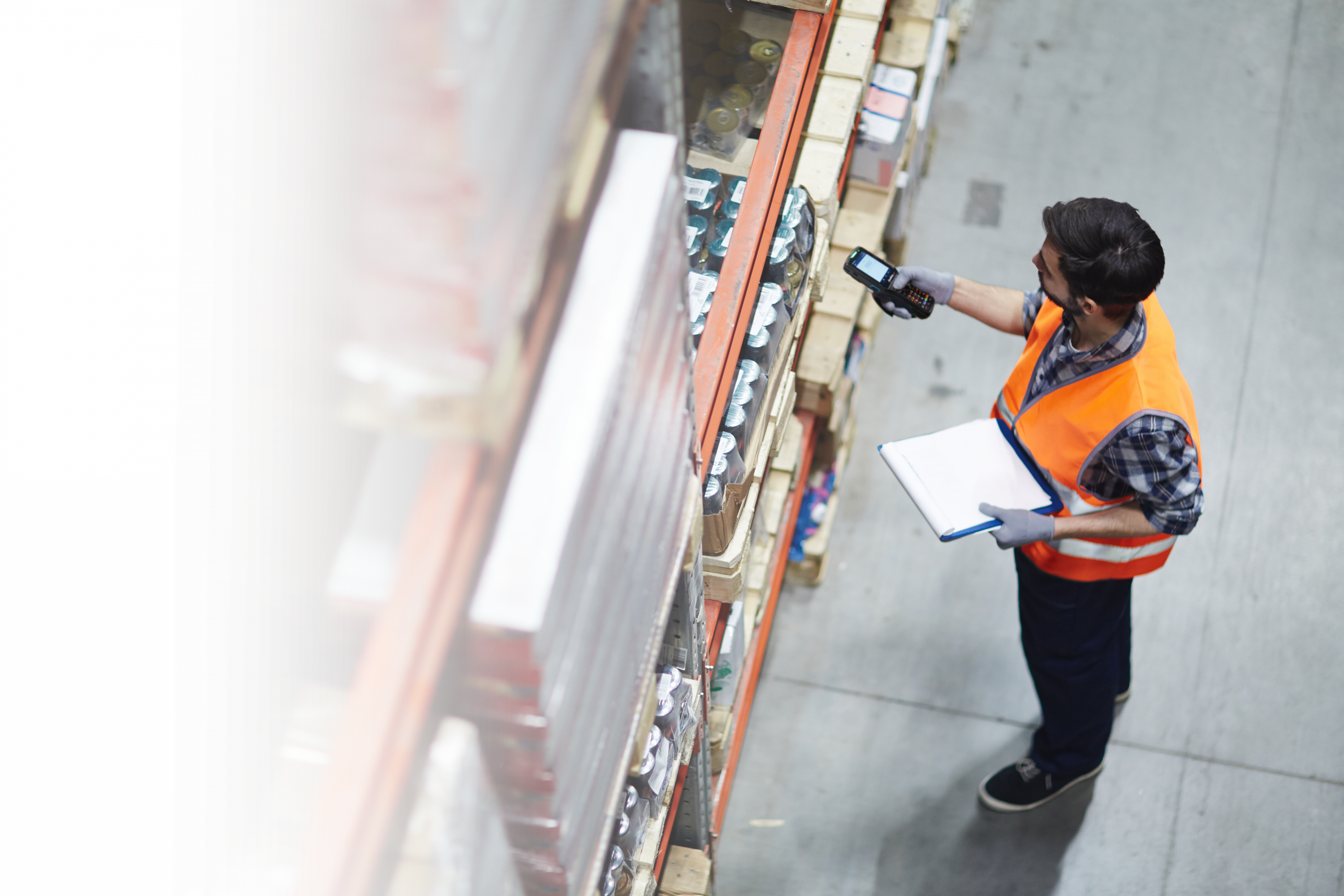

Ergonomic One-handed Operation


Base on its ergonomic and lightweight design for one-handed operation, it is suitable to automate the capture of inventory
data and allows users to take action quickly and accurately.


Easy
Operation Design		 304 g

Lightweight

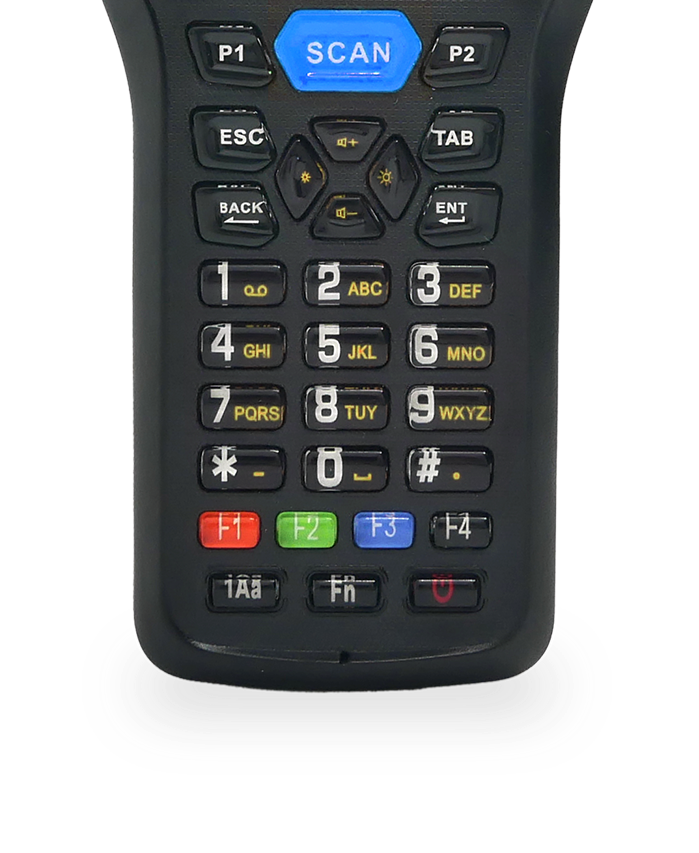

Durable Keypad




Another special feature of keypad is the backlight design, providing users with enhanced key locations in a dark environment. Moreover, the keypad has 2.5 million lifetime clicks and equipped with special silicon materials and PU coating, providing long term abrasion protection.


  32
Keys		 2.5 Million

Lifetime

 Backlight

Design

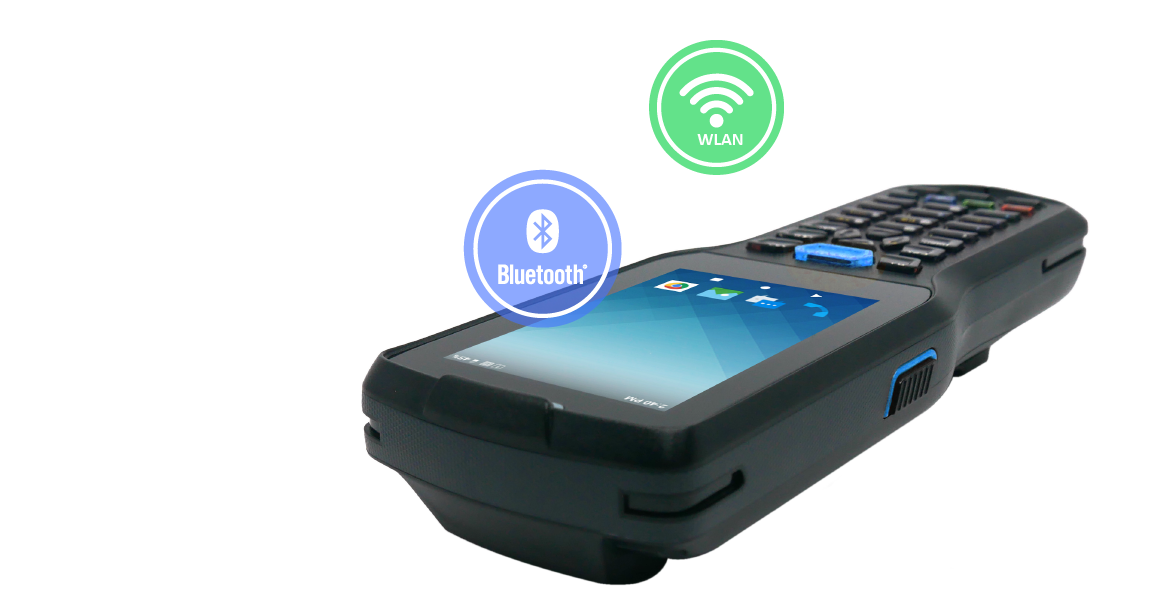

Wireless Communication



It also supports Bluetooth® 4.2 and 802.11  a/b/g/n/ac/d/e/h/i/k/r/v/w dual band standards, allowing enterprises to develop applications or connect to the back-end host to make the database easier, more immediate and more accurate. Furthermore, it has an 8MP camera that gives an easy way for enterprises to proof of delivery or shipment issues.



Bluetooth® 4.2

WLAN
dual bands

8 MP
Camera

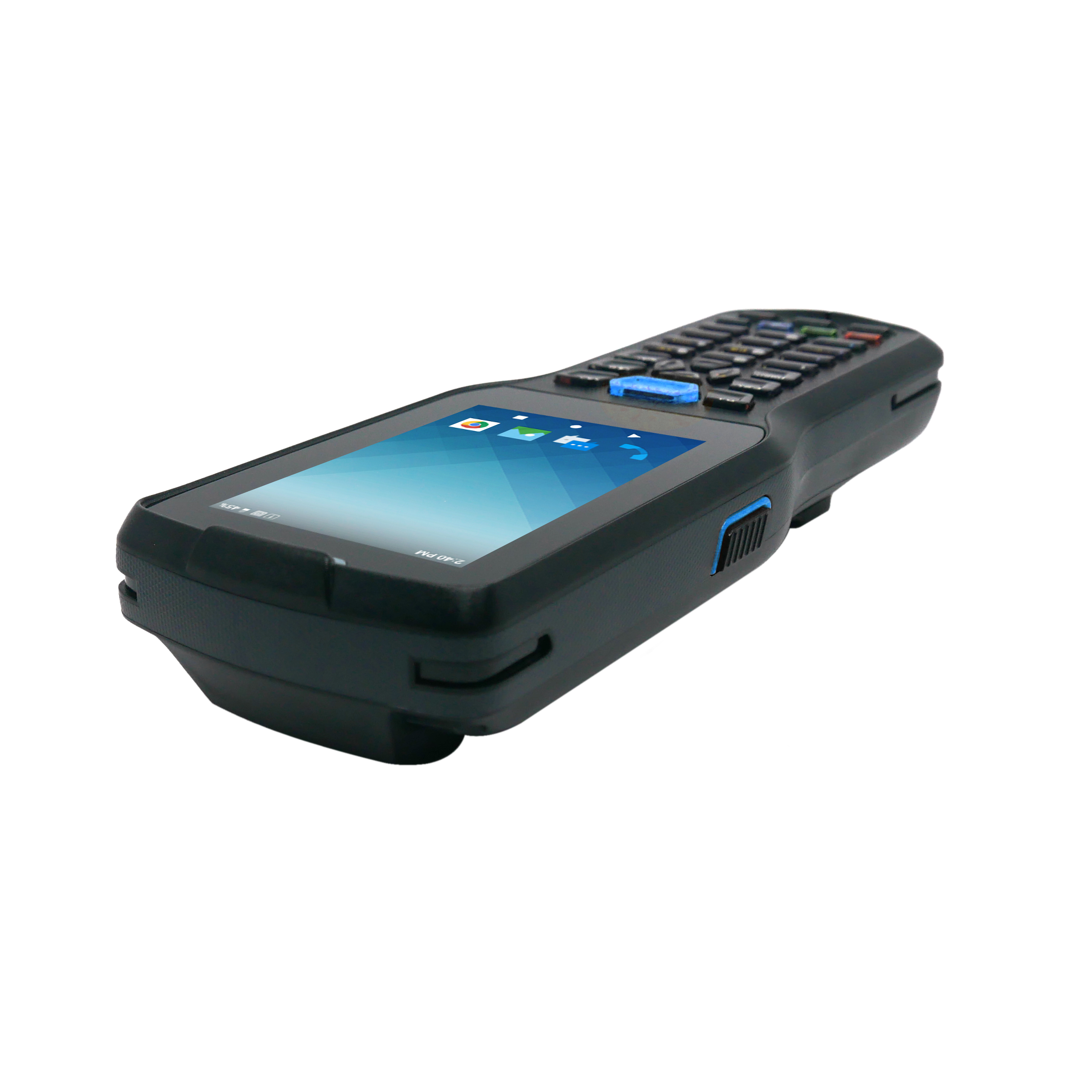

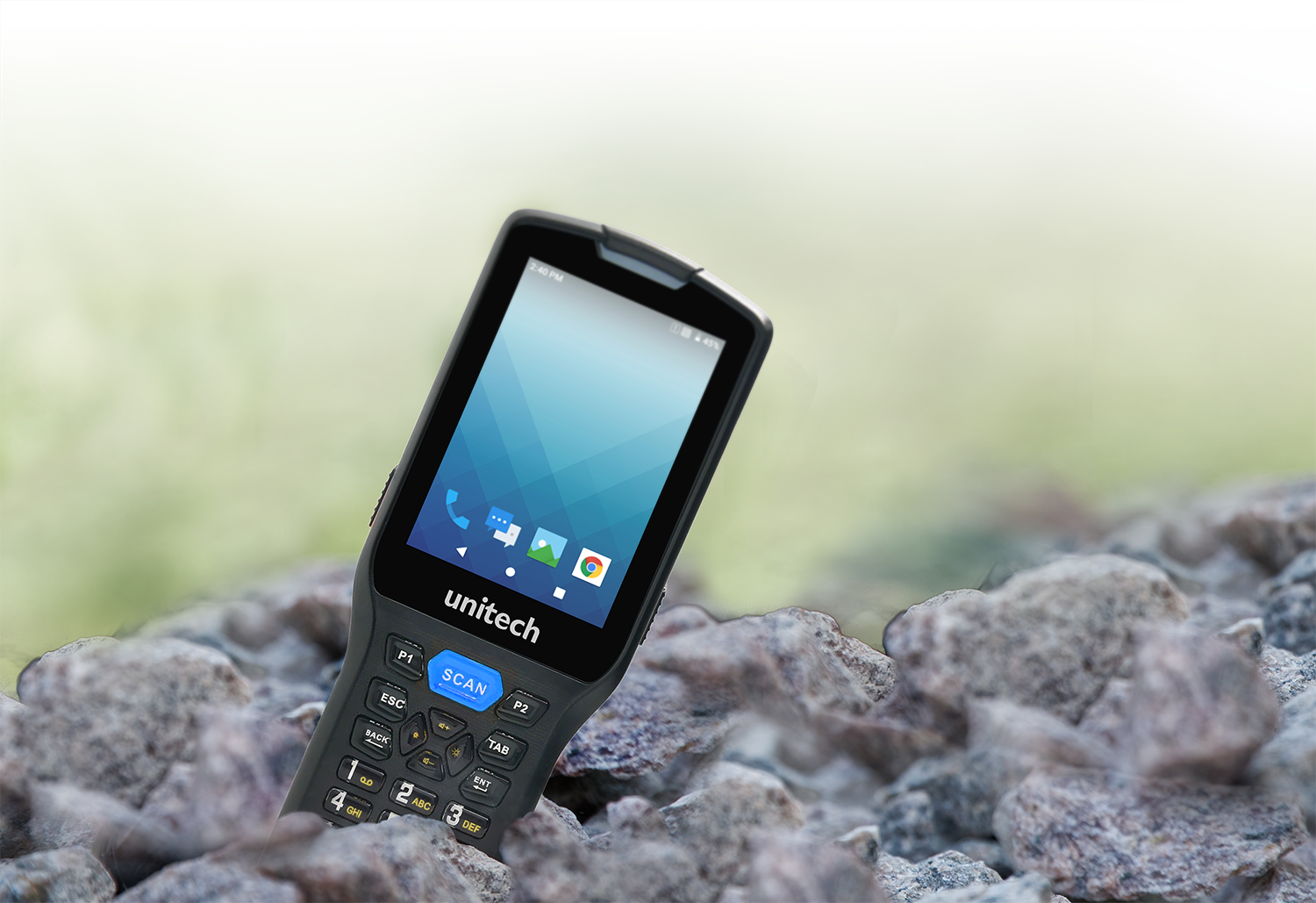

Durable Design



Designed for the harsh environments, HT380 is rugged enough to withstand multiple 1.5 meters drop to concrete and built with IP65 environmental seal against water and dust.


IP65
Rating		 1.5 m
Drop Protection


Suitable for Industrial Applications



Delivering a 4500mAh changeable battery for business full-day operation, the HT380 is the ideal tool to increase productivity and efficiency in all data collection applications. It is a versatile handheld terminal with superior data collection solutions that increases your efficiency in the workplace, suitable for a wide range of applications in manufacturing, retail and inventory management in warehousing.



Specification

Operation System

  • OS Android 9
  • CPU Octa-core 1.4GHz, Qualcomm 435 (MSM 8940)
  • Memory 2GB DDR3 RAM / 16GB ROM Flash
  • Languages support Multi-languages

Display

  • Screen Size 3.2”IPS HVGA(480x320) color screen (400 nits)
  • Touch Panel Ultra sensitive capacitive touch screen, compatible with gloves and support wet resistance (Gorilla 3 glass)

Buttons / Keypad

  • Buttons / Keypad SCAN button x 3, 0-9, Up, down, Right, Left, ESC, TAB, BACK, BS, _, , , P1, P2, Alpha, Fun, F1-F4, Power

Camera

  • Camera 8MP rear camera
    with LED flash and auto-focus function

Indicator Type

  • Type LED, Speaker, Vibrator

Symbologies

  • 1D Barcodes Support all major 1D barcodes
  • 2D Barcodes Support all major 2D barcodes

RFID

  • HF RFID Frequency 13.56Mhz
    ISO14443A/B, ISO15693 standard, NFC, MIFARE, Felica

I/O Interfaces

  • USB USB Type-C
  • OTG Yes, over USB Type-C
  • POGO PIN Charge only
  • Expansion Slot Micro SD/TF x 1(maximum of 128 GB)

Power Source

  • Main battery Rechargeable 3.85V,
    4500mAh Li-ION battery

    Operating time : 10-12 hours
    (depending on the specific environment)

    RTC battery : RTC backup only

Communication

  • Bluetooth® Bluetooth® 4.2
  • WLAN 802.11 a/b/g/n/ac/d/e/h/i/k/r/v/w
  • GPS GPS, GLONASS, Galileo, BeiDou

Enclosure

  • Dimensions ( W x H x D ) 182.6 mm x 64.5 mm x 34 mm
  • Weight 304g (with battery)

Durability

  • Drop Specification 1.5m
  • Sealing IP65
  • Tumble test Tumble 600 times (1.6 ft./0.5 m)

Environmental

  • Operating temperature -20°C to +50°C
  • Storage temperature –30°C to +60°C
  • Charging temperature 0°C to 45°C
  • Relative Humidity 5% ~ 95% (non-condensing)

Accessories

  • Accessories ■ Type-C Cable (PN#1550-900112G)
    ■ Single-slot cradle with a battery charger(PN#5000-900066G)
    ■ Adapter (PN#1010-900052G)
    ■ Li-ON Battery (PN#1400-900058G)
    ■ 3 Pins Power Cord(US) (PN#1010-601551G)
    ■ 3 Pins Power Cord(EU) (PN#1550-602333G)
    ■ 3 Pins Power Cord(UK) (PN# 1550-602689G)
    ■ HT380 hand strap (PN#385955G)
    ■ HT380 battery cover(PN#385949G)

Regulatory Approvals

  • Regulatory Approvals CE, RED, FCC, NCC, VCCI, BSMI

Warranty

  • Hardware Warranty 15 months

Accessories

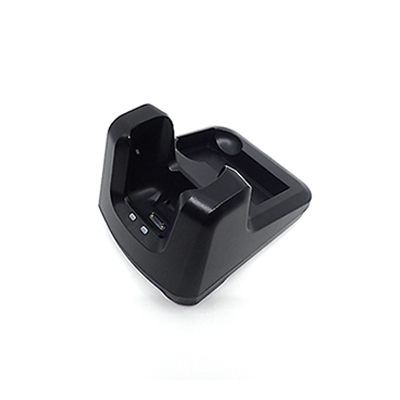

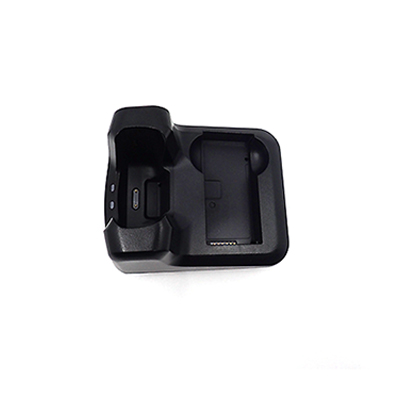

Single-slot cradle with a battery charger

PN#5000-900066G

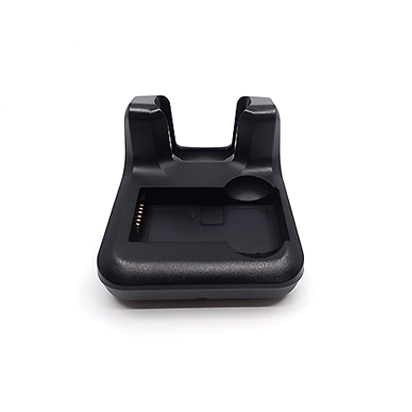

Single-slot cradle with a battery charger

PN#5000-900066G

Single-slot cradle with a battery charger

PN#5000-900066G

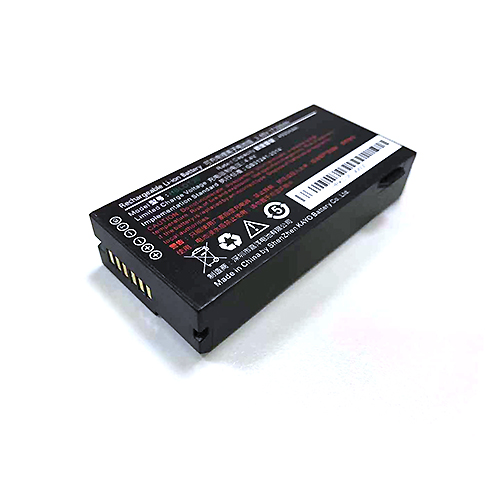

Li-iON Battery

PN#1400-900058G

Power Supply for Cradle

PN#1010-900052G

USB type C cable

PN#1550-900112G

3 Pins Power Cord(US)

PN#1010-601551G

3 Pins Power Cord(EU)

PN#1550-602333G

3 Pins Power Cord(UK)

PN# 1550-602689G

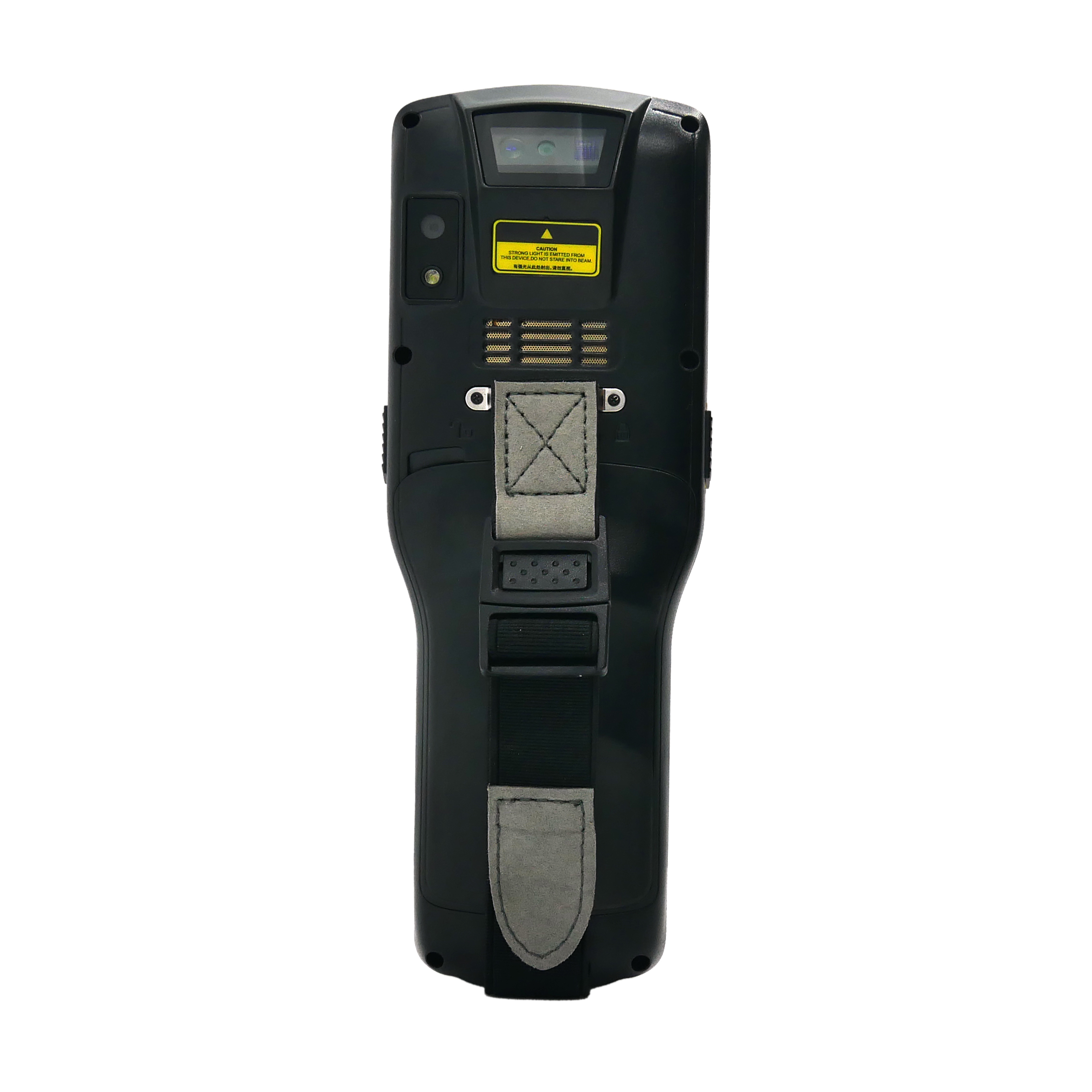

HT380 hand strap

PN#385955G

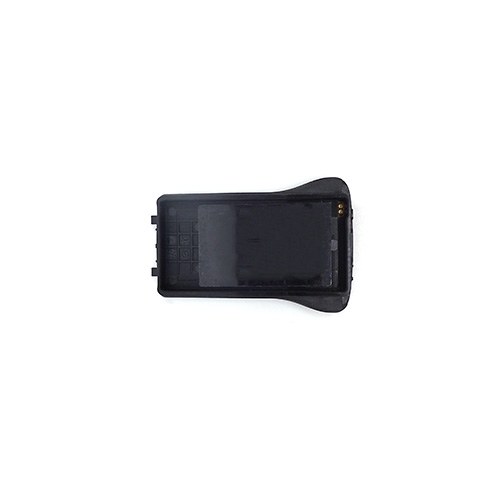

HT380 battery cover

PN#385949G
