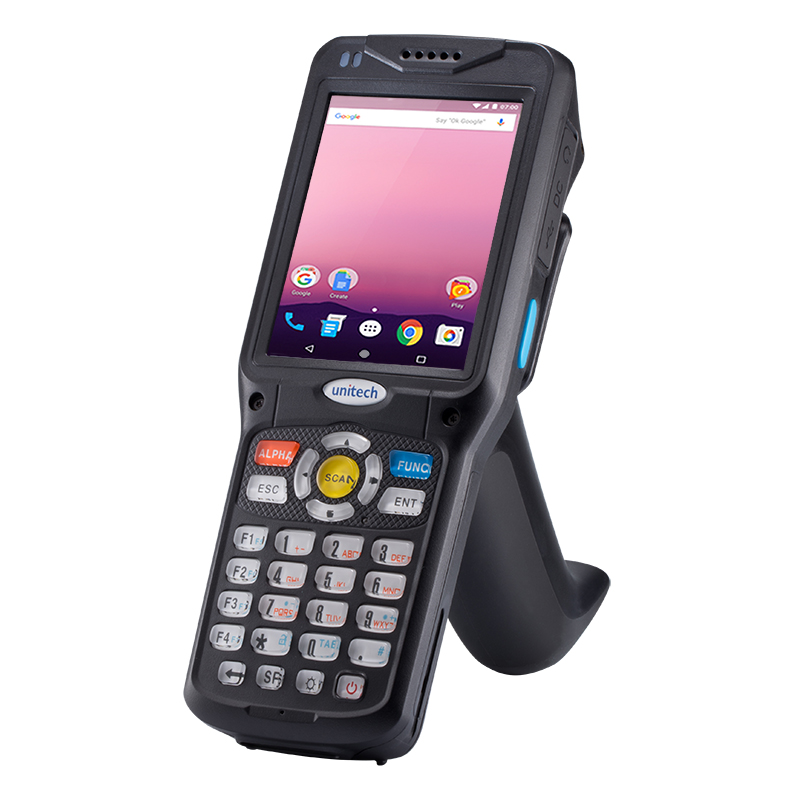

HT510 features an easy-to-operate, large-button design with bar code and RFID data collection that makes it easy for users to get the job information they need.
Features
• Android 7.0
• Large keyboard design, one-handed operation
• IP65 dustproof, waterproof and 1.5 meters resistant to fall protection
• WIFI wireless communication system
• Optional barcode scanning engine and UHF long-range RFID reader
★This product has reached its End of Sale.
To explore our latest products, please visit :
https://www.ute.com/en/products/category/MobileComputers/HandheldTerminals
UHF RFID Handheld Terminal for Warehousing Applications
unitech launched its HT510 handheld mobile device specifically for warehousing applications. Equipped with the intuitive and easy-to-use Android 7.1 operating system, built-in 2D barcode reading, and RFID reader, the device helps facilitate warehouse entry and exit by warehousing personnel, with automatic identification to scan the entry-exit records and the barcodes on the outer box for the goods, after which the information for the goods stocked and shipped is synchronized on the screen for confirmation to enable faster comparison, stock in, and other processes.
Ergonomic Single-Hand Holding Design with Large-Size Keyboard
The use of a large-size on-screen keyboard and an ergonomic single-hand holding design enables the users to easily pick up and quickly operate the keyboard to enter the quantity of goods for real-time recording. The system can also perform a comparison check for the storage location or items picked. Through unitech’s smart warehousing solution, employees can quickly carry out inventory checks and process stock in and shipments with fewer errors than with manual operation. This enhances the accuracy of tasks and reduces operating costs for warehousing management.
Networked transmission accurately tracks inventory status
Through wireless communication functions such as WLAN, HT510 handheld mobile computer instantly uploads stock in and shipment information to the cloud system to be saved as files. Customer orders can also be synced in real time with the warehousing system that generates a notification for warehouse picking and shipment. Such data synchronization improves the efficiency of shipment. Through the content management system, management staff can accurately track the status of inventory, including verification of numbers for inbound and outbound items, product placement, quantity of items stocked in and shipped, and so on, thus accelerating inventory processes and enabling a quick check on timing for each item in the workflow.
Durable Design
Taking into account the needs of corporate users, rigorous testing was conducted during the development of unitech’s HT510 handheld mobile device. It passed the 1.5-meter drop and IP65 dust and water resistance tests to offer corporations high durability and stability. The product also features a built-in 5-megapixel camera (with flash and autofocus function) that provides photo recording of the status of goods in storage. The HT510 also features a variety of accessories such as USB cradle, 4-slot battery charger, leather folio, and gun handle to enhance ease of operation.
Specification
Operation System
- OS Android 7
- CPU 1.45GHz Quad-Core
- Memory 2GB RAM / 16GB Flash
- Languages support Multi-languages
Display
- Screen Size 3.5" VGA (480x 640) color screen
-
Touch Panel
Capacitive touch screen ;
With screen backlight adjustment
Buttons / Keypad
- Buttons / Keypad 32 keys; large number keys, functions and direction keys
Camera
- Camera 5MP rear camera with LED flash and auto-focus function
Indicator Type
- Type LED, Speaker, Vibrator
Symbologies
-
1D Barcodes
UPC/EAN,POST, Code 128,Code 39,Code
93,Code 11,Codabar,Interleaved 2 of 5,
Discrete 2 of 5,Chinese 2 of 5,MSI,RSSI… -
2D Barcodes
2D codes:
Aztec Code, Codabar, Codablock F, Code 11,
Code 128, Code 2 of 5, Code 39, Code 93,
Data Matrix, EAN/JAN-13, EAN/JAN 8,
EAN-UCC Composite Codes, EAN-UCC
Emulation, IATA Code 2 of 5, Interleaved 2 of
5, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI,
PDF417,Postal Codes (Australian Post,British
Post, Canadian Post, China Post, Japanese
Post, Korea Post, Netherlands Post, Planet
Code, Postnet), Plessey Code, PosiCode, QR
Code, RSS Expanded, RSS Limite TCIF Linked
Code 39, Telepen, Trioptic Code, UPC-A,
UPC-E...
RFID
-
UHF RFID
Frequency: 865~868MHz, 902~928MHz
Protocol: EPC global Class 1 Gen 2 ISO 18000-6C/6B
Antenna gain: 3dbi
Output Power : 1-30dbm adjustable
Data Capture Range: 6~8 meters -
HF RFID
Frequency 13.56Mhz
ISO14443A/B, ISO15693 standard, NFC, MIFARE, Felica
I/O Interfaces
- USB MiniUSB (Support OTG)
- POGO PIN POGO pin
- Expansion Slot MicroSD x 1, up to 64GB
- Audio Built-in microphone, speaker and headphone jack
Power Source
- Main battery Main battery 3.8V 4500mAh
Communication
- WLAN IEEE 802.11a/b/g/n/ac
Software
- MDM Software MoboLink agent, ScanDMServer, SelfUpdate,StageGO,UnitechAPI,uNote,USUS,GenericUpdate,Startup,File Manager
Enclosure
- Dimensions ( W x H x D ) L192 x W73.8 x H30 mm
- Weight 385g (including standard battery)
Durability
- Drop Specification 1.5m
- Sealing IP65
Environmental
- Operating temperature -10℃~50℃
- Storage temperature -20℃~70℃
- Relative Humidity 5%~95% Non-condensing
Accessories
-
Accessories

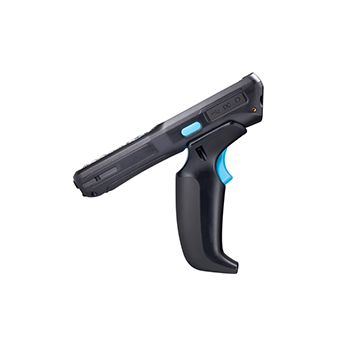

■ gungrip (PN# 5500-510001G)

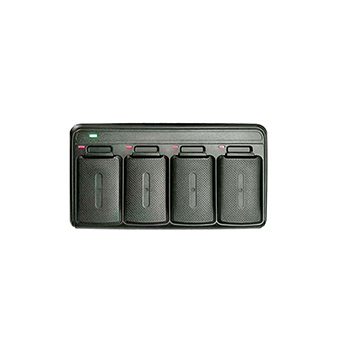

■ 4-slot Battery Charger (PN# 5100-510001G)

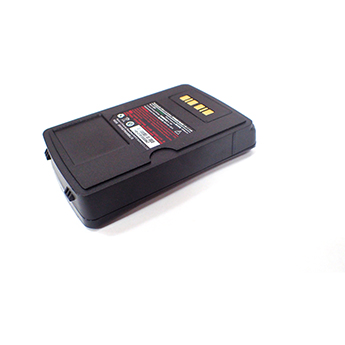

■ 4500mah Battery (PN# 1400-510001G)

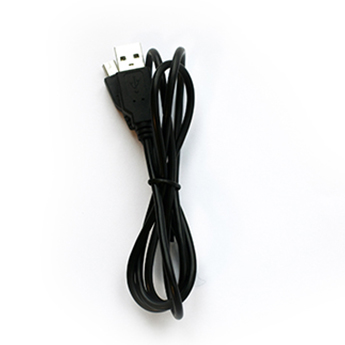

■ USB cable (PN# 1550-900057G)

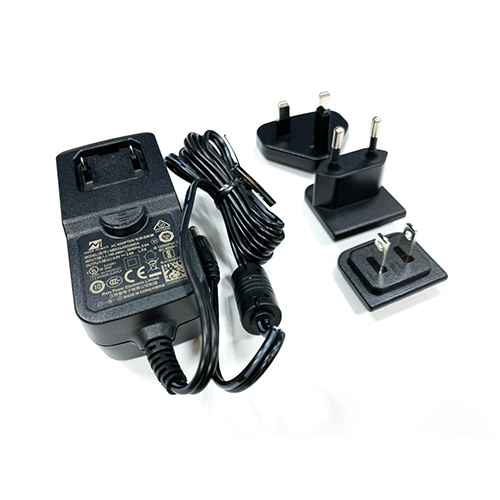

■ Power adaptor (PN# 1010-900044G)

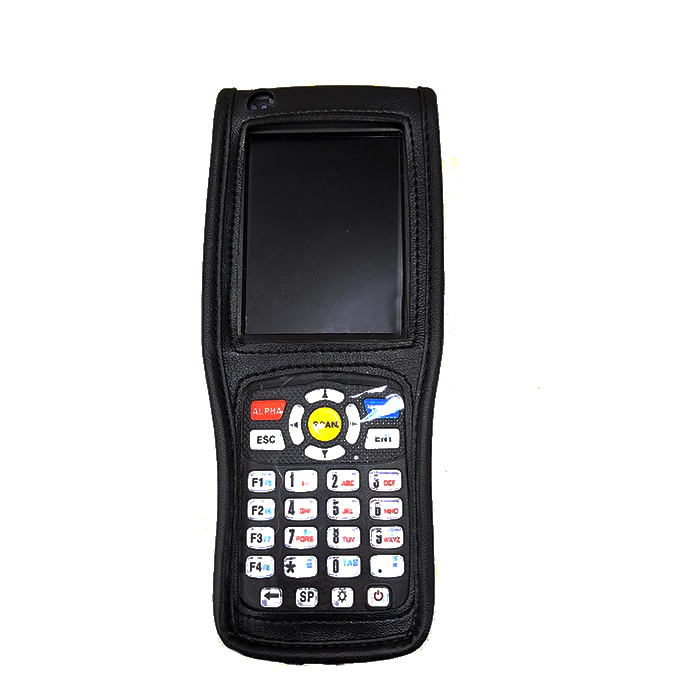

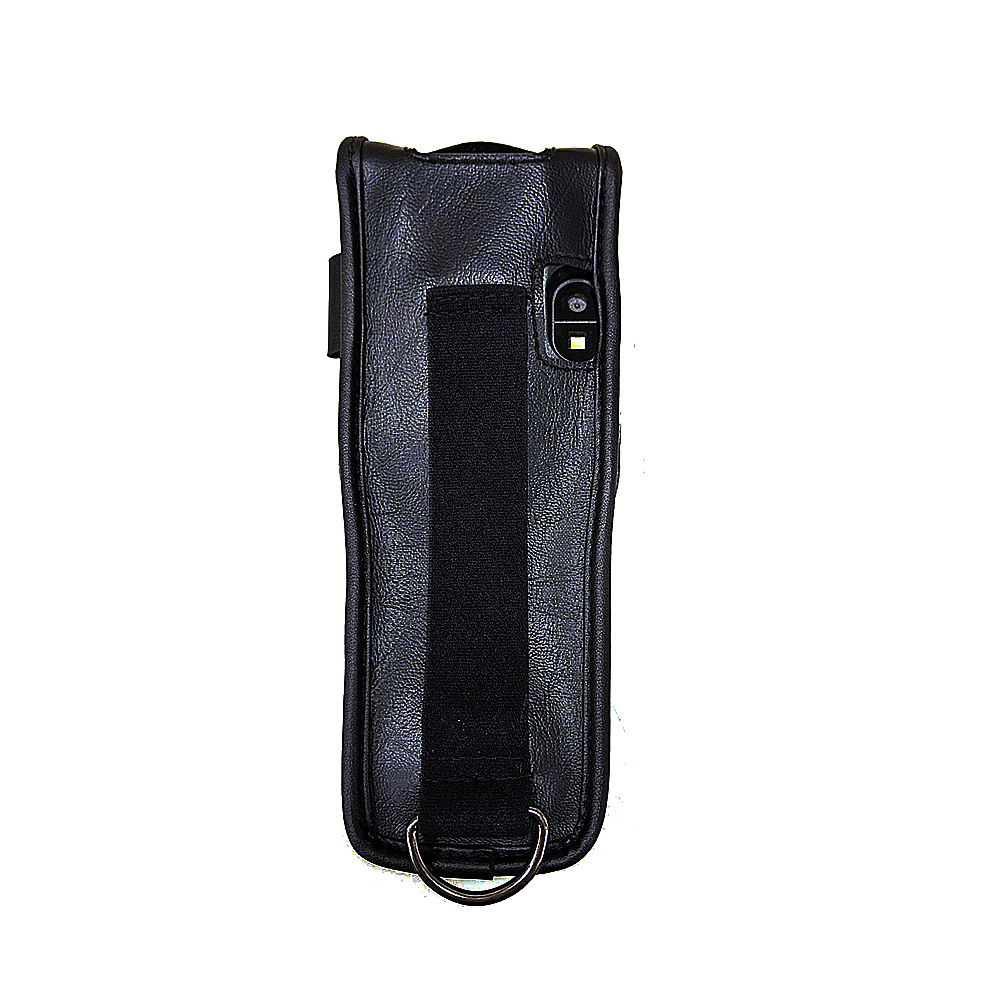

■Leather Case (PN# HT510-HOLSTER2D-TPR)
Regulatory Approvals
- Regulatory Approvals NCC, BSMI
Warranty
- Hardware Warranty 15 months
