HT510 features an easy-to-operate, large-button design with bar code and RFID data collection that makes it easy for users to get the job information they need.
Features
• Android 7.0
• Large keyboard design, one-handed operation
• IP65 dustproof, waterproof and 1.5 meters resistant to fall protection
• WIFI wireless communication system
• Optional barcode scanning engine and UHF long range RFID reader
★This product has reached its End of Sale.
To explore our latest products, please visit :
https://www.ute.com/en/products/category/RFID/Mobile_Readers
UHF RFID Handheld Terminal for Warehousing Applications
unitech launched its HT510 handheld mobile device specifically for warehousing applications. Equipped with the intuitive and easy-to-use Android 7.1 operating system, built-in 2D barcode reading, and RFID reader, the device helps facilitate warehouse entry and exit by warehousing personnel, with automatic identification to scan the entry-exit records and the barcodes on the outer box for the goods, after which the information for the goods stocked and shipped is synchronized on the screen for confirmation to enable faster comparison, stock in, and other processes.
Ergonomic Single-Hand Holding Design with Large-Size Keyboard
The use of a large-size on-screen keyboard and an ergonomic single-hand holding design enables the users to easily pick up and quickly operate the keyboard to enter the quantity of goods for real-time recording. The system can also perform a comparison check for the storage location or items picked. Through unitech’s smart warehousing solution, employees can quickly carry out inventory checks and process stock in and shipments with fewer errors than with manual operation. This enhances the accuracy of tasks and reduces operating costs for warehousing management.
Networked transmission accurately tracks inventory status
Through wireless communication functions such as WLAN, HT510 handheld mobile computer instantly uploads stock in and shipment information to the cloud system to be saved as files. Customer orders can also be synced in real time with the warehousing system that generates a notification for warehouse picking and shipment. Such data synchronization improves the efficiency of shipment. Through the content management system, management staff can accurately track the status of inventory, including verification of numbers for inbound and outbound items, product placement, quantity of items stocked in and shipped, and so on, thus accelerating inventory processes and enabling a quick check on timing for each item in the workflow.
Durable Design

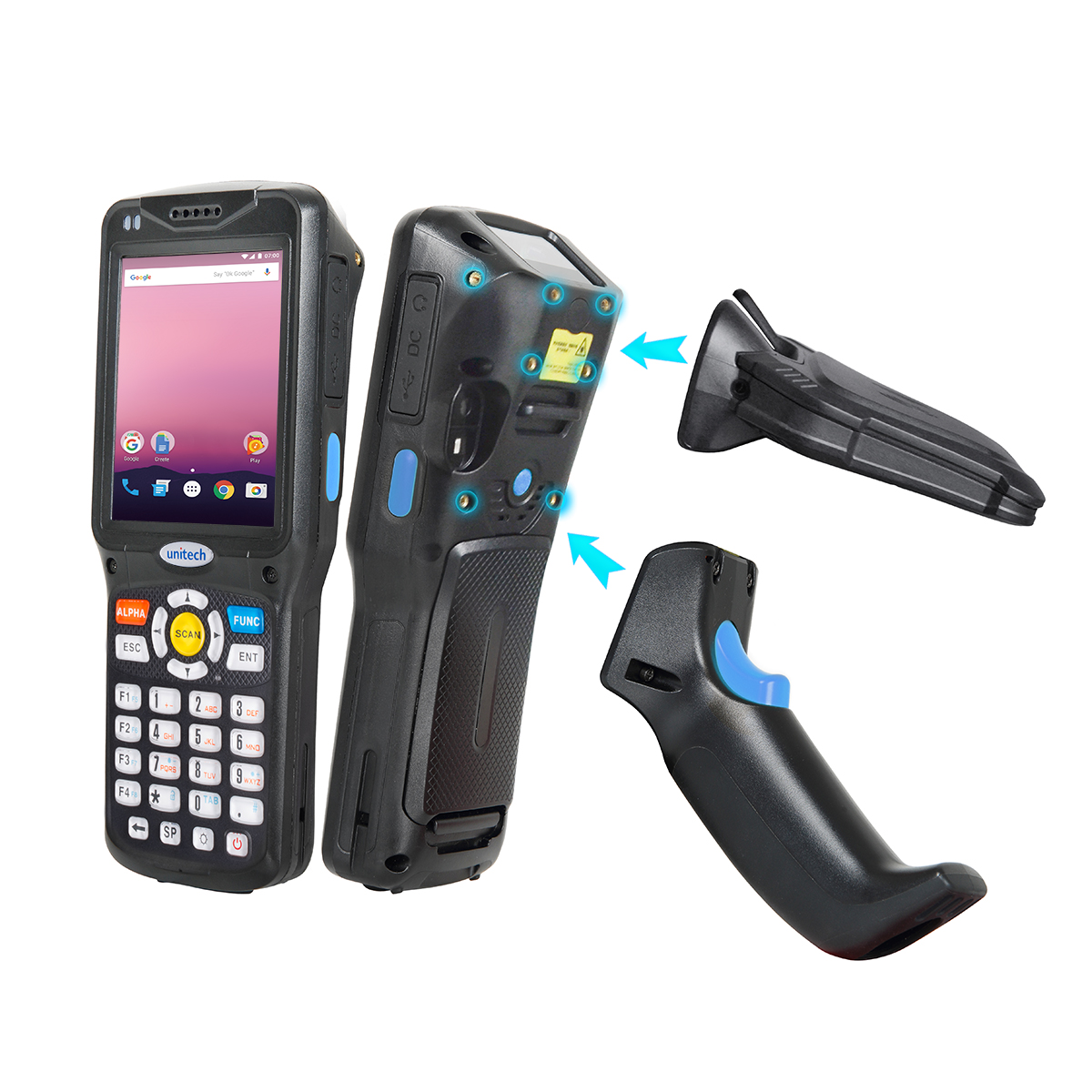

Taking into account the needs of corporate users, rigorous testing was conducted during the development of unitech’s HT510 handheld mobile device. It passed the 1.5-meter drop and IP65 dust and water resistance tests to offer corporations high durability and stability. The product also features a built-in 5-megapixel camera (with flash and autofocus function) that provides photo recording of the status of goods in storage. The HT510 also features a variety of accessories such as USB cradle, 4-slot battery charger, leather folio, and gun handle to enhance ease of operation.
RFID Label & Tags Solutions for User’s Options
For a successful and complete RFID solution, the selection of RFID labels and tags is essential.
According to the target material and application that the customer wants to control, choosing the right labels or tags will greatly improve the operation process and efficiency of the entire RFID solution.
Learn more aboutRFID Label & Tags.
Specification
Operation System
- OS Android 7
- CPU 1.45GHz Quad Core
- Memory 2GB RAM / 16GB Flash
- Languages support Multi-languages
Display
- Screen Size 3.5 inch VGA (480 x 640) color screen
- Touchpanel Capacitive color touch screen ; With screen backlight adjustment
Camera/Photos/Video
- Camera 5MP rear camera with LED flash and auto-focus function
Keypad
- Keypad 32 keys; large number keys, functions and direction keys
Indicator
- Type LED, Speaker, Vibrator
Symbologies
-
1D Barcodes
UPC/EAN,POST, Code 128,Code 39,Code
93,Code 11,Codabar,Interleaved 2 of 5,
Discrete 2 of 5,Chinese 2 of 5,MSI,RSSI…
-
2D Barcodes
2D codes:
Aztec Code, Codabar, Codablock F, Code 11,
Code 128, Code 2 of 5, Code 39, Code 93,
Data Matrix, EAN/JAN-13, EAN/JAN 8,
EAN-UCC Composite Codes, EAN-UCC
Emulation, IATA Code 2 of 5, Interleaved 2 of
5, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI,
PDF417,Postal Codes (Australian Post,British
Post, Canadian Post, China Post, Japanese
Post, Korea Post, Netherlands Post, Planet
Code, Postnet), Plessey Code, PosiCode, QR
Code, RSS Expanded, RSS Limite TCIF Linked
Code 39, Telepen, Trioptic Code, UPC-A,
UPC-E...
RFID
- UHF Frequency : 865~868MHz, 902~928MHzProtocol : EPC global Class 1 Gen 2 ISO 18000-6C/6BAntenna gain : 3dbiOutput Power : 1-30dbm adjustableData Capture Range : 6~8 meters
-
HF
Frequency 13.56Mhz
ISO14443A/B, ISO15693 standard, NFC, MIFARE, Felica
Communication
- WLAN IEEE 802.11a/b/g/n/ac
I/O Interfaces
- USB Mini USB
- Expansion Slot MicroSD x 1, up to 64GB
- Audio Built-in microphone, speaker and headphone jack
Enclosure
- Dimension L192 x W73.8 x H30 mm
- Weight 385g (including standard battery)
Durability
- Drop Specification 1.5m
- Sealing IP65
Environmental
- Operating temperature -10℃~50℃
- Storage temperature -20℃~70℃
- Relative Humidity 5%~95% Non-condensing
Power Source
- Main battery Main battery 3.8V 4500mAh
Software
- Software MoboLink agent, ScanDMServer, SelfUpdate,StageGO,UnitechAPI,uNote,USUS,GenericUpdate,Startup,File Manager
Regulatory Approvals
- Types NCC, BSMI
Accessories
-
Items
USB cradle
USB data cable
4 slots battery charger
Battery
Leather case
Touch pen
Gungrip
Warranty
- Hardware Warranty 15 months
