HT682 is a versatile handheld terminal with superior data collection solution, suitable for a wide range of applications in manufacturing, retail, logistics and transportation.
Features
.Windows Embedded Compact Professional 6.0 R3
.TI OMAP AM3703, 800MHz
.Integrated 1D Laser / 2D Imager (optional) scan engine
.30 degree scanning tilt
.802.11 a/b/g/n
.Expendable MicroSD memory card
.Gold plated non-rusting connector pins
.IP65 rated
.1.8-meter / 6-foot drop threshold
★This product has reached its End of Sale.
To explore our latest products, please visit :
https://www.ute.com/en/products/category/MobileComputers/HandheldTerminals

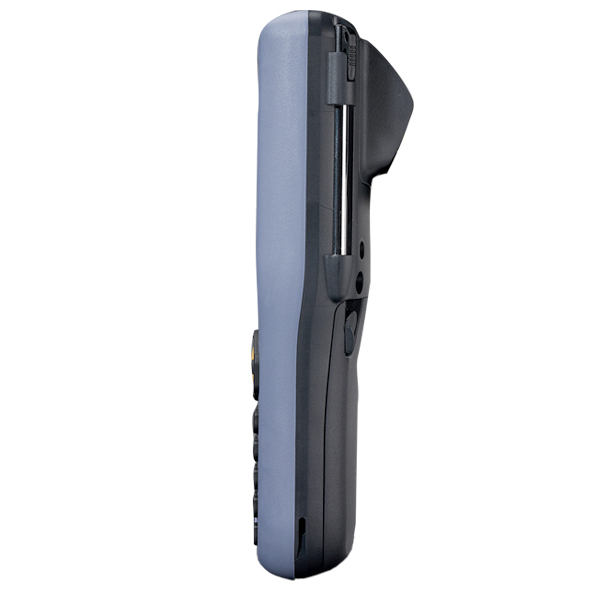

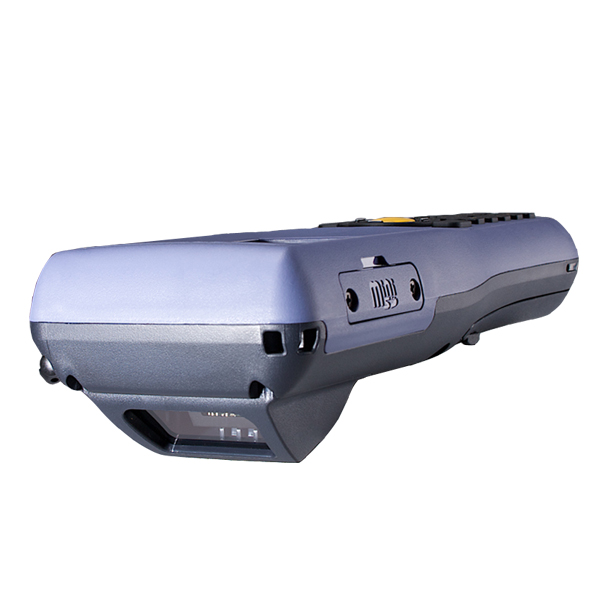

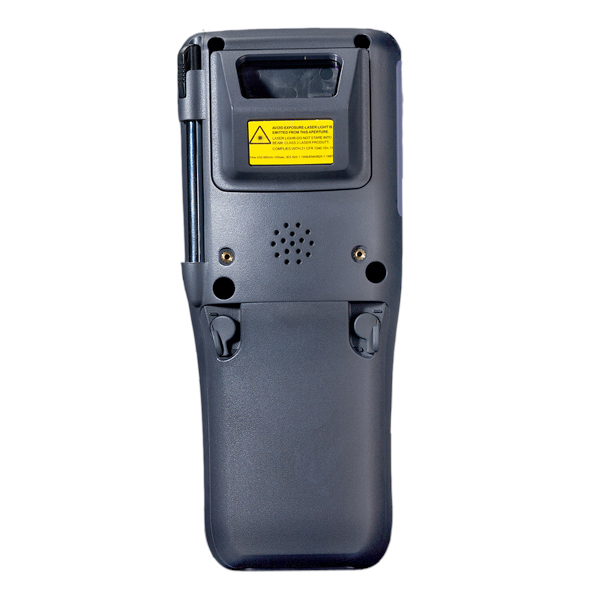

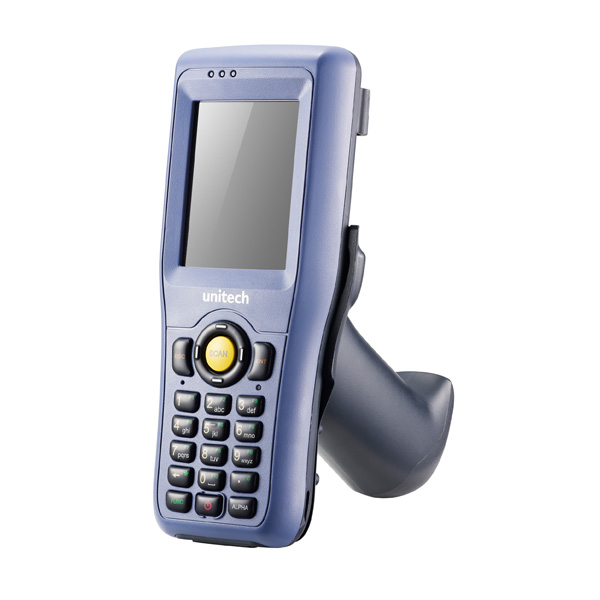

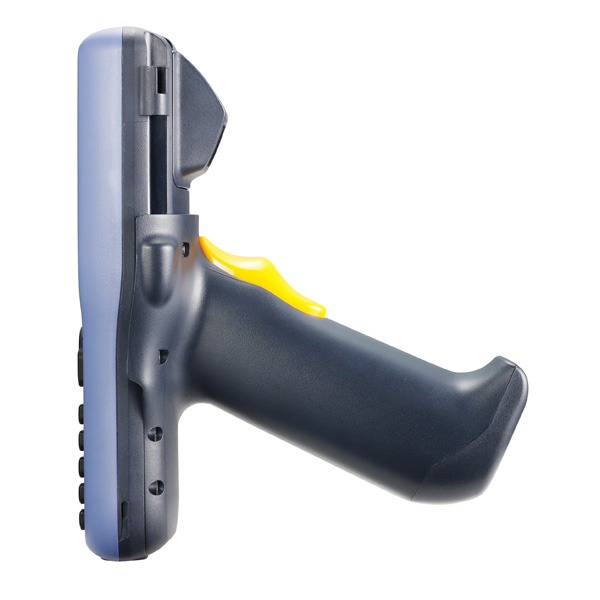

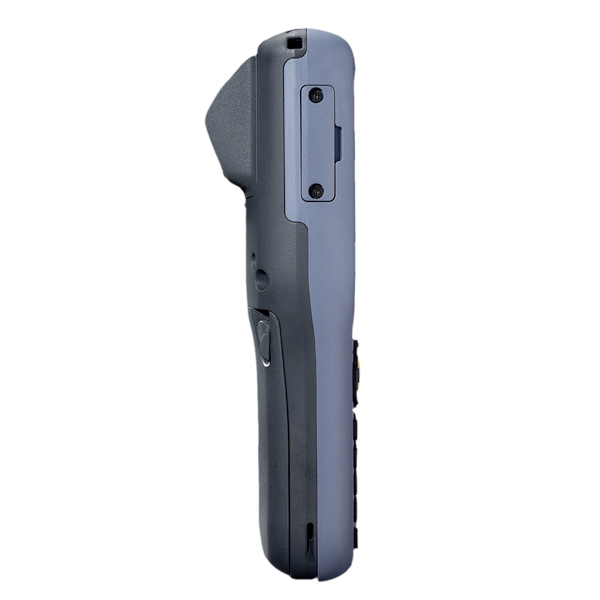

Ergonomic design for one-handed operation
Coming with an area scanner design for high range scanning, HT682 offers ergonomic 30 degree scanning tilt for best user experience. Base on its ergonomic and compact design for one-handed operation, HT682 is an ideal tool to automate the capture of inventory data and allows user to take action quickly and accurately.
Designed for the harsh environments
Designed for the harsh environments, HT682 is rugged enough to withstand multiple 6 feet drop to concrete and equipped with IP65 environmental seal against water and dust. Featuring a great adaptable design, the device provides multiple wireless communications such as Wi-Fi and wireless LAN 802.11 a/b/g/n radios for real-time data collection.
Featuring a 2.8-inch display with color touch screen and micro SD expansion slot for data storage, HT682 is also equipped with the latest Windows Embedded Compact Professional 6.0 R3 operating system which is compatible with various software applications. Combing functionality with durable design, the Unitech HT682 provides the power for enterprise to streamline business processes and increase productivity and efficiency in all data collection applications.
Specification
Operation System
- OS Windows Embedded Compact Professional 6.0 R3
- CPU 800MHz, TI OMAP AM3703
- Memory 512MB RAM / 512MB Flash
- Languages support English, Thai, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
- Others Input Chinese/ English
Display
- Screen Size 2.8-inch QVGA color screen
-
Touch Panel
Transflective TFT touch screen ;
With screen backlight adjustment
Buttons / Keypad
- Buttons / Keypad 22 keys, including 4-direction, and numeric keys.
Indicator Type
- Type LEDs, Vibrator
Symbologies
- 1D Barcodes 1D Laser Barcode Engine:UPC-A/E, EAN-8/13,Codaba, Code 39, Code 39 full ASCI, Code 93,Code32, Interleaved & Std. 2 of 5, EAN 128, Code 11, Delta, MSI/Plessey, Code 128, Toshiba
-
2D Barcodes
2D imager (optional)
1D codes
Australian Post, British Post, Canadian Post, Codabar, Code 11,
Code128 Code 39, Code 93, EAN13, EAN8, IATA 2 of 5, ITF,
ISBT, Japanese Post, Kix code(nl), Matrix 2 of 5, MSI, PLanet
Code, Postnet, RSS expended, RSS Limited,
I/O Interfaces
- USB USB 2.0 Client and Host
- Expansion Slot MicroSD x 1, up to 32GB
- Audio Mono speaker, 90dB at 10 cm distance.
Power Source
- Main battery 8.14 Watt-Hour 3.7V @ 2200 mAH ; 14.8 Watt- Hour 3.7V @ 4000mAH
Communication
-
WLAN
CXv4 certified Summit Radio 802.11 a/b/g/n,
WEP, WPA,WPA2, WEP, RC4 Algorithm. TKIP, RC4 Algorithm,AES, Rijndael Algorithm, Static (40-bit and 128-bit lengths),Pre-Shared (PSK), Dynamic EAP-FAST,EAP-TLS,EAP-TTLS,PEAP-GTC -
WWAN
Sierra wireless 3.5G data radio ;
High speed UMTS/HSDPA connectivity (up to 3.6Mbps downlink) ;
Quad-Band GSM/GPRS/EDGE network access ;
Worldwide coverage with 2 versions (850/1900 MHz, 900/2100 MHz)
Software
-
MDM Software
Microsoft Visual Studio 2005 / 2008
Unitech Handheld terminal SDK
Enclosure
- Dimensions ( W x H x D ) 170mm x 55mm x 30mm
- Weight 310g(With standard battery pack)
Durability
- Drop Specification 1.8m
- Sealing IP65
Environmental
- Operating temperature -10℃~50℃
- Storage temperature -20℃~70℃
- Relative Humidity 5%~95% Non-condensing
Accessories
-
Accessories
■ Gungrip
■ Single Slot USB Cradle
■ 4-Slot battery charger
■ 2200mAH standard Battery
■ 4000mAH Extension Battery
■ USB communication and charging cable
■ Power adaptor with universal plugs
What comes in the box
-
The standard package contents
■ HT682 Terminal
■ Communication Cable
■ Battery
■ Adaptor
■ Plugs
■ Communication Cradle
Regulatory Approvals
- Regulatory Approvals CE, FCC, BSMI, VCCI, CCC, SRRC, RoHS compliance
Warranty
- Hardware Warranty 15 months
