Equipped with a high performance omnidirectional 1D/2D Near-Far area imager, the HT682LR gives you the reliability and flexibility needed to increase productivity for a wide range of applications, especially in retail, warehousing, and logistics.
Features
• Microsoft Windows Embedded CE 6.0
• TI OMAP AM3703, 800MHz CPU
• Omnidirectional Long-range 1D/2D imager (reading distance up to 15 meters)
• High performance - reads poorly printed, damaged and bar codes down to 3mil resolution
• Future proofed - reads 1D, composite, stacked and 2D bar codes, to comply with the newest industry standards
• Gold plated non-rusting connector pins
• IP65 rated and 1.8-meter drop test to concrete
• Built-in VT terminal emulation and MDM supported (12Manage)
★This product has reached its End of Sale.
To explore our latest products, please visit :
https://www.ute.com/en/products/category/MobileComputers/HandheldTerminals
Superior Long Range Terminal for workforce
Its omnidirectional reading capability, coupled with a highly visible laser pointer, allows users to seamlessly transition between scanning from objects up close to 15 meters away.
This is done without requiring the user to move from their location, even in variable lighting conditions and angles Designed for the toughest work environments, this device is suitable for a wide range of applications, especially in retail, warehousing, and logistics.
Durable Design
Equipped with a fast 800 MHz processor and Microsoft Windows Embedded CE 6.0 operating system makes this device not only fast but also compatible with a variety of existing software applications. Its WiFi (802.11 b/g/n) provide fast real-time data collection. Conform to unitech standards, the HT682LR is ultra-rugged and designed for the toughest working environments. The HT682LR is IP65 rated, can withstand a multiple 1.8 meter drop to concrete and features golden plated non-rusting connector pins.
Extended Usage
The HT682LR offers advanced reading performance in terms of accuracy, flexibility, and distance. With a long range reading distance (up to 15 meters), this long-range 1D/2D area imager makes scanning more efficient since there is no need to step out of your forklift truck.
The HT682 weighs only 381g and is ergonomically designed for one-handed operation and 30° tilted helical scanning. The optional gun grip and extended battery make the HT682LR perfect for scan-intensive applications. Equipped with a built-in VT terminal emulation and Mobile Device Management tool (12Manage) supported makes the HT682LR perfect for extended usage!
Specification
Operation System
- OS Windows Embedded CE 6.0
- CPU 800MHz, TI OMAP AM3703
- Memory 512MB RAM / 512MB Flash
- Languages support English, Thai, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
- Others Input Chinese/ English
Display
- Screen Size 2.8 inch QVGA color screen
- Touch Panel Transflective TFT touch screen ; With screen backlight adjustment
Buttons / Keypad
- Buttons / Keypad 22 keys, including 4-direction, and numeric keys.
Indicator Type
- Type LEDs, Vibrator
Symbologies
- 1D Barcodes EAN/UPC, GS1 Databar (limited expanded & omni-directional), RSS, Code 39, Code 128, UCC/EAN 128, ISBN, ISBT, Interleaved/Matrix/ Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen, postal codes (Australian Post, BPO, Cana
- 2D Barcodes Data Matrix, PDF417, Micro PDF 417, Codablock , Maxicode, QR, Aztec, GS1 composite codes
I/O Interfaces
- USB USB 2.0 Client and Host
- Expansion Slot MicroSD x 1, up to 32GB
- Audio Mono speaker, 90dB at 10 cm distance.
Power Source
- Main battery 8.14 Watt-Hour 3.7V @ 2200 mAH ; 14.8 Watt- Hour 3.7V @ 4000mAH
Communication
-
WLAN
CXv4 certified Summit Radio 802.11 a/b/g/n,
WEP, WPA,WPA2, WEP, RC4 Algorithm. TKIP, RC4 Algorithm,AES, Rijndael Algorithm, Static (40-bit and 128-bit lengths),Pre-Shared (PSK), Dynamic EAP-FAST,EAP-TLS,EAP-TTLS,PEAP-GTC
Software
-
MDM Software
Microsoft Visual Studio 2005 / 2008
Unitech Handheld terminal SDK
Enclosure
- Dimensions ( W x H x D ) 170mm x 55mm x 30mm
- Weight 310g(With standard battery pack)
Durability
- Drop Specification 1.8m
- Sealing IP65
Environmental
- Operating temperature -10℃ to 50℃
- Storage temperature -20℃ to 60℃
- Relative Humidity 5% ~ 95% ( non-condensing )
Accessories
-
Accessories

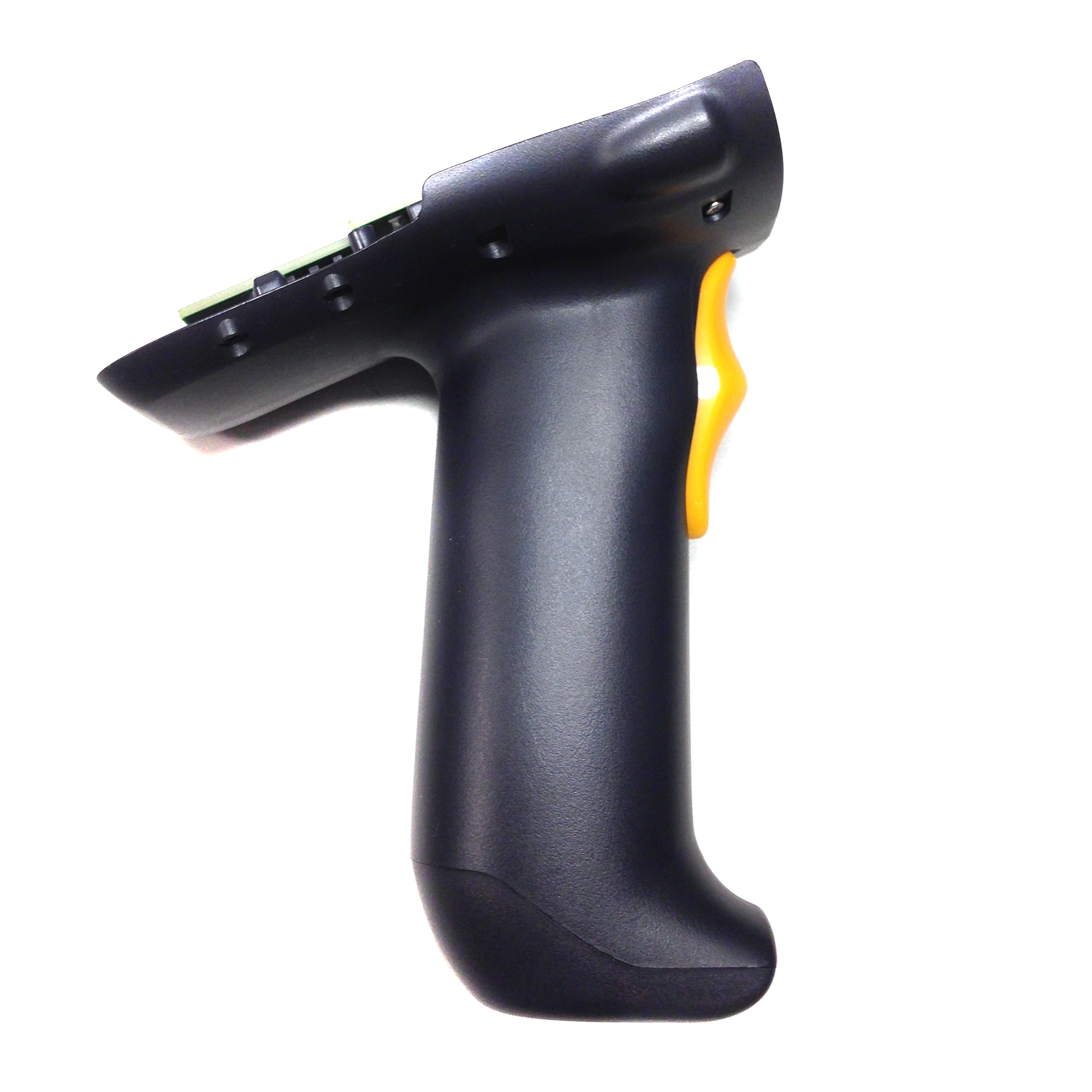

■ Gungrip
■ Single Slot USB Cradle

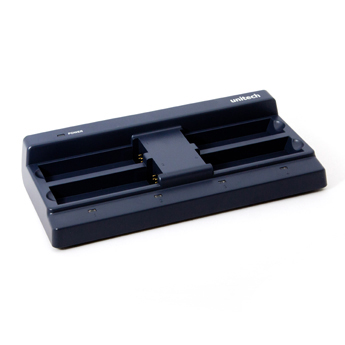

■ 4-Slot battery charger

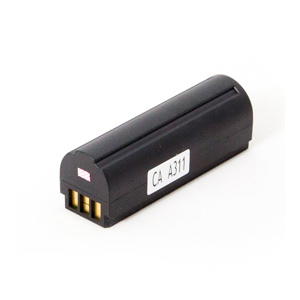

■ 2200mAH standard Battery
■ 4000mAH Extension Battery

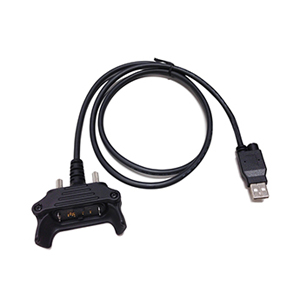

■ USB communication and charging cable

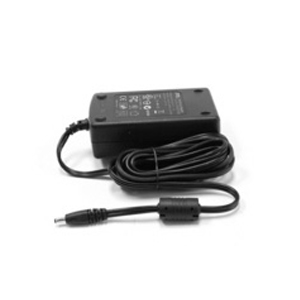

■ Power adaptor with universal plugs
What comes in the box
-
The standard package contents
■ HT682 Terminal
■ Communication Cable
■ Battery
■ Adaptor
■ Plugs
■ Communication Cradle
Regulatory Approvals
- Regulatory Approvals CE, FCC, BSMI, VCCI, CCC, SRRC, RoHS compliance
Warranty
- Hardware Warranty 15 months
