20 m reading distance | 2X2 MU-MIMO | 6700mAh hot-swap battery | IP67 + 2.4 m Drop

Android 10
AI
NFC
4"
Keypad
4G LTE
MU-MIMO
13MP
IP67
IP65
2.4 m
GMS certified
Bluetooth
Logistics
Warehousing
Field Service

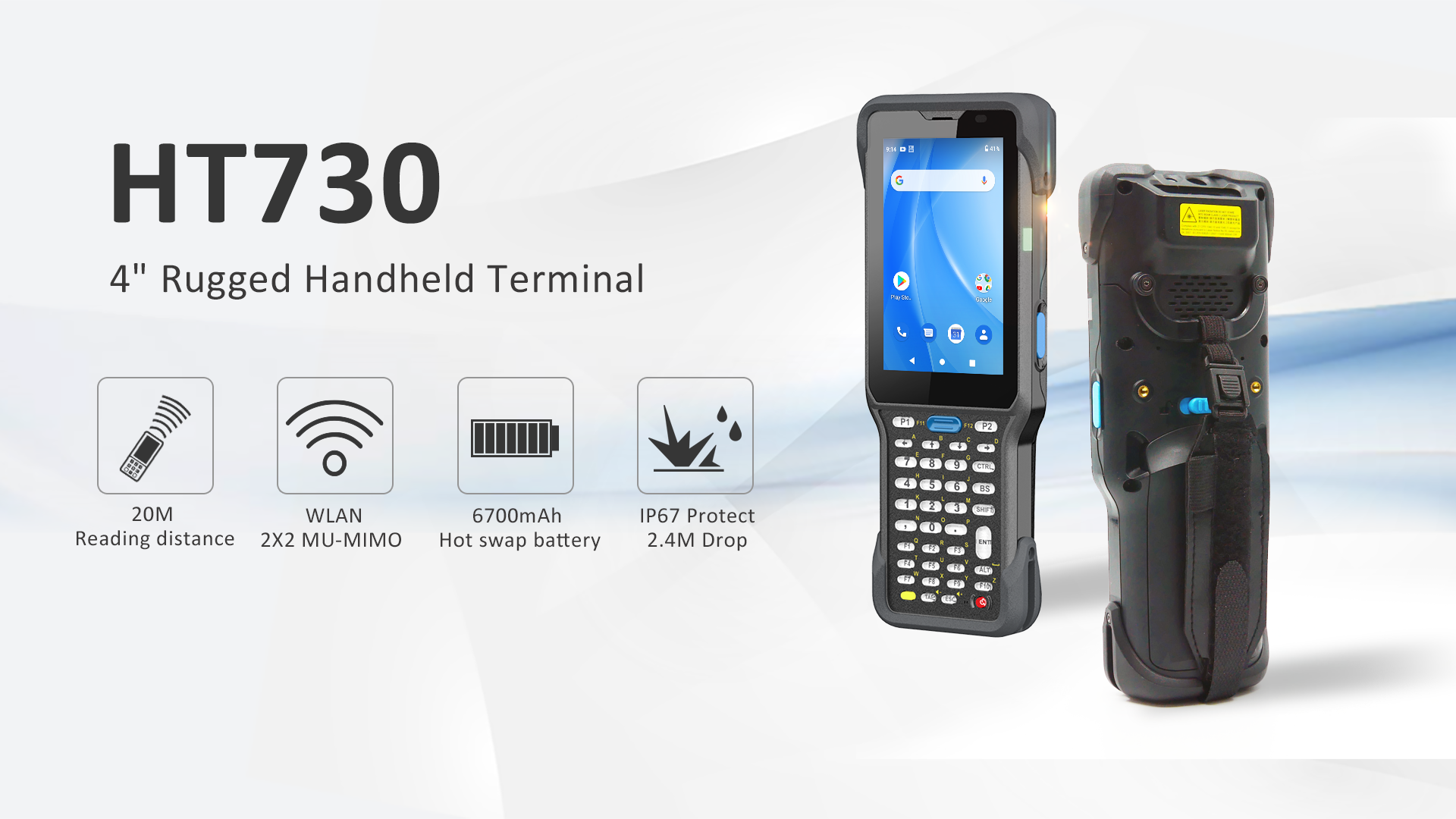

The unitech HT730 is an ergonomic one-hand operation handheld terminal with keypad and powerful data collection solutions. Offering Android 10 OS with GMS certification, the HT730 is equipped with Qualcomm® Artificial Intelligence (AI) CPU to deliver users excellent performance for smarter, more intuitive interactions which is suitable to improve your work efficiency in a wide range of applications in warehousing, logistics, and field service.

Features
• Android 10 OS with GMS certified

• Ergonomic one-handed operation
• Superior 2D scanning performance: Support 30-degree scanning tilt down
• Superior performance with the scanning range up to 20m away
• Support IEEE 802.11a/b/g/n, 802.11ax-ready, 802.11ac Wave 2 with 2X2 MU-MIMO Wi-Fi Standard
• 6700mAh battery for 20-26 hours operation
• True Hot-swap battery design without downtime
• 1.8M drop-resistant housing (2.4M with bumper)
• IP65/IP67 protection against water and dust

• Durable keypad with backlight: 38/29 keys with 2.5 million lifetime clicks
• Support Bluetooth® 5.1
• Support MDM software and utilities such as MoboLink, StageGo, Ivanti Wavelink and StayLinked

Real User Testimonials

Customer in Poland

We rely on Unitech products for their practical design and dependable performance. The devices are compact and fit well ...

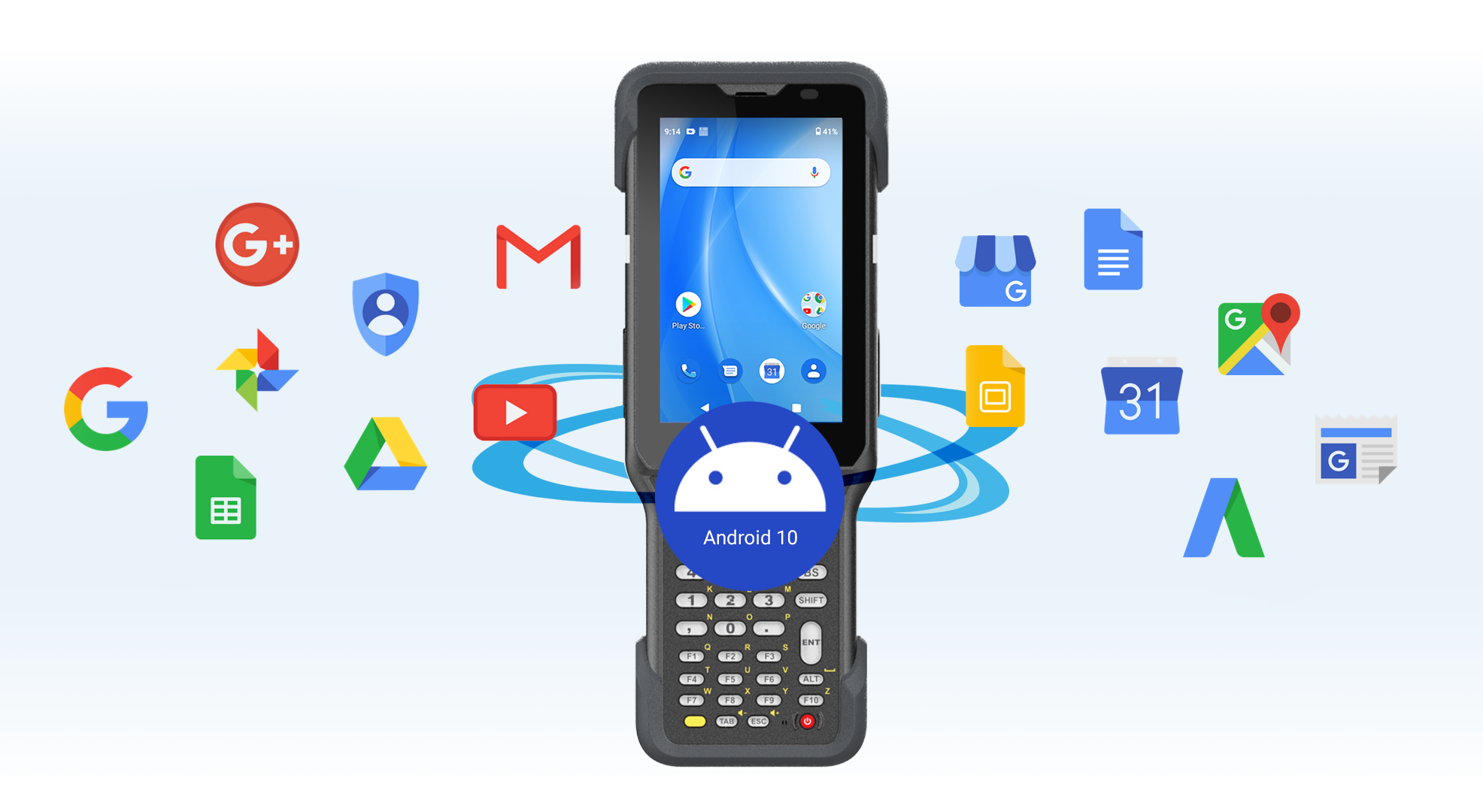

Powered by Android 10 OS with GMS Certified

The unitech HT730 is an ergonomic one-hand operation handheld terminal with keypad and powerful data collection solutions. Offering Android 10 OS with GMS certification, the HT730 is equipped with 5th gen Qualcomm® AI Engine to deliver users excellent performance for smarter, more intuitive interactions that are suitable to improve your work efficiency in a wide range of applications in warehousing, logistics, and field service.

Android 10 Operation System	GMS Certification	Octa-Core CPU	4 GB RAM 64 GB Flash

Superior Performance with Long Reading Distance Specially built for an extended-range work environment, the HT730 4” rugged handheld terminal features a superior performance with the scanning range up to 20m away from the spot. The device supports full barcode symbologies including 1D, 2D, Dot Code, and OCR as well as boosts your scanning performance at a speed of 60fps.

Ideal for tasks that require heavy scanning, the HT730 is built-in a powerful megapixel 2D scanning engine with a wide variety of 30-degree scanning tilt-down design. It also delivers motion tolerance of up to 5m/s, the HT730 increases the operational effectiveness even while moving.

Support 2D, Dot code, OCR	20m Reading Distance	30 degree Scanning tilt down design	5m/s Motion tolerance

Ergonomic One-Hand Operation with Large Keypad

The 4-inch touch display with 400 nits of brightness means your inventory app will look great indoors or outdoors. The large-sized backlit keypad features high-end silicone keys with under-key label printing designed to stop the label legends from ever becoming unreadable, even after our tested 2.5 million key presses. Scanning buttons on both sides, top of the keypad, or on the optional gun grip trigger, means you can capture barcode data in a manner ergonomically best for you.

4-inch
Display

2.5 million

Lifetime clicks

38 / 29
Keys

One-Hand
Operation

No Downtime with True Hot-Swap Battery

Featuring hot-swap technology, the HT730 allows batteries to be swapped without interrupting within 1 minute. With a long-lasting 6700 removable battery, the HT730 allows continuous use for 20-26 hours operation and it is easily replaced whiles running out of power seamlessly.

6700 mAh

Removable battery

True Hot-Swap

Technology

20-26 Hours

Operation

Boost Wireless Communication Performance The HT730 supports 2X2 MU-MIMO antennas that boost the wireless performance with a faster and better data transferring experience, allowing staff to get connected immediately. Built-in 4G dual-SIM slots, it provides double signal coverage and real-time communications even in different countries. Furthermore, it has a 13MP camera that gives an easy way to prove delivery or shipment issues.

4G LTE	Dual-SIM slots	2X2 MU-MIMO Wi-Fi	Bluetooth® 5.1

Ultra-Durable

Design for harsh environments, HT730 features ultra-durable design to withstand 1.8m / 2.4m (with bumper) drop to concrete and IP65 / IP67 environmental seal against water and dust. Moreover, the HT730 offers options including a rugged gun grip, a rugged UHF RFID long-range reader, and even a rugged extra-long-range barcode scan engine that enhances the ease of use and increases staff comfort for inventory tracking and taking solutions.

1.8 m Drop protection		2.4 m Drop protection (with bumper)		IP65 Rating		IP67 Rating


Optical Character Recognition (OCR)

HT730 provides Optical Character Recognition (OCR) technology in Unitech USS software to streamline your tedious typing process and minimize the typing mistakes when entering the numbers. Our OCR technology allows users to easily convert numbers or characters to digital formats on cardboards, paperwork, electronic chips, and any other readable surface.


Airline	Manufacturing	Logistics
✔ The Airline Ground Services｜Read ID numbers from passports ✔ Manufacturing｜Read vehicle registration numbers and electronic chips ✔ Logistics&Retail｜Read lot numbers printed on the package


SmartPA: Better Audio Output

SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.


Power Amplifier Better Audio Output			Built-in Algorithm Lessen Circuit / Temperature Damage

Operation System

OS Android 10
GMS certified GMS certified
CPU Octa core 2.3 GHz, Qualcomm 720G (SM7125)
AI 5th Gen Qualcomm AI Engine
Memory RAM 4GB
Flash 64GB
Languages support Multi-languages

Display

Screen Size 4”TFT-LCD WVGA (480x800) color screen (400 nits)
Touch Panel Ultra-sensitive capacitive touch screen, compatible with gloves and support wet resistance

Buttons / Keypad

Buttons / Keypad Numeric (29 key)/ Function Numeric (38 key) with backlight

Camera

Camera Rear 13 MP Autofocus with flash

Indicator Type

Type LED, Speaker, Vibrator

Symbologies

1D Barcodes 1D : UPC/EAN/JAN, GS1 DataBar, Code 39, Code
128, Code 32, Code 93, Codabar/NW7, Interleaved 2
of 5, Matrix 2 of 5, MSI, Trioptic,
2D Barcodes 2D : PDF417, MicroPDF417, GS1 Composite ,
Code11, Aztec Code, Data Matrix, QR Code, Micro
QR Code, MaxiCode, Han Xin Code, DOT Code

OCR: OCR-A, OCR-B, E13B (MICR)
Postal Intelligent Mail Barcode, Postal-4i, Australian
Post, Japanese Post, Netherlands (KIX) Post,
Postnet, Planet Code

RFID

UHF RFID Frequency: 865~868MHz, 902~928MHz
Protocol: EPC global Class 1 Gen 2 ISO 18000-6C/6B
Antenna gain: 4dbi
Output Power : 1-30dbm adjustable
Data Capture Range: 6~8 meters
HF RFID Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693 standard

I/O Interfaces

USB USB 3.1 (type-C) support USB OTG
Support Display Port Mode
Ethernet/USB-Host via cradle
OTG Yes, over USB Type-C
POGO PIN Custom IO connector (include USB Host)
SIM Slot Nano SIM Slot x 2
Expansion Slot Micro SD/TF x 1(Support SD, SDHC and SDXC) up to 256GB
Audio 2W output, One speaker with Smart PA (105 dB at 10cm),
Dual-Microphone, support noise cancellation

Power Source

Main battery Main battery 3.7V 6700mAh
Hot Swap Keeps applications active up to 1 minute

Communication

Bluetooth® Bluetooth 5.１
WLAN IEEE 802.11a/b/g/n/d/h/i/k/r/v/ac/ax ready (8ss and TWT), 802.11ac Wave 2
(Dual Antenna, 2X2 MU-MIMO support)
WWAN LTE Advanced Support Up to CAT4
LTE (FDD) – Bands 1, 2, 3, 4, 5, 7, 8, 17, 20, 28
LTE (TDD) – Bands 38, 39, 40, 41
UMTS/HSPA+ (3G) – Bands 1, 2, 5, 8
GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz)
GPS GPS, GLONASS, Galileo, BeiDou
Sensors Gyroscope, G-sensor, E-compass, Light & Proximity Sensor

Software

MDM Software SOTI, AirWatch, 42Gears, Ivanti Wavelink, and MoboLink

Enclosure

Dimensions ( W x H x D ) 195 mm x 72 mm x 34 mm
Weight 395g(with battery)

Durability

Drop Specification 1.8m / 2.4m(with Bumper)
Sealing IP65 / IP67
Tumble test Tumble 600 times (1.6 ft./0.5 m)

Environmental

Operating temperature -20°C to +50°C
Storage temperature - 30°C to 70°C (without battery)
Charging temperature 0°C to 45°C
Relative Humidity 5% ~ 95% (non-condensing)

Accessories

Accessories ■ Battery 3.7V 6700mAh (PN#1400-900071G)
■ Hand Strap (PN#608909G)
■ USB 3.0 type-C Cable(PN#1550-905908G)
■ Power Adaptor(PN#1010-900073G(US) PN#1010-900062G(EU) PN#1010-900063G(CN)
■ Single Slot Charging Cradle (PN#5000-900086G)
■ Single Slot USB Cradle (PN#5000-900090G)
■ Single Slot Ethernet Cradle (PN#5000-900087G)
■ Single Slot Display Port Cradle (PN#5000-900088G)
■ 5V/6A Power Supply for 1-slot Cradle (PN# 1010-900043G)
■ 3-Pin Power Cord (UK) PN#1550-602689G
■ 3-Pin Power Cord(EU)PN#1550-602333G
■ 3-Pin Power Cord(US)PN#1010-601551G
■ Standard Gun Grip (PN# 5500-900096G)
■ 4-Slot Charging Cradle(PN#5000-900089G)
■ 4-Slot Ethernet Cradle(PN#5000-900091G)
■ 4-Slot battery Charger (PN# 5100-900031G)
■ 12V/5A Power Supply for 4-slot Cradle (PN#1010-900068G)
■ Glass Screen Protector(PN#401609G)
■ Stylus with Coil Strap (PN# 1979-900003G)
■ HT730 Bumper Package for Standard Range Engine (PN#5400-900048G)
■ HT730 Bumper Package for Long Range Engine (PN#5400-900049)
■ HT730 Boot case for Standard Range Engine (PN#3210-900036G)
■ RP902 Bluetooth UHF RFID Pocket Reader (PN#RP902-33E8S0G (EU), PN#RP902-43A8S0G (US), PN#RP902-43F8S0G (JP))
■ Quick charge UK USB Plug (PN#1010-51C002G)
■ Quick charge EU USB Plug (PN#1010-51C001G)
■ HT730 Battery Cover (PN#386108G)

What comes in the box

The basic package contents ■ HT730 Terminal
■ Battery
■ Hand Strap

Regulatory Approvals

Regulatory Approvals CE, FCC, NCC, IC, VCCI, TELEC, CCC, SRRC, RoHS, CEC, BQB, GMS, N-Mark

Warranty

Hardware Warranty 12 months
Statement This product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
