HT730 Plus (2nd Gen)
4-inch Rugged Handheld Terminal
5G & Wi-Fi 6E | 32M Reading Distance | Cold Chain Solution (Heater Version) (Option) | eSIM Available
-
Android 14
-
AER certified
-
NFC
-
4"
-
Keypad
-
4G LTE
-
MU-MIMO
-
Wi-Fi 6E
-
16MP
-
IP67
-
IP65
-
2.4 m
-
GMS certified
-
Bluetooth
-
Logistics
-
Warehousing
-
Field Service
-
Manufacturing
-
Government
The HT730 Plus is a rugged handheld terminal designed for one-handed operation, offering versatile keypad options with 29, 38, and 47 keys to meet various needs. Powered by Android 14 OS with 5G connectivity and Wi-Fi 6E, it delivers fast and reliable performance for warehousing, logistics, and field service. Up to 32-meter long-range barcode scanning, enhanced green laser visibility, and robust IP65/IP67 durability with 2.4m drop resistance, the HT730 Plus ensures efficiency and reliability in the toughest work environments.
Features
• Android 14 OS with GMS and AER certified
• eSIM support for flexible and convenient connectivity
• Superior performance with the scanning distance up to 32M away
• Support -30°C cold resistance with the cold chain solution (option)
• Feature clear green laser aiming for precise barcode scanning
• Feature Bluetooth® 5.2, 5G & Wi-Fi 6E connectivity
• 1.8M drop-resistant housing (2.4M with bumper)
• IP65/IP67-rated protection against water and dust
• Durable keypad options with 29, 38, or 47 keys to meet versatile needs
• Supports 30-degree scanning tilt-down for ergonomic operation
|
|||||
Powered by Android 14 OS with GMS and AER Certified |
|||||
The HT730 Plus is a rugged handheld terminal designed for one-handed operation. Running on Android 14 OS with GMS certification and Android Enterprise Recommended (AER), it ensures seamless compatibility with Google services and enterprise-grade applications. Powered by the Qualcomm® Snapdragon™ 4490 Octa-core processor, it delivers fast, reliable performance for demanding tasks, making it ideal for warehousing, logistics, and field service operations.
|
|||||
Android 14 Operation |
GMS & AER Certification |
Octa-Core Processor |
|||
|
|
||||||
Seamless Connectivity with eSIM Technology |
||||||
|
||||||
The HT730 Plus features eSIM technology, offering secure, convenient connectivity without physical SIM cards. Embedded within the device, the eSIM prevents loss or damage and enhances security. Network switching is seamless using a QR code or activation code via Wi-Fi, ensuring reliable connectivity for the dynamic demands of logistics, warehousing, and field operations.
|
||||||
eSIM Technology Support |
Hassle-Free Setup and Activation Flexible Access Options |
Superior Performance with Extended Scanning Range
Specially designed for demanding workflows, the HT730 Plus features a powerful 32M scanning range, far surpassing standard devices. Supporting a wide range of barcode symbologies, including 1D, 2D, Dot Code, and OCR, it provides unmatched versatility for data collection tasks. |
||
|
||
The megapixel 2D scanner ensures rapid and accurate data capture, while the 30-degree tilt-down scanning design improves operator ergonomics, making it ideal for fast-paced logistics and warehouse environments.
|
||
|
||
2D, Dot Code, OCR Support |
32M Reading Distance |
30 Degree Scanning tilt down design |
|
|||||

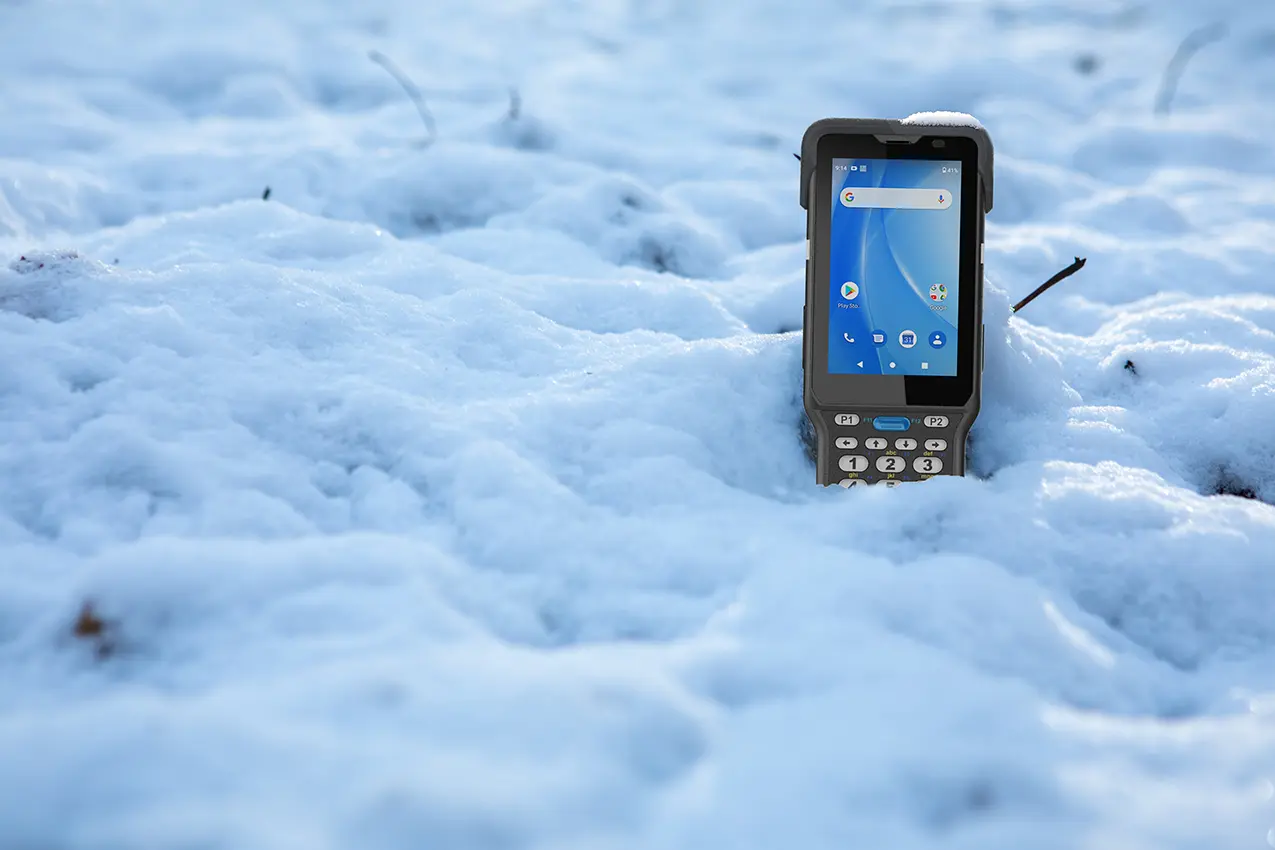

Seamless Cold Chain Management Down to -30°C |
|||||
Available as an optional feature, the HT730 Plus Cold Chain Solution is engineered for temperature-sensitive environments, supporting reliable performance in extreme cold conditions as low as -30°C. Its integrated heater module prevents condensation, ensuring consistent operation in freezing environments like cold storage warehouses, food distribution centers, and pharmaceutical logistics. This optional solution ensures the HT730 Plus maintains high efficiency and reliability where other devices might fail.
|
|||||
|
|
|||||
Enhanced Green Laser for Precise Aiming |
|||||
The HT730 Plus features an advanced green laser aiming system, offering superior visibility and accuracy for barcode scanning. This enhanced laser ensures precise targeting, even in challenging lighting conditions, making it ideal for fast-paced environments like warehouses and logistics centers. With improved aiming clarity, workers can complete scanning tasks more efficiently and with fewer errors. |
|||||
|
Seamless Connectivity via Advanced Wireless Communication
The HT730 Plus is equipped with 5G, Wi-Fi 6E, and Bluetooth® 5.2 technologies, providing fast, reliable, and versatile connectivity. Whether you need ultra-fast data transmission, stable wireless networking, or efficient short-range communication, these advanced features ensure uninterrupted performance in logistics, warehousing, and field operations. |
||
|
||
Bluetooth® 5.2 Communications |
5G Communications |
Wi-Fi 6E Wireless |
Designed for Harsh Conditions
Designed to thrive in tough conditions, the HT730 Plus boasts a durable construction with drop resistance up to 1.8 meters (or 2.4 meters with bumper) and IP65/IP67-rated protection against water and dust. Ideal for outdoor logistics, manufacturing, and rugged fieldwork, it ensures reliable performance in challenging environments. |
||
|
||
1.8M Drop Protection |
2.4M Drop Protection (with Bumper) |
IP65 & IP67 Rating |
|
|||||
Optical Character Recognition (OCR) |
|||||
|
|||||
HT730 Plus provides Optical Character Recognition (OCR) technology in Unitech USS software to streamline your tedious typing process and minimize the typing mistakes when entering the numbers. Our OCR technology allows users to easily convert numbers or characters to digital formats on cardboards, paperwork, electronic chips, and any other readable surface.
|
|||||
|
|||||
Airline | Manufacturing | Logistics | |||
✔ The Airline Ground Services|Read ID numbers from passports ✔ Manufacturing|Read vehicle registration numbers and electronic chips ✔ Logistics&Retail|Read lot numbers printed on the package
|
|
|||||
SmartPA: Better Audio Output |
|||||
|
|||||
SmartPA(Power Amplifier) takes full advantage of the relatively smaller speaker to enhance better sound quality with maximum volume. Under distracted scenarios or noisy environments, outdoor workers access messages through a clearer, more natural, and high-quality audio experience while speaking on the mobile computer. The built-in SmartPA solution detects the current and voltage in speaker mode and minimizes circuit/ temperature damage, providing seamless communication between coworkers to achieve productivity.
|
|||||
|
|||||
Power Amplifier Better Audio Output |
Built-in Algorithm Lessen Circuit / Temperature Damage |
Software
MoboLinkAndroid Enterprise ready EMM for monitoring device health and managing apps, configs and files. |
StageGOBarcode-based device staging utility offering hundreds of script commands for you to work with. |
OEMConfigIf you are using a third party EMM, OEMConfig will allow those EMM solutions to configure unitech specific settings on the device. |
Specification
Operation System
- OS Android 14
- GMS certified GMS Certified
- Android Enterprise AER Certified
-
CPU
Qualcomm® Snapdragon™ 4490,
64bits Octa-core Processor, up to 2.4 GHz - Memory 6GB RAM + 128GB UFS Flash
- Languages support Multi-languages
Display
- Screen Size 4”TFT-LCD WVGA (480x800) color, (400 nits)
-
Touch Panel
Ultra-sensitive capacitive touch screen, compatible
with gloves (thickness ≤ 4 mm) and support wet resistance, stylus (3 mm)
Buttons / Keypad
- Buttons / Keypad Numeric (29 key) / Function Numeric (38 key) / (47Key) with backlight
Camera
- Camera 16 MP with auto-focus and LED flash
Indicator Type
- Type LED, Speaker, Vibrator
Symbologies
- 1D Barcodes 1D : UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, nterleaved 2 of 5, Matrix 2 of 5, MSI, Trioptic
- 2D Barcodes 2D : PDF417, MicroPDF417, GS1 Composite, Code11, Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Han Xin Code, DOT Code
-
Postal
Intelligent Mail Barcode, Postal-4i, Australian Post, Japanese Post, Netherlands (KIX) Post, Postnet, Planet Code
- OCR OCR-A, OCR-B, E13B (MICR)
RFID
-
HF RFID
Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693 standard
I/O Interfaces
- USB USB 3.1 (Type-C) support USB OTG
- OTG Yes, over USB Type-C
- POGO PIN POGO PIN OTG connector for Cradle
- SIM Slot Micro SIMx1 + eSIMx1
-
Expansion Slot
Micro SD/TF x 1(Support SD, SDHC and SDXC)
up to 256GB -
Audio
2W output ,105 dB at 10cm, Dual-Microphone, support noise cancellation
Power Source
- Main battery Main battery 3.7V 6700mAh
- Hot Swap Keeps applications active up to 1 minute
Communication
-
Bluetooth®
Bluetooth 5.2
-
WLAN
WLAN 6E, 2.4GHz & 5GHz & 6Ghz
IEEE 802.11a/b/g/n/ac/d/h/i/k/r/v/ac/ax (MIMO 2X2), Support DBS & Fast roaming
Security WPA3, WPA2, WPA & WEP -
WWAN
5G NR Sub 6GHz: n1/n2/n3/n5/n7/n8/n12/n20/n28/n34/n38/
n40/n41/n48/n66/n77/n78/n79
4G LTE (FDD): B1/B2/B3/B4/B5/B7/B8/B12/
B13/B14/B17/B19/B20/B28/B34/B39/B48/B66
LTE (TDD): B38/B39/B40/B41
3G: B1/B2/B4/B5/B8
2G: 850/900/1800/1900 MHz
*Support Dual SIM Slot (Micro SIMx1 + eSIMx1)
*Voice Quality Measurement: refer to Perceptual Evaluation of
Speech Quality (PESQ)
- GPS GPS/GLONASS/Gallileo/BeiDou (L1+L5)
- Sensors Gyroscope, G-sensor, E-compass, Light & Proximity Sensor, 3-axis accelerometer
Software
- MDM Software SOTI, AirWatch, 42Gears, and MoboLink
Enclosure
- Dimensions ( W x H x D ) 195 mm x 72 mm x 34 mm
- Weight 395g (with battery)
Durability
- Drop Specification 1.8m / 2.4M (with bumper)
- Sealing IP65 / IP67
Environmental
-
Operating temperature
-20°C to +50°C
-30°C to +50°C (Optional for Cold Storage) - Storage temperature -30°C to 70°C (without battery)
- Charging temperature 0°C to 45°C
- Relative Humidity 5% ~ 95% (non-condensing)
Accessories
-
Accessories
■ Battery 3.7V 6700mAh (PN#1400-900078G)
■ Hand Strap (PN#608909G)
■ USB 3.0 type-C Cable(PN#1550-905908G)
■ Power Adaptor(PN#1010-900061G(US) PN#1010-900062G(EU) PN#1010-900063G(CN)
■ Single Slot Charging Cradle (PN#TBD)
■ Single Slot USB Cradle (PN#TBD)
■ Single Slot Ethernet Cradle (PN#TBD)
■ 5V/6A Power Supply for 1-slot Cradle (PN# 1010-900043G)
■ 3-Pin Power Cord (UK) PN#1550-602689G
■ 3-Pin Power Cord(EU)PN#1550-602333G
■ 3-Pin Power Cord(US)PN#1010-601551G
■ Standard Gun Grip (PN# 5500-900096G)
■ 4-Slot Charging Cradle(PN#5000-900089G)
■ 4-Slot Ethernet Cradle(PN#5000-900091G)
■ 4-Slot battery Charger (PN# TBD)
■ 12V/5A Power Supply for 4-slot Cradle (PN#1010-900068G)
■ Glass Screen Protector(PN#401609G)
■ Stylus with Coil Strap (PN# 1979-900003G)
■ HT730 Bumper Package for Standard Range Engine (PN#5400-900048G)
■ HT730 Bumper Package for Long Range Engine (PN#5400-900049)
■ HT730 Boot case for Standard Range Engine (PN#3210-900036G)
■ RP902 Bluetooth UHF RFID Pocket Reader (PN#RP902-33E8S0G (EU), PN#RP902-43A8S0G (US), PN#RP902-43F8S0G (JP))
■ Quick charge UK USB Plug (PN#1010-51C002G)
■ Quick charge EU USB Plug (PN#1010-51C001G)
What comes in the box
-
The basic package contents
■ HT730 Plus Terminal
■ Battery
■ Hand Strap
Regulatory Approvals
- Regulatory Approvals CE, FCC, NCC, IC, VCCI, TELEC, CCC, SRRC, RoHS, CEC, BQB, GMS, N-Mark
Warranty
- Hardware Warranty 12 months
- Statement This product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
