MS282e

2D Imager Scanner

Need an efficient and powerful way to capture 2D barcodes at any budget? The MS282e is a great alternative to more robust scanners with features other readers ignore.

  • 2D

  • USB

  • IP42

  • 1.5 m

  • Retail

  • Hospitality

Need an efficient and powerful way to capture 2D barcodes at any budget? The MS282e is a great alternative to more robust scanners with features other readers ignore. Its two-dimensional barcode scanning technology works for a wide range of markets and applications, from point-of-sale systems, loyalty cards and mobile coupons in retail stores to general purpose hospitality scanning.



Features

   •  Compact and lightweight design

   •  Reads all 1D and 2D barcodes

   •  Scan barcodes on the screens of mobile devices

   •  Durable rugged scanner: IP42 and 1.5m drop spec

   •  Long lifecycle trigger design: Up to 10,000,000 times.

   •  Versatile scanning modes: supports both manual and presentation scanning

Intuitive and Easy To Use



Featuring a compact size in an ergonomic housing, the MS282e handheld scanners are easy to hold and operate, just plug-and-play and connect it to your computer via USB cable. There is no need to do any additional installation or training, it’s ready to work. This device enhances the maximum compatibility by reading major 1D or 2D barcode types, and even reads damaged or poorly printed bar codes.

Durability



This rugged 2D barcode scanner is truly enterprise-ready. It features an IP42 environmental seal against moisture and dust and a 1.5m drop specification. The MS282e barcode scanner offers a presentation mode that allows you to scan barcodes automatically without pressing buttons. Alternatively, it can be used manually in trigger mode. With the barcode scanner stand (optional), it provides a simpler way to hold the MS282e that ensures longer service time. Built in versatile capabilities, the MS282e is truly an elegant barcode scanner with high value.

Scan Barcodes on Various Display Panels


Keep it fast, secure, and smart.

MS282e precisely scans the QR code(2D) even on a rounded and small Apple watch, simplifying the payment to maximize the customer checkout experience. MS282e further empowers checkout associates with the right tools to forge smarter retail stores.











TAA Compliant Barcode Scanners



Specification

Optical & Performance

  • Sensor 640 X 480 CMOS
  • Aiming Element Red LED (625nm)
  • Illumination White LED
  • Ambient Light 0~100,000lux (natural light)
  • Skew Angle ± 60°
  • Pitch Angle Sensor ± 60°
  • Roll Angle 0 - 360°
  • Field of View Horizontal 42° Vertical 31.5°
  • Optical Resolution (1D)≥3mil (1D, (2D)≥6.67mil
  • Printing Contrast Scale 25%
  • Depth of Field SYMBOLOGY / X-DIM TYPICAL RANGE* Near Far
    EAN-13 (13mil): 60mm-350mm
    Code 39 (5mil): 40mm-150mm
    PDF417 (6.7mil): 50mm-125mm
    Data Matrix (10mil): 45mm-120mm
    QR Code (15mil): 30mm-170mm

Communication

  • Host Interface supported USB

Mechanical

  • Dimension 179.7 mm x 47.5mm x 51.3mm
  • Weight 125g
  • Trigger Switch Life 10 million times

Functionality

  • Operation Mode Trigger Mode, Presentation Mode

Symbologies

  • 1D Barcodes Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, AIM128, Plessey, MSI-Plessey
  • 2D Barcodes PDF417, QR Code, Micro QR, Data Matrix
  • Data Formatting Prefix, Suffix, Code ID, Reformatting Date

Electrical

  • Operation Voltage DC 5V +/- 10%
  • Current Consumption Operation mode: <110mA
    Standby mode: <7mA
  • Indicator Buzzer, LED

Environmental

  • ESD Protection Functional after 8K Contact and 12K Air
  • Mechanical Shock 1.5M onto concrete (scanner only)
  • Operating Temperature -10°C to 50°C
  • Storage Temperature -20°C to 60°C
  • Relative Humidity 95% non-condensing
  • IP Rating IP42

Accessories

  • Items ■ Hands-Free Stand

Regulatory Approvals

  • Regulatory Approvals CE, FCC, BSMI, VCCI,TAA Compliant

What comes in the box

  • The standard package contents ■ MS282e Scanner
    ■ USB Cable

Warranty

  • Hardware Warranty 60 months
  • Statement This product is warranted against defects in workmanship and materials for a period of five years from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.

Accessories

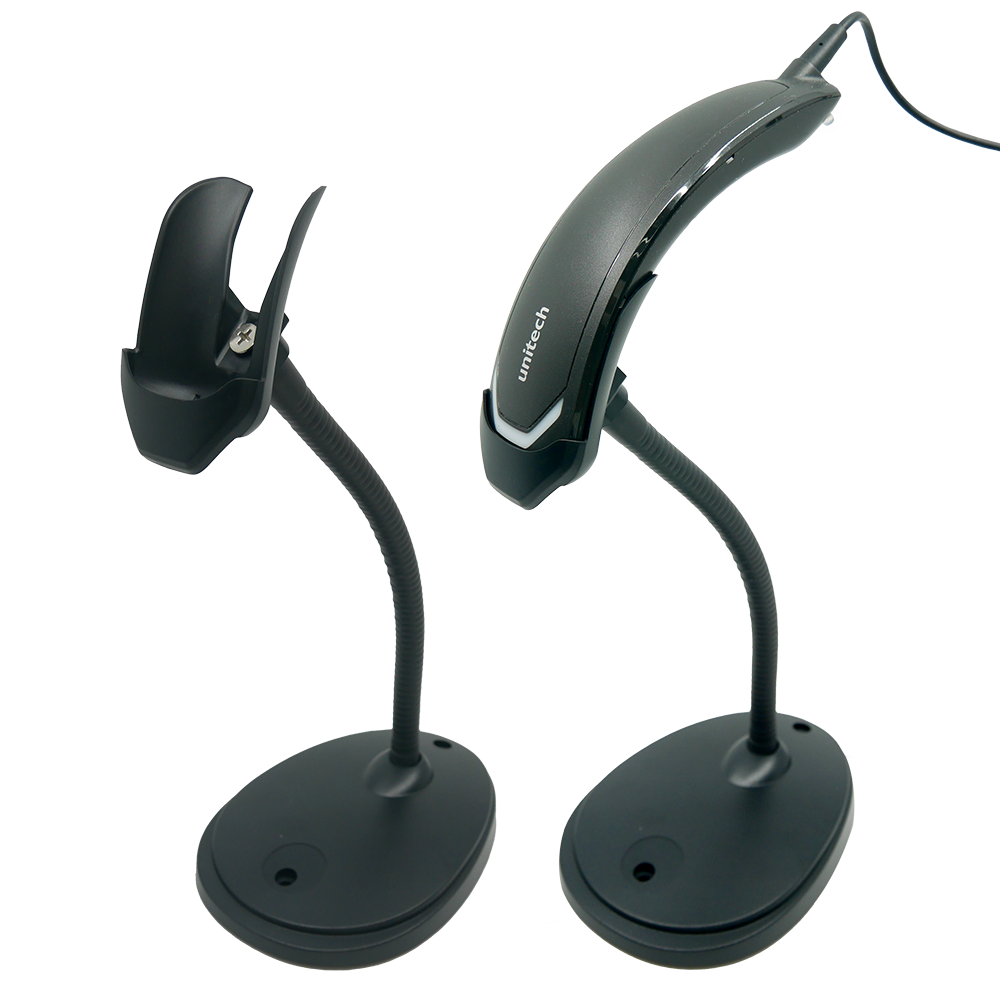

Stand

5200-900013G
