MS340
Handheld Imager Scanner (1D)
The MS340 is a long range CCD scanner for field service, warehouse and manufacturing applications.
• Capable of long-range scanning (up to 15 inches) for a wide range of uses
• Ruggedly built to withstand 5-foot drops and IP42 rated for tough jobs
• Aggressive 1D scanning with capability of up to 500 scans a second
The MS340 is a long-distance scanner, meaning you don’t have to make contact with a barcode to read it. Bring greater flexibility and lasting durability to your data collection process.
Features
• Long-range scanning: up to 15 inches
• Superior scanning: up to 500 scans/sec
• Reads all common 1D barcodes including GS1 DataBar and stacked codes
• Hands-free stand available
• Withstands 5-foot drops to concrete
• Interface options: USB, RS232, Keyboard Wedge
• Environmentally sealed against moisture and dust
• Warranty: 5 Years
Next Generation Scanning
It’s possible to get the most advanced scanning technology for your business without blowing your budget. Get the quickest read with an aggressive and accurate scan engine that reads barcodes over a foot away. The MS340 can decode all common 1D barcodes in both manual and presentation mode.
Ergonomic Design
Featuring a lighter and more streamlined design, the MS340 barcode scanner weighs just 6 ounces. A comfortable and ergonomic grip makes scanning a breeze. Go completely hands-free with the optional stand by switching to Presentation Mode and the MS340 will auto detect your barcodes.
Dependable & Rugged
It’s important to choose a scanner that will last. Our MS340 is certified to meet the highest standards of durability. Its rugged design is sealed against potential hazards and resists dust and moisture. The MS340 is proven to withstand multiple 5-foot falls to tough surfaces such as concrete. All of this is backed by a 5-year warranty.
TAA Compliant Barcode Scanners
Learn more about Unitech TAA Compliant Product List :
Wired Barcode Scanners
- MS852
- MS852+
- MS282e
- MS340
- MS250
Wireless Barcode Scanners
- MS851B
- MS842P
- MS840P
Wearable Scanners
- MS622
Pocket Scanners
- MS912+
- MS910+
ESD Safe Barcode Scanners
Anti-microbial 2D barcode scanner
- MS925 HC
Specification
Optical & Performance
-
Sensor
Linear CCD Sensor
Processor type:ARM Cortex™-M3, 32-bit - Aiming Element N/A
- Illumination Visible Red light 635nm LED
- Ambient Light 100,000 Lux (Sunlight)
- Scan Rate Smart detection, up to 500 scans per second
- Skew Angle ± 60°(±5°)
- Pitch Angle Sensor ±10°~65°(±5°)
- Roll Angle ±25°
- Optical Resolution 4mil/0.1mm@PCS90%, Code39
- Printing Contrast Scale Minimum 30%
-
Depth of Field
Up to 400 mm@20mil/0.5mm, PCS90%, Code39
Density | Near | Far |
------------------------------------------------------------
0.1mm / 4mil | 80mm | 120mm
0.127mm / 5mil | 70mm | 140mm
------------------------------------------------------------
0.15mm / 6mil | 60mm | 170mm
0.26mm / 10mil | 40mm | 220mm
------------------------------------------------------------
0.33mm / 13mil | 40mm | 330mm
------------------------------------------------------------
0.39mm / 15mil | 40mm | 370mm
------------------------------------------------------------
0.5mm / 20mil | 40mm | 400mm
Communication
- Host Interface supported KBW / RS232 / USB
Mechanical
-
Dimension
6.5 in. H x 2.8 in. W x 2.8 in. D
72 mm x 70.3 mm x 164 mm -
Weight
6.1 oz.
173.5 g - Trigger Switch Life 1,000,000 times
Functionality
- Operation Mode Handheld / Presentation
Symbologies
-
1D Barcodes
All UPC/EAN/JAN, EAN128 Code, Code 39,
Code 39 Full ASCII Code32 / Italian Pharmacy,
Code 128, CODABAR/NW7 Interleave 25,
Industrial 25, Matrix 25,MSI/PLESSEY,
Telepen Code 93, Code 11, China Postage,
Code 26,LCD25, GS1 DataBar
Electrical
- Operation Voltage DC 5V ± 5%
- Current Consumption Operation mode: <145mA, Standby mode: <60mA
- Indicator Buzzer, LED
Environmental
- ESD Protection Functional after 8K Contact and 12K Air
- Mechanical Shock 5-feet (1.5M) onto concrete - scanner only
- Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)
- Storage Temperature -20°C to 70°C (-4°F to 158°F)
- Relative Humidity 20% to 95% (Non-condensing)
- IP Rating IP42
Accessories

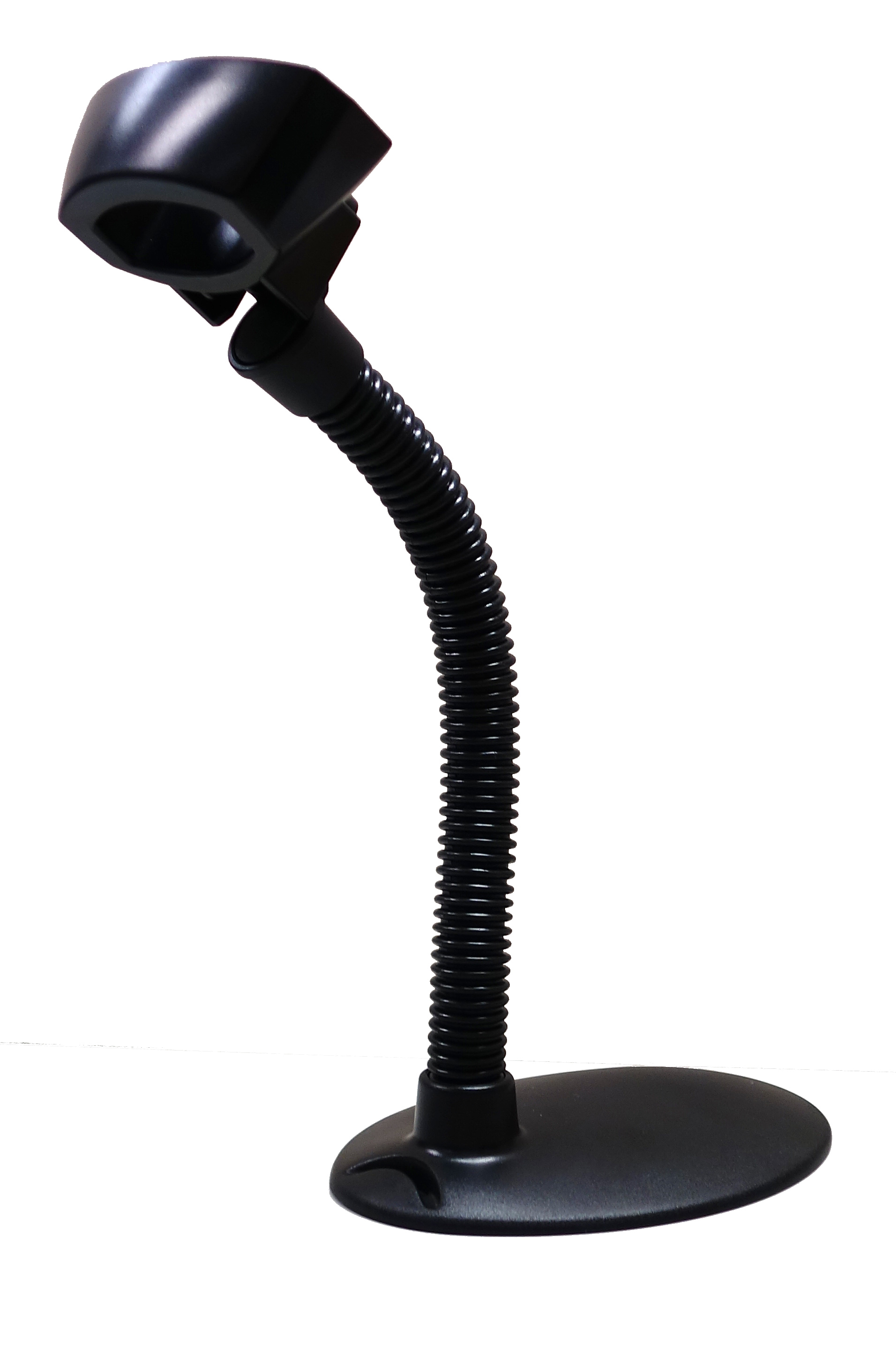

- Items ■Hand-free stand (Optional) (PN#5200-900006G)
Regulatory Approvals
- Regulatory Approvals CE, FCC, VCCI, BSMI, TAA Compliant
What comes in the box
-
The standard package contents
■ MS340 Scanner
■ Interface cable
Warranty
- Hardware Warranty 24 months
- Statement The warranty covers natural failures due to regular usage. Damages caused by drops or other incidents are not covered. And different regions may have varying warranty terms. Please contact your local representative for further extended information.
