Combining mobility wireless design and durability at an affordable price, MS851B wireless laser scanner is ideal for a broad range of market applications such as warehouse, logistics, and manufacturing solutions.
Features
• Support Bluetooth® dual-mode technology (Bluetooth LE® V4.2 & Bluetooth® 2.1+EDR, Class 1)
• Wireless transmission range up to 100m in the line of open sight.
• High-Speed data capture performance: up to 104 scans/sec
• Long battery life up to 30 hours per a fully charged battery
• Durable design: IP42 and 2.1m drop spec
• Auto Bluetooth pairing / Auto switch between Trigger & Presentation mode with cradle
High-Speed Laser Scanning Performance
Featuring laser scanning technology, the MS851B has the automatic scanning ability with a scan rate of up to 104 scans per second. It also has the ability to capture long range 1D barcodes, even damaged or poorly printed barcodes. This device enhances workflow efficiency at an affordable price.
Move without Restrictions
The MS851B supports Bluetooth® dual-mode technology (Bluetooth LE® V4.2 & Bluetooth® 2.1+EDR, Class 1) to give you the freedom and bring your business the flexibility. It is compatible with any smartphone, tablet, or computer–the MS851B pairs easily to any mobile device or PC. Besides, it allows users to transmit data to the host from up to 100 meters from the base.

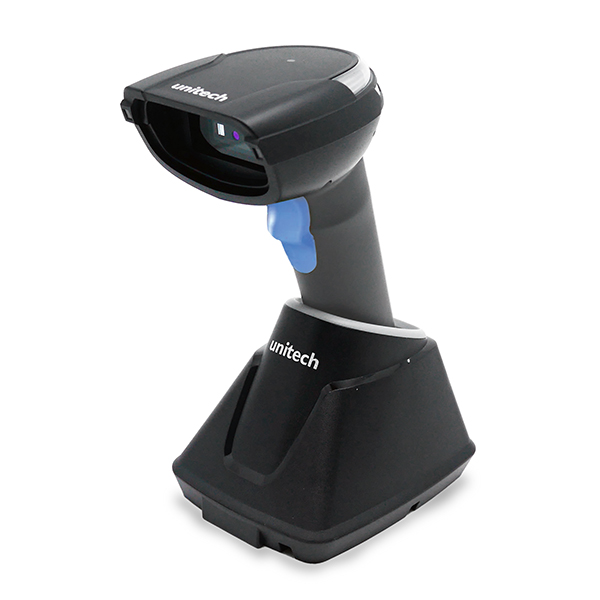

Flexibility with Cradle Accessory
This MS851B wireless scanner has a cradle accessory that supports auto Bluetooth® pairing and it has the ability to switch between trigger or presentation mode automatically. When it is out of range reading in Auto Mode, the scanned data will be saved into the MS851B memory buffer automatically and transmit to the host when back to the wireless coverage. Moreover, MS851B can be set to batch mode reading, all the scanned data will be stored in a memory buffer and upload to your devices at your own convenience.
Compact but Durable
While sustaining a 2.1-meter drop to concrete, MS852B+ incorporated with IP42 rugged design for protection against dust and moisture. Moreover, the built-in long lifecycle trigger of 10 million times guarantees a continuous productivity for the best reliability. This scanner can be used in the most practical way depending on the long-range scanning task in various solutions in retail and inventory applications. |
|
|||
IP42 Certification |
2.1m Drop Protection |
||
TAA Compliant Barcode Scanners
TAA refers to the Trade Agreements Act, which is a law that was passed for the purpose of making international trade more open and fair. One of the main requirements of the TAA is products purchased by the United States government can only be made in the U.S. or by a designated country such as Taiwan.
Founded in 1979 in Taiwan, Unitech is a global provider of AIDC technologies with over 40 years of experience. Our factories were built in Taiwan, and all the SMT and assembly are done in Taiwan as well. We offer a series of quality barcode scanner products to comply with the Trade Agreements Act (TAA) for U.S. government GSA (General Services Administration) Schedule contracts
Specification
System
- Memory 7.5MB (590,000 barcodes)
- Key Trigger Key
Optical & Performance
- Sensor 1D Laser
- Illumination 650 nm visible laser diode
-
Ambient Light
Sunlight:
8000 Ft Candles (86,111 Lux) - Scan Rate 104 (± 12) scans/sec (bidirectional)
- Skew Angle ±40°
- Pitch Angle Sensor ±65°
- Roll Angle ± 35° from vertical
- Optical Resolution 4mil (0.1mm)
- Printing Contrast Scale minimum 20%
-
Depth of Field
(DOF PCS=80%)
-----------------------------------------------Symbology | Density | Near | Far
Code 128, 5 mils | 3.55 cm | 17.78 cm
Code 39, 5 mils | 3.05 cm | 26.67 cm
Code 39, 7.5 mils | 3.04 cm | 41.91 cm
Code 128, 10 mils | 3.05 cm | 40.46cm
UPC, 13 mils | 4.57 cm | 63.50 cm
Code 128, 15 mils | 5.08 cm | 66.04 cm
Code 39, 20 mils | 3.56 cm | 116.84 cm
Code 39, 55 mils | 8.64 cm | 177.80 cm
Code 39, 100 mils | 60.96 cm | 457.20 cm
Communication
-
Radio
Bluetooth LE® V4.2
& Bluetooth® 2.1+EDR, Class 1
Dual mode - Wireless Coverage 100m ( line of sight)
- Protocol Serial Port and HID profiles
- Host Interface supported USB, RS232
- Memory Buffer 7MB for batch mode/ 20KB for auto mode
Mechanical
- Dimension 87.8 L x 71.6 W x 177.7 H (mm)
- Weight 213g without cradle
- Trigger Switch Life 10 million times
- Cradle Dimension 120.6 L x 88.7 W x 86.0 H (mm)
Symbologies
-
1D Barcodes
Code 39, Full ASCII Code39, Interleave 2 of 5, UPC
A/E/E1, MSI, Codabar, Code 11, EAN8/13, Code 93,
Code 128, EAN128, Code32, GS1 databar Code,
Bookland EAN, Discreate 2 of 5, Chinese 2 of 5, ISBT
128, UCC Coupon Extended Code, Bookland 128 - Data Formatting Prefix, Suffix, Code ID, Reformatting Date
Electrical
- Indicator LED & Beeper & Vibrator
- Battery Type Rechargeable and replaceable battery pack.
- Battery Capacity 2850mAh
- Battery Charging time 7 hours
- Operating Time >30 hours
Environmental
- ESD Protection Functional after 8K Contact and 15K Air
- Mechanical Shock 2.1M onto concrete (scanner only)
- Operating Temperature -10°C to 50°C (14°F to 122°F)
- Storage Temperature -40°C to +70°C (-40°F to +158°F)
- Relative Humidity 95% non-condensing
- IP Rating IP42
Accessories
-
Items
■ USB cable (PN# 1550-905890G)
■ RS232 cable (PN# 1550-905891G)
■ USB type C cable (PN# 1550-905892G)
■ 1-slot charging cradle (PN#5 000-900064G)
■ Battery pack (PN# 1400-900055G)
■Carrying bag (PN#3210-900025G)
Regulatory Approvals
- Regulatory Approvals CE, FCC, BSMI, VCCI, NCC, TELEC, BQB, TAA Compliant
What comes in the box
-
The standard package contents
■ MS851B Scanner with battery
■ Cradle
■ Interface cable
Warranty
- Hardware Warranty 36 months
- Statement This product is warranted against defects in workmanship and materials for a period of three years from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
