MS851B ESD
Bluetooth ESD-safe Laser Scanner
The MS851B ESD (Electrostatic discharge) laser scanner is a high-performance device but additional designed to satisfy the stringent requirements of cleanrooms and static-safe manufacturing environments.
-
1D Laser
-
ESD
-
Wireless
-
IP42
-
2.1 m
-
Bluetooth
-
Warehousing
-
Manufacturing
unitech’s MS851B ESD-safe scanner is made by the internal mixed way with antistatic agent to protect MS851B series to be ESD safe to be used at ESD protected area including its cable. The body of the product and its cable can withstand ESD up to 105 ~109 ohms per square and no containing Chlorine material.
Features
• Withstands ESD up to 105~109 ohms per square
• Support Bluetooth® dual-mode technology (Bluetooth LE® V4.2 & Bluetooth® 2.1+EDR, Class 1)
• Wireless transmission range up to 100m in the line of open sight.
• High-Speed data capture performance: up to 104 scans/sec
• Long battery life up to 30 hours per a fully charged battery
• Durable design: IP42 and 2.1m drop spec
• Auto Bluetooth pairing / Auto switch between Trigger & Presentation mode with cradle
|
|||||
Safeguard with unitech ESD-Safe Scanners |
|||||
Specifically designed to satisfy the stringent requirements of static-safe environments |
|||||
Applications | |||||
Manufacturing | Gas Station Fuel grounds | Mining fields | Clean-rooms |
|||||
MS85X ESD Series | Successful Cases |
|||||
|
|||||
![]() |
ESD Protection
The MS851B ESD (Electrostatic discharge) laser scanner is a high-performance device but additional designed to satisfy the stringent requirements of cleanrooms and static-safe manufacturing environments. unitech’s MS851B ESD-safe scanner is made by internal mixed way with antistatic agent to protect MS851 series to be ESD safe to be used at ESD protected area including its cable. With the Internal mixed way, the body of the product and its cable can withstand ESD up to 105~109 ohms per square and no containing Chlorine material. The Internal mixed way can provide a longer time of ESD protection than external addition way due to external additional anti-static in the latter part of the packaging or processing process was wiped away. An internal mixed antistatic agent can continue to add antistatic agent to the plastic surface, to make up the surface due to wipe and the amount of antistatic agent consumed. It is a reliable tool to streamline your workflow in manufacturing environments.
High-Speed Laser Scanning Performance
Featuring laser scanning technology, the MS851B ESD has the automatic scanning ability with a scan rate of up to 104 scans per second. It also has the ability to capture long-range 1D barcodes, even damaged or poorly printed barcodes. This device enhances workflow efficiency at an affordable price.
Move without Restrictions
The MS851B ESD supports Bluetooth® dual-mode technology (Bluetooth LE® V4.2 & Bluetooth® 2.1+EDR, Class 1) to give you the freedom and bring your business the flexibility. It is compatible with any smartphone, tablet, or computer–the MS851B ESD pairs easily to any mobile device or PC. Besides, it allows users to transmit data to the host from up to 100 meters from the base.
Flexibility with Cradle Accessory
This MS851B ESD wireless scanner has a cradle accessory that supports auto Bluetooth® pairing and it has the ability to switch between trigger or presentation mode automatically. When it is out of range reading in Auto Mode, the scanned data will be saved into the MS851B ESD memory buffer automatically and transmit to the host when back to the wireless coverage. Moreover, MS851B ESD can be set to batch mode reading, all the scanned data will be stored in a memory buffer and upload to your devices at your own convenience.
TAA Compliant Barcode Scanners
![](/uploads/files/TAA/TAA_WEBSITE.jpg)
TAA refers to the Trade Agreements Act, which is a law that was passed for the purpose of making international trade more open and fair. One of the main requirements of the TAA is products purchased by the United States government can only be made in the U.S. or by a designated country such as Taiwan.
Founded in 1979 in Taiwan, Unitech is a global provider of AIDC technologies with over 40 years of experience. Our factories were built in Taiwan, and all the SMT and assembly are done in Taiwan as well. We offer a series of quality barcode scanner products to comply with the Trade Agreements Act (TAA) for U.S. government GSA (General Services Administration) Schedule contracts
Specification
System
- Memory 7MB for batch mode/ 20KB for auto mode
- Key Trigger Key
Optical & Performance
- Sensor 1D Laser
- Illumination 650 nm visible laser diode
-
Ambient Light
Sunlight:
8000 Ft Candles (86,111 Lux) - Scan Rate 104 (± 12) scans/sec (bidirectional)
- Skew Angle ±40°
- Pitch Angle Sensor ±65°
- Roll Angle ± 35° from vertical
- Optical Resolution 4mil (0.1mm)
- Printing Contrast Scale Minimum 20%
-
Depth of Field
(DOF PCS=80%)
Symbology | Density | Near | Far
5 mil Code 128 | 3.55 cm | 17.78 cm
5 mil Code 39 | 3.05 cm | 26.67 cm
7.5 mil Code 39 | 3.04 cm | 41.91 cm
10 mil Code 128 | 3.05 cm | 40.46cm
13 mil UPC | 4.57 cm | 63.50 cm
15 mil Code 128 | 5.08 cm | 66.04 cm
20 mil Code 39 | 3.56 cm | 116.84 cm
55 mil Code 39 | 8.64 cm | 177.80 cm
100 mil Code 39 | 60.96 cm | 457.20 cm
Communication
-
Radio
Bluetooth LE® V4.2 & Bluetooth® 2.1+EDR, Class 2
Dual mode - Wireless Coverage 100m ( line of sight)
- Protocol Serial Port and HID profiles
-
Host Interface supported
USB
Mechanical
- Dimension 87.8 L x 71.6 W x 177.7 H (mm)
- Weight 213g (without cradle)
- Trigger Switch Life 10 million times
- Cradle Dimension 120.6 L x 88.7 W x 86.0 H (mm)
Functionality
- Operation Mode Trigger Mode, Presentation Mode, Buffer Mode
Symbologies
-
1D Barcodes
Code 39, Full ASCII Code39, Interleave 2 of 5, UPC
A/E/E1, MSI, Codabar, Code 11, EAN8/13, Code 93,
Code 128, EAN128, Code32, GS1 databar Code,
Bookland EAN, Discreate 2 of 5, Chinese 2 of 5, ISBT
128, UCC Coupon Extended Code, Bookland 128 - Data Formatting Prefix, Suffix, Code ID, Reformatting Date
Electrical
- Indicator LED & Beeper & Vibrator
- Battery Type Rechargeable and replaceable battery pack
- Battery Capacity 2850mAh
- Battery Charging time <6.5 hours
-
Operating Time
>30 hours
Up to 50,000 scans at 1 scan/5 second
Environmental
- ESD Protection Functional after 8K Contact and 15K Air
- Mechanical Shock 2.1 M onto concrete (scanner only)
- Operating Temperature -10°C to 50°C (14°F to 122°F)
- Storage Temperature -40°C to +70°C (-40°F to +158°F)
- Relative Humidity 95% non-condensing
- IP Rating IP42
Accessories
-
Items
■ USB cable (PN# 1550-905904G)

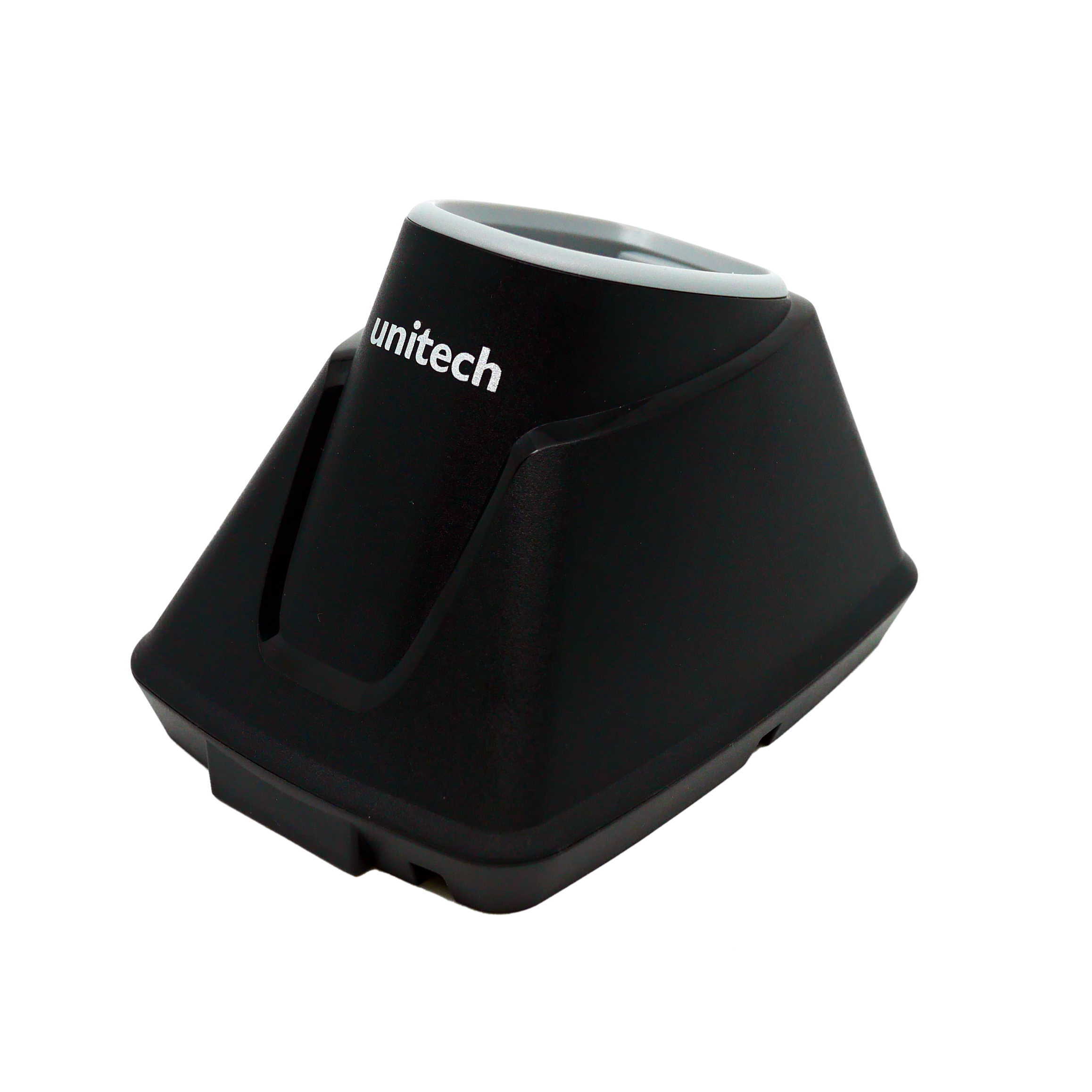

■ 1-slot charging cradle (PN#5000-900074G)
■ Battery pack (PN# 1400-900055G)
Regulatory Approvals
- Regulatory Approvals CE, FCC, BSMI, VCCI, NCC, TELEC, BQB, TAA Compliant
What comes in the box
-
The standard package contents
■ MS851B ESD Scanner with battery
■ Cradle
■ Interface cable
Warranty
- Hardware Warranty 36 months
- Statement This product is warranted against defects in workmanship and materials for a period of three years from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
