MS926P

Wireless Pocket 2D Scanner

MS926P is a 2D pocket scanner with 1-inch OLED display and the USB dongle.

  • 2D

  • 1"

  • Pocket Size

  • USB Dongle

  • Wireless

  • IP42

  • 1.5 m

  • Hospitality

  • Field Service

  • Healthcare

Blurring the line between mobile computer and barcode scanner, the MS926 brings incredible new value to the table. It works with your smartphone to collect barcode data on-the-go, but it also functions effectively as a stand-alone device.



Features

• User-friendly operation with a pocket-sized enclosure
• Supports USB dongle easy pairing function
• Build in high performance 2D engine & decoder to read all standard 1D, 2D and PDF417 barcodes
• Design for reading barcodes displayed on the LCD screens of mobile devices
• Smart Data Mapping Technology : Lookup table function and data edit function for data mapping
• Date / Time stamp for tracking scanning schedule
• Enterprise durability: 1.5 m drop protection and IP42 sealing for ingress protection
• Longer operation time up to 9 hours per a fully charge battery

unitech MS926P is a new version of wireless 2D pocket scanner that doubles the excellent decoding performance in a pocket-sized enclosure. Thanks to its 1-inch OLED display & lightweight design for easy mobility, MS926P allows users to simply scan and transmit 1D or 2D barcode and check feedback of the scanned information. It is an ideal tool for streamlining productivity at customer-facing operations such as the personal Identification and clinical workflow.

Improve Workflow in Healthcare Applications



Designed specifically for healthcare users, MS926P is convenient to be slipped into the pocket for the nurse to carry around and it is built in the red LED Illumination for better patient experience in the ward. Moreover, MS926P also equipped with a vibration mode to confirm the reading, it is more flexible to use in the hospital. With superior 2D scanning performance and easy plug and play function, the USB dongle can be connected quickly and easily to the devices without complex setting that helps healthcare users to capture barcode smoothly with the 10 meters operating range and it improve the patient admission process.

Smart Data Mapping Technology



The MS926P offers a user-friendly experience with three-button operation that is very easy to use, requiring no special training. Built-in a bright 1-inch OLED display, mobile workers can get feedback of the scanned information in real-time. This device also delivers Smart Data Mapping Technology which is combined Lookup Table and Data View/Edit Function with Date / Time stamp. It helps users to ensure data transmitted correctly and it is allowed to check up to 10,000 pre-load barcodes in the memory of Lookup Table that is more flexibility to correct data and tracking scanning schedule immediately.

Durable Design



The MS926P not only incorporates rugged design with an IP42 environmental sealing against moisture and dust, while also surviving a 1.5M drop to concrete, but also it provides the convenience of wireless technology which makes barcode data collection simple, reliable for all users.

Precision Verification for Elderly Care Meal Services



The Unitech MS926P scanner excels in extensive data verification and portable convenience, making it ideal for food factories that manage high-volume daily production and serve elderly hospitals and nursing homes. Its compact, pocket-sized design enhances the meal verification process, significantly increasing both accuracy and efficiency. Capable of processing 400,000 meals daily, this scanner ensures that each meal from the factories precisely matches the specific dietary needs of various care facilities, maintaining essential reliability.





Massive Data Verification

Support

Pocket Size

Design

Cost Performance

High


TAA Compliant Barcode Scanners



Specification

System

  • Display 1" OLED, 128 x 64
  • OS Proprietary, Connect to host with Windows, Android and iOS
  • Memory RAM 64 Kbytes
    Flash 2MB
  • Key 3 keys: Page up, Page down, Scan with power,on/off feature

Optical & Performance

  • Sensor 752×480 CMOS
  • Aiming Element Laser diode 650nm
  • Illumination Red LED 625nm±10nm
  • Ambient Light 100,000 Lux (Sunlight)
  • Skew Angle ± 55°
  • Pitch Angle Sensor ± 55°
  • Roll Angle Horizontal 36°, Vertical23°
  • Printing Contrast Scale 20%
  • Depth of Field (DOF PCS=80%)
    Decode Range | Near | Far
    EAN-13, 13 mils | 6.0 cm | 29 cm
    Code 39, 5 mils | 5.5 cm | 16.5 cm
    PDF417, 6.7 mils | 5.5 cm |13.5 cm
    Data Matrix, 10 mil | 5.5 cm | 13 cm
    QR, 15 mil | 4.5 cm |17.5cm

Communication

  • Radio Unlicensed 2.4GHz
  • Wireless Coverage 10M( line of sight)
  • Protocol Wireless SPP & HID profiles
  • Host Interface supported Micro USB

Mechanical

  • Dimension H21.1*W36.9*L95.9mm
  • Weight 63g
  • Trigger Switch Life 10 million times

Functionality

  • Operation Mode Trigger mode, Presentation mode, Auto mode, Batch mode,
    Wedge mode

Symbologies

  • 1D Barcodes Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,
    Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128,
    GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5,
    Standard 2 of 5, Plessey, MSI-Plessey, etc.
  • 2D Barcodes PDF417, Data Matrix (ECC200, ECC000, 050, 080, 100, 140),
    QR Code, Chinese Sensible Code

Electrical

  • Operation Voltage DC 3V to 5V
  • Current Consumption Operate: 300mA, Standby: 70mA
  • Battery Type Rechargeable Li-ion battery battery
  • Battery Capacity 680 mAh
  • Battery Charging time Fully charged in about 4 hours
  • Operating Time Over 9 hours at condition of 1 scan/5 sec

Environmental

  • ESD Protection Functional after 8K Contact and 12K Air
  • Mechanical Shock 1.5m onto concrete (scanner only)
  • Operating Temperature 0°C to 50°C
  • Storage Temperature -30°C to 70°C
  • Relative Humidity 5% to 90% non-condensing
  • IP Rating IP42

Accessories

  • Items ■ Wrist Lanyard (PN# 5500-900007G)
    ■ Micro USB to USB cable (PN# 1550-900074G)
    ■ 1-Slot Charging cradle (optional / PN# 5100-900008G)

Regulatory Approvals

  • Regulatory Approvals CE, FCC, BSMI, VCCI, TAA Compliant

What comes in the box

  • The standard package contents ■ MS926P scanner
    ■ USB cable (Micro USB)
    ■ Wrist Lanyard
    ■ 1 Slot Charging cradle (optional)

Warranty

  • Hardware Warranty 15 months
  • Statement This product is warranted against defects in workmanship and materials for a period of fifteen months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.

Accessories

Wrist Lanyard

PN# 5500-900007G

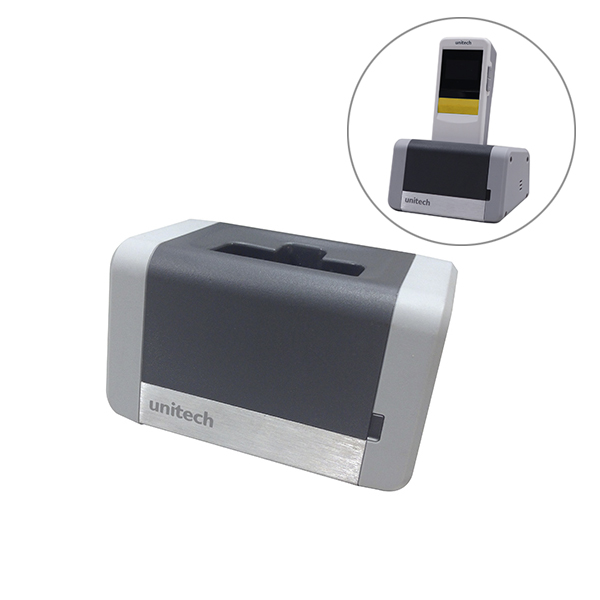

1-slot Charging cradle (optional)

PN# 5100-900008G

Neck Lanyard

PN# 3210-900019G
