Equipped with 1D / 2D imager, NFC, and Windows embedded handheld 6.5 operating system all in a compact and durable form factor, the PA520 is designed to empower the mobile workforce for daily jobs in sales automation and field service applications.
Features
• Microsoft Windows Handheld 6.5 OS
• Lightweight, slim and pocket size form factor
• Fingers operated 3.5" flat-face Capacitive Multi-Touchscreen
• Support 1D laser/2D barcode scanner, RFID HF and NFC(optional)
• Powerful CCX4 certified WLAN 802.11 a/b/g/n radio provides good roaming • capability for real-time communication
★This product has reached its End of Sale.
To explore our latest products, please visit :
https://www.ute.com/en/products/category/MobileComputers/TouchComputers
An ideal tool with scanning technology
PA520 is perfectly into the hand of users. Weighing just 220g, this compact size and a lightweight handheld device is not only ease-of-use by the employee but also small enough to fit in the shirt pocket. A 3.5” QVGA/VGA touch screen enables the operator to view clearly and an ergonomic alphanumeric keypad makes data entry simple. Equipped with multiple scan engines, this device can scan 1D/2D barcodes and RFID tags even if the codes are poorly printed. PA520 is an ideal tool providing the best data input convenience and comfort to users.
Advanced wireless connections
The PA520 integrated 802.11 a/b/g/n and Wi-Fi wireless connectivity allow the point of service to be positioned, traced and transferred from every location throughout the world. PA520 is truly an excellent device offers an extension of mobility to significantly improve job efficiency.
Rugged compact enterprise PDA
Without doubt, the PA520 features all ergonomic functionalities desired by modern PDA users. This allows mobile workers to benefit from its very compact size, finger-friendly operation, the latest Windows Mobile 6.5, high-speed 800MHz processor and all modern wireless connectivity options. The PA520 has been carefully purpose-built to meet the critical needs of sales automation and field service applications, including 1.0m free drops and an IP42 sealing.
Specification
Operation System
- OS Microsoft Windows Handheld 6.5 Classic
- GMS certified -
- CPU 800MHz, TI AM3703
- Memory 512 MB RAM / 512 MB Flash
- Languages support English, Thai, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
- Others Input Chinese/ English
Display
- Screen Size 3.5 inch TFT LCD QVGA (240x 320) / VGA (480x640) color screen
- Touch Panel Capacitive touch pannel
Buttons / Keypad
- Buttons / Keypad 22-key Numeric Keypad and 2 sides scanner trigger keys
Camera
- Camera -
Indicator Type
- Type LEDs, Vibrator
Symbologies
- 1D Barcodes UPC-A/E, EAN-8/13, Codabar, Code 39, Code 39 full ASCI,Code 93,Code 32, Interleaved & Std. 2 of 5, EAN 128, Code11, Delta, MSI/Plessey,Code 128, Toshiba, RSS expended,RSS Limited, RSS14.
- 2D Barcodes 1D codesAustralian Post, British Post, Codabar, Coupon Code, Code11, Code 32, Code 128, Code 39, Code 93, Dutch, EAN13,EAN8, IATA 2 of 5, ISBT, Japanese Post, Kix code(nl), Matrix2 of 5, MSI, Planet Code, Postnet, RSS14 expended, RSS14Limited, RSS14,
RFID
- UHF RFID -
- HF RFID Support HF/ NFC Frequency 13.56Mhz Support: ISO14443A/ B, ISO15693 standard
I/O Interfaces
- USB USB 2.0 Client and Host
- OTG -
- POGO PIN -
- SIM Slot -
- Expansion Slot MicroSD x 1, up to 32 GB
- Audio 1W speaker 85 dB at 10cm
Power Source
- Main battery 8.9 Watt-Hour 3.7V @ 2400mAh battery pack
- Extended battery -
- Hot Swap -
Communication
- Bluetooth® -
- WLAN IEEE 802.11 a/b/g/n, CCX4
- WWAN -
- GPS -
- Sensors -
- Fingerprint -
Software
- MDM Software Microsoft Visual Studio 2005/2008Mobile SIP(VoIP)Auto Installer
- Azure -
Enclosure
- Housing -
- Dimensions ( W x H x D ) 125.9mm x 25.0mm x 76.0mm
- Weight 220g (with battery)
Durability
- Drop Specification 1.0m
- Sealing IP42
- Tumble test Tumble 600 times (1.6 ft./0.5 m)
Environmental
- Operating temperature 32°F to 122°F (0°C to 50°C)
- Storage temperature -4°F to 140°F (-20°C to 60°C)
- Relative Humidity 5% ~ 95% ( non-condensing )
Accessories
-
Accessories
■ Power adaptor with universal plugs ( PN#900014G)
■ USB Cradle (PN#5000-604249G)
■ 2400mAH Battery (PN# 1400-900012G)

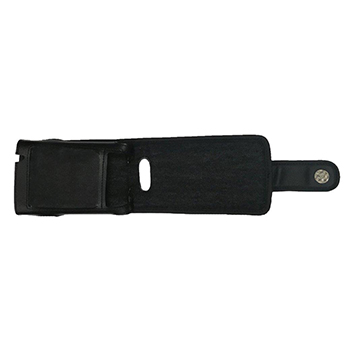

■ Holster (PN# 3210-900003G)
■ USB host dc in cable (PN#1550-900063G)

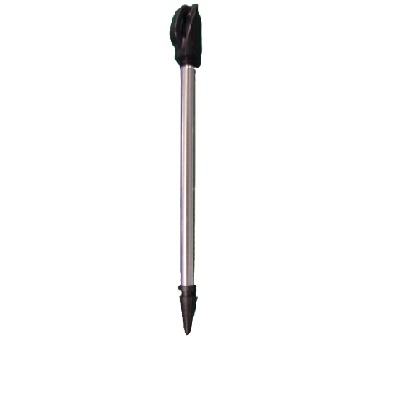

■ Stylus (PN# 383509G)
■ USB communication and charging cable (PN# 1550-900006G)
What comes in the box
-
The standard package contents
■ PA520 Terminal
■ Battery
■ Hand Strap
■ USB cable
■ Adaptor with plugs(US/EU/UK)
Regulatory Approvals
- Regulatory Approvals CE, NCC, FCC, BSMI, VCCI, CCC, RoHS
Warranty
- Hardware Warranty 15 months
