SP320

Bluetooth Mobile Printer

Bluetooth® 5.0 | Max. print speed 90mm/s | Economical

  • Android

  • iOS

  • Type-C

  • Bluetooth

  • Retail

  • Field Service

The Unitech SP320 mobile printer provides seamless integration with your existing Unitech mobile solutions, iOS, and Android devices. Advanced printing performance at the speed of 90mm/s, allows workers to handle a great variety of receipt and label printing applications while on the go.



Features

• Print barcode labels up to 3 inches wide

• Supports label and thermal paper

• Clear quality print - supports up to 203dpi resolution

• Easy integration with Android & iOS devices

• Supports Bluetooth® 5.0 and USB compatibility

• Maximum printing speed of up to 90mm/s

• High Capacity & Long Lasting 2700mAh battery

• Ready for ESC/POS, CPCL languages

• Portable design with belt buckle included



Reliable Printing Performance



The SP320 is able to print barcode labels up to 3 inches wide. Featuring wired and wireless functionality, it supports Bluetooth® 5.0 and USB compatibility. Ready for ESC/POS CPCL languages, the SP320 delivers reliable printing performance with a maximum printing speed of up to 90mm/s, reducing the time of printing receipts. It improves the efficiency and productivity of the business workforce.



3 inch
Support		 Bluetooth® 5.0
Communication		 90mm/s
High Printing Speed

ESC/POS CPCL
Support




Long Lasting Battery for Your Business



The long-lasting 2700mAh battery is designed to have up to 4 hours printing time, giving power to your tasks that help mobile workersincrease overall productivity.


2700 mAh
Battery

4 Hours
Printing Time


Increases Operational Efficiency


The SP320 mobile printer is your reliable tool that supports printing receipts, barcode labels, and specific sign for business. It features a compact design, making it a convenient way to transact and print invoices. The SP320 is ideal to increase operational efficiency for portable applications in mobile point-of-sale, retail item marking, shelf labeling, receipt printing, inventory control, and parking violations in the retail and field service industry.






Retail
Applications		 Field Service
Applications


Specification

Printer Specifications

  • Printer mode Direct thermal
  • Max. printer width 3” / 72mm
  • Max. printer speed 90mm per sec
  • Resolution 203dpi (8 dots / mm)
  • Memory RAM 8MB
    Flash 4MB
  • Printer core live 50km for thermal label
    150km for thermal paper/ receipt
    (25% print density or the following) /
    Each point: 1.5 million pulses
  • Programming languages ESC/POS, CPCL (compatibility)

System support

  • Windows XP, Win7, Win8, Win10 (via USB)
  • Android Supports Google standard SDK, API interface invocation
  • iOS Supports iOS system & supply iOS SDK

Display & Button

  • Display OLED screen
  • Button Power, Setting, Feed, Uncover Button

Printable content

  • 1D barcode Support UPC-A, UPC-E, EAN-13, EAN-8, Code39,
    ITF, CodeBar, Code 93, Code 128, I2/5
  • 2D barcode Support QR CODE, PDF417, DataMatrix
  • Languages English, Chinese, Turkish, Arabic, and other multi-language characters, numbers, graphics, curves, pre-storage icon

Power Source

  • Main battery 19.98Wh (2700mAh)
    7.4V rechargeable Li-iON battery

Media specifications

  • Media width 22mm~80mm
  • Max. media roll size 50mm
  • Media type Thermal Labels, Thermal paper
  • Detection Black mark, gap, sucessive paper
  • Print code GBK, BIG5, Unicode (UTF8)
  • Fonts ASCII font (8x16,12x24,16x32),
    GBK (16x16,24x24,32x32),
    BIG5 (16x16,32x32)

Communication

  • Bluetooth® Bluetooth® 5.0
  • USB USB 2.0 Type C

Enclosure

  • Dimensions ( W x H x D ) 140 mm x 117 mm x 60 mm
  • Weight 450g

Environmental

  • Operating temperature 0°C to +45°C
  • Storage temperature -10°C to +60°C
  • Relative Humidity Storage 10% ~ 90% (non-condensing)
    Operating 20% ~ 85% (non-condensing)

Accessories

  • Accessories ■ Battery 7.4V 2700mAh (PN# 1400-900073G)
    ■ USB 2.0 type C cable (PN#1550-905919G)
    ■ Belt Clip (PN# 4070-900016G)
    ■ Shoulder Case (PN# 3210-900039G)
    ■ 3" Thermal paper, Diameter: 40mm (PN# TS3NS3)
    ■ 5V/2A adaptor (US only) (PN#1010-900058G)
    ■ 5V/2A adaptor with US/EU/UK/AU plugs (PN# 1010-900067G)

What comes in the box

  • The standard package contents Terminal
    Battery
    Power Charger
    USB 2.0 Type C Cable
    Thermal Paper*1
    Belt Clip

Regulatory Approvals

  • Regulatory Approvals CE, FCC, RoHs compliance

Warranty

  • Hardware Warranty 12 months
  • Statement This product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.

Accessories

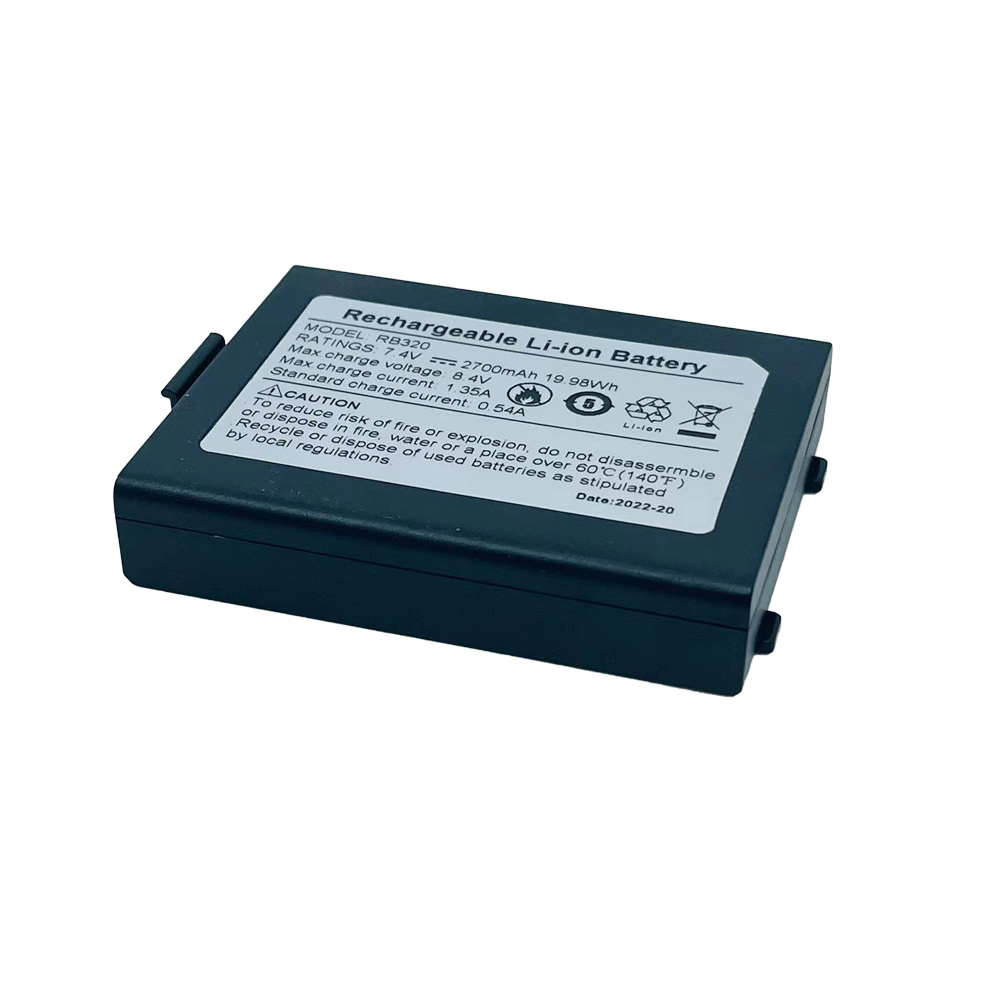

Battery 7.4V 2700mAh

PN# 1400-900073G

USB 2.0 type C cable

PN# 1550-905919G

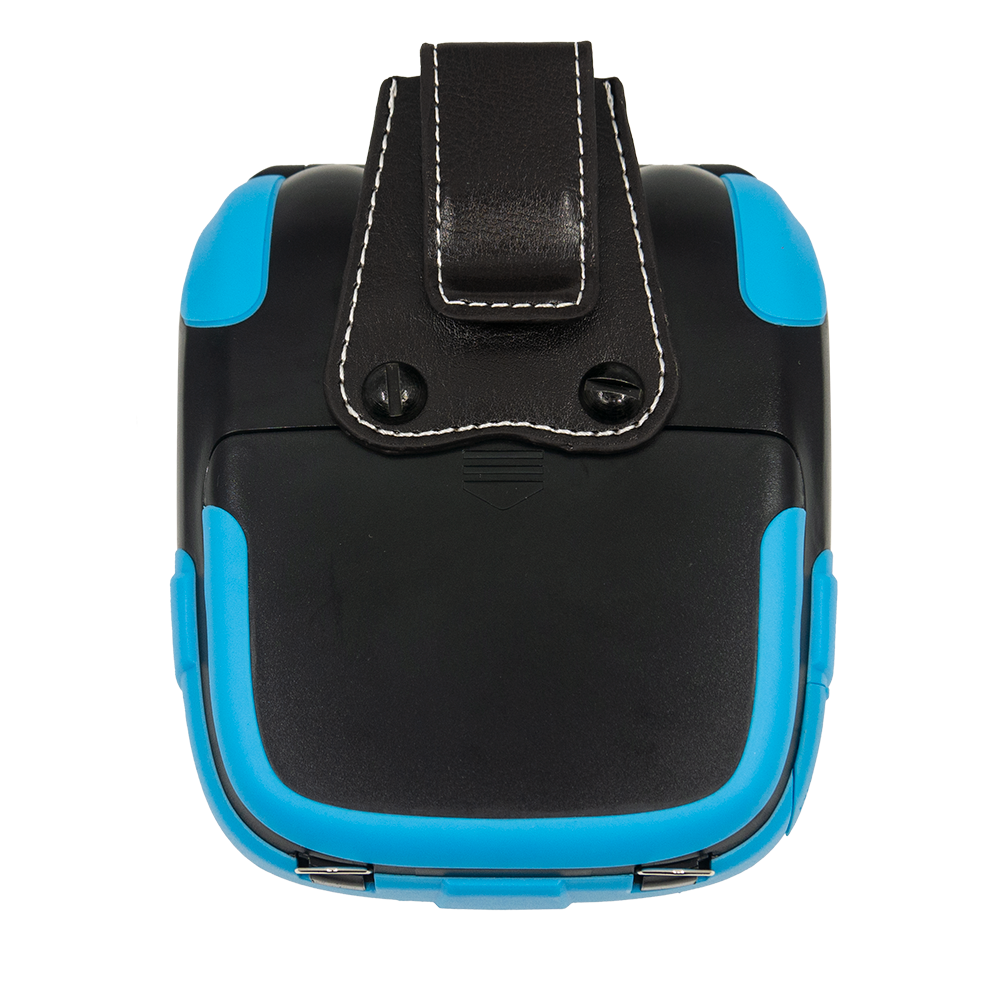

Belt Clip

PN# 4070-900016G

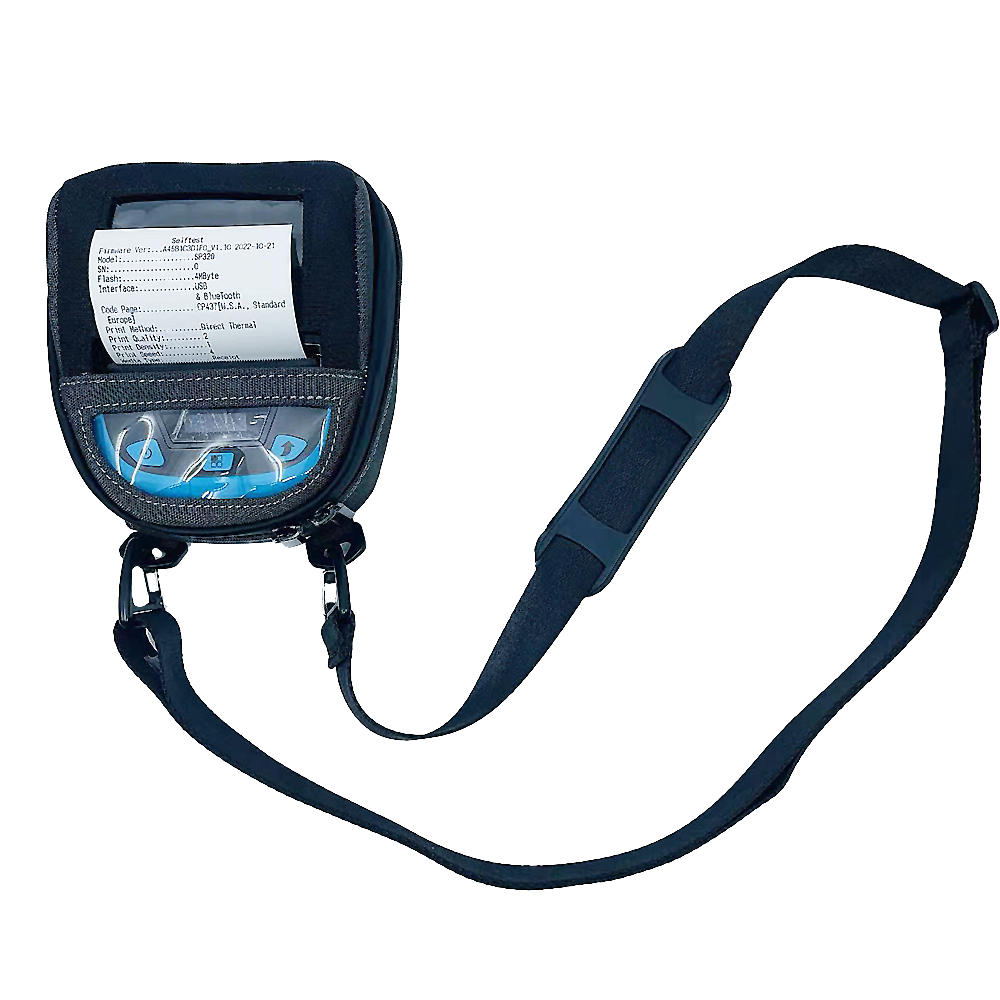

Shoulder Case

PN# 3210-900039G

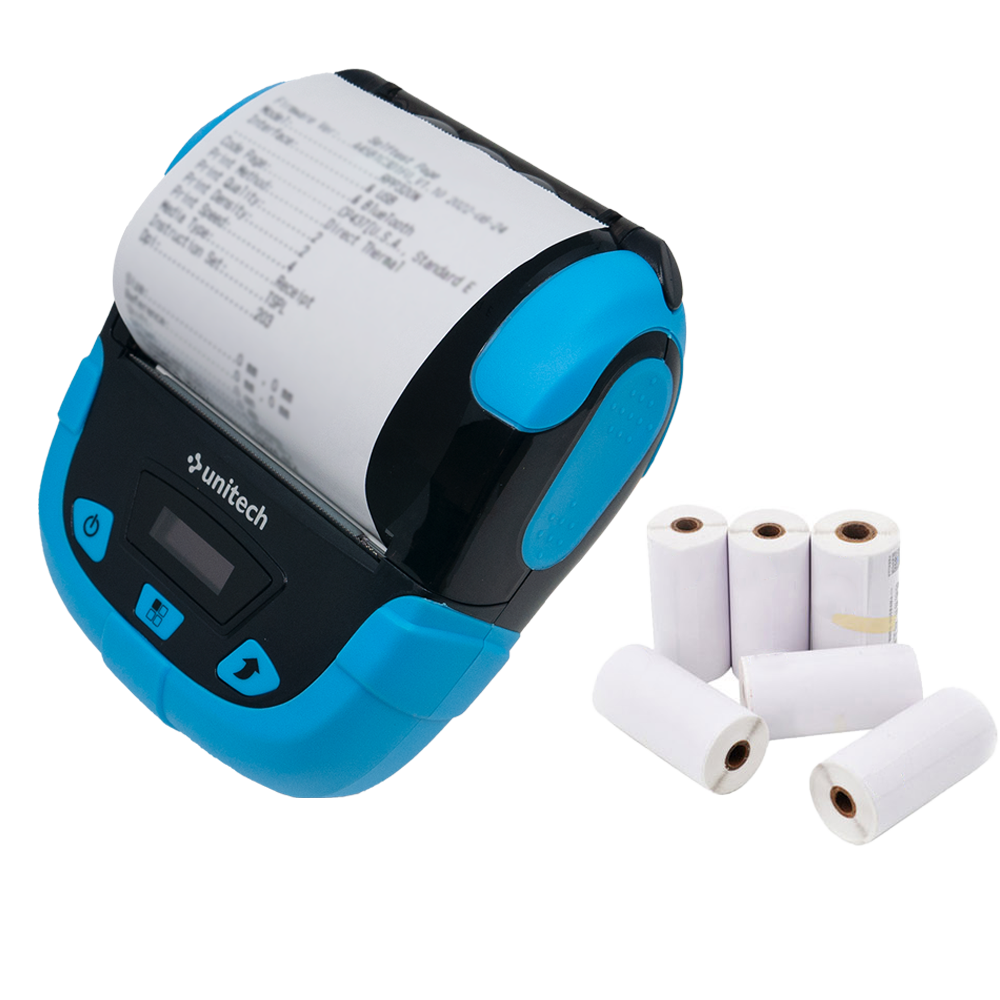

3" Thermal paper, Diameter: 40mm

PN# TS3NS3

Adapter (US) for Terminal

PN#1010-900058G

5V/2A Adaptor with universal plugs

PN#1010-900067G

5V/2A Adaptor with universal plugs

PN#1010-900067G
