IP67 protect + 1.2M Drop | 780g with 9,000mAh battery | 13.3mm thickness

Windows
10.1"
Wi-Fi
5MP
IP67
1.2 m
Bluetooth
Retail
Hospitality
Field Service

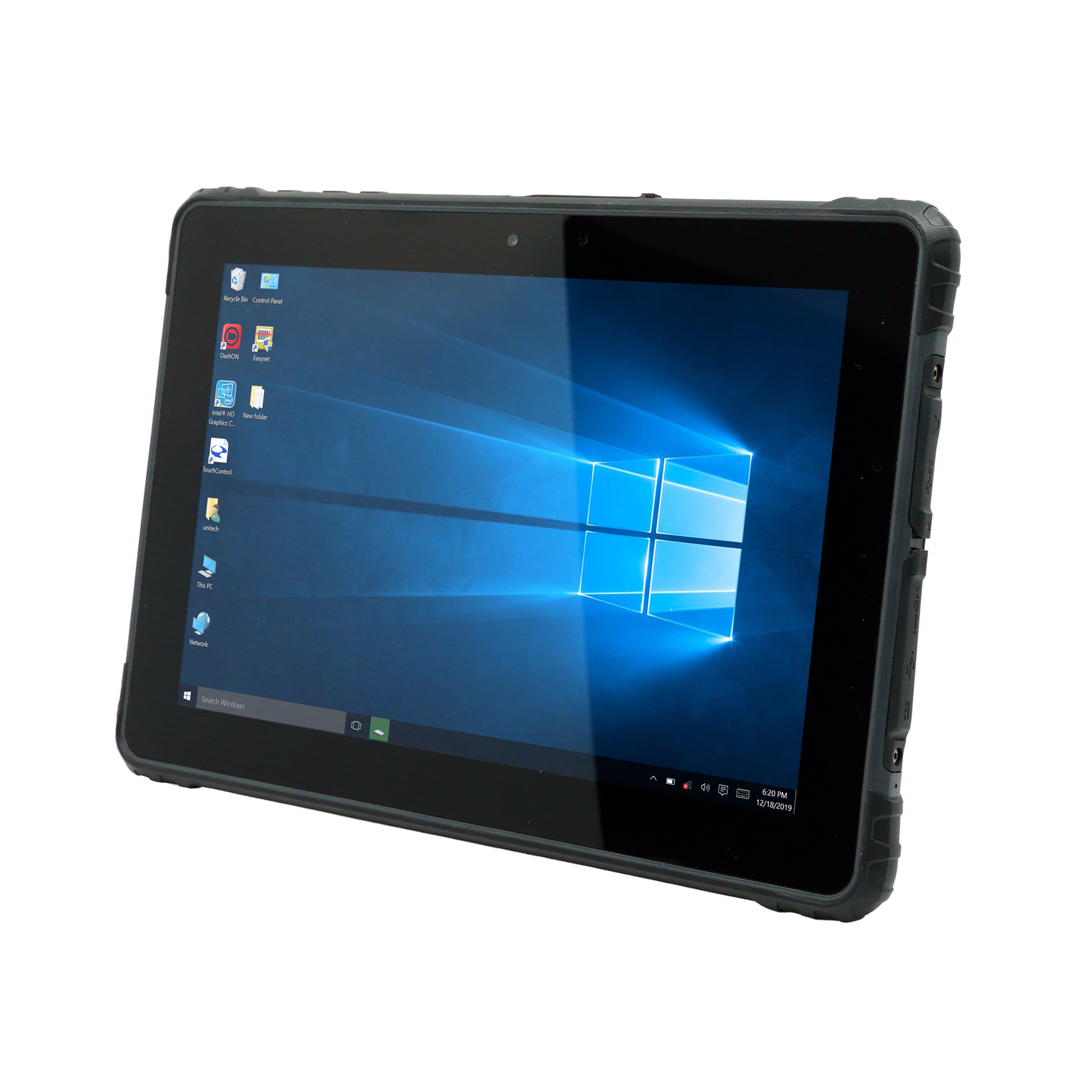

Meet the slim but tough tablet with portability for your business. Powered by a Windows 10 IoT OS, the unitech TB110 is an attractive lightweight tablet at just 780g, 13.3 mm thick for easy portability, and fortified with a tough outer casing and an environmental seal. ThisTB110 is one of the lightest tablets with decent performance and great durable features for retail, hospitality, healthcare and light-duty field service.

Features

• Windows 10 IoT Enterprise OS

• Thin & lightweight < 800g

• 13.3 mm slim design for easy portability

• Rugged: IP67 rated, and 1.2 m drop

• Long-lasting embedded 9000mAh battery

• Support Bluetooth® 4.2, Wi-Fi 802.11 a/b/g/n/ac

• Fanless & low power consumption design

• Cradle for customer needs: Support display output, Ethernet

• Dual USB ports for keyboard and mouse

• Support Ivanti Wavelink mobile device management software & solutions

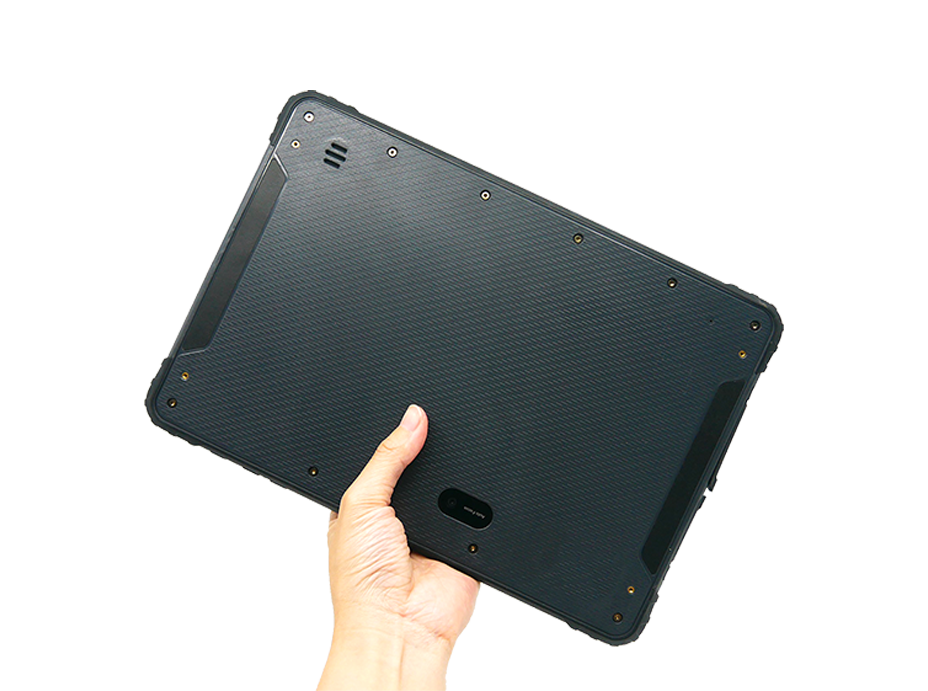

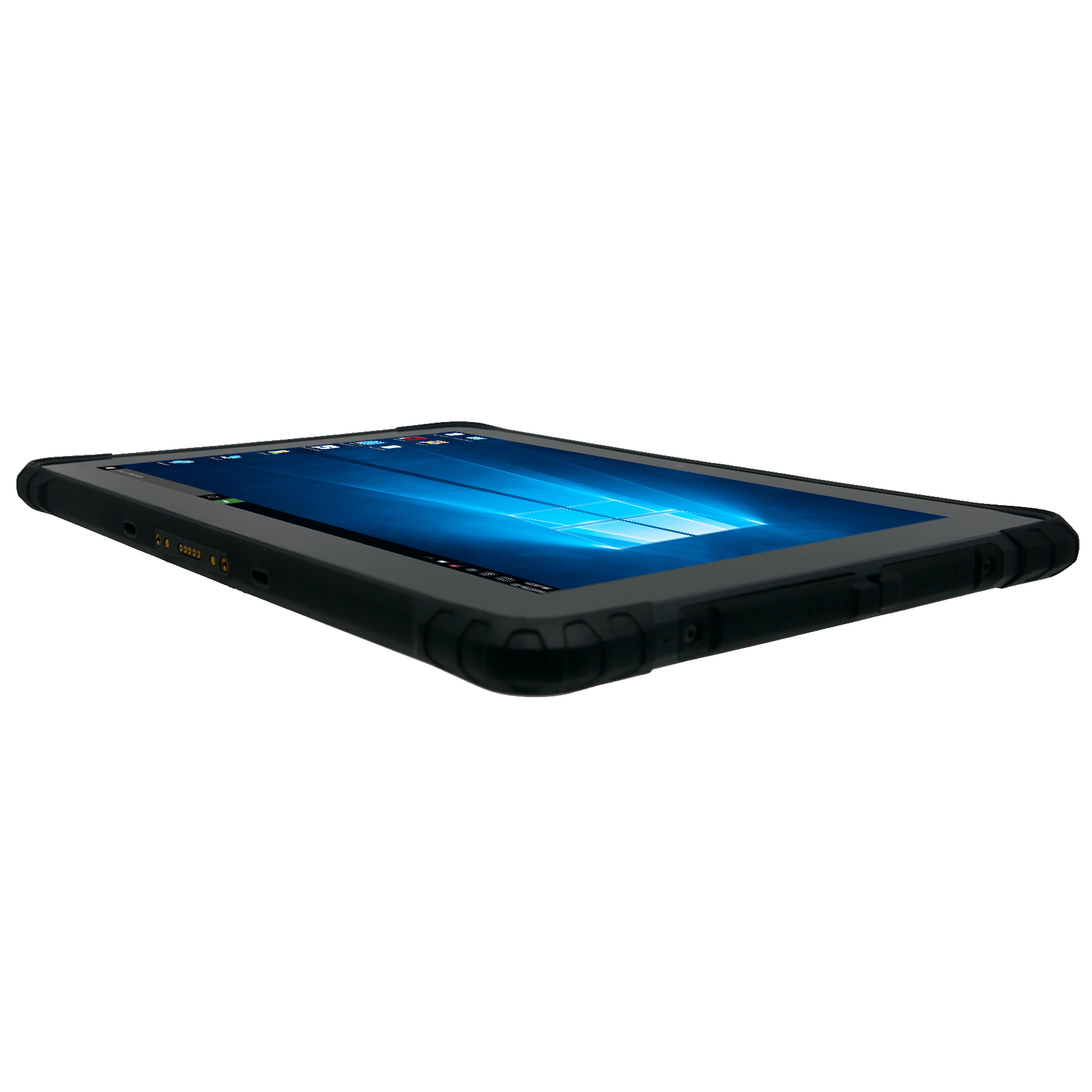

Slim but Tough

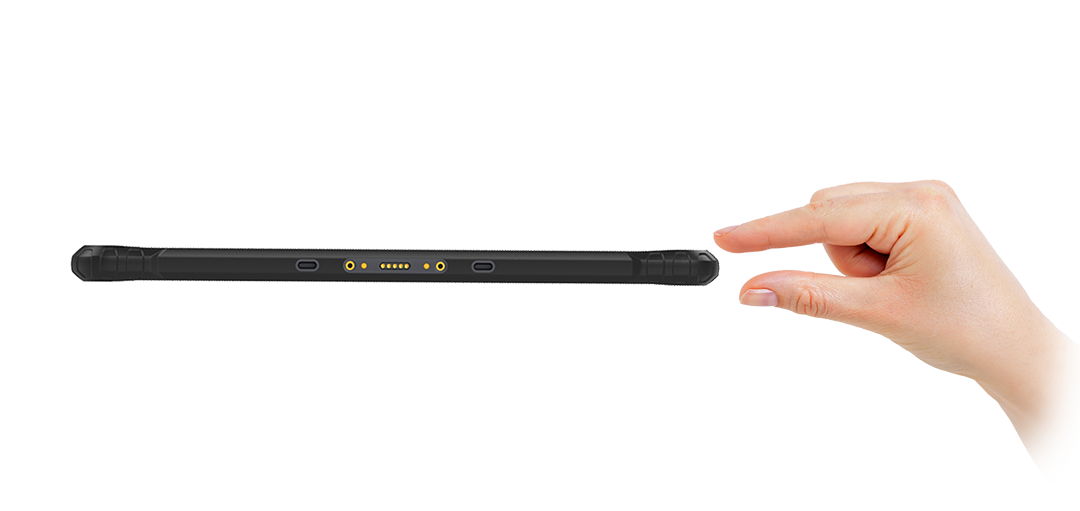

Meet the slim but tough tablet with portability for your business. Powered by a Windows 10 IoT OS, the unitech TB110 is an attractive lightweight tablet at just 780g, 13.3 mm thick for easy portability that you can easily slip it into a B4 size envelope or carry around in your hands. This TB110 is one of the lightest tablets with decent performance and great durable features for retail, hospitality, healthcare and light-duty field service.

Windows 10 IoT
Operation System

780g
Lightweight

13.3mm
Slim Design

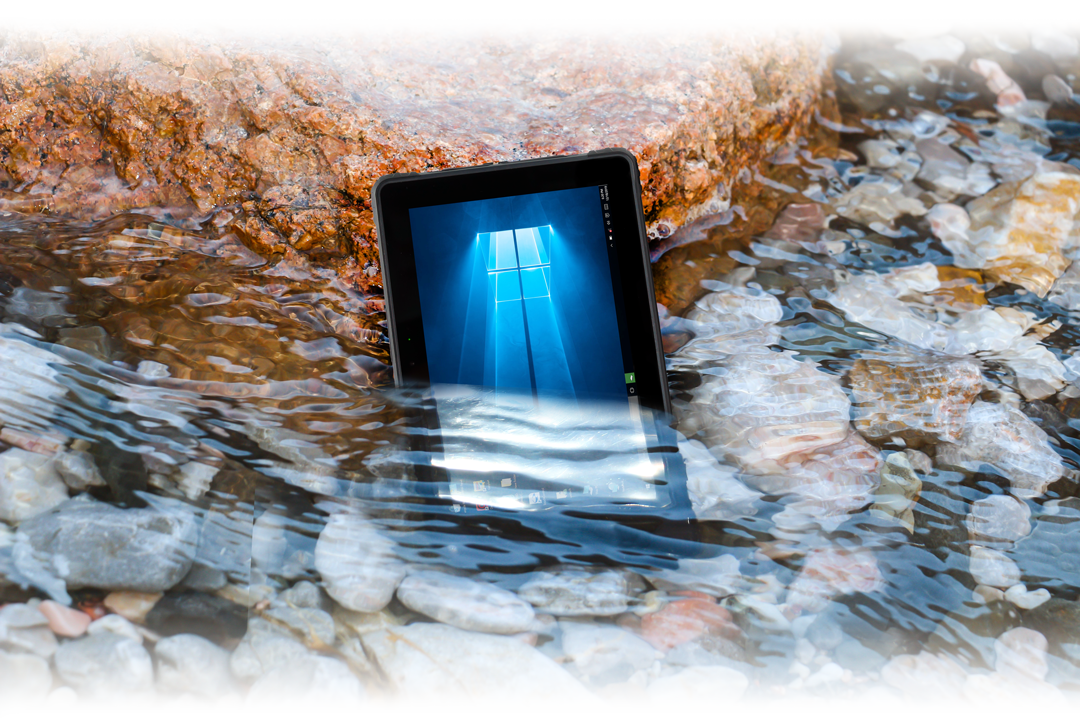

Durability at Its Best

TB110 rugged tablet is durable enough to drop from 1.2 meters onto concrete and it has IP67 certification, completely sealing durable housing against dust and moisture to withstand total immersion up to 1m. This device meets sturdy MIL-STD-810G military standard, boasting shock resistance, anti-vibration, and together with a wide operating temperature range of -10°C to 55°C. The TB110 rugged tablet endures even the most challenging environments.

IP67
Certification

1.2 m
Drop Protection

MIL-STD-810G
Military Standard

Sunlight Readable Display

This device has a sunlight-readable, high brightness (400 nits) display that responds to the touch commands even with gloves and support wet-touch mode. Plus, high performance and low power consumption design with 1.92 GHz Quad Core™ Atom processor, allows users to open multiple programs and works smoothly.

10.1”

Display

400 nits

Brightness

Glove

Mode Support

Quad-Core

Processor

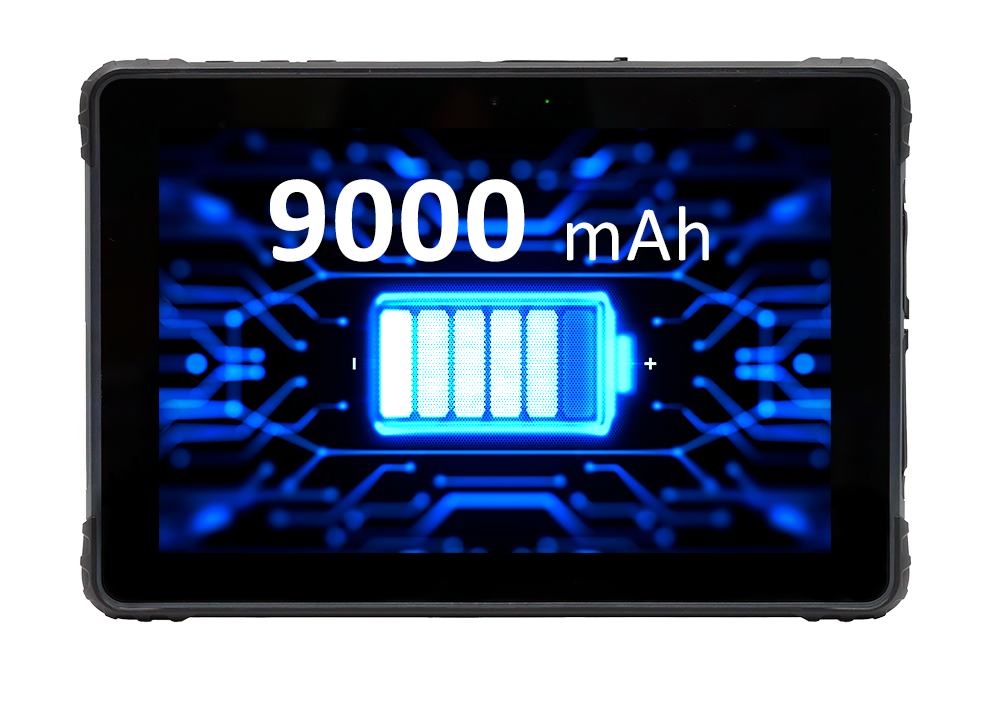

Long-lasting Battery

The embedded 9000mAh battery aims to keep the TB110 working for hours that give users full power to operate all day.

9000 mAh
Embedded Battery

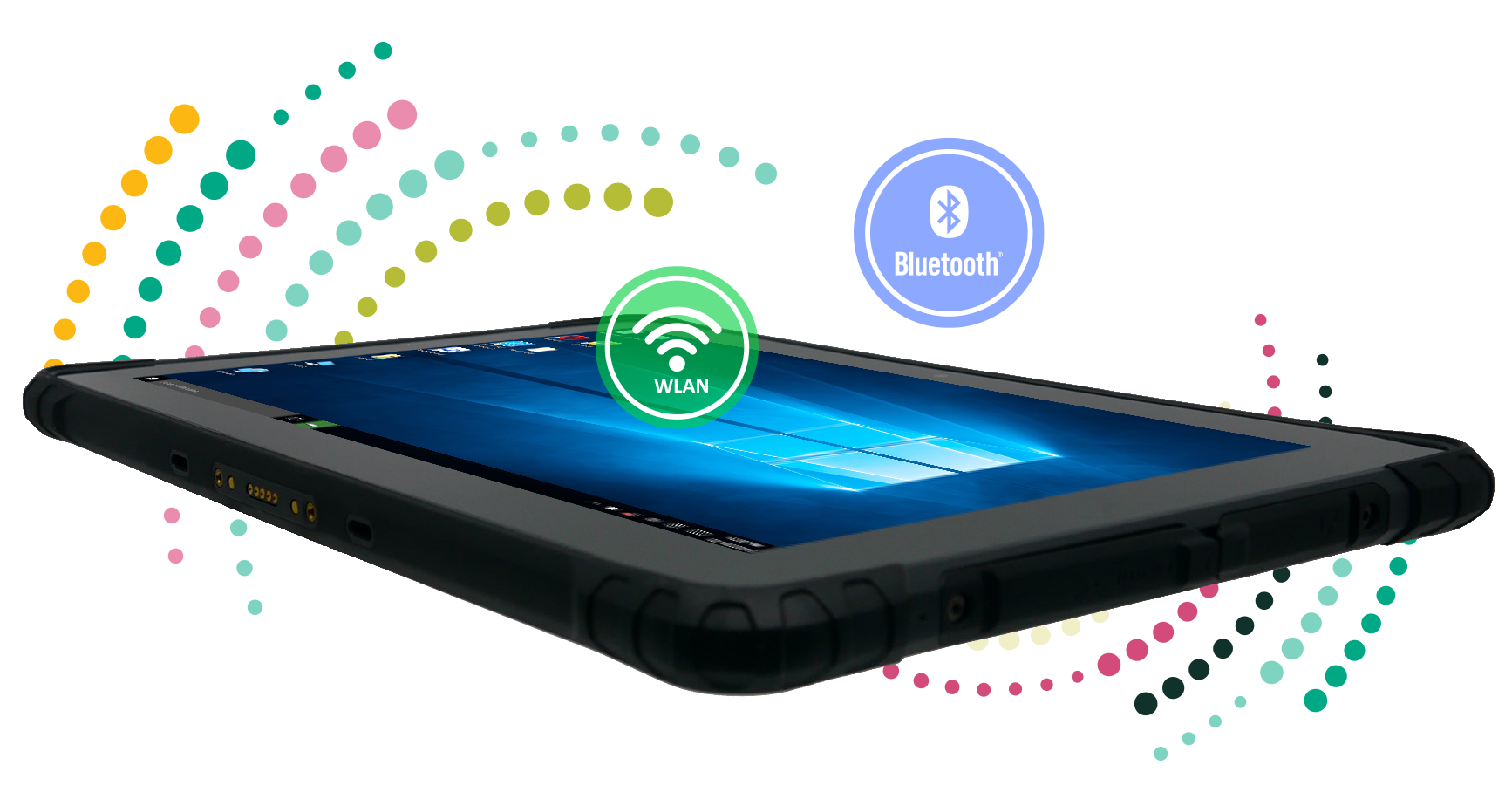

Wireless Connection

With Bluetooth® 4.2, WLAN 802.11 a/b/g/n/ac allows users to connect to the internet directly. It’s also built-in a 5MP rear camera and 2MP front-facing cameras allowing users to record important moments in the workplace.

Bluetooth® 4.2

WLAN

802.11 a/b/g/n/ac

Operation System

OS Windows 10 IoT Enterprise
CPU 1.92G, Intel® Atom™ -Z8350 Quad Core Processor
Memory RAM 4GB
Flash 64GB
Others TPM (Trusted Platform Module) 2.0 support

Display

Screen Size 10.1" (1280 x 800) HD color screen with Backlight 400 nits
Touch Panel 10-point multi-touch and capacitive stylus, support glove mode and wet-touch mode

Camera

Camera 2MP front camera
5MP rear camera, AF

Indicator Type

Type LEDs, Vibrator

I/O Interfaces

USB Full size USB 3.0 x1
Full size USB 2.0 x1
POGO PIN POGO pin
Expansion Slot Docking connector
DC Jack
Micro SDXC Card Reader
Audio Microphone, speaker and 3.5mm audio jack

Power Source

Main battery 3.7V, 9000 mAh
embedded Battery

Communication

Bluetooth® Bluetooth® 4.2
WLAN 802.11 a/b/g/n/ac
Sensors Light, G-Sensor

Enclosure

Dimensions ( W x H x D ) 268.0 x 183.6 x 13.3 (mm)
Weight 780g

Durability

Drop Specification 1.2m
Sealing IP67
Tumble test MIL-STD 810G, shock & vibration

Environmental

Operating temperature -10~55°C

Accessories

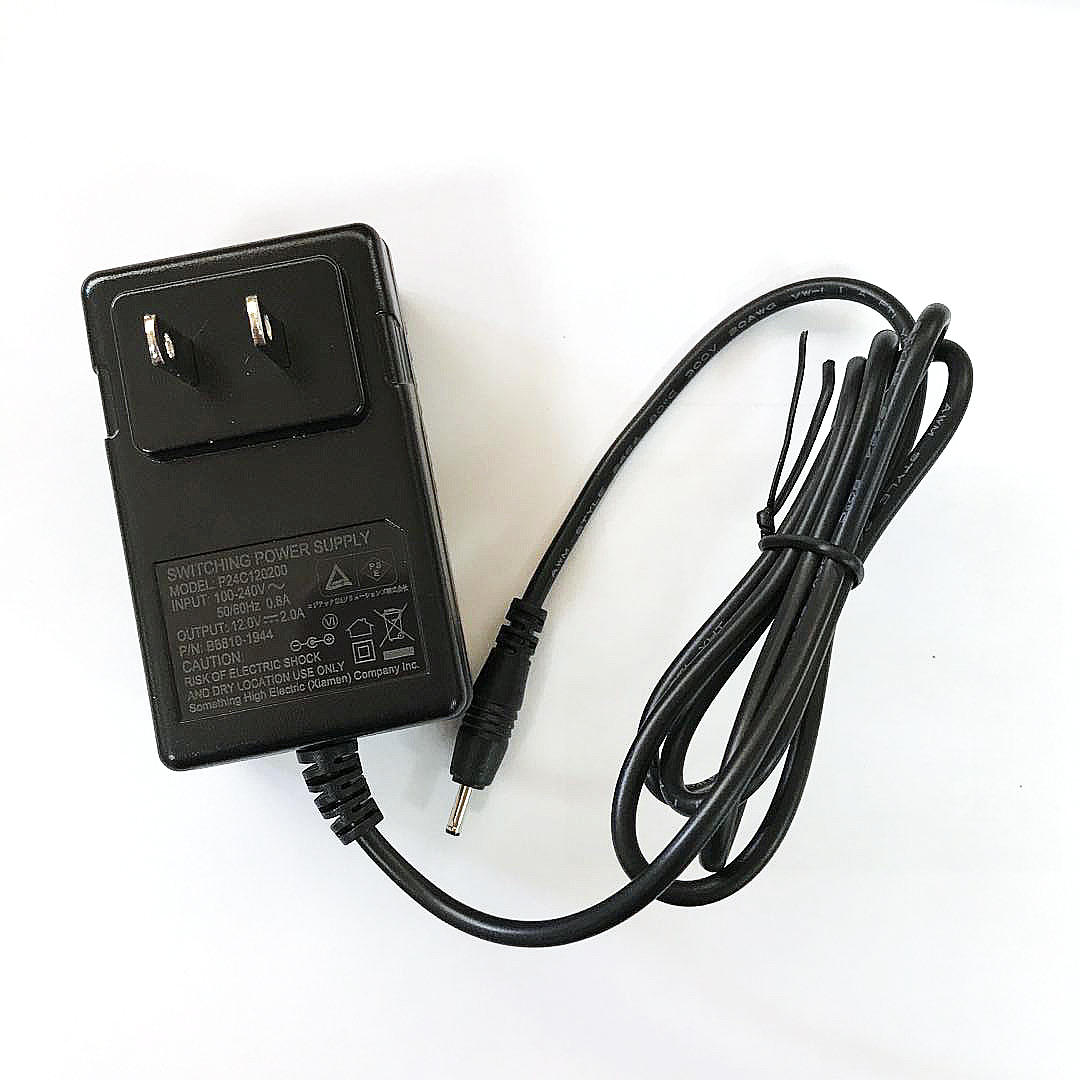

Accessories ■ Power Adaptor (US) (PN# 1010-900059G)

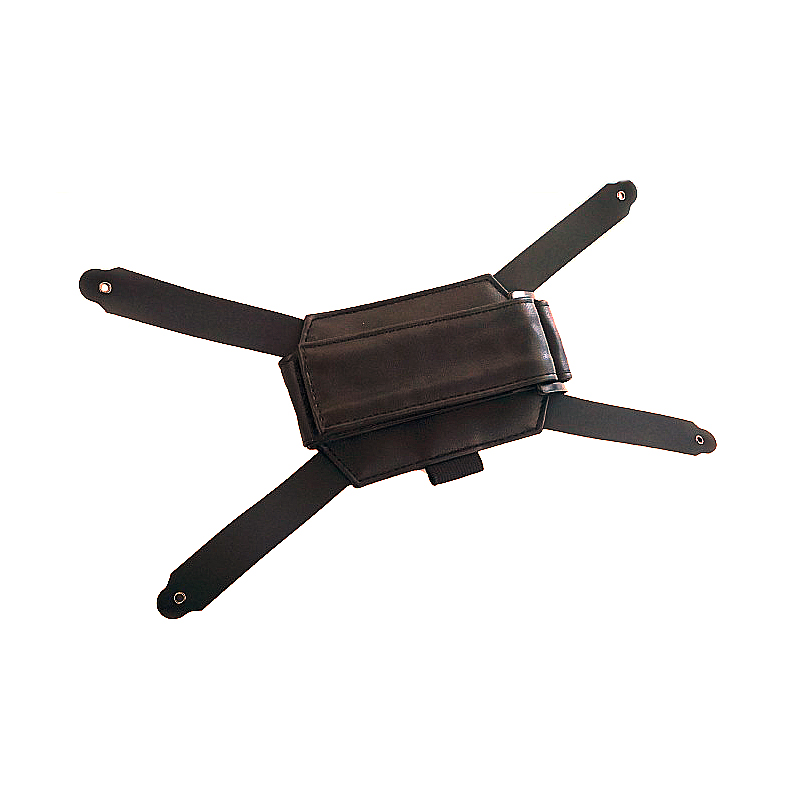

■ X-Hand Strap (PN# 3210-900028G)
■ Capacitive stylus pen (PN# 384896G)
■ Desktop Docking (PN# 5000-900073G)

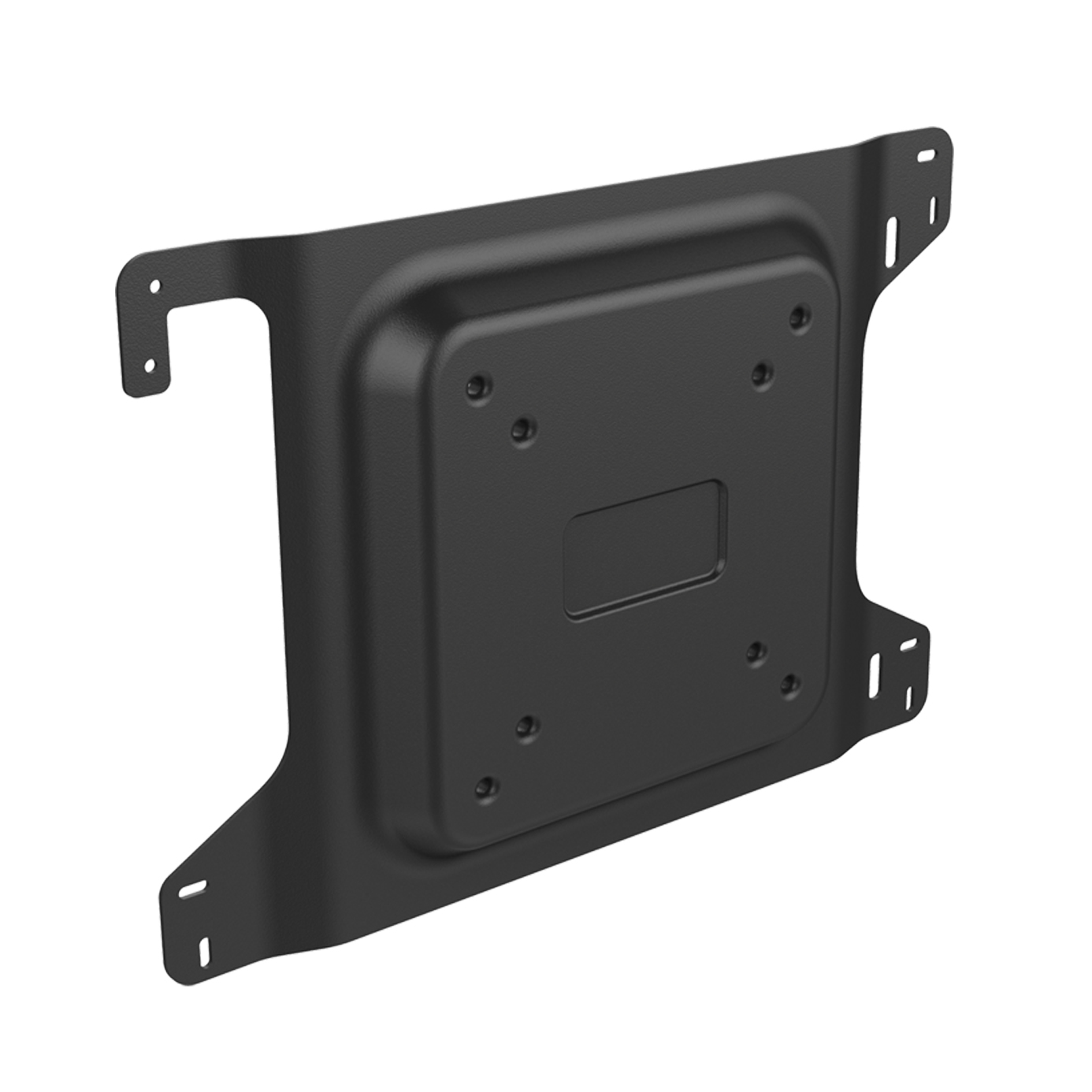

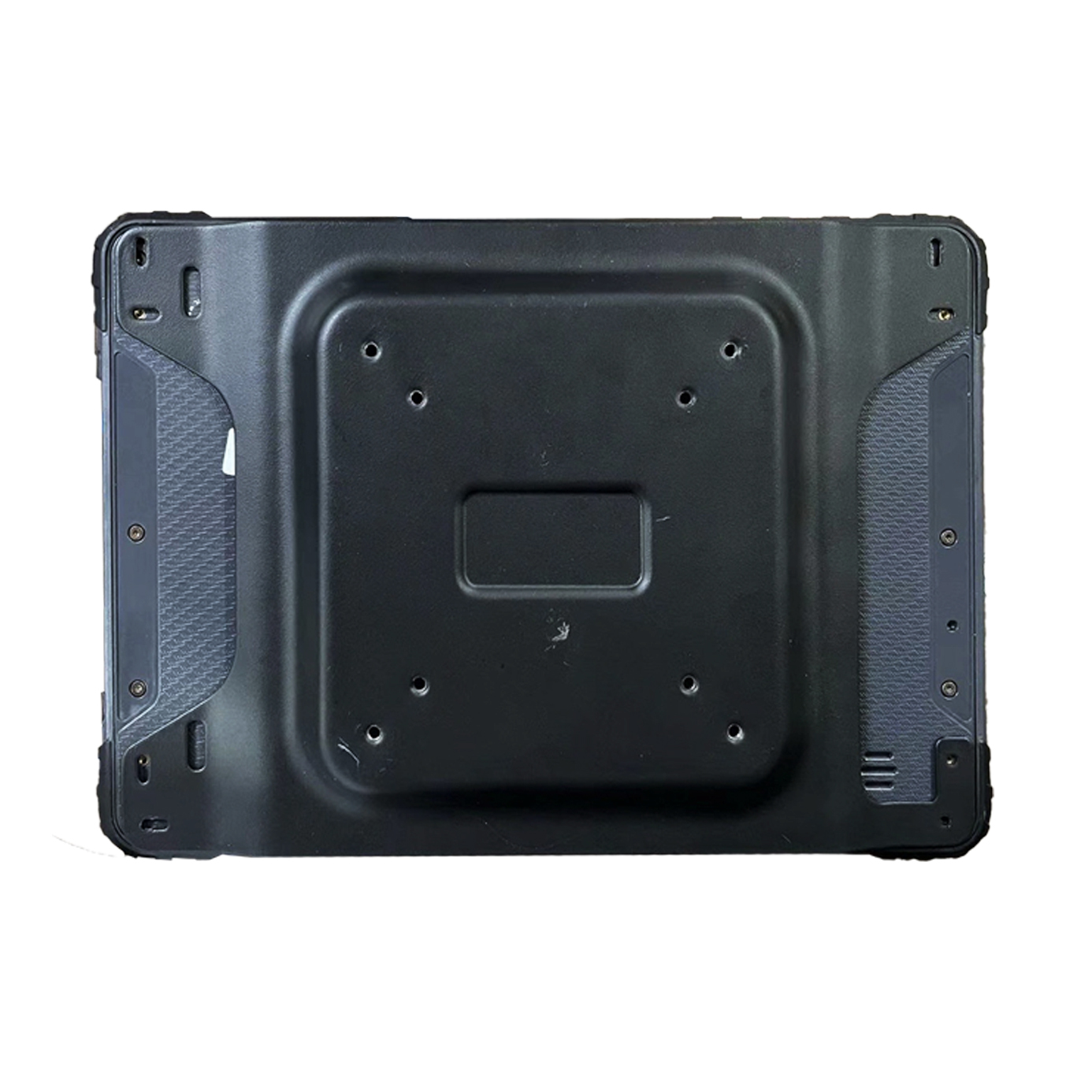

■ TB110 VESA MOUNT (By Project Based) (PN# 4070-900014G)
■ aXtion VHB MP Module with Silicone Hand Strap (PN#CWX136)
■ aXtion VHB MH Module (Black) (PN#CWX129)
■ MagConnect HD Single Arm Forklift | Pole (up to 3 inches wide) (PN#MMU230 (Ball Joint size: 26mm))
■ MagConnect HD Single Arm Forklift | Pole (up to 3 inches wide) (PN#MMU330 (Ball Joint size: 38mm))
■ MagConnect HD AMPs Mount (PN#MMU232 (Ball Joint Size: 26mm)
■ MagConnect HD AMPs Mount (PN#MMU332 (Ball Joint Size: 38mm)

What comes in the box

The standard package contents ■ TB110
■ Power Adaptor
(AC/DC adapter and AC power cord(US)
■ X-strap

Regulatory Approvals

Regulatory Approvals CE, FCC, BSMI

Warranty

Hardware Warranty 12 months
Statement This product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
