TB85
Android Rugged Tablet
Powered by Android 8 OS with GMS Certified, TB85 is an 8” rugged tablet.
-
Android 8
-
2D
-
8"
-
4G LTE
-
Wi-Fi
-
.svg)
13MP
-
IP67
-
1.2 m
-
GMS certified
-
Retail
-
Hospitality
-
Warehousing
-
Field Service
-
Manufacturing
.jpg)
Your business requires you to be flexible, tough, and extremely versatile and that's exactly how we engineered the Unitech TB85. With an attractive, slim case for easy portability, and fortified with a tough outer casing and environmental seal, this workhorse doesn't cut corners on durability or form factor.
Features
• Android 8.0 GMS with Octa-core CPU.
• Google Enterprise Device certified
• POGO Pin extension with QC3.0 (quick-charging)
• 14-pin POGO extension for modules
• 8200 mAh changeable Li-ION battery
• 32 GB eMMC + 4 GB DDR3 memory
• 4G/LTE, WLAN 80211 a/b/g/n/ac and NFC
• 8” display with Gorilla Glass 3 and GFF touch panel
• IP67 rated with a 4-foot drop spec
★This product has reached its End of Sale.
To explore our latest products, please visit :
https://www.ute.com/en/products/category/MobileComputers/EnterpriseTablets
Powerful Android 8.0 OS & GMS Certified
Intuitive usability combines with the most up-to-date Android experience and Google Mobile Services (GMS). Experience the newest improvements and bug fixes from the Android 8.0 operating system as well as the reliable backing of GMS and Google Enterprise Device certified. With all the features of a consumer-grade smart phone like Google Maps, Gmail, Photos, Drive and Play Store, your abilities on the TB85 smart device are practically limitless.
LTE for AT&T and T-Mobile
Dependable cellular service is becoming more vital in the workplace now than ever. The TB85 offers AT&T and T-Mobile 4G LTE service; faster downloads and uploads are at your fingertips on the most reliable networks in the nation. Voice calls are clearer and downloads and streamed videos are speedier so you can make calls and obtain data with confidence.
14-Pin Modular Extensions
The TB85 tablet is an extremely scalable product as the 14-pin POGO connector allows you to add devices that optimize your business and workflow. Insert a magnetic stripe reader for efficient check-out with credit and debit cards in retail or swap out the 2D scanner for a 1D scanner for easy inventory and asset tracking. The TB85's interchangeability makes this a truly versatile device.
8-Inch Screen with GFF
Lots of room to roam with the TB85's spacious 8-inch touch display panel! The large screen allows for more accurate and easier viewing while a GFF (glass film + film) layer resists scratches and reinforces durability. Whether collecting data in the warehouse, making deliveries on the field, or scanning tickets at an event, the capacitive display encourages fast transactions and application running.
Specification
Operation System
- OS Android 8.0
- GMS certified GMS certified
- Android Enterprise zero-touch support
- CPU 2.2 Ghz,Qualcomm MSM8953 PRO Octa-Core
- Memory 4GB RAM / 32GB Flash
- Languages support English, Thai, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
- Others Input Chinese/ English
Display
-
Screen Size
8 inch color (1280 x 800) LCD display 450nits
-
Touch Panel
Gorilla Glass III with capacitive touch pannel.
Support Capacitive Touch Screen.
Buttons / Keypad
- Buttons / Keypad 8 Function Keys: Power key, volume +/-, return key, home key, menu key and 2 customizable keys.
Camera
-
Camera
5MP front camera
13M rear camera, AF with LED flash
Indicator Type
- Type LEDs, Vibrator
Symbologies
- 2D Barcodes 2D / 1D barcode scan module with triggers
RFID
-
HF RFID
Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693 standard
I/O Interfaces
- USB USB TYPE-C
- POGO PIN POGO pin
- SIM Slot Nano SIMx1
- Expansion Slot MicroSD x 1
- Audio Microphone, speaker and 3.5mm audio jack
Power Source
- Main battery 8200 mAh changeable Li-ION battery
Communication
- Bluetooth® Bluetooth® 4.2 + BR/EDR + BLE
- WLAN 802.11 a/b/g/n/ac (Qualcomm WCN3680B)
-
WWAN
GSM: 850 / 900 / 1800 / 1900
TD-SCDMA: B34, 39
WCDMA: B1, 2, 5, 8
CDMA/EVDO: BC0
LTE-TDD: B38, 39, 40, 41
LTE-FDD: B1, 2, 3, 4, 5, 7, 8, 12 ,13, 17, 20, 25, 28 - GPS U-Blox M8N module with extend MMCX connector for GNSS antenna
-
Sensors
Ambient light sensor,
Hall sensor support for accessory,
Acceleration sensor,
Atmosphere pressure sensor
Software
- MDM Software Airwatch, SOTI
Enclosure
- Dimensions ( W x H x D ) 241.9 x 152 x 17.76 mm
- Weight 630g
Durability
- Drop Specification 1.2m
- Sealing IP67
- Tumble test MIL-STD-810G
Environmental
- Operating temperature -4˚ to 140˚ F (-20˚ to 60 ˚C)
- Storage temperature -40˚ to 158˚ F (-40˚C to 70 ˚C)
- Relative Humidity 5% ~ 95% (Non-Condensing)
Accessories
-
Accessories
■ Glass Screen Protector (PN# 401536G)
■ Power Adapter (PN#1010-085001G)
■ Rotatable Hand-Strap (PN# AH3220UA)
■ Shoulder Strap Case (PN#TB85-HOLSTER)
■ X-Hand Strap (PN#5500-085001G)
■ 2D Engine Module (PN# 4080-085001G)
■ 8200mAH Battery Pack (PN# 5100-085001G)
■ Type C Cable (PN# 1550-085001G)

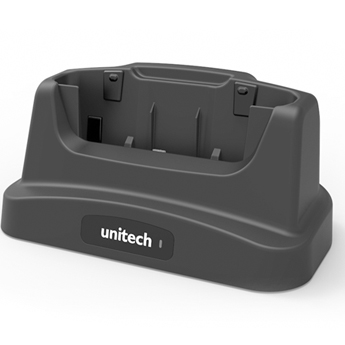

■ Ethernet Cradle (PN#5000-900051G)
■ Vehicle Cradle (PN#5000-085001G)
■ 2D gun grip (PN#5500-900084G)
■ 2 Bay Battery Charger with Power Cords (PN# 5100-900027G)
■ Stylus (PN#384896G)
Regulatory Approvals
- Regulatory Approvals GMS, CE, RED, FCC, BSMI, NCC, RoHS,
Warranty
- Statement 12 months
Accessories
 .jpg)
Download
Marketing Material
-
Rev.E528.5KB1,680 Downloads
Technical Material
-
699.2KB121 Downloads
-
V1.33.8MB125 Downloads
-
6.2MB160 Downloads
Supporting Software
-
This app will allow users to use F1 or F2 key to activate the scan engine.1MB157 Downloads
FAQ
-
237.8KB166 Downloads
