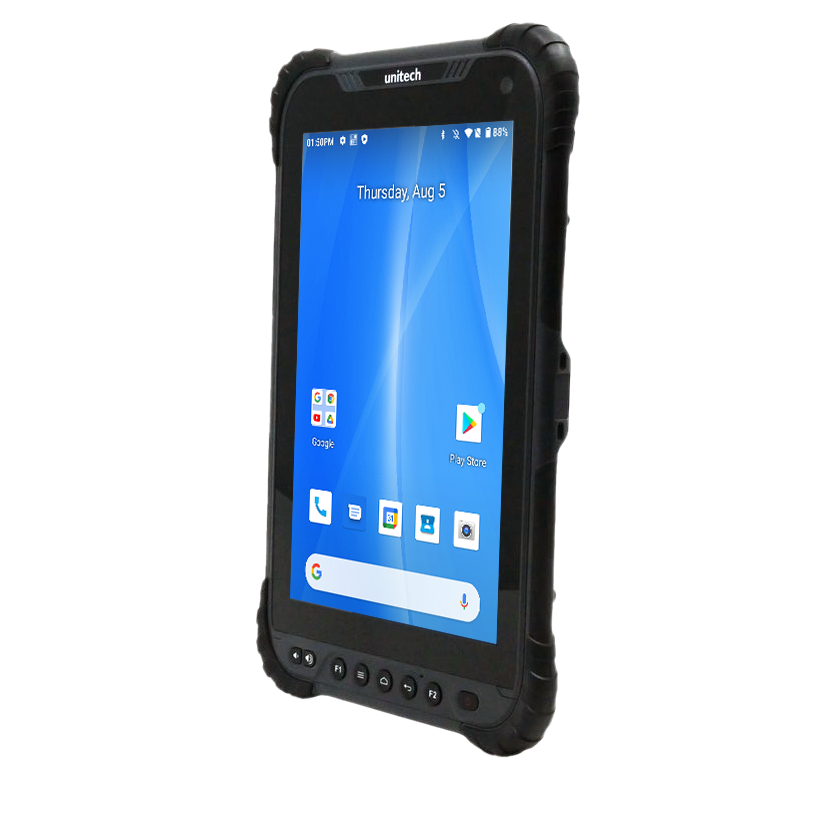

Unitech has announced its next-generation Android 10 rugged tablet with an attractive, slim case for easy portability. It has an 8-inch display as offering the 450nits brightness for easy viewing in the outdoor environment, the ability to work while wearing gloves, and wet resistance. Tough with extreme multi-functions, it streamlines the workflow through a wide range of challenging industries, including field service, warehousing, manufacturing, logistics, and transportation.
Features
• Android 10.0 GMS with Octa-core CPU.
• Google Enterprise Device certified
• 8” display with Gorilla Glass 3 (450 nits)
• Lightweight but durable: weighs 630g
• Flexible design: 14-pin POGO extension for modules
• 8200 mAh changeable Li-ION battery
• 4G/LTE, Wi-Fi 802.11 a/b/g/n/ac and NFC
• Ultra-Rugged Construction: IP67 rated, 1.2M drop and MIL-STD-810G certified
Powerful Android 10 OS + GMS Certified
Intuitive usability combines with the most up-to-date Android experience and Google Mobile Services (GMS). Experience the newest improvements from the Android 10 operating system as well as the reliable backing of GMS. With all the features of a consumer-grade smartphone like Google Maps, Gmail, Photos, Drive, and Play Store, your abilities on the TB85 plus smart device are practically limitless. |
|||||
|
|||||
Android 10 Operation System |
GMS certification |
Attractive, Slim Case for Easy Portability
It has an 8-inch display as offering the 450nits brightness for easy viewing in the outdoor environment, the ability to work while wearing gloves, and wet resistance. Tough with extreme multi-functions, it streamlines the workflow through a wide range of challenging industries, including field service, warehousing, manufacturing, logistics, and transportation. |
|||||
|
|||||

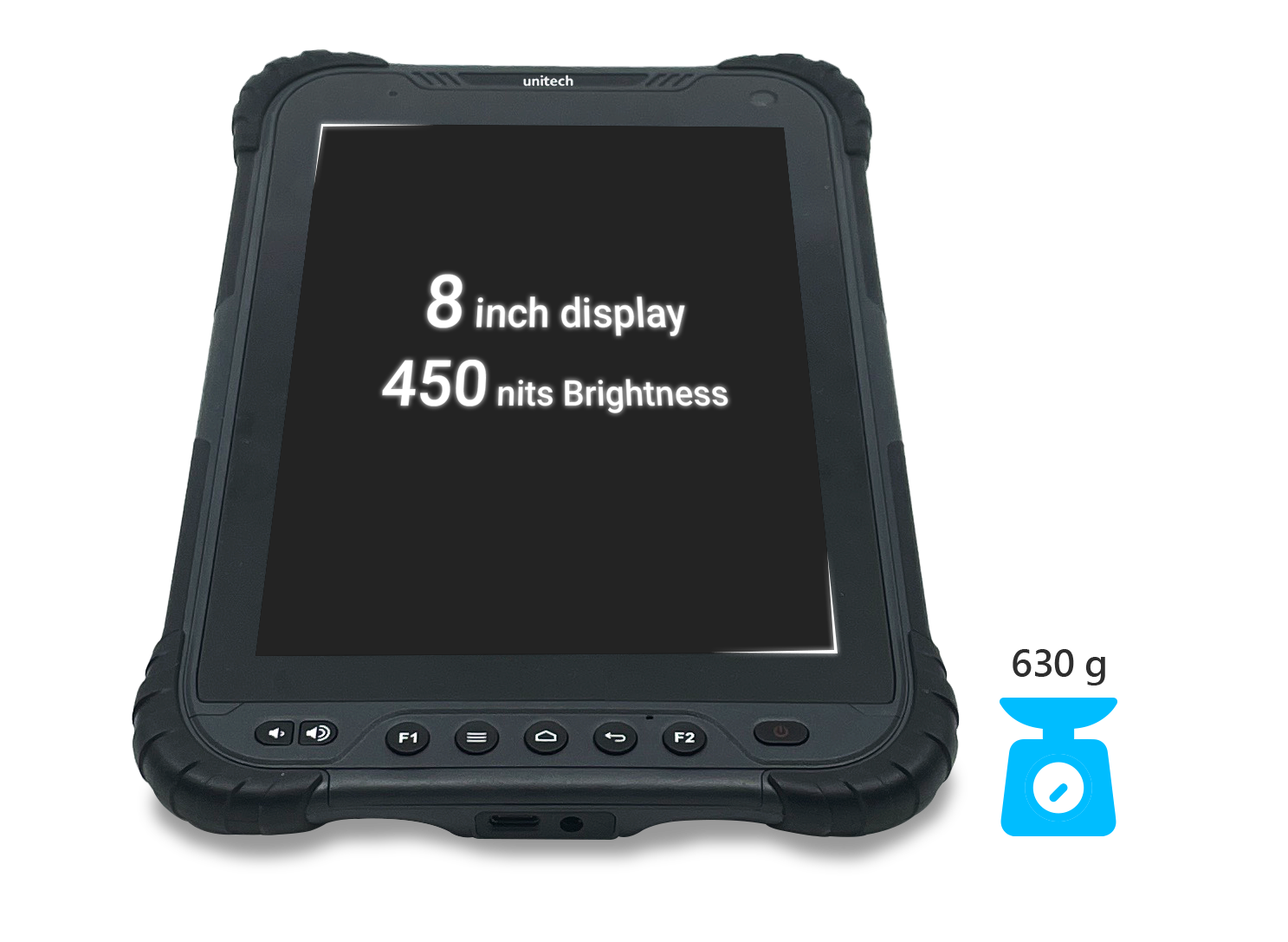

8 inch Display |
630g Lightweight |
450nits Brightness |

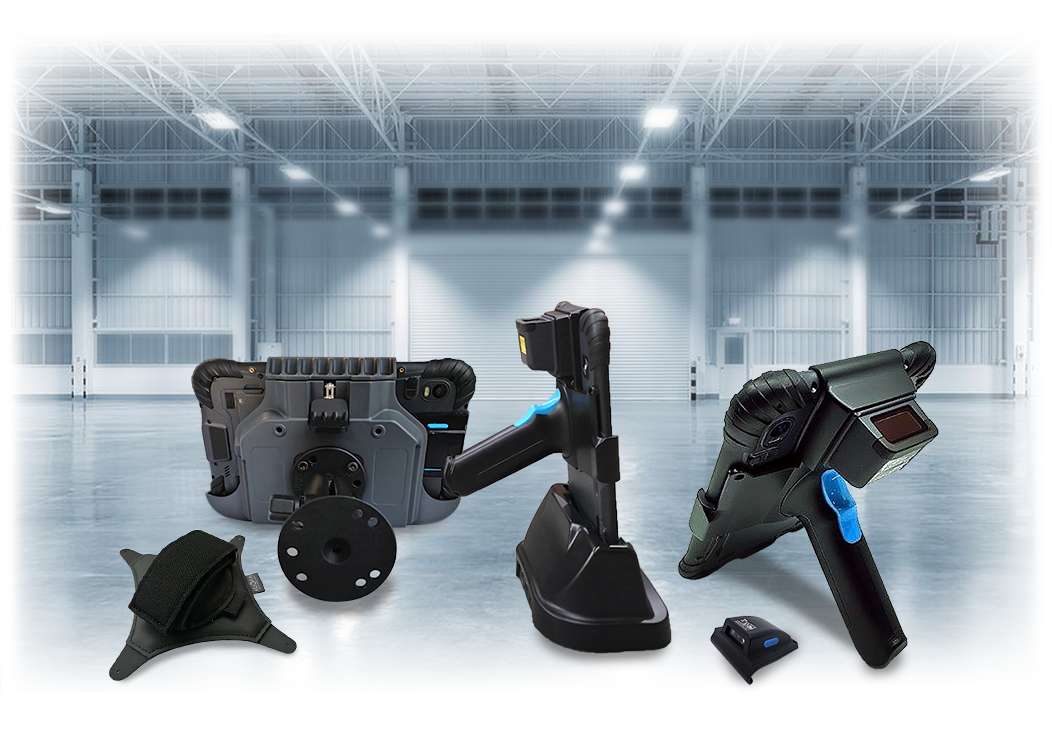

Various Accessories for Extensions
The TB85 plus tablet is an extremely scalable product as the 14-pin POGO connector allows users to add values to your device by extending various accessories on hand. Inserting the 2D engine module to the TB85 plus, users can capture 1D/2D barcodes for easy inventory and asset tracking. Combined with a vehicle cradle, the tablet can fit seamlessly into forklifts or heavy-duty vehicles for warehouse or field service solutions. It gives the flexibility to optimize your business and workflow whenever in different scenarios. |
|||||||||
|
|||||||||

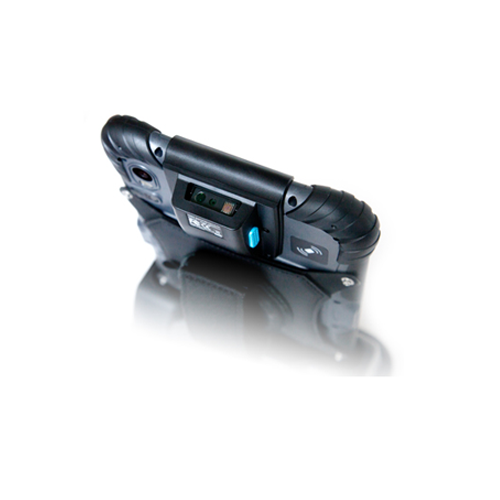

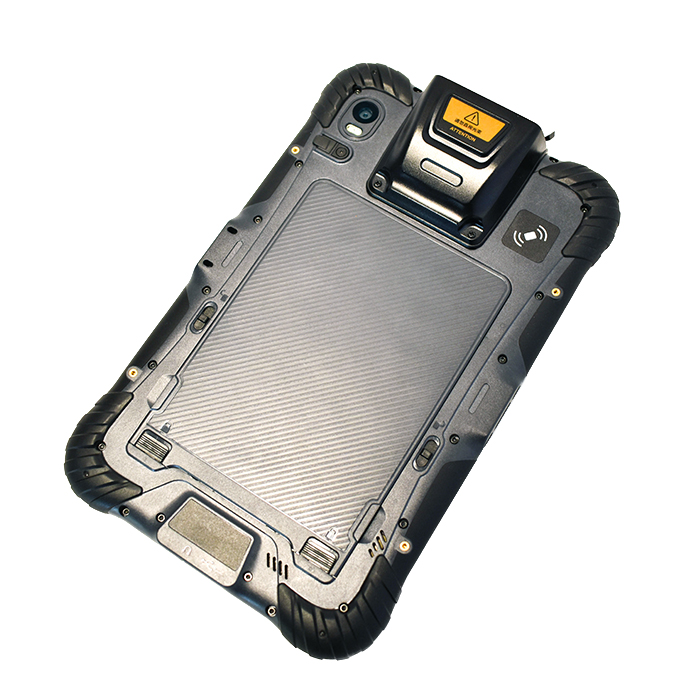

2D Engine Module |
2D Gun Grip | X-Hand strap | Shoulder strap case | Vehicle Cradle |
Stay Connected
The combined strength of a rugged exterior with a superior interior is complimented by excellent connectivity. Equipped with NFC compatibility, Bluetooth 4.2, wireless 802.11 a/b/g/n/ac connection, and 4G LTE, you are always connected to wireless communication nearby. Users can enjoy faster downloads and uploads at their fingertips on the most reliable networks for your business. |
|||||||||||
|
|||||||||||
NFC | Bluetooth 4.2 | 802.11 a/b/g/n/ac | 4G LTE |

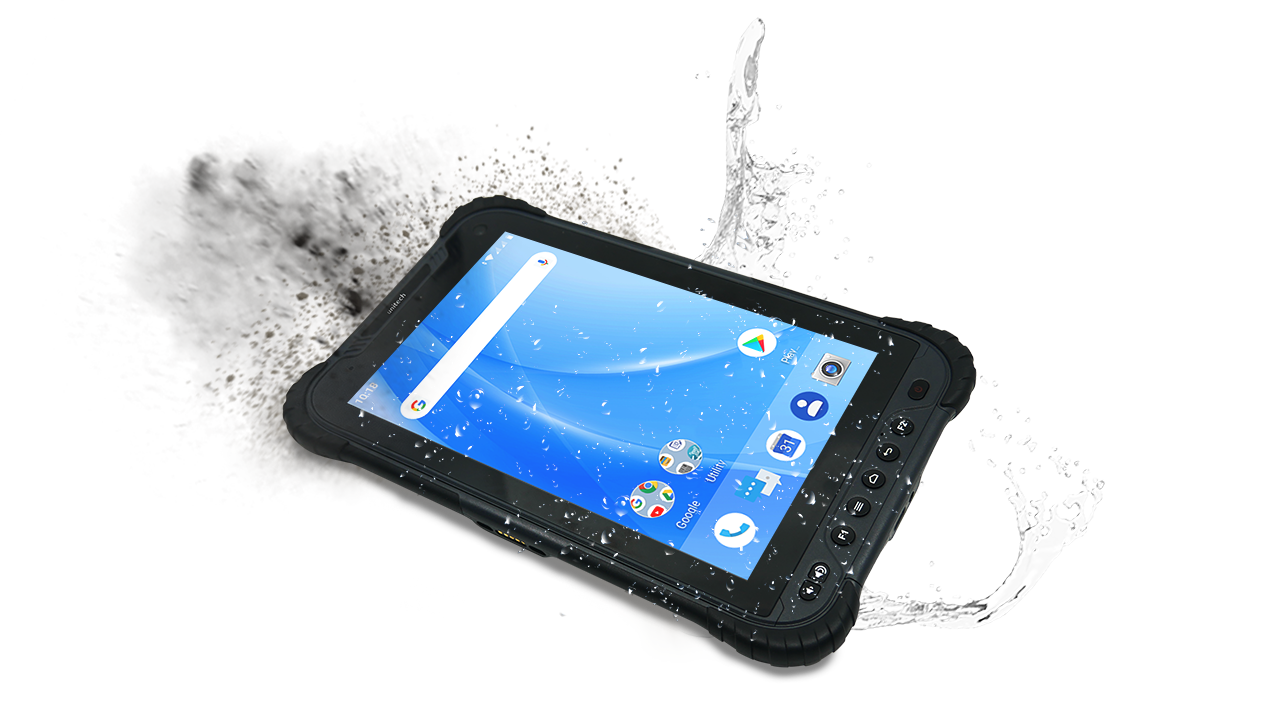

Durable Design

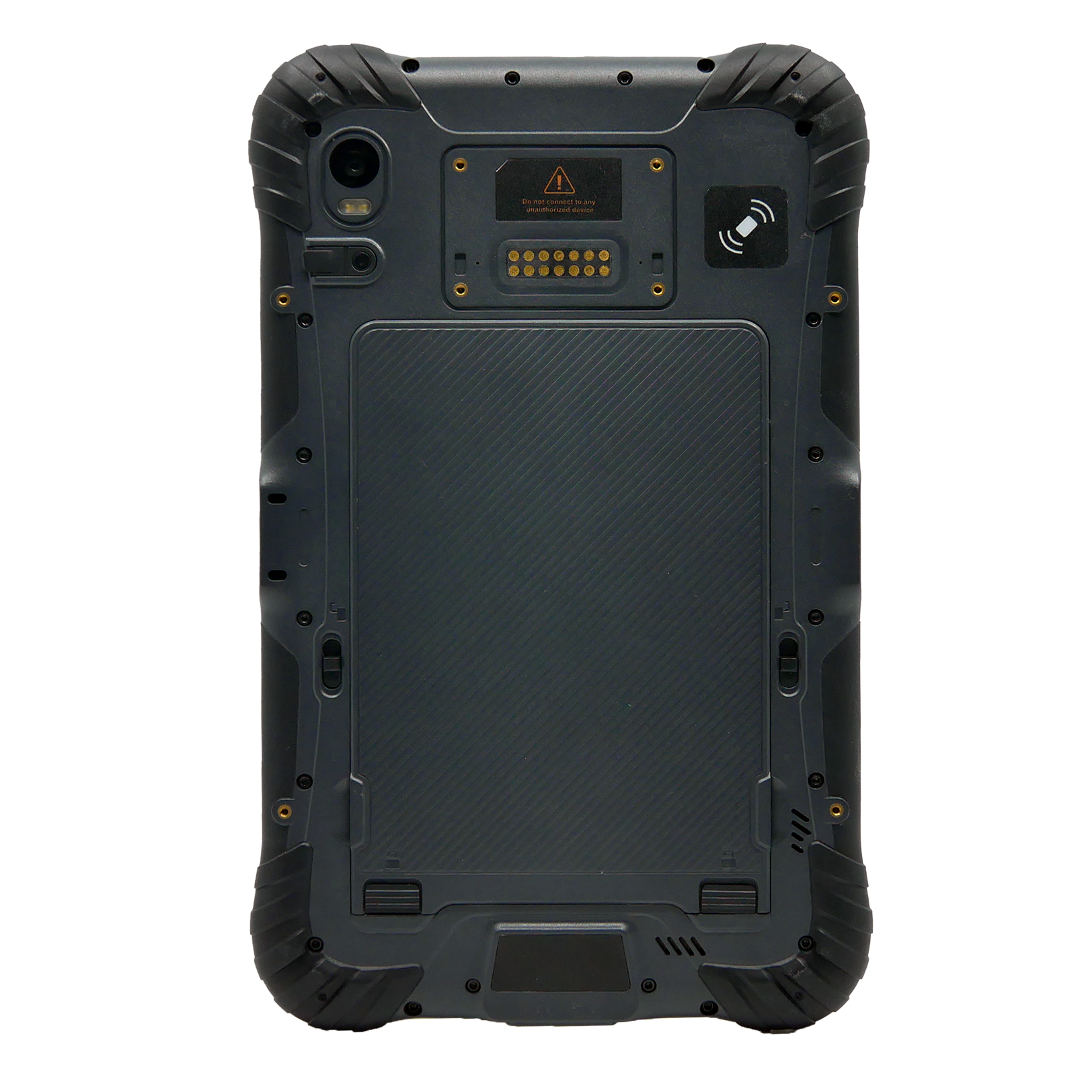

Engineered to perform in any environment, TB85 plus is rugged enough to drop from the 1.2 meters onto concrete. Moreover, it has IP67 certification, completely sealing durable housing against dust and moisture to withstand water jets. Not only that, but this device meets sturdy MIL-STD-810G military standards, boasting shock resistance and anti-vibration. TB85 plus also has a removable battery to keep tablets going longer, bringing a new level of industrial tablet with higher reliability for business applications and field service. |
|||||||||||
|
|||||||||||
IP67 | 1.2 m drop | MIL-STD-810G |
Support SOTI— MobiControl
SOTI MobiControl empowers organizations to remotely track the performance of mobile devices and easily configure the application settings through the entire lifespan of mobile devices. Business operations gain better visibility into where the devices are, what tasks they’re carrying out, and how the productivity is going on. It’s a mobile solution to help you effectively communicate and oversee end-to-end points without the time and location limitations! |
|||
|
|||
Configure Quickly & Easily |
Manage Apps Remotely & Securely |
Eliminate Devices Downtime |
Optimize Data Delivery |
Specification
Operation System
- OS Android 10
- GMS certified GMS certified
- Android Enterprise zero-touch support
- CPU 2.2 Ghz,Qualcomm MSM8953 PRO Octa-Core
-
Memory
RAM 4GB
Flash 64GB - Languages support English, Thai, Simplified Chinese, Traditional Chinese, Japanese, Spanish, German, French, Italian, Portuguese, Korean and multiple languages
- Others Input Chinese/ English
Display
-
Screen Size
8 inch color (1280 x 800) LCD display 450nits
-
Touch Panel
Gorilla Glass III with capacitive touch pannel.
Support Capacitive Touch Screen.
Buttons / Keypad
- Buttons / Keypad 8 Function Keys: Power key, volume +/-, return key, home key, menu key and 2 customizable keys.
Camera
-
Camera
5MP front camera
13M rear camera, AF with LED flash
Indicator Type
- Type LEDs, Vibrator
Symbologies
- 2D Barcodes 2D / 1D barcode scan module with triggers
RFID
-
HF RFID
Support HF/NFC
Frequency 13.56Mhz
Support: ISO14443A/B, ISO15693 standard
I/O Interfaces
- USB USB TYPE-C
- POGO PIN POGO pin
- SIM Slot Nano SIMx1
- Expansion Slot MicroSD x 1
- Audio Microphone, speaker and 3.5mm audio jack
Power Source

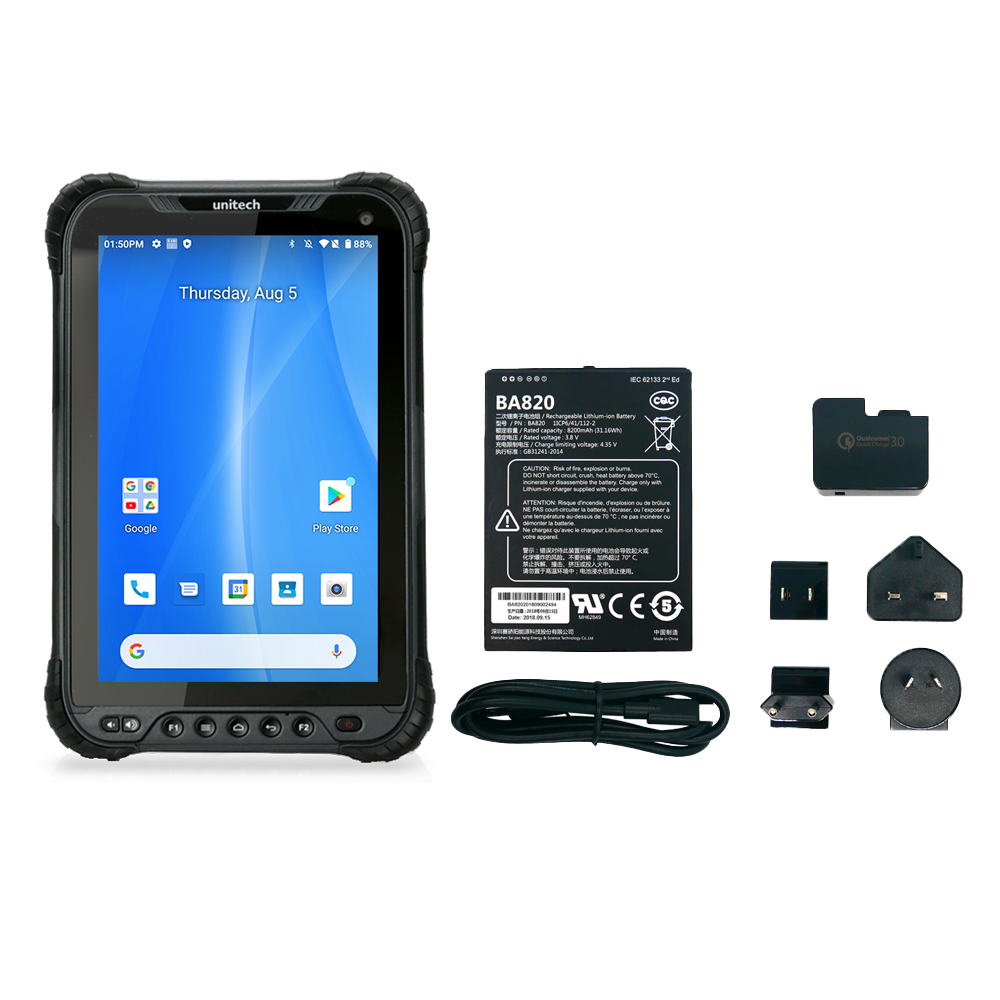

- Main battery 8200 mAh changeable Li-ION battery
Communication
- Bluetooth® Bluetooth® 4.2 + BR/EDR + BLE
- WLAN 802.11 a/b/g/n/ac
-
WWAN
GSM: 850 / 900 / 1800 / 1900
TD-SCDMA: B34, 39
WCDMA: B1, 2, 5, 8
CDMA/EVDO: BC0
LTE-TDD: B38, 39, 40, 41
LTE-FDD: B1, 2, 3, 4, 5, 7, 8, 12 ,13, 17, 20, 25, 28 - GPS GNSS-GLONASS (Global Navigation Satellite System)
-
Sensors
Ambient light sensor,
Hall sensor support for accessory,
Acceleration sensor,
Atmosphere pressure sensor
Software
- MDM Software Airwatch, SOTI
Enclosure
- Dimensions ( W x H x D ) 241.9 x 152 x 17.76 mm
- Weight 630g
Durability
- Drop Specification 1.2m
- Sealing IP67
- Tumble test MIL-STD-810G
Environmental
- Operating temperature -4˚ to 140˚ F (-20˚ to 60 ˚C)
- Storage temperature -40˚ to 158˚ F (-40˚C to 70 ˚C)
- Relative Humidity 5% ~ 95% (Non-Condensing)
Accessories
-
Accessories

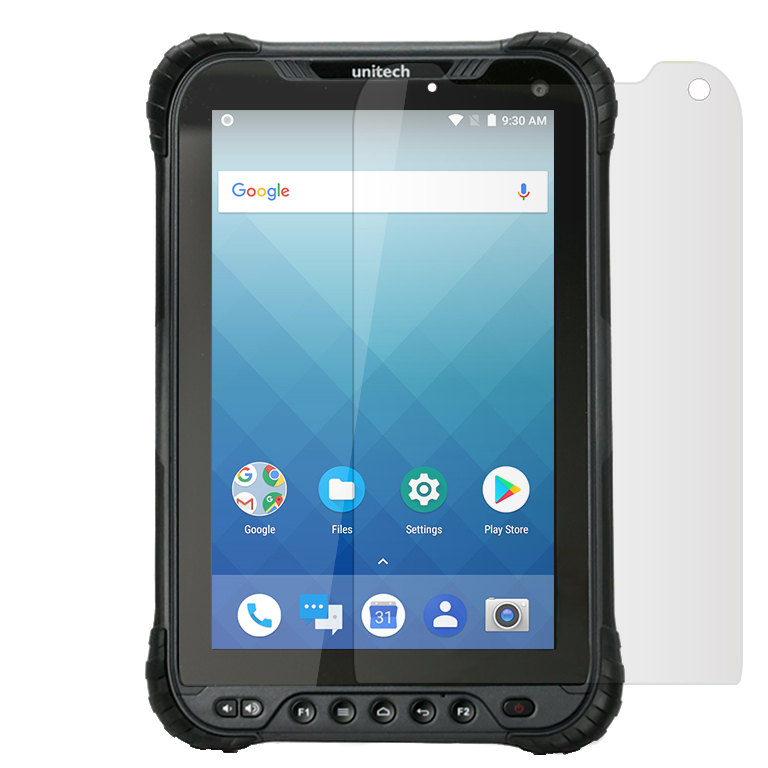

■ Glass Screen Protector (PN# 401536G)
■ Power Adapter (PN#1010-085001G)

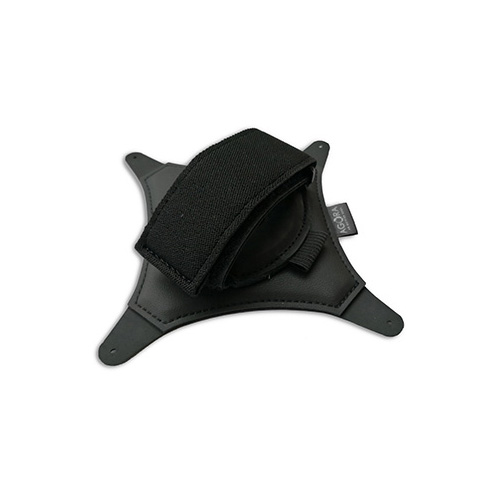

■ Rotatable Hand-Strap (PN# AH3220UA)

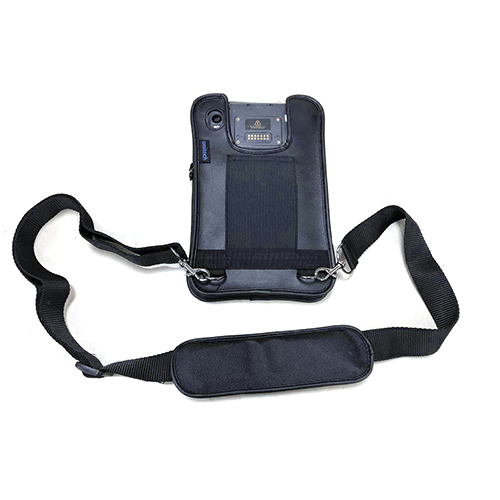

■ Shoulder Strap Case (PN#TB85-HOLSTER)

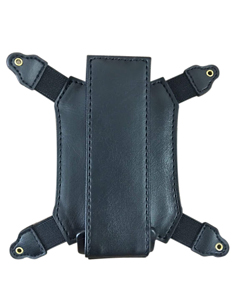

■ X-Hand Strap (PN#5500-085001G)

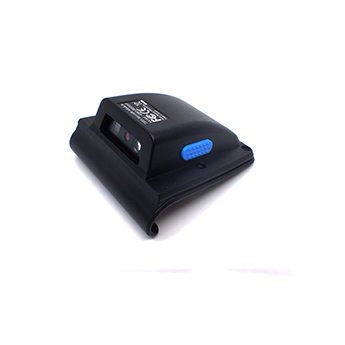

■ 2D Engine Module (PN# 4080-085003G)

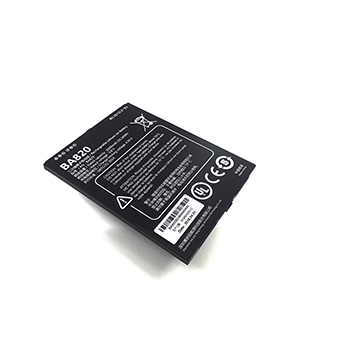

■ 8200mAH Battery Pack (PN# 5100-085001G)

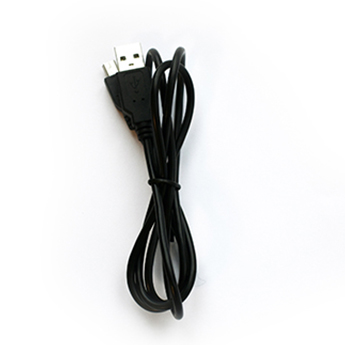

■ Type C Cable (PN# 1550-085001G)

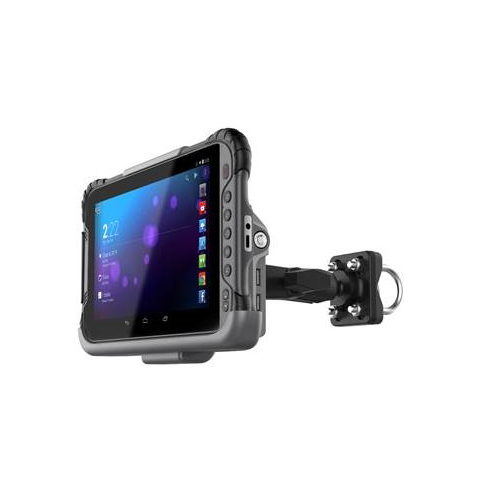

■ Vehicle Cradle (PN#5000-085001G)

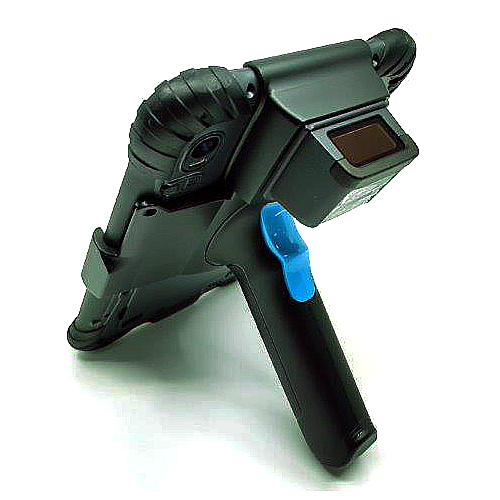

■ 2D Gun Grip (PN#5500-900084G)*by project based

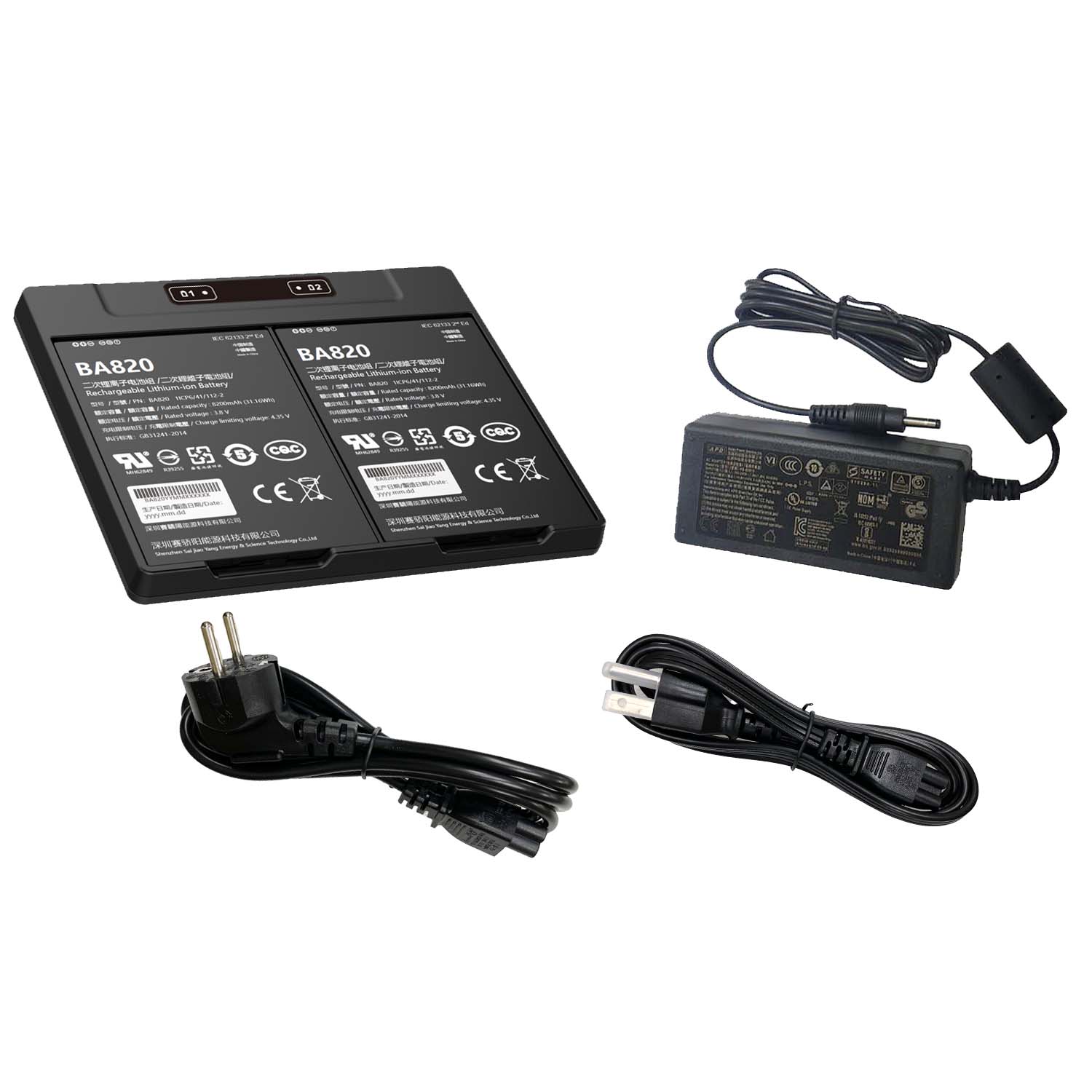

■ 2 Bay Battery Charger with Power Cords (PN# 5100-900027G)
■ Stylus (PN#384896G)
■ RP902 Bluetooth UHF RFID Pocket Reader (PN#RP902-33E8S0G (EU), PN#RP902-43A8S0G (US), PN#RP902-43F8S0G (JP))
■ Screw mount kit (EU ONLY) (PN#RAM-B-101U)
■ Suction-mount kit (EU ONLY) (PN#RAM-B-166-202U)

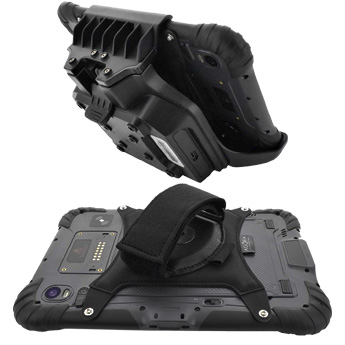

■ Hand-strap V2.0 (EU ONLY) (PN#AI3752UA)
Regulatory Approvals
- Regulatory Approvals GMS, CE, RED, FCC, BSMI, NCC, RoHS,
Warranty
- Hardware Warranty 12 months
- Statement This product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
